EpiRhandbook の bookdown 実行のスクラップ

ピン留めされたアイテム
ysaitoysaito
  • Ubuntu 22.04 LTS で EpiRhandbook をコンパイルする手順

  • bookdown を使うための準備

  • EpiRHandbook を bookdown でコンパイルするための最低限のパッケージ

    • install_packages.R として保存しておく
ysaitoysaito

必要な OS パッケージのインストール

$ sudo apt update &&\
  sudo apt install -y \
    cmake \
    build-essential \
    libxml2-dev \
    libudunits2-dev \
    libgdal-dev \
    libgeos-dev \
    libproj-dev \
    libglpk-dev \
    libsodium-dev \
    gdal-bin \
    gdal-data \
    pktools-dev \
    libmagick++-dev
  • OpenstreetMap パッケージのインストールには rJava パッケージのインストールが必要
  • rJava パッケージ のインストールには JDK が必要
$ sudo apt install openjdk-18-jdk
$ # openjdk-18 を指定する場合
$ # sudo R CMD javareconf JAVA_HOME=/usr/lib/jvm/java-18-openjdk-amd64/ -e
$ R CMD javareconf -e
# 起動したシェルで R を起動
$ R
> # 起動した R session 内でパッケージのインストールを実行
> source("install_packages.R")
> q() # 一旦セッションを終了する

改めて R セッションを起動し、bookdown を実行する

> bookdown::render_book(input = '.', output_format = 'bookdown::bs4_book', clean = TRUE, config_file = '_bookdown.yml')

指定の章のみのレンダリング

> bookdown::render_book(input = '.', output_format = 'bookdown::bs4_book', clean = TRUE, config_file = '_small_bookdown.yml')
ysaitoysaito

Ubuntu 22.04 LTS で実行するときに、ファイルの大文字小文字、空白の扱いの違いでいくつかのファイル名の変換が必要

$ cp -a ./images/RStudio_overview.PNG ./images/RStudio_overview.png
$ cp -a ./images/markdown/8_ppttemplate.PNG ./images/markdown/8_ppttemplate.png
$ cp -a './images/Epi R Handbook Banner Beige 1500x500.png' ./images/Epi_R_Handbook_Banner_Beige_1500x500.png
$ cp -a './images/Epi interview image.jpg' ./images/Epi_interview_image.jpg
$ cp -a './images/Epi R Handbook Banner Japanese 1500x500.png' ./images/Epi_R_Handbook_Banner_Japanese_1500x500.png
  • index.Rmd ファイル内の該当の画像ファイル名を変更しておく
ysaitoysaito
  • Docker image を使って環境構築

rocker/rstudio:4.3.2 の docker image を利用

$ docker run -it --rm --mount type=bind,source="$(pwd)",target=/opt/epiRhandbook_jp rocker/rstudio:4.3.2 /bin/bash
# 別シェルを立ち上げて変更をコミット
# docker commit <image id> <repository:tag>
# docker push <repository:tag>
$ docker commit <image id> ysaito8015/epirhandbook_jp:versionTag
$ docker push ysaito8015/epirhandbook_jp:versionTag
$ cat /etc/lsb-release
DISTRIB_ID=Ubuntu
DISTRIB_RELEASE=22.04
DISTRIB_CODENAME=jammy
DISTRIB_DESCRIPTION="Ubuntu 22.04.3 LTS"

$ apt update &&\
  apt dist-upgrade -y &&\
  apt install -y \
    cmake \
    build-essential \
    pandoc \
    libxml2-dev \
    libudunits2-dev \
    libgdal-dev \
    libgeos-dev \
    libproj-dev \
    libglpk-dev \
    libsodium-dev \
    gdal-bin \
    gdal-data \
    pktools-dev \
    libmagick++-dev \
    openjdk-18-jdk \
    libharfbuzz-dev \
    libfribidi-dev
$ R CMD javareconf -e

javareconf -e で起動したシェル内で引き続き作業する

# R パッケージのインストールを済ませておく
$ Rscript install_packages.R 2>&1 | tee ./log/install_packages.log

以下のスクリプトを、bookdoen_build.R で保存しておく

bookdown::render_book(
  input = '.',
  output_format = 'bookdown::bs4_book',
  clean = TRUE,
  config_file = '_bookdown.yml'
)

log を記録しながら実行

$ Rscript bookdown_build.R 2>&1 | tee ./log/bookdown_build.log
ysaitoysaito

パッケージのインストールでエラーが起きている

Warning messages:
1: In utils::install.packages(pkg_download[!installed_packages]) :
  installation of package ‘ClassDiscovery’ had non-zero exit status
2: In utils::install.packages(pkg_download[!installed_packages]) :
  installation of package ‘PCDimension’ had non-zero exit status
ysaitoysaito
> pacman::p_load("ClassDiscovery")
Installing package into ‘/usr/local/lib/R/site-library’
(as ‘lib’ is unspecified)
Warning: dependency ‘Biobase’ is not available
trying URL 'https://packagemanager.rstudio.com/cran/__linux__/focal/latest/src/contrib/ClassDiscovery_3.4.0.tar.gz'
Content type 'binary/octet-stream' length 506131 bytes (494 KB)
==================================================
downloaded 494 KB

ERROR: dependency ‘Biobase’ is not available for package ‘ClassDiscovery’
* removing ‘/usr/local/lib/R/site-library/ClassDiscovery’

The downloaded source packages are in/tmp/RtmpVbROUE/downloaded_packages’
Warning messages:
1: In utils::install.packages(package, ...) :
  installation of package ‘ClassDiscovery’ had non-zero exit status

Biobase がないと
とりあえずインストール

> BiocManager::install("Biobase", update = TRUE, ask = FALSE)

もしくは

> BiocManager::install("ClassDiscovery", update = TRUE, ask = FALSE, force = TRUE)
> pacman::p_load("PCDimension")
Installing package into ‘/usr/local/lib/R/site-library’
(as ‘lib’ is unspecified)
trying URL 'https://packagemanager.rstudio.com/cran/__linux__/focal/latest/src/contrib/PCDimension_1.1.13.tar.gz'
Content type 'binary/octet-stream' length 197878 bytes (193 KB)
==================================================
downloaded 193 KB

* installing *source* package ‘PCDimension’ ...
** package ‘PCDimension’ successfully unpacked and MD5 sums checked
** using staged installation
** R
** data
** inst
** byte-compile and prepare package for lazy loading
** help
*** installing help indices
** building package indices
** installing vignettes
** testing if installed package can be loaded from temporary location
** testing if installed package can be loaded from final location
** testing if installed package keeps a record of temporary installation path
* DONE (PCDimension)

The downloaded source packages are in/tmp/RtmpVbROUE/downloaded_packages’

PCDimension installed
ysaitoysaito

もう一度 install_packages.R を実行して出てきたエラー
R を再起動で解決

Failed with error:  ‘lazy-load database '/usr/local/lib/R/site-library/flextable/R/flextable.rdb' is corrupt’
In addition: Warning messages:
1: In FUN(X[[i]], ...) : restarting interrupted promise evaluation
2: In FUN(X[[i]], ...) : internal error -3 in R_decompress1

Warning message:
In pacman::p_load(bookdown, downlit, xml2, here, dplyr, incidence2,  :
  Failed to install/load:
downlit
ysaitoysaito

bookdown 実行時のエラー

label: unnamed-chunk-210
Quitting from lines 5182-5189 (_main.Rmd)
Error: 'clean_variable_spelling' is not an exported object from 'namespace:linelist'
In addition: Warning messages:
1: 278 missing rows were removed (86 values from `age_cat5` and 278 values from `gender`).
2: 278 missing rows were removed (86 values from `age_cat5` and 278 values from `gender`).
3: 278 missing rows were removed (86 values from `age_cat5` and 278 values from `gender`).
linelist <- linelist %>%
  linelist::clean_variable_spelling(
    wordlists = cleaning_dict,
    spelling_vars = "col",
     # 参照する列名を含む列を指定する
     #(デフォルトではディクショナリの3番目の列になる)
  )
ysaitoysaito

linelist パッケージの名前空間がきちんと機能していない?

ysaitoysaito

うまく解決できないので、Ubuntu でコンパイルしてみる

ysaitoysaito
  • エラー発生
    • 該当のパッケージをインストールして解決
  • Ubuntu 22.04 LTS
  • R 4.2.1
  • Terminal
label: read_climate (with options)
List of 2
 $ warning: logi FALSE
 $ message: logi FALSE

Quitting from lines 16075-16086 (_main.Rmd)
Error in read_ncdf(file_paths[1]) :
  package ncmeta required, please install it first
In addition: There were 26 warnings (use warnings() to see them)
ysaitoysaito
  • エラー発生

    • 上のエラーを解決して、パッケージインストール用スクリプトを実行した後
  • Ubuntu 22.04 LTS

  • R 4.2.1

  • Terminal

該当箇所

label: unnamed-chunk-697 (with options)
List of 5
 $ echo     : logi FALSE
 $ fig.show : chr "hold"
 $ message  : logi FALSE
 $ warning  : logi FALSE
 $ out.width: chr [1:2] "50%" "50%"

Quitting from lines 12579-12670 (_main.Rmd)
Error in bold(., i = 6, bold = TRUE, part = "body") :
  unused arguments (i = 6, bold = TRUE, part = "body")
5848 In addition: There were 22 warnings (use warnings() to see them)
ysaitoysaito
  • エラー発生

  • 環境 1

    • Ubuntu 22.04 LTS
    • R 4.2.1
    • Terminal
  • 環境 2

    • Windows 10 Pro
    • R 4.2.1
    • RStudio RStudio-2022.07.1-554.exe

該当箇所

label: read_climate (with options)
List of 2
 $ warning: logi FALSE
 $ message: logi FALSE

no 'var' specified, using t2m, tp
other available variables:
 longitude, latitude, time
Will return stars object with 8760 cells.
No projection information found in nc file.
 Coordinate variable units found to be degrees,
 assuming WGS84 Lat/Lon.
no 'var' specified, using t2m, tp
other available variables:
 longitude, latitude, time
Will return stars object with 8760 cells.
No projection information found in nc file.
 Coordinate variable units found to be degrees,
 assuming WGS84 Lat/Lon.
Quitting from lines 16075-16086 (_main.Rmd)
Error in Ops.stars(read_ncdf(file_paths[1]), read_ncdf(file_paths[2])) :
  (first) dimensions of e1 and e2 do not match
In addition: There were 26 warnings (use warnings() to see them)```
ysaitoysaito

該当チャンクの実行結果

> read_ncdf(file_paths[1])
no 'var' specified, using t2m, tp
other available variables:
 longitude, latitude, time
Will return stars object with 8760 cells.
No projection information found in nc file.
 Coordinate variable units found to be degrees,
 assuming WGS84 Lat/Lon.
stars object with 3 dimensions and 2 attributes
attribute(s):
           Min.  1st Qu.       Median         Mean      3rd Qu.         Max.
t2m [K] 256.459 276.7418 2.816750e+02 2.818962e+02 2.874753e+02 3.049785e+02
tp [m]    0.000   0.0000 2.328388e-06 1.137138e-04 5.704550e-05 8.477014e-03
dimension(s):
          from   to         offset   delta  refsys point values x/y
longitude    1    1             NA      NA  WGS 84    NA 10.423 [x]
latitude     1    1             NA      NA  WGS 84    NA 51.334 [y]
time         1 8760 2002-01-01 UTC 1 hours POSIXct    NA   NULL


> read_ncdf(file_paths[2])
no 'var' specified, using t2m, tp
other available variables:
 longitude, latitude, time
Will return stars object with 8760 cells.
No projection information found in nc file.
 Coordinate variable units found to be degrees,
 assuming WGS84 Lat/Lon.
stars object with 3 dimensions and 2 attributes
attribute(s):
            Min.  1st Qu.       Median         Mean      3rd Qu.         Max.
t2m [K] 258.7856 275.4088 2.813136e+02 2.819685e+02 2.883852e+02 3.076843e+02
tp [m]    0.0000   0.0000 1.273918e-07 6.300391e-05 2.181585e-05 4.174184e-03
dimension(s):
          from   to         offset   delta  refsys point values x/y
longitude    1    1             NA      NA  WGS 84    NA 10.423 [x]
latitude     1    1             NA      NA  WGS 84    NA 51.334 [y]
time         1 8760 2003-01-01 UTC 1 hours POSIXct    NA   NULL


> (read_ncdf(file_paths[1]) + read_ncdf(file_paths[2]))
no 'var' specified, using t2m, tp
other available variables:
 longitude, latitude, time
Will return stars object with 8760 cells.
No projection information found in nc file.
 Coordinate variable units found to be degrees,
 assuming WGS84 Lat/Lon.
no 'var' specified, using t2m, tp
other available variables:
 longitude, latitude, time
Will return stars object with 8760 cells.
No projection information found in nc file.
 Coordinate variable units found to be degrees,
 assuming WGS84 Lat/Lon.
Error in Ops.stars(read_ncdf(file_paths[1]), read_ncdf(file_paths[2])) :
  (first) dimensions of e1 and e2 do not match
ysaitoysaito

次元はあってるっぽいのに

> a <- stars::read_ncdf(file_paths[1])
no 'var' specified, using t2m, tp
other available variables:
 longitude, latitude, time
Will return stars object with 8760 cells.
No projection information found in nc file.
 Coordinate variable units found to be degrees,
 assuming WGS84 Lat/Lon.
> b <- stars::read_ncdf(file_paths[2])
no 'var' specified, using t2m, tp
other available variables:
 longitude, latitude, time
Will return stars object with 8760 cells.
No projection information found in nc file.
 Coordinate variable units found to be degrees,
 assuming WGS84 Lat/Lon.
> dim(a)
longitude  latitude      time
        1         1      8760
> dim(b)
longitude  latitude      time
        1         1      8760
ysaitoysaito

該当行を下記にすると、実行可能

data <- stars::read_stars(file_paths)
ysaitoysaito

実際に bookdown を実行して、公開する環境に合わせたほうが良さそう

ysaitoysaito
  • エラーの発生
  • 環境
    • Windows 10 Pro
    • R 4.2.1
    • RStudio RStudio-2022.07.1-554.exe
Quitting from lines 9888-9895 (_main.Rmd)
Error in makePSOCKcluster(names = spec, ...) :
  numeric 'names' must be >= 1
In addition: Warning messages:
1: 278 missing rows were removed (86 values from `age_cat5` and 278 values from `gender`).
2: 278 missing rows were removed (86 values from `age_cat5` and 278 values from `gender`).
3: 278 missing rows were removed (86 values from `age_cat5` and 278 values from `gender`).
4: Removed 256 rows containing non-finite values (stat_bin).
5: Removed 686 rows containing missing values (position_stack).
6: Removed 2744 rows containing missing values (position_stack).
7: Removed 2058 rows containing missing values (position_stack).
====================
fastLink(): Fast Probabilistic Record Linkage
====================

If you set return.all to FALSE, you will not be able to calculate a confusion table as a summary statistic.
Calculating matches for each variable.
Error in makePSOCKcluster(names = spec, ...) :
    numeric 'names' must be >= 1
ysaitoysaito

windows では、並列化演算を最初に実行するときに、システムの確認ダイアログが発生した

pacman::p_load(doParallel)
makePSOCKcluster(1)
ysaitoysaito

一度、システムの確認ダイアログを確認してしまえば、該当の箇所は問題なく実行できた

ysaitoysaito

該当箇所

label: observation_time
Quitting from lines 19166-19210 (_main.Rmd)
Error in find_end_date(., "left_date", "death_date", period_start = "recall_start",  :
  could not find function "find_end_date"
In addition: There were 50 or more warnings (use warnings() to see the first 50)
ysaitoysaito

epikit パッケージからエクスポートされている関数がみつからない、と

ysaitoysaito

該当の関数にパッケージ名を付加した

> sitrep::find_end_date()
> sitrep::find_start_date()
ysaitoysaito

次のエラー発生

label: observation_time
Quitting from lines 19167-19211 (_main.Rmd)
Error: object 'add_weights_cluster' is not exported by 'namespace:epikit'
In addition: There were 50 or more warnings (use warnings() to see the first 50)
ysaitoysaito

knitr::knit2html() はできるのに、bookdown ではできない。。。なぜ。。。

> knitr::knit2html(input="./new_pages/survival_analysis.Rmd")
ysaitoysaito
  • クリーンインストールしてビルドを試した Windows 環境でも同じエラー発生

  • 環境 3

    • Windows 10 Pro 20H2
    • R 4.2.1
    • RStudio 2022.07.01-554

該当箇所

label: observation_time
Quitting from lines 19166-19210 (_main.Rmd)
Error in find_end_date(., "left_date", "death_date", period_start = "recall_start",  :
  could not find function "find_end_date"
In addition: There were 50 or more warnings (use warnings() to see the first 50)
ysaitoysaito

windows 環境と rocker/rstudio 環境のエラーは、sitrep パッケージをインストールすることで解決

> install.packages("drat", repos = "https://cran.rstudio.com")
> drat::addRepo("R4EPI")
> install.packages("sitrep")
ysaitoysaito

該当箇所

label: read_climate (with options)
List of 2
 $ warning: logi FALSE
 $ message: logi FALSE

Quitting from lines 16059-16070 (_main.Rmd)
Error in dyn.load(file, DLLpath = DLLpath, ...) :
  unable to load shared object '/usr/local/lib/R/site-library/units/libs/units.so':
  libudunits2.so.0: cannot open shared object file: No such file or directory
ysaitoysaito

該当箇所

label: unnamed-chunk-855 (with options)
List of 7
 $ out.width : chr [1:2] "100%" "100%"
 $ fig.show  : chr "hold"
 $ echo      : logi FALSE
 $ fig.width : num 12
 $ fig.height: num 9
 $ message   : logi FALSE
 $ warning   : logi FALSE
Quitting from lines 17397-17483 (_main.Rmd)
Error in make_epicontacts(linelist = linelist, contacts = contacts, directed = TRUE) :
  could not find function "make_epicontacts"
In addition: There were 50 or more warnings (use warnings() to see the first 50)
> epicontacts::make_epicontacts()
Error in dyn.load(file, DLLpath = DLLpath, ...) :
  unable to load shared object '/usr/local/lib/R/site-library/igraph/libs/igraph.so':
  libglpk.so.40: cannot open shared object file: No such file or directory

ysaitoysaito

該当のシステムライブラリをインストール

$ apt update && apt install -y libglpk-dev
ysaitoysaito
  • エラーの発生

  • 環境

    • Windows 10 Pro
    • R 4.2.1
    • RStudio RStudio-2022.07.1-554.exe
  • 該当箇所

label: unnamed-chunk-980 (with options)
List of 2
 $ message: logi FALSE
 $ warning: logi FALSE

Quitting from lines 21434-21443 (_main.Rmd)
Error in openmap(upperLeft = c(max(linelist$lat, na.rm = T), max(linelist$lon,  :
  could not find function "openmap"
Registered S3 method overwritten by 'quantmod':
  method            from
  as.zoo.data.frame zoo
Registered S3 method overwritten by 'ape':
  method   from
  plot.mst spdepIn addition: There were 50 or more warnings (use warnings() to see the first 50)
ysaitoysaito

rJava パッケージが入っていなかった

> # 緯度経度の範囲に基図を切り取る。タイル種別を選択。
> map <- OpenStreetMap::openmap(
+   upperLeft = c(max(linelist$lat, na.rm=T), max(linelist$lon, na.rm=T)),   # 基図のタイルの制限
+   lowerRight = c(min(linelist$lat, na.rm=T), min(linelist$lon, na.rm=T)),
+   zoom = NULL,
+   type = c("osm", "stamen-toner", "stamen-terrain", "stamen-watercolor", "esri","esri-topo")[1])
Error:  .onLoad は loadNamespace()'rJava' に対する)の中で失敗しました、詳細は:
  call: fun(libname, pkgname)
  error: JAVA_HOME cannot be determined from the Registry
ysaitoysaito

該当箇所

label: epidemic_models_incubation_estimate_epiestim (with options)
List of 1
 $ warning: logi FALSE

Quitting from lines 17825-17827 (_main.Rmd)
Error in fit_disc_gamma(get_pairwise(epic, "date_onset")) :
  lazy-load database '/usr/local/lib/R/site-library/epicontacts/R/epicontacts.rdb' is corrupt
In addition: There were 50 or more warnings (use warnings() to see the first 50)
ysaitoysaito

1から構築し直してもこのエラーが途中で起きる
事前にインストールしてみる

ysaitoysaito
  • エラーの発生

  • 環境

    • Windows 10 Pro
    • R 4.2.1
    • RStudio RStudio-2022.07.1-554.exe
  • 該当箇所

label: unnamed-chunk-1361 (with options)
List of 3
 $ out.width: chr [1:2] "25%" "25%"
 $ fig.show : chr "hold"
 $ echo     : logi FALSE

Quitting from lines 29530-29589 (_main.Rmd)
Error in pal(nlev) : could not find function "pal"
In addition: There were 50 or more warnings (use warnings() to see the first 50)
ysaitoysaito

やはり何度も繰り返し出てしまう
もうちょっと調べてみる

ysaitoysaito

R セッションを再起動したらでなくなった
何だったんだろう...

ysaitoysaito

該当箇所

label: unnamed-chunk-944
Quitting from lines 20962-20966 (_main.Rmd)
Error in find_formula.data.frame(x, verbose = FALSE) :
  A data frame is not a valid object for this function.
In addition: There were 50 or more warnings (use warnings() to see the first 50)
ysaitoysaito

ん?エラーが微妙に変わった

label: unnamed-chunk-943
Quitting from lines 20951-20955 (_main.Rmd)
Error: A data frame is not a valid object for this function.
In addition: There were 50 or more warnings (use warnings() to see the first 50)

Registered S3 method overwritten by 'ape':
  method   from
  plot.mst spdep
ysaitoysaito

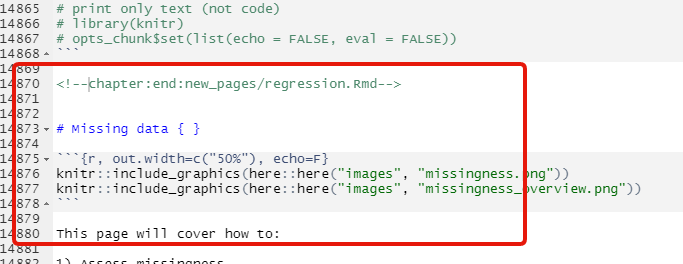

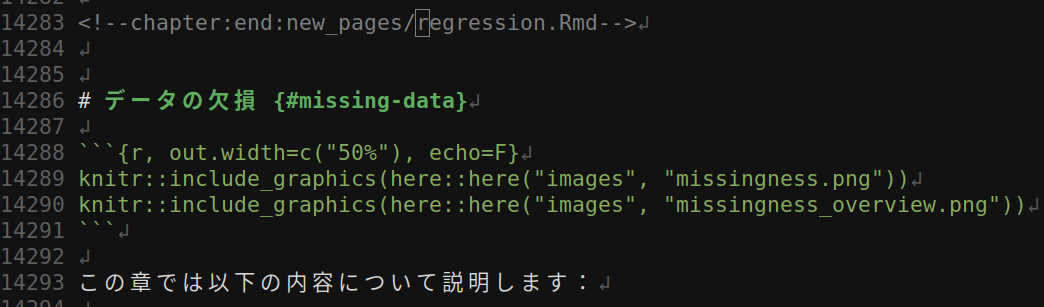

unnamed-chunk-943 に変わっている場合は, missing_data.Rmd の章タイトルと最初の R chunk がなぜか省かれている

ysaitoysaito

Ubuntu, Docker 環境は、_bookdown.yml から gis.Rmd をコメントアウトすると、それ以外のファイルは、問題なくビルドされる

Windows 環境は、なぜか missing_data.Rmd の冒頭10行ほどが _main.Rmd に出力されない

ysaitoysaito

以下で実行

dplyr::filter(sle_adm3_raw, "admin2Name" %in% c("Western Area Urban", "Western Area Rural"))

エラー

label: clean_adm3 (with options)
List of 1
 $ message: logi FALSE

Quitting from lines 20966-20971 (_main.Rmd)
Error in UseMethod("filter") :
  no applicable method for 'filter' applied to an object of class "logical"
In addition: There were 50 or more warnings (use warnings() to see the first 50)

rstudio でのスレッド https://community.rstudio.com/t/filter-doesnt-run-no-applicable-method-for-filter-applied-to-an-object-of-class-logical/98305

ysaitoysaito

あー。わかったかも。
janitor::clean_names() とするとそのチャンクが通るということは
パッケージがアタッチされていない?

ysaitoysaito

Windows で EpiRHandbook をビルドする手順まとめ

  1. rJava パッケージのインストールに必要な JDK をインストールする
  2. EpiRHandbook を bookdown でコンパイルするための最低限のパッケージを R Console に入力
  3. R セッションを再起動する
  4. 次のコマンドを入力
> bookdown::render_book(input = '.', output_format = 'bookdown::bs4_book', clean = TRUE, config_file = '_bookdown.yml')

マシンの性能にもよりますが、2−3時間はかかるかもしれません

ysaitoysaito

Windows 10 の環境でビルドした html_outputmissing_data.Rmd の出力が含まれていない問題発生

ysaitoysaito

Docker image でビルドした方には入っている。。。
わからない。。。

ysaitoysaito

windows 環境でビルドする場合のみ発生する、固有の問題のようなので
docker image でビルドすることで回避

ysaitoysaito

エラー発生

  • 環境3
    • Windows 10 Pro
    • R 4.2.1
    • RStudio RStudio-2022.07.1-554.exe

該当箇所


label: epidemic_models_epiestim_config
Quitting from lines 17813-17818 (_main.Rmd)
Error in make_config(mean_si = 12, std_si = 5.2) :
  could not find function "make_config"
In addition: There were 50 or more warnings (use warnings() to see the first 50)

ysaitoysaito

エラー

label: visualise_population_flow
Quitting from lines 19612-19650 (_main.Rmd)
Error in `mutate()`:
! Problem while computing `x = fct_relevel(x, c("startcause", "endcause"))`.
Caused by error in `fct_relevel()`:
! `.f` must be a factor or character vector, not an integer vector
Backtrace:
 1. ... %>% ...
 7. forcats::fct_relevel(x, c("startcause", "endcause"))

ysaitoysaito

英語版 v1.0.1 へ追従する更新をして、bookdown 実行
エラー

label: unnamed-chunk-856 (with options)
List of 7
 $ out.width : chr [1:2] "100%" "100%"
 $ fig.show  : chr "hold"
 $ echo      : logi FALSE
 $ fig.width : num 12
 $ fig.height: num 9
 $ message   : logi FALSE
 $ warning   : logi FALSE

Quitting from lines 17474-17560 (_main.Rmd)
Error in xy.coords(x, y, xlabel, ylabel, log) :
  'x' is a list, but does not have components 'x' and 'y'
Calls: <Anonymous> ... eval -> eval -> plot -> plot -> plot.default -> xy.coords

Execution halted

ysaitoysaito

該当箇所
エピデミックモデリング


## パッケージのインストールとロード
pacman::p_load(tidyverse, EpiNow2, EpiEstim, here, incidence2, epicontacts, rio, projections)

## ラインリストのロード
linelist <- import(here::here("data", "case_linelists", "linelist_cleaned.rds"))

## コンタクトの作成
contacts <- linelist %>%
  transmute(
    from = infector,
    to = case_id
  ) %>%
  drop_na()

## エピコンタクトの作成
epic <- make_epicontacts(
  linelist = linelist,
  contacts = contacts,
  directed = TRUE
)

## ## estimate gamma generation time
## generation_time <- bootstrapped_dist_fit(
##   get_pairwise(epic, "date_infection"),
##   dist = "gamma",
##   max_value = 20,
##   bootstraps = 1
## )

## ## export for caching
## export(
##   generation_time,
##   here("data/cache/epidemic_models/generation_time.rds")
## )

## import cached generation time
generation_time <- import(here("data/cache/epidemic_models/generation_time.rds"))

## ## estimate incubation period
## incubation_period <- bootstrapped_dist_fit(
##   linelist$date_onset - linelist$date_infection,
##   dist = "lognormal",
##   max_value = 100,
##   bootstraps = 1
## )

## ## export for caching
## export(
##   incubation_period,
##   here("data/cache/epidemic_models/incubation_period.rds")
## )

## import cached incubation period
incubation_period <- import(here("data/cache/epidemic_models/incubation_period.rds"))

## get incidence from onset date
cases <- linelist %>%
  group_by(date = date_onset) %>%
  summarise(confirm = n())

## ## run epinow
## epinow_res <- epinow(
##   reported_cases = cases,
##   generation_time = generation_time,
##   delays = delay_opts(incubation_period),
##   target_folder = here("data/cache/epidemic_models"),
##   return_output = TRUE,
##   output = "samples",
##   verbose = TRUE,
##   stan = stan_opts(samples = 750, chains = 4),
##   horizon = 21
## )

## ## export for caching
## export(
##   epinow_res,
##   here("data/cache/epidemic_models/epinow_res.rds")
## )

## import cached epinow results
epinow_res <- import(here("data/cache/epidemic_models/epinow_res.rds"))

## plot summary figure
plot(epinow_res)

ysaitoysaito
  • 該当箇所は英語版リポジトリと差分なし
  • x, y のデータの長さが違うとは?
ysaitoysaito

R v4.2.2 ではエラーが出る
R v4.2.1 ではエラーが出ない

ysaitoysaito

英語版 v1.0.1 へ追従する更新をして、bookdown 実行
エラー

label: unnamed-chunk-1303 (with options)
List of 3
 $ out.width: chr [1:2] "25%" "25%"
 $ fig.show : chr "hold"
 $ echo     : logi FALSE

Quitting from lines 29609-29671 (_main.Rmd)
Error in epicontacts::thin(., "contacts") :
  x is not an epicontacts object
Calls: <Anonymous> ... eval_with_user_handlers -> eval -> eval -> %>% -> <Anonymous>
In addition: There were 50 or more warnings (use warnings() to see the first 50)

Execution halted
ysaitoysaito
  • epicontacts パッケージを再インストール
> remotes::install_github("reconhub/epicontacts@timeline")
  • igraph パッケージが non-zero exit status
Error: package or namespace load failed for ‘ igraph’  in dyn.load(file, DLLpath = DLLpath, ...):
 unable to load shared object '/home/ysaito/.asdf/installs/R/4.2.1/lib/R/library/00LOCK-igraph/00new/igraph/libs/igraph.so':
  libgfortran.so.4: cannot open shared object file: No such file or directory
Error: loading failed
Execution halted
ERROR: loading failed
* removing ‘ /home/ysaito/.asdf/installs/R/4.2.1/lib/R/library/igraph’
* restoring previous ‘ /home/ysaito/.asdf/installs/R/4.2.1/lib/R/library/igraph’

The downloaded source packages are in/tmp/RtmpYOE39D/downloaded_packages’
Updating HTML index of packages in '.Library'
Making 'packages.html' ... done
Warning message:
In install.packages("igraph") :
  installation of package ‘ igraph’  had non-zero exit status
ysaitoysaito

うーん
パッケージをアップデートしたあとに同じところで引っかかる
もう一度インストール

> update.packages(ask = FALSE)
> remotes::install_github("reconhub/epicontacts@timeline", force = TRUE)
ysaitoysaito

わかった! epic オブジェクトを subset 化するコードにミスがあった

epic_small <- epic %>%
  subset(
    node_attribute = list(date_onset = c(as.Date(c("2014-06-01", "2014-07-01"))))) %>%
  epicontacts::thin("contacts")
ysaitoysaito

英語版 v1.0.1 へ追従する更新をして、bookdown 実行
エラー

label: visualise_population_flow
Quitting from lines 19634-19658 (_main.Rmd)
Error in `geom_parallel_sets()`:
! Problem while converting geom to grob.
ℹ Error occurred in the 1st layer.
Caused by error in `check.length()`:
! 'gpar' element 'lwd' must not be length 0
Backtrace:
  1. bookdown::render_book(...)
  2. bookdown:::render_cur_session(...)
  3. rmarkdown::render(main, output_format, ..., clean = clean, envir = envir)
  4. knitr::knit(knit_input, knit_output, envir = envir, quiet = quiet)
  5. knitr:::process_file(text, output)
     ...
 50. grid::gpar(...)
 51. grid:::validGP(list(...))
 52. grid (local) numnotnull("lwd")
 53. grid (local) check.length(gparname)
 54. base::stop(...)

Execution halted

ysaitoysaito

英語版 v1.0.1 へ追従する更新をして、bookdown 実行
エラー

label: phylogenetic_trees_adding_sampledata (with options)
List of 3
 $ fig.align: chr "center"
 $ warning  : logi FALSE
 $ message  : logi FALSE

Quitting from lines 30475-30514 (_main.Rmd)
Error in `geom_segment2()`:
! Problem while converting geom to grob.
ℹ Error occurred in the 4th layer.
Caused by error in `check.length()`:
! 'gpar' element 'lwd' must not be length 0
Backtrace:
  1. bookdown::render_book(...)
  2. bookdown:::render_cur_session(...)
  3. rmarkdown::render(main, output_format, ..., clean = clean, envir = envir)
  4. knitr::knit(knit_input, knit_output, envir = envir, quiet = quiet)
  5. knitr:::process_file(text, output)
     ...
 49. grid::gpar(...)
 50. grid:::validGP(list(...))
 51. grid (local) numnotnull("lwd")
 52. grid (local) check.length(gparname)
 53. base::stop(...)

Execution halted

ysaitoysaito

BiocManager で管理されているパッケージをアップデート

> BiocManager::install(update = TRUE, ask = FALSE)
ysaitoysaito

なにやらエラー

'getOption("repos")' replaces Bioconductor standard repositories, see
'?repositories' for details

replacement repositories:
    CRAN: https://packagemanager.rstudio.com/cran/__linux__/focal/latest

Bioconductor version 3.15 (BiocManager 1.30.19), R 4.2.1 (2022-06-23)
Old packages: 'ggtree'
Update all/some/none? [a/s/n]: a
trying URL 'https://bioconductor.org/packages/3.15/bioc/src/contrib/ggtree_3.4.4.tar.gz'
Content type 'application/x-gzip' length 356386 bytes (348 KB)
==================================================
downloaded 348 KB

* installing *source* package ‘ggtree’ ...
** using staged installation
** R
** inst
** byte-compile and prepare package for lazy loading
Error in get(x, envir = ns, inherits = FALSE) :
  object 'warning_wrap' not found
Error: unable to load R code in package ‘ggtree’
Execution halted
ERROR: lazy loading failed for package ‘ggtree’
* removing ‘/usr/local/lib/R/site-library/ggtree’
* restoring previous ‘/usr/local/lib/R/site-library/ggtree’

The downloaded source packages are in/tmp/RtmpHOCJiG/downloaded_packages’
Warning message:
In install.packages(update[instlib == l, "Package"], l, contriburl = contriburl,  :
  installation of package ‘ggtree’ had non-zero exit status

ysaitoysaito

github からのインストールに変更

>  remotes::install_github('YuLab-SMU/ggtree')

エラー解決

ysaitoysaito

ここまでのエラー対応で html がビルドできた

ysaitoysaito

R 4.3.2 に対応するために作業中

ysaitoysaito
  • Docker rocker:rstudio:4.3.2 でエラー
Quitting from lines 11228-11251 [unnamed-chunk-599] (_main.Rmd)
Error:
! object 'gender' not found
Backtrace:
 1. incidence2::incidence(...)
Execution halted
ysaitoysaito
  • iteration.Rmd の L249-254
  • ender"gender"
outbreak <- incidence2::incidence(
     x = linelist,                   # データフレームを指定する(linelist全体)
     date_index = "date_onset",      # 日付の列
     interval = "week",              # 週ごとに集計
     groups = "gender")              # 性別によるグルーピング
     #na_as_group = TRUE)            # 性別の欠損値は欠損のグループ(NA)として扱う
ysaitoysaito
  • Docker rocker:rstudio:4.3.2 でエラー
Quitting from lines 30055-30058 [unnamed-chunk-1301] (_main.Rmd)
Error in `tree_subset()`:
! could not find function "tree_subset"
Execution halted
l
  • 同様のエラー
Quitting from lines 30071-30075 [unnamed-chunk-1303] (_main.Rmd)
Error in `tree_subset()`:
! could not find function "tree_subset"
Execution halted
ysaitoysaito
  • パッケージ名を追加して解決
sub_tree1 <- tidytree::tree_subset(
  tree,
  node = 528)
