CMLでEnterprise SONiCを使う

2023/12/31に公開

network

【概要】

CML(Cisco Modeling Labs)では、利用可能なプラットフォームは、標準で用意されているものに加えて自分で定義して利用することも可能です。

この手順はユーザガイドに示されています。

またSONiCでは、各社から商用ディストリビューション（Enterprise SONiC）が提供されています。

Enterprise SONiC Distribution by Edgecore

Enterprise SONiC Distribution by Dell Technologies

Enterprise SONiCは、提供する企業によっては、仮想化環境で利用可能なイメージが公開されています。

今回は以前構築したESXiホストにインストールされたCML 2.2.3の環境で、仮想マシン用のEnterprise SONiCイメージを用いてセットアップを試みたところ、利用を開始できる状態となりました。
以降はその記録となります。

【詳細】

Enterprise SONiCイメージの入手

今回はEnterprise SONiC Distribution by Dell Technologiesを以下から入手
- https://www.dell.com/support/home/en-us/product-support/product/enterprise-sonic-distribution/drivers
- gns3のファイルをダウンロード
  - 今回はEnterprise SONiC OS 4.2.0 gns3を選択
  - "Enterprise_SONiC_OS_4.2.0_gns3.zip"
  - zipファイルの中にある"Enterprise_SONiC_OS_4.2.0.img"を利用

Nodeの定義

TOOLSからNode and Image Definitionを選択
Node Definitionタブを選択されていることを確認し、ADDボタンを押下

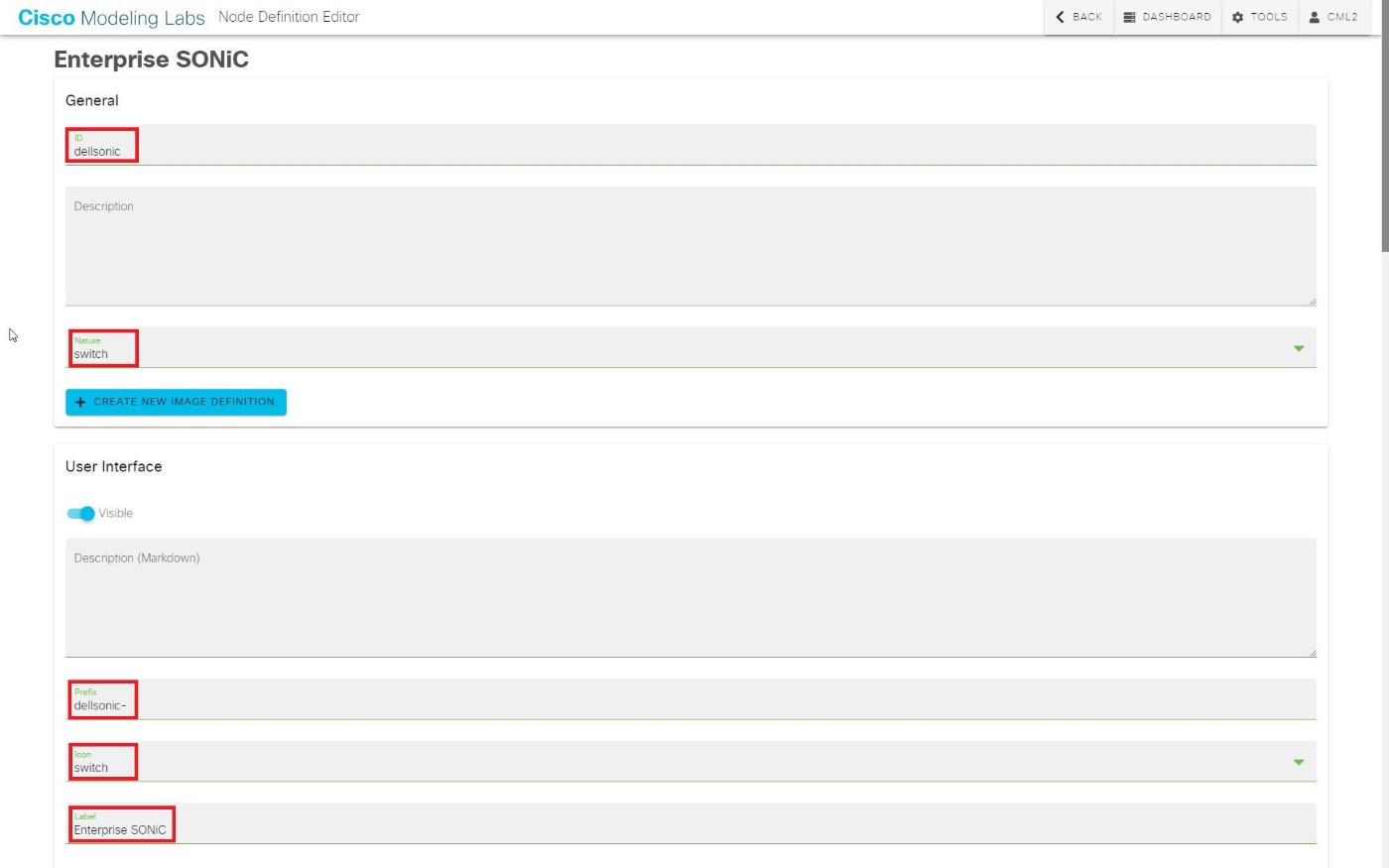

General欄で以下の情報を選択/入力
- ID：今回はdellsonic
- Nature：今回はswitch
User Interface欄で以下の情報を選択/入力
- Prefix：今回はdellsonic-
- Icon：今回はswitch
- Label：今回はEnterprise SONiC

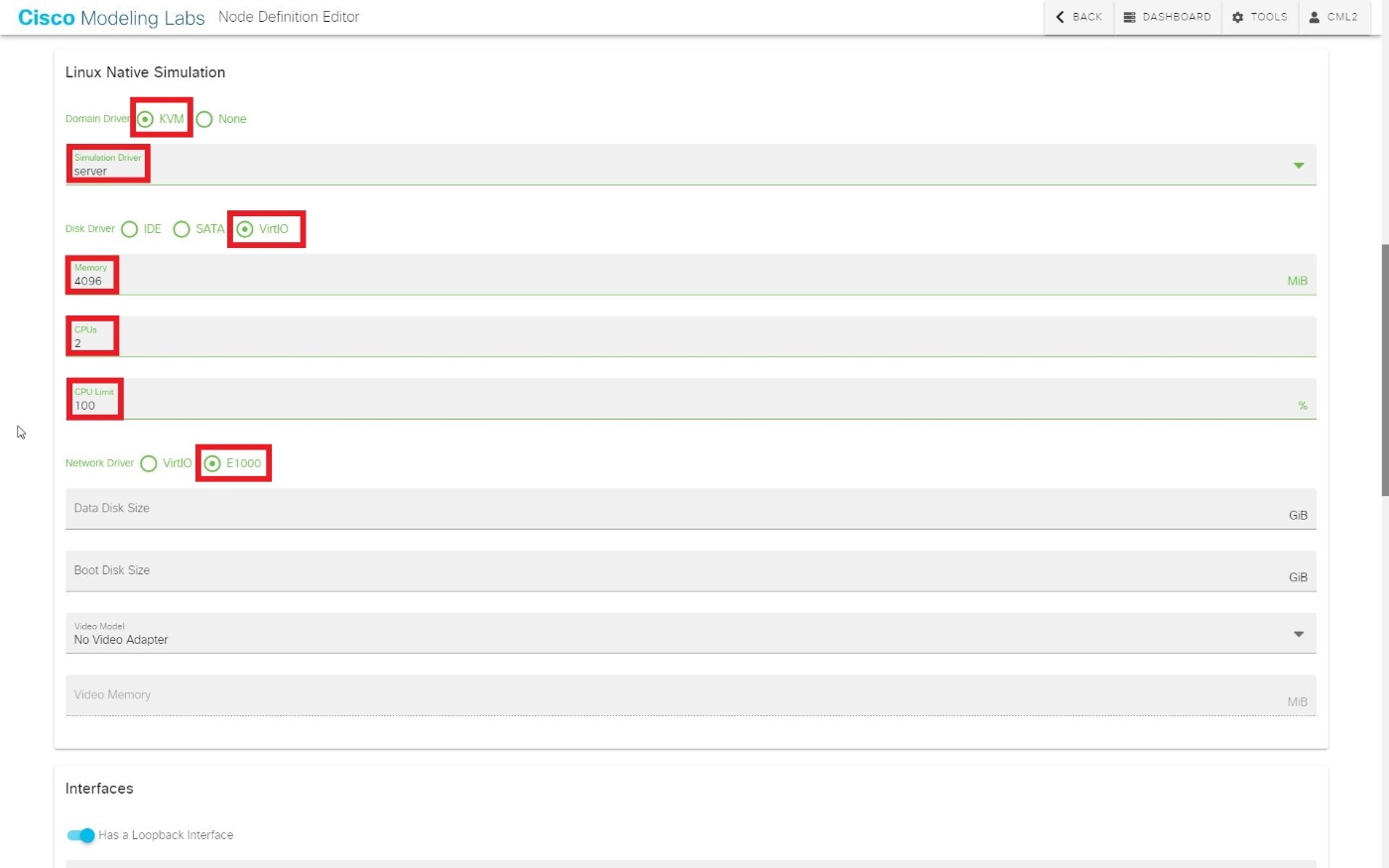

Linux Native Simulation欄で以下の情報を選択/入力
- Domain Driver：KVM
- Simulation Driver：server
- Disk Driver：VirtIO
- Memory：今回は4096
- CPUs：今回は2
- CPU Limit：今回は100
- Network Driver：E1000

Interfaces欄で以下の情報を選択/入力
- Loopback name：Loopback0
- Number of serial ports：1
- Default number of physical interfaces：今回は10
- interface 0：eth0
Interfaces欄でADD INTERFACEボタンをDefault number of physical interfacesで指定した数が表示されるまで押下し、以下の情報を入力
- interface 1：Eth1/1
- interface 2：Eth1/2
- interface 3：Eth1/3
- interface 4：Eth1/4
- interface 5：Eth1/5
- interface 6：Eth1/6
- interface 7：Eth1/7
- interface 8：Eth1/8
- interface 9：Eth1/9

Boot欄で以下の情報を入力
- Timeout：今回は480
Boot欄でADD BOOT LINEボタンを押下し、以下の情報を入力
- sonic login
CREATEボタンを押下

Imageの定義

TOOLSからNode and Image Definitionを選択
Image Definitionタブを選択
MANAGEボタンを押下

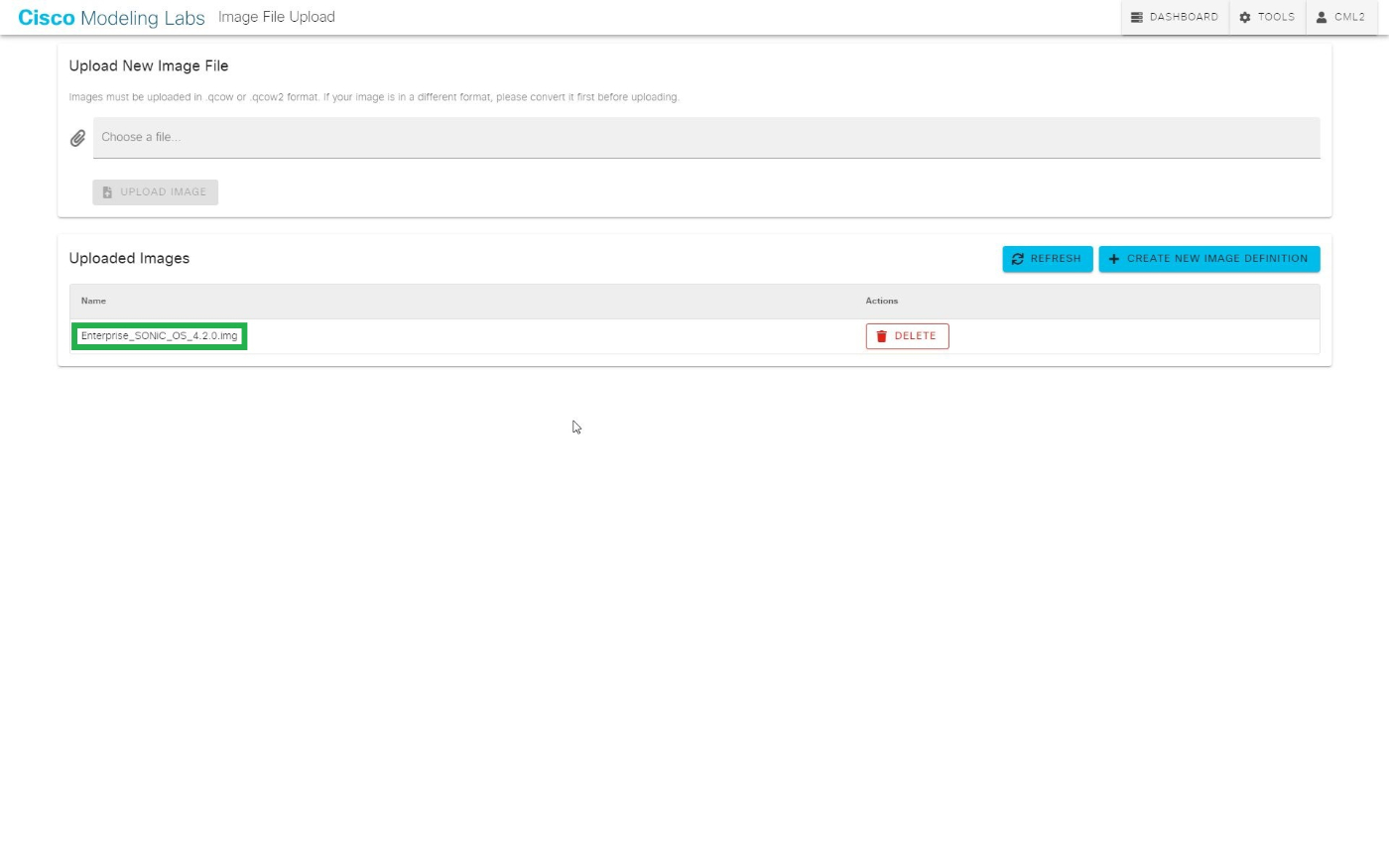

Upload New Image File欄のChoose a fileを選択し、SONiCイメージを指定
UPLOAD IMAGEボタンを押下

Uploaded Images欄に指定したファイルの表示を確認した後に（ページのリロードが必要になるかもしれません）、CREATE NEW IMAGE DEFINITIONボタンを押下

General欄で以下の情報を選択/入力
- ID：今回はdellsonic-420
- Label：今回はEnterprise SONiC 4.2.0
- Disk Image：アップロードしたSONiCイメージ
- Node Definition：定義したNode
CREATE IMAGE DEFINITIONボタンを押下

動作確認

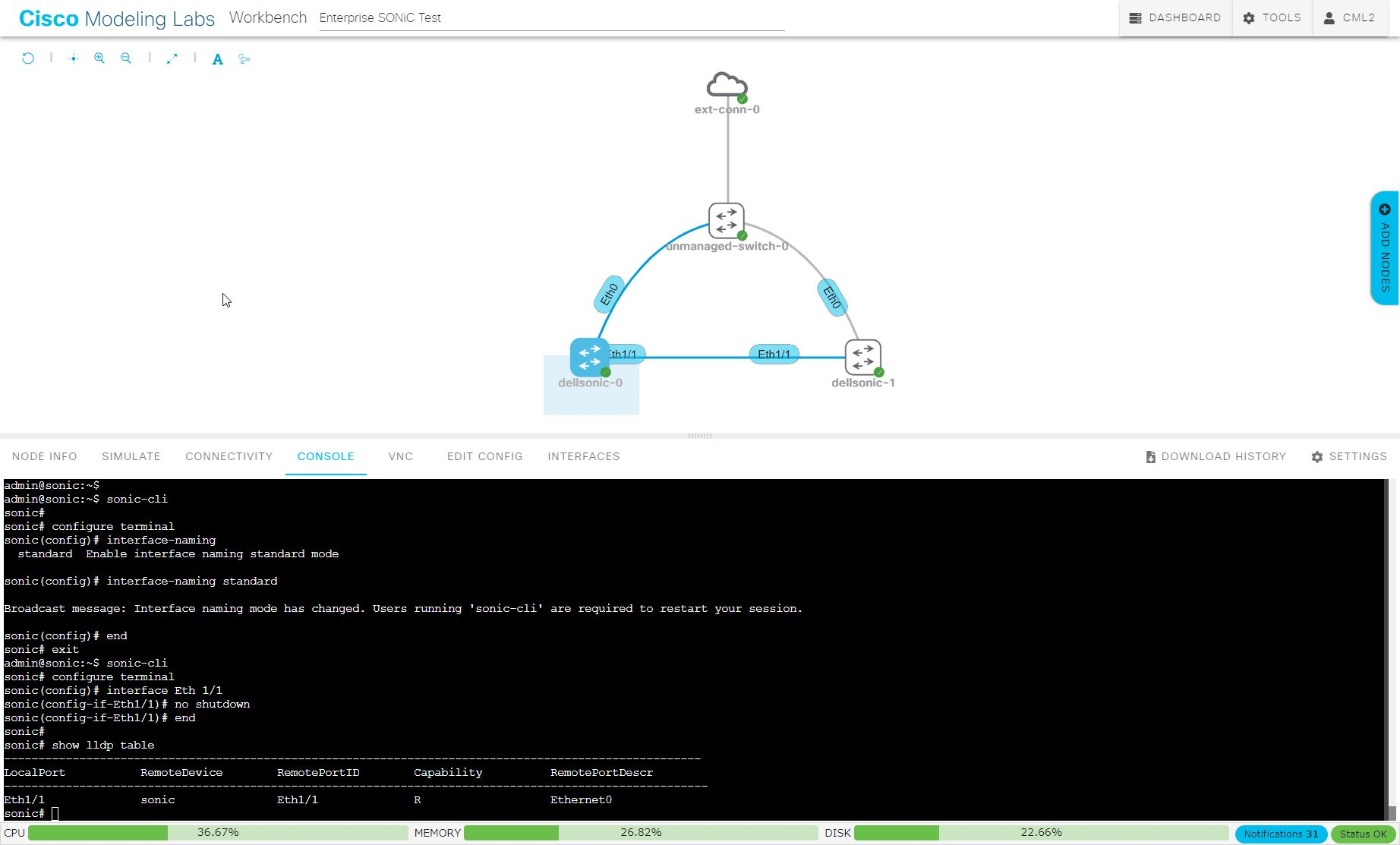

登録されたノードを使ってラボを作成したところ、起動に成功しました。
また、隣接ノードと通信できていることが確認できました。

【補足など】

デフォルトのユーザ名/パスワードはadmin/YourPaSsWoRdです。

Dell Networking SONiC: Secure Shell based login
https://www.dell.com/support/kbdoc/en-us/000218783/dell-networking-sonic-ssh-based-login

起動ログ

  Booting `SONiC-OS-4.2.0-Enterprise_Base'


Loading SONiC-OS OS kernel ...

Loading SONiC-OS OS initial ramdisk ...

[   34.656910] in-memory.sh[344]: + [[ -e /dev/pmem0 ]]
[   34.673136] in-memory.sh[344]: ++ uname -r
[   34.738057] in-memory.sh[344]: + insmod /lib/modules/5.10.0-21-amd64/kernel/drivers/block/ramdisk.ko rd_address=0x40000000 rd_size=0x4000000
[   35.233113] in-memory.sh[344]: + '[' -e /dev/ramdisk ']'
[   35.248529] in-memory.sh[344]: + [[ ! -e /proc/vmcore ]]
[   35.264929] in-memory.sh[344]: + mkfs.ext4 /dev/ramdisk
[   35.782623] in-memory.sh[344]: mke2fs 1.44.5 (15-Dec-2018)
[   35.832664] in-memory.sh[344]: Creating filesystem with 65536 1k blocks and 16384 inodes
[   35.863029] in-memory.sh[344]: Filesystem UUID: 6843eecc-8058-4005-b57d-dab7f113505f
[   35.885951] in-memory.sh[344]: Superblock backups stored on blocks:
[   35.911651] in-memory.sh[344]:       8193, 24577, 40961, 57345
[   35.932443] in-memory.sh[344]: Allocating group tables: done
[   35.955397] in-memory.sh[344]: Writing inode tables: done
[   35.983239] in-memory.sh[344]: Creating journal (4096 blocks): done
[   36.009111] in-memory.sh[344]: Writing superblocks and filesystem accounting information: done
[   36.034260] in-memory.sh[344]: + e2fsck -fy /dev/ramdisk
[   36.215813] kdump-tools[343]: Starting kdump-tools: Creating symlink /var/lib/kdump/vmlinuz.
[   36.262157] kdump-tools[343]: Creating symlink /var/lib/kdump/initrd.img.
[   36.398311] in-memory.sh[344]: e2fsck 1.44.5 (15-Dec-2018)
[   36.446069] in-memory.sh[344]: Pass 1: Checking inodes, blocks, and sizes
[   36.514393] in-memory.sh[344]: Pass 2: Checking directory structure
[   36.571572] in-memory.sh[344]: Pass 3: Checking directory connectivity
[   36.590362] in-memory.sh[344]: Pass 4: Checking reference counts
[   36.610644] in-memory.sh[344]: Pass 5: Checking group summary information
[   36.636916] in-memory.sh[344]: /dev/ramdisk: 11/16384 files (0.0% non-contiguous), 7465/65536 blocks
[   36.729179] in-memory.sh[344]: + tune2fs -O '^metadata_csum' /dev/ramdisk
[   36.748593] in-memory.sh[344]: tune2fs 1.44.5 (15-Dec-2018)
[   36.767494] in-memory.sh[344]: + mount /dev/ramdisk /var/log/ramfs
[   36.792774] in-memory.sh[344]: ++ mountpoint -q /var/log/ramfs
[   36.814500] in-memory.sh[344]: + chmod 655 /var/log/ramfs
[   36.832928] in-memory.sh[344]: + set +x
[   38.196615] rc.local[578]: + cat /proc/cmdline
[   38.224026] rc.local[578]: + xargs -n1
[   38.238218] rc.local[578]: + grep loop=
[   38.264957] rc.local[578]: + cut -d= -f 2-
[   38.660962] rc.local[578]: + dirname image-4.2.0-Enterprise_Base/fs.squashfs
[   38.688844] rc.local[578]: + LOOP_IMAGE_DIR=image-4.2.0-Enterprise_Base
[   38.726252] rc.local[578]: + echo image-4.2.0-Enterprise_Base
[   38.758279] rc.local[578]: + cut -d- -f 2-
[   38.774483] rc.local[578]: + loop_version=4.2.0-Enterprise_Base
[   38.815105] rc.local[578]: + grep build_version
[   38.834005] rc.local[578]: + sed -e s/build_version: //g;s/'//g
[   38.905527] rc.local[578]: + cat /etc/sonic/sonic_version.yml
[   39.016109] rc.local[578]: + SONIC_VERSION=4.2.0-Enterprise_Base
[   39.146697] rc.local[578]: + [ 4.2.0-Enterprise_Base !=  ]
[   39.169304] rc.local[578]: + [ 4.2.0-Enterprise_Base != 4.2.0-Enterprise_Base ]
[   39.190152] rc.local[578]: + FIRST_BOOT_FILE=/host/image-4.2.0-Enterprise_Base/platform/firsttime
[   39.214308] rc.local[578]: + SONIC_FIRST_BOOT_SCRIPT=/host/image-4.2.0-Enterprise_Base/first_boot.sh
[   39.279311] rc.local[578]: + SONIC_BRANDING_OVERRIDE=/host/image-4.2.0-Enterprise_Base/sonic_branding.yml
[   39.314123] rc.local[578]: + SONIC_BRANDING_FILE=/etc/sonic/sonic_branding.yml
[   39.367061] rc.local[578]: + RUNTIME_JOURNALD_CONF=/etc/systemd/journald.conf.d/01-journald-storage.conf
[   39.448329] rc.local[578]: + RSYSLOG_FILE=/etc/logrotate.d/rsyslog
[   39.487485] rc.local[578]: + IMEM_INFO_FILE=/etc/logrotate.d/in-memory/00-in-memory-info
[   39.510376] rc.local[578]: + IMEM_DEBUG_FILE=/etc/logrotate.d/in-memory/00-in-memory-debug
[   39.539099] rc.local[578]: + IMEM_DISK_INFO_FILE=/etc/logrotate.d/in-memory/01-disk-info
[   39.561205] rc.local[578]: + IMEM_DISK_DEBUG_FILE=/etc/logrotate.d/in-memory/01-disk-debug
[   39.588452] rc.local[578]: + IMEM_CONF_FILE=/etc/rsyslog.d/in-memory/00-in-memory.conf
[   39.608050] rc.local[578]: + APPLOG_CONF_FILE=/etc/rsyslog.d/20-sonic.conf
[   39.628947] rc.local[578]: + HISTOGRAM_FILE=/etc/logrotate.d/histogram/mem-histogram-rule
[   39.657673] rc.local[578]: + LOGCLEANUP_FILE=/usr/bin/log-cleanup.sh
[   39.699884] rc.local[578]: + SONIC_CONFIG_DIR=/host/image-4.2.0-Enterprise_Base/sonic-config
[   39.745542] rc.local[578]: + SONIC_ENV_FILE=/host/image-4.2.0-Enterprise_Base/sonic-config/sonic-environment
[   39.799352] rc.local[578]: + [ -d /host/image-4.2.0-Enterprise_Base/sonic-config -a -f /host/image-4.2.0-Enterprise_Base/sonic-config/sonic-environment ]
[   39.896294] rc.local[578]: + logger SONiC version 4.2.0-Enterprise_Base starting up...
[   39.946870] rc.local[578]: + mount -t bpf none /sys/fs/bpf/
[   39.963135] rc.local[578]: + set +x
[   39.975345] rc.local[578]: + grub_installation_needed=
[   39.990196] rc.local[578]: + [ ! -e /host/machine.conf ]
[   40.010572] rc.local[578]: + migrate_nos_configuration
[   40.028620] rc.local[578]: + rm -rf /host/migration
[   40.046210] rc.local[578]: + mkdir -p /host/migration
[   40.078869] rc.local[578]: + cat /proc/cmdline
[   40.091773] rc.local[578]: + set -- BOOT_IMAGE=/image-4.2.0-Enterprise_Base/boot/vmlinuz-5.10.0-21-amd64 root=UUID=b13fefc3-4898-498e-bf1f-180508201499 rw console=tty0 console=ttyS0,115200n8 quiet net.ifnames=0 biosdevname=0 loop=image-4.2.0-Enterprise_Base/fs.squashfs loopfstype=squashfs crashkernel=0M-2G:256M,2G-4G:256M,4G-8G:384M,8G-:448M apparmor=1 security=apparmor varlog_size=4096 usbcore.autosuspend=-1 cgroup_enable=memory swapaccount=1 cma=0 memmap=64M$1G softlockup_all_cpu_backtrace=1
[   40.278371] rc.local[578]: + [ -n  ]
[   40.347631] rc.local[578]: + . /host/machine.conf
[   40.470225] rc.local[578]: + onie_arch=x86_64
[   40.482312] rc.local[578]: + onie_bin=
[   40.496259] rc.local[578]: + onie_boot_fs_type=ext4
[   40.510051] rc.local[578]: + onie_boot_gfdisk_type=0x3000
[   40.541161] rc.local[578]: + onie_boot_gpt_uuid=7412F7D5-A156-4B13-81DC-867174929325
[   40.610572] rc.local[578]: + onie_boot_label=ONIE-BOOT
[   40.680146] rc.local[578]: + onie_boot_mnt=/mnt/onie-boot
[   40.698145] rc.local[578]: + onie_boot_reason=install
[   40.756545] rc.local[578]: + onie_build_date=2018-11-17T04:18+00:00
[   40.814912] rc.local[578]: + onie_build_machine=kvm_x86_64
[   40.936072] rc.local[578]: + onie_build_platform=x86_64-kvm_x86_64-r0
[   40.958906] rc.local[578]: + onie_config_dir=/mnt/onie-boot/onie/config
[   40.986345] rc.local[578]: + onie_config_version=1
[   41.012968] rc.local[578]: + onie_default_filename=onie-installer-x86_64-kvm_x86_64-r0
[   41.054993] rc.local[578]: + onie_default_filenames=onie-installer-x86_64-kvm_x86_64-r0
[   41.084595] rc.local[578]: + onie_dev=/dev/vda2
[   41.100605] rc.local[578]: + onie_disco_boot_reason=install
[   41.131212] rc.local[578]: + onie_disco_dns=10.0.2.3
[   41.154133] rc.local[578]: + onie_disco_interface=eth0
[   41.187801] rc.local[578]: + onie_disco_ip=10.0.2.15
[   41.250023] rc.local[578]: + onie_disco_lease=86400
[   41.333788] rc.local[578]: + onie_disco_mask=24
[   41.377991] rc.local[578]: + onie_disco_opt53=05
[   41.419109] rc.local[578]: + onie_disco_router=10.0.2.2
[   41.446504] rc.local[578]: + onie_disco_serverid=10.0.2.2
[   41.492428] rc.local[578]: + onie_disco_siaddr=10.0.2.2
[   41.649018] rc.local[578]: + onie_disco_subnet=255.255.255.0
[   41.715032] rc.local[578]: + onie_exec_url=file://dev/vdb/onie-installer.bin
[   41.758713] rc.local[578]: + onie_firmware=auto
[   41.900357] rc.local[578]: + onie_grub_image_name=shimx64.efi
[   41.933383] rc.local[578]: + onie_iana_enterprise=42623
[   41.983371] rc.local[578]: + onie_image_suffixes=.bin
[   42.006215] rc.local[578]: + onie_image_type_nos=nos
[   42.023183] rc.local[578]: + onie_image_type_update=update
[   42.098738] rc.local[578]: + onie_initrd_tmp=/
[   42.203583] rc.local[578]: + onie_installer=/var/tmp/installer
[   42.232167] rc.local[578]: + onie_kernel_version=4.9.95
[   42.249325] rc.local[578]: + onie_local_parts=
[   42.264658] rc.local[578]: + onie_machine=kvm_x86_64
[   42.326350] rc.local[578]: + onie_machine_rev=0
[   42.413097] rc.local[578]: + onie_neighs=[fe80::2-eth0],
[   42.432558] rc.local[578]: + onie_operation=os-install
[   42.448676] rc.local[578]: + onie_partition_type=gpt
[   42.462873] rc.local[578]: + onie_platform=x86_64-kvm_x86_64-r0
[   42.513297] rc.local[578]: + onie_root_dir=/mnt/onie-boot/onie
[   42.634832] rc.local[578]: + onie_secure_boot=yes
[   42.715092] rc.local[578]: + onie_server_name=onie-server
[   42.744945] rc.local[578]: + onie_skip_ethmgmt_macs=yes
[   42.763887] rc.local[578]: + onie_switch_asic=qemu
[   42.781268] rc.local[578]: + onie_uefi_arch=x64
[   42.818990] rc.local[578]: + onie_uefi_boot_loader=shimx64.efi
[   42.918507] rc.local[578]: + onie_update_attempts_dir=/mnt/onie-boot/onie/update/attempts
[   42.996999] rc.local[578]: + onie_update_dir=/mnt/onie-boot/onie/update
[   43.016292] rc.local[578]: + onie_update_log=/mnt/onie-boot/onie/update/update.log
[   43.094914] rc.local[578]: + onie_update_pending_dir=/mnt/onie-boot/onie/update/pending
[   43.129414] rc.local[578]: + onie_update_results_dir=/mnt/onie-boot/onie/update/results
[   43.203477] rc.local[578]: + onie_updater_cookie=ONIE-UPDATER-COOKIE
[   43.230578] rc.local[578]: + onie_vendor_id=42623
[   43.246749] rc.local[578]: + onie_version=master-201811170418
[   43.267024] rc.local[578]: + program_console_speed
[   43.283649] kdump-tools[343]: loaded kdump kernel.
[   43.300353] rc.local[578]: + cat /proc/cmdline
[   43.325960] rc.local[578]: + grep -Eo console=ttyS[0-9]+,[0-9]+
[   43.347377] rc.local[578]: + cut -d , -f2
[   43.364099] rc.local[578]: + speed=115200
[   43.376920] rc.local[578]: + [ -z 115200 ]
[   43.404188] rc.local[578]: + CONSOLE_SPEED=115200
[   43.425112] rc.local[578]: + sed -i s|\-\-keep\-baud .* %I| 115200 %I|g /lib/systemd/system/serial-getty@.service
[   43.456972] rc.local[578]: + systemctl daemon-reload
[   43.472915] rc.local[578]: + [ -f /host/image-4.2.0-Enterprise_Base/platform/firsttime ]
[   43.498849] rc.local[578]: + [ -f /var/log/fsck.log.gz ]
[   43.516777] rc.local[578]: + gunzip -d -c /var/log/fsck.log.gz
[   43.535652] rc.local[578]: + logger -t FSCK
[   43.550609] rc.local[578]: + rm -f /var/log/fsck.log.gz
[   43.573821] rc.local[578]: + [ -n x86_64-kvm_x86_64-r0 ]
[   43.619912] rc.local[578]: + mkdir -p /mnt/onie-boot
[   43.637075] rc.local[578]: + mount LABEL=ONIE-BOOT /mnt/onie-boot
[   43.661882] rc.local[578]: + [ -f /mnt/onie-boot/onie/update/update.log ]
[   43.689742] rc.local[578]: + /usr/bin/python3 /usr/local/bin/fwpkg_tables_init.py
[   43.713299] rc.local[578]: + cp /mnt/onie-boot/onie/update/update.log /var/log/onie-update.log
[   43.739411] rc.local[578]: + set +x
[   43.753270] rc.local[578]: + /usr/bin/python3 /usr/local/bin/image_tables_init.py
[   43.802658] rc.local[578]: + exit 0


Debian GNU/Linux 10 sonic ttyS0

sonic login:
