Lexical で実用的なマークダウンエディタを作るまで

ichigo

業務で使いそうなので、

https://playground.lexical.dev 最低限のマークダウンエディタを自力で作れるようにする

EditorState の内容
Plugin の知識

があるところから

すてぃん.tsx さんの記事がすごいので参考にする

ichigo

PlainTextPlugin

本当にただのテキスト。段落とかの概念がない。
ref. https://lexical.dev/docs/react/plugins#lexicalplaintextplugin

コード

import { EditorState } from "lexical";

import { LexicalComposer } from "@lexical/react/LexicalComposer";
import { PlainTextPlugin } from "@lexical/react/LexicalPlainTextPlugin";
import { RichTextPlugin } from "@lexical/react/LexicalRichTextPlugin";
import { ContentEditable } from "@lexical/react/LexicalContentEditable";
import { HistoryPlugin } from "@lexical/react/LexicalHistoryPlugin";
import { OnChangePlugin } from "@lexical/react/LexicalOnChangePlugin";
// When the editor changes, you can get notified via the
// LexicalOnChangePlugin!
function onChange(editorState: EditorState) {
  console.log(editorState);
}

function onError(error: Error) {
  console.error(error);
}

function Editor() {
  const initialConfig = {
    namespace: "demo",
    onError,
  };

  return (
    <LexicalComposer initialConfig={initialConfig}>
      <PlainTextPlugin
        contentEditable={<ContentEditable />}
        placeholder={<div>Enter some text...</div>}
      />
      <OnChangePlugin onChange={onChange} />
      <HistoryPlugin />
    </LexicalComposer>
  );
}

export default Editor;

EditorState

EditorState {_nodeMap: Map(7), _selection: RangeSelection, _flushSync: false, _readOnly: true}
_flushSync: false
_nodeMap: Map(7)
[[Entries]]
0: {"root" => RootNode}
key: "root"
value: RootNode {__type: 'root', __parent: null, __key: 'root', __children: Array(1), __format: 0, …}
1: {"2" => ParagraphNode}
key: "2"
value: ParagraphNode {__type: 'paragraph', __parent: 'root', __key: '2', __children: Array(5), __format: 0, …}
2: {"13" => TextNode}
key: "13"
value: TextNode {__type: 'text', __parent: '2', __key: '13', __text: 'hogehoge', __format: 0, …}
3: {"14" => LineBreakNode}
key: "14"
value: LineBreakNode {__type: 'linebreak', __parent: '2', __key: '14'}
4: {"15" => TextNode}
key: "15"
value: TextNode {__type: 'text', __parent: '2', __key: '15', __text: 'fugafuga', __format: 0, …}
5: {"16" => LineBreakNode}
key: "16"
value: LineBreakNode {__type: 'linebreak', __parent: '2', __key: '16'}
6: {"17" => TextNode}
key: "17"
value: TextNode {__type: 'text', __parent: '2', __key: '17', __text: 'boo', __format: 0, …}
clear: () => {…}
delete: () => {…}
set: () => {…}
size: 7
[[Prototype]]: Map
_readOnly: true
_selection: RangeSelection
anchor: Point {_selection: RangeSelection, key: '17', offset: 3, type: 'text'}
dirty: true
focus: Point {_selection: RangeSelection, key: '17', offset: 3, type: 'text'}
format: 0
_cachedNodes: null
[[Prototype]]: Object
[[Prototype]]: Object

ichigo

RichTextPlugin

ref. https://lexical.dev/docs/react/plugins#lexicalrichtextplugin

indent/outdent
bold
italic
underline
strikethrough

ができるようになる

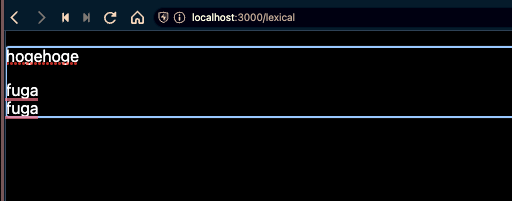

段落の概念が生まれた。（hogehoge → fuga は Enter 押した、fuga → fuga は shift + enter）

コード

import { EditorState } from "lexical";

import { LexicalComposer } from "@lexical/react/LexicalComposer";
import { PlainTextPlugin } from "@lexical/react/LexicalPlainTextPlugin";
import { RichTextPlugin } from "@lexical/react/LexicalRichTextPlugin";
import { ContentEditable } from "@lexical/react/LexicalContentEditable";
import { HistoryPlugin } from "@lexical/react/LexicalHistoryPlugin";
import { OnChangePlugin } from "@lexical/react/LexicalOnChangePlugin";
// When the editor changes, you can get notified via the
// LexicalOnChangePlugin!
function onChange(editorState: EditorState) {
  console.log(editorState);
}

function onError(error: Error) {
  console.error(error);
}

function Editor() {
  const initialConfig = {
    namespace: "demo",
    onError,
  };

  return (
    <LexicalComposer initialConfig={initialConfig}>
      <RichTextPlugin
        contentEditable={
          <ContentEditable className="TableNode__contentEditable" />
        }
        placeholder={"something"}
      />
      <OnChangePlugin onChange={onChange} />
      <HistoryPlugin />
    </LexicalComposer>
  );
}

export default Editor;

EditorState

EditorState {_nodeMap: Map(7), _selection: RangeSelection, _flushSync: false, _readOnly: true}
_flushSync: false
_nodeMap: Map(7)
[[Entries]]
0: {"root" => RootNode}
1: {"1" => ParagraphNode}
2: {"15" => TextNode}
key: "15"
value: TextNode {__type: 'text', __parent: '1', __key: '15', __text: 'hogehoge', __format: 0, …}
3: {"16" => ParagraphNode}
key: "16"
value: ParagraphNode {__type: 'paragraph', __parent: 'root', __key: '16', __children: Array(3), __format: 0, …}
4: {"17" => TextNode}
key: "17"
value: TextNode {__type: 'text', __parent: '16', __key: '17', __text: 'fuga', __format: 0, …}
5: {"18" => LineBreakNode}
6: {"19" => TextNode}
key: "19"
value: TextNode {__type: 'text', __parent: '16', __key: '19', __text: 'fuga', __format: 0, …}
clear: () => {…}
delete: () => {…}
set: () => {…}
size: 7
[[Prototype]]: Map
_readOnly: true
_selection: RangeSelection
anchor: Point {_selection: RangeSelection, key: '19', offset: 4, type: 'text'}
dirty: true
focus: Point {_selection: RangeSelection, key: '19', offset: 4, type: 'text'}
format: 0
_cachedNodes: null
[[Prototype]]: Object
[[Prototype]]: Object

ichigo

AutoFocus

ページロード時に勝手にフォーカスが当たる

コード

import { EditorState } from "lexical";

import { LexicalComposer } from "@lexical/react/LexicalComposer";
import { RichTextPlugin } from "@lexical/react/LexicalRichTextPlugin";
import { ContentEditable } from "@lexical/react/LexicalContentEditable";
import { OnChangePlugin } from "@lexical/react/LexicalOnChangePlugin";
import { AutoFocusPlugin } from "@lexical/react/LexicalAutoFocusPlugin";

// When the editor changes, you can get notified via the
// LexicalOnChangePlugin!
function onChange(editorState: EditorState) {
  console.log(editorState);
}

function onError(error: Error) {
  console.error(error);
}

function Editor() {
  const initialConfig = {
    namespace: "demo",
    onError,
  };
  return (
    <LexicalComposer initialConfig={initialConfig}>
      <RichTextPlugin
        contentEditable={
          <ContentEditable className="TableNode__contentEditable" />
        }
        placeholder={"something"}
      />
      <AutoFocusPlugin />
      <OnChangePlugin onChange={onChange} />
    </LexicalComposer>
  );
}

export default Editor;

ichigo

LexicalOnChangePlugin

ref. https://lexical.dev/docs/react/plugins#lexicalonchangeplugin

Plugin that calls onChange whenever Lexical state is updated. Using ignoreInitialChange (true by default) and ignoreSelectionChange (false by default) can give more granular control over changes that are causing onChange call

<OnChangePlugin onChange={onChange} />

EditorState の更新にHookできる

LexicalHistoryPlugin

ref. https://lexical.dev/docs/react/plugins#lexicalhistoryplugin

React wrapper for @lexical/history that adds support for history stack management and undo / redo commands

<HistoryPlugin />

Undo/Redo コマンドを利用するのに必要（内部でHistoryStateというスタックをいい感じにしてくれる）
これをおくだけでctrl-zができるようになる

ichigo

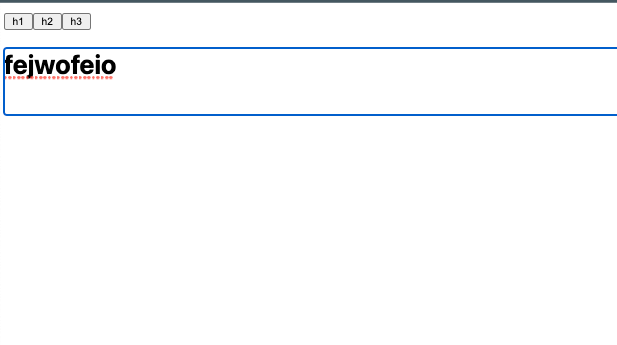

ツールバーの作成

ここからは heading, list などを扱っていくので、それらのノードを作り出すための button を用意する。
参考 https://zenn.dev/stin/articles/lexical-rich-editor-trial#見出し入力機能を実装する

コード

import {
  $getSelection,
  $isRangeSelection,
  EditorState,
  Klass,
  LexicalNode,
} from "lexical";

import { LexicalComposer } from "@lexical/react/LexicalComposer";
import { RichTextPlugin } from "@lexical/react/LexicalRichTextPlugin";
import { ContentEditable } from "@lexical/react/LexicalContentEditable";
import { OnChangePlugin } from "@lexical/react/LexicalOnChangePlugin";
import { AutoFocusPlugin } from "@lexical/react/LexicalAutoFocusPlugin";
import { HeadingNode } from "@lexical/rich-text";
import { HistoryPlugin } from "@lexical/react/LexicalHistoryPlugin";
import { useCallback, useState } from "react";
import { useLexicalComposerContext } from "@lexical/react/LexicalComposerContext";
import { $wrapLeafNodesInElements } from "@lexical/selection";
import { HeadingTagType, $createHeadingNode } from "@lexical/rich-text";

function ToolbarPlugin() {
  const SupportedBlockType = {
    paragraph: "Paragraph",
    h1: "Heading 1",
    h2: "Heading 2",
    h3: "Heading 3",
    h4: "Heading 4",
    h5: "Heading 5",
    h6: "Heading 6",
  } as const;
  type BlockType = keyof typeof SupportedBlockType;

  const [blockType, setBlockType] = useState<BlockType>("paragraph");
  const [editor] = useLexicalComposerContext();
  const formatHeading = useCallback(
    (type: HeadingTagType) => {
      if (blockType !== type) {
        editor.update(() => {
          const selection = $getSelection();
          if ($isRangeSelection(selection)) {
            $wrapLeafNodesInElements(selection, () => $createHeadingNode(type));
          }
        });
        setBlockType(type);
      }
    },
    [blockType, editor]
  );

  return (
    <div>
      <button type="button" onClick={() => formatHeading("h1")}>
        h1
      </button>
      <button type="button" onClick={() => formatHeading("h2")}>
        h2
      </button>
      <button type="button" onClick={() => formatHeading("h3")}>
        h3
      </button>
    </div>
  );
}

export default Editor;

ichigo

HeadingNode

h1~h6 を描画する。
ref. https://lexical.dev/docs/concepts/nodes#elementnode

EditorState のもつ node tree に h1 用のNodeを入れる必要があるが、Lexical はデフォルトでは ElementNode, TextNode, DecoratorNode にしか対応していない。
ので、LexicalComposer の initialConfig に追加の node を渡してあげる必要がある。

import { HeadingNode } from "@lexical/rich-text";
const nodes: Klass<LexicalNode>[] = [HeadingNode];

コード

import {
  $getSelection,
  $isRangeSelection,
  EditorState,
  Klass,
  LexicalNode,
} from "lexical";

import { LexicalComposer } from "@lexical/react/LexicalComposer";
import { RichTextPlugin } from "@lexical/react/LexicalRichTextPlugin";
import { ContentEditable } from "@lexical/react/LexicalContentEditable";
import { OnChangePlugin } from "@lexical/react/LexicalOnChangePlugin";
import { AutoFocusPlugin } from "@lexical/react/LexicalAutoFocusPlugin";
import { HeadingNode } from "@lexical/rich-text";
import { HistoryPlugin } from "@lexical/react/LexicalHistoryPlugin";
import { useCallback, useState } from "react";
import { useLexicalComposerContext } from "@lexical/react/LexicalComposerContext";
import { $wrapLeafNodesInElements } from "@lexical/selection";
import { HeadingTagType, $createHeadingNode } from "@lexical/rich-text";

// When the editor changes, you can get notified via the
// LexicalOnChangePlugin!
function onChange(editorState: EditorState) {
  console.log(editorState);
}

function onError(error: Error) {
  console.error(error);
}

function Editor() {
  const nodes: Klass<LexicalNode>[] = [HeadingNode];

  const initialConfig = {
    namespace: "demo",
    nodes,
    onError,
  };
  return (
    <LexicalComposer initialConfig={initialConfig}>
      <ToolbarPlugin />

      <div>
        <RichTextPlugin
          contentEditable={
            <ContentEditable className="TableNode__contentEditable" />
          }
          placeholder={"something"}
        />
        <AutoFocusPlugin />
        <OnChangePlugin onChange={onChange} />
        <HistoryPlugin />
      </div>
    </LexicalComposer>
  );
}

function ToolbarPlugin() {
  const SupportedBlockType = {
    paragraph: "Paragraph",
    h1: "Heading 1",
    h2: "Heading 2",
    h3: "Heading 3",
    h4: "Heading 4",
    h5: "Heading 5",
    h6: "Heading 6",
  } as const;
  type BlockType = keyof typeof SupportedBlockType;

  const [blockType, setBlockType] = useState<BlockType>("paragraph");
  const [editor] = useLexicalComposerContext();
  const formatHeading = useCallback(
    (type: HeadingTagType) => {
      if (blockType !== type) {
        editor.update(() => {
          const selection = $getSelection();
          if ($isRangeSelection(selection)) {
            $wrapLeafNodesInElements(selection, () => $createHeadingNode(type));
          }
        });
        setBlockType(type);
      }
    },
    [blockType, editor]
  );

  return (
    <div>
      <button type="button" onClick={() => formatHeading("h1")}>
        h1
      </button>
      <button type="button" onClick={() => formatHeading("h2")}>
        h2
      </button>
      <button type="button" onClick={() => formatHeading("h3")}>
        h3
      </button>
    </div>
  );
}

export default Editor;

ichigo

QuoteNode

HeadingNode 同様に QuoteNode を描画する。

コード

import {
$createParagraphNode,
$getSelection,
$isRangeSelection,
EditorState,
Klass,
LexicalNode,
} from "lexical";

// When the editor changes, you can get notified via the
// LexicalOnChangePlugin!
function onChange(editorState: EditorState) {
console.log(editorState);
}

function onError(error: Error) {
console.error(error);
}

function Editor() {
const nodes: Klass<LexicalNode>[] = [HeadingNode, QuoteNode];

const initialConfig = {
namespace: "demo",
nodes,
onError,
};
return (
<LexicalComposer initialConfig={initialConfig}>
<ToolbarPlugin />

  <div>
    <RichTextPlugin
      contentEditable={
        <ContentEditable className="TableNode__contentEditable" />
      }
      placeholder={"something"}
    />
    <AutoFocusPlugin />
    <OnChangePlugin onChange={onChange} />
    <HistoryPlugin />
  </div>
</LexicalComposer>

);
}

function ToolbarPlugin() {
const SupportedBlockType = {
paragraph: "Paragraph",
h1: "Heading 1",
h2: "Heading 2",
h3: "Heading 3",
h4: "Heading 4",
h5: "Heading 5",
h6: "Heading 6",
quote: "Quate",
} as const;
type BlockType = keyof typeof SupportedBlockType;

const [blockType, setBlockType] = useState<BlockType>("paragraph");
const [editor] = useLexicalComposerContext();

const formatParagraph = useCallback(() => {
if (blockType !== "paragraph") {
editor.update(() => {
const selection = $getSelection();
if ($isRangeSelection(selection)) {
$wrapLeafNodesInElements(selection, () => $createParagraphNode());
}
});

  setBlockType("paragraph");
}

}, [blockType, editor]);

const formatQuote = useCallback(() => {
if (blockType !== "quote") {
editor.update(() => {
const selection = $getSelection();
if ($isRangeSelection(selection)) {
$wrapLeafNodesInElements(selection, () => $createQuoteNode());
}
});

  setBlockType("quote");
}

}, [blockType, editor]);

export default Editor;

ichigo

List, Order List, CheckList

Heading 同様にリストを描画する。ただし一つ注意点がある。↓

こいつらは $createHeadingNode が用意されていない代わりに、editor.dispatchCommand から呼び出せる reducer 的な処理が公式で用意されている。それを

editor.dispatchCommand(INSERT_ORDERED_LIST_COMMAND, undefined);

こんな感じに呼び出すことで、EditorState を更新することができる。

コード

import {
  $createParagraphNode,
  $getSelection,
  $isRangeSelection,
  EditorState,
  Klass,
  LexicalNode,
} from "lexical";

import { LexicalComposer } from "@lexical/react/LexicalComposer";
import { RichTextPlugin } from "@lexical/react/LexicalRichTextPlugin";
import { ContentEditable } from "@lexical/react/LexicalContentEditable";
import { OnChangePlugin } from "@lexical/react/LexicalOnChangePlugin";
import { AutoFocusPlugin } from "@lexical/react/LexicalAutoFocusPlugin";
import { ListPlugin } from "@lexical/react/LexicalListPlugin";
import { CheckListPlugin } from "@lexical/react/LexicalCheckListPlugin";
import { HistoryPlugin } from "@lexical/react/LexicalHistoryPlugin";
import { useCallback, useState } from "react";
import { useLexicalComposerContext } from "@lexical/react/LexicalComposerContext";
import { $wrapLeafNodesInElements } from "@lexical/selection";
import {
  HeadingNode,
  QuoteNode,
  HeadingTagType,
  $createHeadingNode,
  $createQuoteNode,
} from "@lexical/rich-text";
import {
  ListItemNode,
  ListNode,
  INSERT_ORDERED_LIST_COMMAND,
  INSERT_UNORDERED_LIST_COMMAND,
  INSERT_CHECK_LIST_COMMAND,
} from "@lexical/list";

// When the editor changes, you can get notified via the
// LexicalOnChangePlugin!
function onChange(editorState: EditorState) {
  console.log(editorState);
}

function onError(error: Error) {
  console.error(error);
}

function Editor() {
  const nodes: Klass<LexicalNode>[] = [
    HeadingNode,
    QuoteNode,
    ListItemNode,
    ListNode,
  ];

  const initialConfig = {
    namespace: "demo",
    nodes,
    onError,
  };
  return (
    <LexicalComposer initialConfig={initialConfig}>
      <ToolbarPlugin />

      <div>
        <RichTextPlugin
          contentEditable={
            <ContentEditable className="TableNode__contentEditable" />
          }
          placeholder={"something"}
        />
        <ListPlugin />
        <CheckListPlugin />
        <AutoFocusPlugin />
        <OnChangePlugin onChange={onChange} />
        <HistoryPlugin />
      </div>
    </LexicalComposer>
  );
}

function ToolbarPlugin() {
  const SupportedBlockType = {
    paragraph: "Paragraph",
    h1: "Heading 1",
    h2: "Heading 2",
    h3: "Heading 3",
    h4: "Heading 4",
    h5: "Heading 5",
    h6: "Heading 6",
    quote: "Quate",
    number: "Numbered List",
    bullet: "Bullet List",
    check: "Check List",
  } as const;
  type BlockType = keyof typeof SupportedBlockType;

  const [blockType, setBlockType] = useState<BlockType>("paragraph");
  const [editor] = useLexicalComposerContext();

  const formatParagraph = useCallback(() => {
    if (blockType !== "paragraph") {
      editor.update(() => {
        const selection = $getSelection();
        if ($isRangeSelection(selection)) {
          $wrapLeafNodesInElements(selection, () => $createParagraphNode());
        }
      });

      setBlockType("paragraph");
    }
  }, [blockType, editor]);

  const formatQuote = useCallback(() => {
    if (blockType !== "quote") {
      editor.update(() => {
        const selection = $getSelection();
        if ($isRangeSelection(selection)) {
          $wrapLeafNodesInElements(selection, () => $createQuoteNode());
        }
      });

      setBlockType("quote");
    }
  }, [blockType, editor]);

  const formatBulletList = useCallback(() => {
    if (blockType !== "bullet") {
      editor.update(() => {
        const selection = $getSelection();
        if ($isRangeSelection(selection)) {
          editor.dispatchCommand(INSERT_UNORDERED_LIST_COMMAND, undefined);
        }
      });
      setBlockType("bullet");
    }
  }, [blockType, editor]);

  const formatNumberList = useCallback(() => {
    if (blockType !== "number") {
      editor.update(() => {
        const selection = $getSelection();
        if ($isRangeSelection(selection)) {
          editor.dispatchCommand(INSERT_ORDERED_LIST_COMMAND, undefined);
        }
      });
      setBlockType("number");
    }
  }, [blockType, editor]);

  const formatCheckList = useCallback(() => {
    if (blockType !== "check") {
      editor.update(() => {
        const selection = $getSelection();
        if ($isRangeSelection(selection)) {
          editor.dispatchCommand(INSERT_CHECK_LIST_COMMAND, undefined);
        }
      });
      setBlockType("check");
    }
  }, [blockType, editor]);

  const formatHeading = useCallback(
    (type: HeadingTagType) => {
      if (blockType !== type) {
        editor.update(() => {
          const selection = $getSelection();
          if ($isRangeSelection(selection)) {
            $wrapLeafNodesInElements(selection, () => $createHeadingNode(type));
          }
        });
        setBlockType(type);
      }
    },
    [blockType, editor]
  );

  return (
    <div>
      <button type="button" onClick={() => formatHeading("h1")}>
        h1
      </button>
      <button type="button" onClick={() => formatHeading("h2")}>
        h2
      </button>
      <button type="button" onClick={() => formatHeading("h3")}>
        h3
      </button>
      <button type="button" onClick={() => formatParagraph()}>
        p
      </button>
      <button type="button" onClick={() => formatQuote()}>
        quote
      </button>
      <button type="button" onClick={() => formatBulletList()}>
        list
      </button>
      <button type="button" onClick={() => formatNumberList()}>
        number
      </button>
      <button type="button" onClick={() => formatCheckList()}>
        check
      </button>
    </div>
  );
}

export default Editor;
```

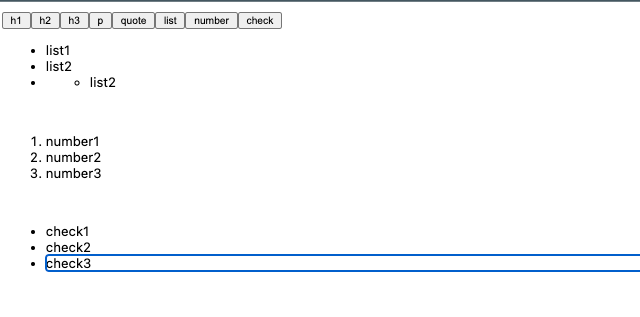

分かりにくいが、一番下はcheckboxになっている。

📝 nest バグってないか

ichigo

Code Block

Quote 同様の手順で追加できる。ただし CodePlugin みたいなReact Componentを用意してくれていないので自分で書く必要がある。

またシンタックスハイライトがダルすぎるので省略した

コード

import {
$createParagraphNode,
$getSelection,
$isRangeSelection,
EditorState,
Klass,
LexicalNode,
} from "lexical";

import { LexicalComposer } from "@lexical/react/LexicalComposer";
import { RichTextPlugin } from "@lexical/react/LexicalRichTextPlugin";
import { ContentEditable } from "@lexical/react/LexicalContentEditable";
import { OnChangePlugin } from "@lexical/react/LexicalOnChangePlugin";
import { AutoFocusPlugin } from "@lexical/react/LexicalAutoFocusPlugin";
import { ListPlugin } from "@lexical/react/LexicalListPlugin";
import { CheckListPlugin } from "@lexical/react/LexicalCheckListPlugin";
import { HistoryPlugin } from "@lexical/react/LexicalHistoryPlugin";
import { useCallback, useEffect, useState } from "react";
import { useLexicalComposerContext } from "@lexical/react/LexicalComposerContext";
import { $wrapLeafNodesInElements } from "@lexical/selection";
import {
HeadingNode,
QuoteNode,
HeadingTagType,
$createHeadingNode,
$createQuoteNode,
} from "@lexical/rich-text";
import {
ListItemNode,
ListNode,
INSERT_ORDERED_LIST_COMMAND,
INSERT_UNORDERED_LIST_COMMAND,
INSERT_CHECK_LIST_COMMAND,
} from "@lexical/list";
import {
registerCodeHighlighting,
$createCodeNode,
CodeNode,
CodeHighlightNode,
} from "@lexical/code";

// When the editor changes, you can get notified via the
// LexicalOnChangePlugin!
function onChange(editorState: EditorState) {
console.log(editorState);
}

function onError(error: Error) {
console.error(error);
}

function Editor() {
const nodes: Klass<LexicalNode>[] = [
HeadingNode,
QuoteNode,
ListItemNode,
ListNode,
CodeNode,
CodeHighlightNode,
];

const initialConfig = {
namespace: "demo",
nodes,
onError,
};
return (
<LexicalComposer initialConfig={initialConfig}>
<ToolbarPlugin />

  <div>
    <RichTextPlugin
      contentEditable={
        <ContentEditable className="TableNode__contentEditable" />
      }
      placeholder={"something"}
    />
    <ListPlugin />
    <CheckListPlugin />
    <CodeHighlightPlugin />
    <AutoFocusPlugin />
    <OnChangePlugin onChange={onChange} />
    <HistoryPlugin />
  </div>
</LexicalComposer>

);
}

function ToolbarPlugin() {
const SupportedBlockType = {
paragraph: "Paragraph",
h1: "Heading 1",
h2: "Heading 2",
h3: "Heading 3",
h4: "Heading 4",
h5: "Heading 5",
h6: "Heading 6",
quote: "Quate",
number: "Numbered List",
bullet: "Bullet List",
check: "Check List",
code: "Code Block",
} as const;
type BlockType = keyof typeof SupportedBlockType;

const [blockType, setBlockType] = useState<BlockType>("paragraph");
const [editor] = useLexicalComposerContext();

  setBlockType("paragraph");
}

}, [blockType, editor]);

  setBlockType("quote");
}

}, [blockType, editor]);

const formatCode = useCallback(() => {
if (blockType !== "code") {
editor.update(() => {
const selection = $getSelection();
if ($isRangeSelection(selection)) {
$wrapLeafNodesInElements(selection, () => $createCodeNode());
}
});

  setBlockType("code");
}

}, [blockType, editor]);

return (
<div>
<button type="button" onClick={() => formatHeading("h1")}>
h1
</button>
<button type="button" onClick={() => formatHeading("h2")}>
h2
</button>
<button type="button" onClick={() => formatHeading("h3")}>
h3
</button>
<button type="button" onClick={() => formatParagraph()}>
p
</button>
<button type="button" onClick={() => formatQuote()}>
quote
</button>
<button type="button" onClick={() => formatBulletList()}>
list
</button>
<button type="button" onClick={() => formatNumberList()}>
number
</button>
<button type="button" onClick={() => formatCheckList()}>
check
</button>
<button type="button" onClick={() => formatCode()}>
code
</button>
</div>
);
}

export default Editor;

export const CodeHighlightPlugin: React.FC = () => {
const [editor] = useLexicalComposerContext();

useEffect(() => {
return registerCodeHighlighting(editor);
}, [editor]);

return null;
};

ichigo

Bold, Italic, ...

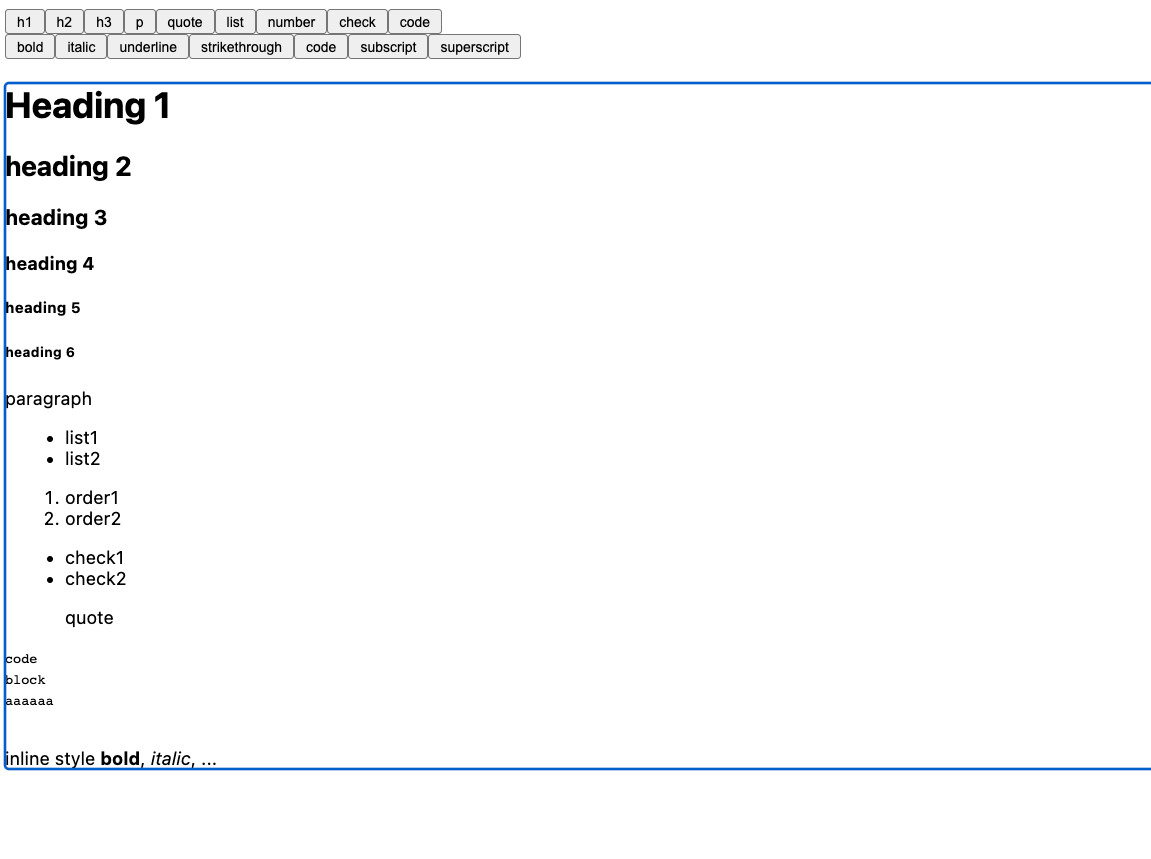

rich-text のおかげでできるようになっているので button で導線を出す。

コード

import {
  $createParagraphNode,
  $getSelection,
  $isRangeSelection,
  EditorState,
  FORMAT_TEXT_COMMAND,
  Klass,
  LexicalNode,
  TextFormatType,
} from "lexical";

import { LexicalComposer } from "@lexical/react/LexicalComposer";
import { RichTextPlugin } from "@lexical/react/LexicalRichTextPlugin";
import { ContentEditable } from "@lexical/react/LexicalContentEditable";
import { OnChangePlugin } from "@lexical/react/LexicalOnChangePlugin";
import { AutoFocusPlugin } from "@lexical/react/LexicalAutoFocusPlugin";
import { ListPlugin } from "@lexical/react/LexicalListPlugin";
import { CheckListPlugin } from "@lexical/react/LexicalCheckListPlugin";
import { HistoryPlugin } from "@lexical/react/LexicalHistoryPlugin";
import { useCallback, useEffect, useState } from "react";
import { useLexicalComposerContext } from "@lexical/react/LexicalComposerContext";
import { $wrapLeafNodesInElements } from "@lexical/selection";
import {
  HeadingNode,
  QuoteNode,
  HeadingTagType,
  $createHeadingNode,
  $createQuoteNode,
} from "@lexical/rich-text";
import {
  ListItemNode,
  ListNode,
  INSERT_ORDERED_LIST_COMMAND,
  INSERT_UNORDERED_LIST_COMMAND,
  INSERT_CHECK_LIST_COMMAND,
} from "@lexical/list";
import {
  registerCodeHighlighting,
  $createCodeNode,
  CodeNode,
  CodeHighlightNode,
} from "@lexical/code";

// When the editor changes, you can get notified via the
// LexicalOnChangePlugin!
function onChange(editorState: EditorState) {
  console.log(editorState);
}

function onError(error: Error) {
  console.error(error);
}

function Editor() {
  const nodes: Klass<LexicalNode>[] = [
    HeadingNode,
    QuoteNode,
    ListItemNode,
    ListNode,
    CodeNode,
    CodeHighlightNode,
  ];

  const initialConfig = {
    namespace: "demo",
    nodes,
    onError,
  };
  return (
    <LexicalComposer initialConfig={initialConfig}>
      <ToolbarPlugin />
      <InlineToolbarPlugin />

      <div>
        <RichTextPlugin
          contentEditable={
            <ContentEditable className="TableNode__contentEditable" />
          }
          placeholder={"something"}
        />
        <ListPlugin />
        <CheckListPlugin />
        <CodeHighlightPlugin />
        <AutoFocusPlugin />
        <OnChangePlugin onChange={onChange} />
        <HistoryPlugin />
      </div>
    </LexicalComposer>
  );
}

function ToolbarPlugin() {
  const SupportedBlockType = {
    paragraph: "Paragraph",
    h1: "Heading 1",
    h2: "Heading 2",
    h3: "Heading 3",
    h4: "Heading 4",
    h5: "Heading 5",
    h6: "Heading 6",
    quote: "Quate",
    number: "Numbered List",
    bullet: "Bullet List",
    check: "Check List",
    code: "Code Block",
  } as const;
  type BlockType = keyof typeof SupportedBlockType;

  const [blockType, setBlockType] = useState<BlockType>("paragraph");
  const [editor] = useLexicalComposerContext();

  const formatParagraph = useCallback(() => {
    if (blockType !== "paragraph") {
      editor.update(() => {
        const selection = $getSelection();
        if ($isRangeSelection(selection)) {
          $wrapLeafNodesInElements(selection, () => $createParagraphNode());
        }
      });

      setBlockType("paragraph");
    }
  }, [blockType, editor]);

  const formatQuote = useCallback(() => {
    if (blockType !== "quote") {
      editor.update(() => {
        const selection = $getSelection();
        if ($isRangeSelection(selection)) {
          $wrapLeafNodesInElements(selection, () => $createQuoteNode());
        }
      });

      setBlockType("quote");
    }
  }, [blockType, editor]);

  const formatCode = useCallback(() => {
    if (blockType !== "code") {
      editor.update(() => {
        const selection = $getSelection();
        if ($isRangeSelection(selection)) {
          $wrapLeafNodesInElements(selection, () => $createCodeNode());
        }
      });

      setBlockType("code");
    }
  }, [blockType, editor]);

  const formatBulletList = useCallback(() => {
    if (blockType !== "bullet") {
      editor.update(() => {
        const selection = $getSelection();
        if ($isRangeSelection(selection)) {
          editor.dispatchCommand(INSERT_UNORDERED_LIST_COMMAND, undefined);
        }
      });
      setBlockType("bullet");
    }
  }, [blockType, editor]);

  const formatNumberList = useCallback(() => {
    if (blockType !== "number") {
      editor.update(() => {
        const selection = $getSelection();
        if ($isRangeSelection(selection)) {
          editor.dispatchCommand(INSERT_ORDERED_LIST_COMMAND, undefined);
        }
      });
      setBlockType("number");
    }
  }, [blockType, editor]);

  const formatCheckList = useCallback(() => {
    if (blockType !== "check") {
      editor.update(() => {
        const selection = $getSelection();
        if ($isRangeSelection(selection)) {
          editor.dispatchCommand(INSERT_CHECK_LIST_COMMAND, undefined);
        }
      });
      setBlockType("check");
    }
  }, [blockType, editor]);

  const formatHeading = useCallback(
    (type: HeadingTagType) => {
      if (blockType !== type) {
        editor.update(() => {
          const selection = $getSelection();
          if ($isRangeSelection(selection)) {
            $wrapLeafNodesInElements(selection, () => $createHeadingNode(type));
          }
        });
        setBlockType(type);
      }
    },
    [blockType, editor]
  );

  return (
    <div>
      <button type="button" onClick={() => formatHeading("h1")}>
        h1
      </button>
      <button type="button" onClick={() => formatHeading("h2")}>
        h2
      </button>
      <button type="button" onClick={() => formatHeading("h3")}>
        h3
      </button>
      <button type="button" onClick={() => formatParagraph()}>
        p
      </button>
      <button type="button" onClick={() => formatQuote()}>
        quote
      </button>
      <button type="button" onClick={() => formatBulletList()}>
        list
      </button>
      <button type="button" onClick={() => formatNumberList()}>
        number
      </button>
      <button type="button" onClick={() => formatCheckList()}>
        check
      </button>
      <button type="button" onClick={() => formatCode()}>
        code
      </button>
    </div>
  );
}

const textFormat = [
  "bold",
  "italic",
  "underline",
  "strikethrough",
  "code",
  "subscript",
  "superscript",
];

const InlineToolbarPlugin: React.FC = () => {
  const [editor] = useLexicalComposerContext();

  const formatText = useCallback(
    (format: TextFormatType) => {
      editor.update(() => {
        editor.dispatchCommand(FORMAT_TEXT_COMMAND, format);
      });
    },
    [editor]
  );

  return (
    <div>
      {textFormat.map((format) => (
        <button
          key={format}
          type="button"
          onClick={() => formatText(format as TextFormatType)}
        >
          {format}
        </button>
      ))}
    </div>
  );
};

export const CodeHighlightPlugin: React.FC = () => {
  const [editor] = useLexicalComposerContext();

  useEffect(() => {
    return registerCodeHighlighting(editor);
  }, [editor]);

  return null;
};

export default Editor;

ichigo

Markdown shortcut

公式がいい感じのプラグインを提供してくれている。
変換ルール(TRANSFORMERS)は自分で拡張することもできる。

コード

import {
  $createParagraphNode,
  $getSelection,
  $isRangeSelection,
  EditorState,
  FORMAT_TEXT_COMMAND,
  Klass,
  LexicalNode,
  TextFormatType,
} from "lexical";

import { LexicalComposer } from "@lexical/react/LexicalComposer";
import { RichTextPlugin } from "@lexical/react/LexicalRichTextPlugin";
import { ContentEditable } from "@lexical/react/LexicalContentEditable";
import { OnChangePlugin } from "@lexical/react/LexicalOnChangePlugin";
import { AutoFocusPlugin } from "@lexical/react/LexicalAutoFocusPlugin";
import { ListPlugin } from "@lexical/react/LexicalListPlugin";
import { CheckListPlugin } from "@lexical/react/LexicalCheckListPlugin";
import { HistoryPlugin } from "@lexical/react/LexicalHistoryPlugin";
import { useCallback, useEffect, useState } from "react";
import { useLexicalComposerContext } from "@lexical/react/LexicalComposerContext";
import { $wrapLeafNodesInElements } from "@lexical/selection";
import { AutoLinkNode, LinkNode } from "@lexical/link";
import {
  HeadingNode,
  QuoteNode,
  HeadingTagType,
  $createHeadingNode,
  $createQuoteNode,
} from "@lexical/rich-text";
import {
  ListItemNode,
  ListNode,
  INSERT_ORDERED_LIST_COMMAND,
  INSERT_UNORDERED_LIST_COMMAND,
  INSERT_CHECK_LIST_COMMAND,
} from "@lexical/list";
import {
  registerCodeHighlighting,
  $createCodeNode,
  CodeNode,
  CodeHighlightNode,
} from "@lexical/code";
import { TRANSFORMERS } from "@lexical/markdown";
import { MarkdownShortcutPlugin } from "@lexical/react/LexicalMarkdownShortcutPlugin";

// When the editor changes, you can get notified via the
// LexicalOnChangePlugin!
function onChange(editorState: EditorState) {
  console.log(editorState);
}

function onError(error: Error) {
  console.error(error);
}

function Editor() {
  const nodes: Array<Klass<LexicalNode>> = [
    HeadingNode,
    ListNode,
    ListItemNode,
    QuoteNode,
    CodeNode,
    CodeHighlightNode,
    AutoLinkNode,
    LinkNode,
  ];

  const initialConfig = {
    namespace: "demo",
    nodes,
    onError,
  };
  return (
    <LexicalComposer initialConfig={initialConfig}>
      <ToolbarPlugin />
      <InlineToolbarPlugin />

      <div>
        <RichTextPlugin
          contentEditable={
            <ContentEditable className="TableNode__contentEditable" />
          }
          placeholder={"something"}
        />
        <ListPlugin />
        <CheckListPlugin />
        <MarkdownPlugin />
        <CodeHighlightPlugin />
        <AutoFocusPlugin />
        <OnChangePlugin onChange={onChange} />
        <HistoryPlugin />
      </div>
    </LexicalComposer>
  );
}

function ToolbarPlugin() {
  const SupportedBlockType = {
    paragraph: "Paragraph",
    h1: "Heading 1",
    h2: "Heading 2",
    h3: "Heading 3",
    h4: "Heading 4",
    h5: "Heading 5",
    h6: "Heading 6",
    quote: "Quate",
    number: "Numbered List",
    bullet: "Bullet List",
    check: "Check List",
    code: "Code Block",
  } as const;
  type BlockType = keyof typeof SupportedBlockType;

  const [blockType, setBlockType] = useState<BlockType>("paragraph");
  const [editor] = useLexicalComposerContext();

  const formatParagraph = useCallback(() => {
    if (blockType !== "paragraph") {
      editor.update(() => {
        const selection = $getSelection();
        if ($isRangeSelection(selection)) {
          $wrapLeafNodesInElements(selection, () => $createParagraphNode());
        }
      });

      setBlockType("paragraph");
    }
  }, [blockType, editor]);

  const formatQuote = useCallback(() => {
    if (blockType !== "quote") {
      editor.update(() => {
        const selection = $getSelection();
        if ($isRangeSelection(selection)) {
          $wrapLeafNodesInElements(selection, () => $createQuoteNode());
        }
      });

      setBlockType("quote");
    }
  }, [blockType, editor]);

  const formatCode = useCallback(() => {
    if (blockType !== "code") {
      editor.update(() => {
        const selection = $getSelection();
        if ($isRangeSelection(selection)) {
          $wrapLeafNodesInElements(selection, () => $createCodeNode());
        }
      });

      setBlockType("code");
    }
  }, [blockType, editor]);

  const formatBulletList = useCallback(() => {
    if (blockType !== "bullet") {
      editor.update(() => {
        const selection = $getSelection();
        if ($isRangeSelection(selection)) {
          editor.dispatchCommand(INSERT_UNORDERED_LIST_COMMAND, undefined);
        }
      });
      setBlockType("bullet");
    }
  }, [blockType, editor]);

  const formatNumberList = useCallback(() => {
    if (blockType !== "number") {
      editor.update(() => {
        const selection = $getSelection();
        if ($isRangeSelection(selection)) {
          editor.dispatchCommand(INSERT_ORDERED_LIST_COMMAND, undefined);
        }
      });
      setBlockType("number");
    }
  }, [blockType, editor]);

  const formatCheckList = useCallback(() => {
    if (blockType !== "check") {
      editor.update(() => {
        const selection = $getSelection();
        if ($isRangeSelection(selection)) {
          editor.dispatchCommand(INSERT_CHECK_LIST_COMMAND, undefined);
        }
      });
      setBlockType("check");
    }
  }, [blockType, editor]);

  const formatHeading = useCallback(
    (type: HeadingTagType) => {
      if (blockType !== type) {
        editor.update(() => {
          const selection = $getSelection();
          if ($isRangeSelection(selection)) {
            $wrapLeafNodesInElements(selection, () => $createHeadingNode(type));
          }
        });
        setBlockType(type);
      }
    },
    [blockType, editor]
  );

  return (
    <div>
      <button type="button" onClick={() => formatHeading("h1")}>
        h1
      </button>
      <button type="button" onClick={() => formatHeading("h2")}>
        h2
      </button>
      <button type="button" onClick={() => formatHeading("h3")}>
        h3
      </button>
      <button type="button" onClick={() => formatParagraph()}>
        p
      </button>
      <button type="button" onClick={() => formatQuote()}>
        quote
      </button>
      <button type="button" onClick={() => formatBulletList()}>
        list
      </button>
      <button type="button" onClick={() => formatNumberList()}>
        number
      </button>
      <button type="button" onClick={() => formatCheckList()}>
        check
      </button>
      <button type="button" onClick={() => formatCode()}>
        code
      </button>
    </div>
  );
}

const textFormat = [
  "bold",
  "italic",
  "underline",
  "strikethrough",
  "code",
  "subscript",
  "superscript",
];

const InlineToolbarPlugin: React.FC = () => {
  const [editor] = useLexicalComposerContext();

  const formatText = useCallback(
    (format: TextFormatType) => {
      editor.update(() => {
        editor.dispatchCommand(FORMAT_TEXT_COMMAND, format);
      });
    },
    [editor]
  );

  return (
    <div>
      {textFormat.map((format) => (
        <button
          key={format}
          type="button"
          onClick={() => formatText(format as TextFormatType)}
        >
          {format}
        </button>
      ))}
    </div>
  );
};

export const CodeHighlightPlugin: React.FC = () => {
  const [editor] = useLexicalComposerContext();

  useEffect(() => {
    return registerCodeHighlighting(editor);
  }, [editor]);

  return null;
};

export const MarkdownPlugin: React.FC = () => {
  console.log(TRANSFORMERS);
  return <MarkdownShortcutPlugin transformers={TRANSFORMERS} />;
};

export default Editor;

ichigo

PlainTextPlugin

RichTextPlugin

AutoFocus

LexicalOnChangePlugin

LexicalHistoryPlugin

ツールバーの作成

HeadingNode

QuoteNode

List, Order List, CheckList

Code Block

Bold, Italic, ...

Markdown shortcut

ここまでで出来上がったもの
