【Unity】Tilemap分割ツールを開発したよ、見てみて【OSS】

2025/07/22に公開
この画像、Clipchamp を使って数分でできました　ありがとう Microsoft
リポジトリ(良ければ Star, PR お願いします🙇‍♂️)
https://github.com/SunagimoOisii/TilemapSplitter

 どんなツールなのか一言で

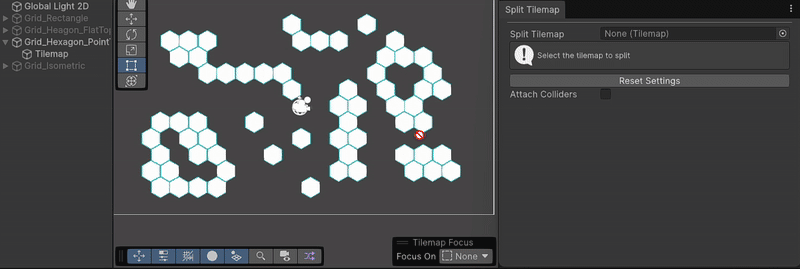

分割(分類)対象Tilemap をセットし、プレビュー表示後、実際に分割する例
Tilemap を接続関係から分類し、複数の Tilemap として再構成する
分割 Tilemap の Tag, Layer 設定もこれでできる
MIT LICENSE

 何故作ったのかあるゲーム開発で必要だった
タイルごとに Layer 等を設定したいが、設定毎に Tilemap を分けて作るのは面倒
ならば、
Tilemap を１つ作成
複数の Tilemap(を持つ GameObject) に分割
分割 Tilemap の設定を行う

という作業の流れにすれば楽になるのではないか…というのがきっかけ


 誰に, どんなときに有用なのか誰に → 2D ゲーム開発者, レベルデザイナー
Tilemap 機能を活用してステージやフィールドを作る方

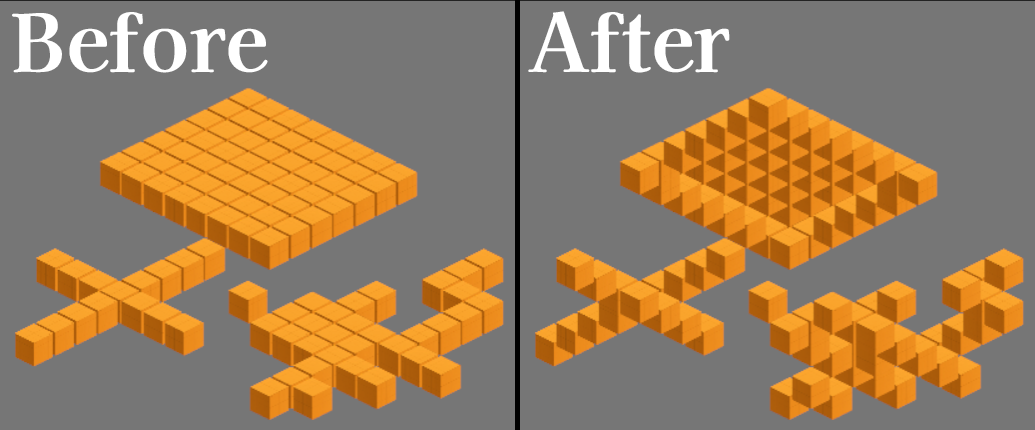

どんなときに → タイルの形状によって異なる演出をしたいとき
エッジ部分だけにラインを描くなどなど

 導入方法
 A：UPM を利用する場合Unity エディタ上で Window → Package Manager を開く
左上 + ボタンで Add package from git URL… を選択
次の URL を入力して Add を押す
https://github.com/SunagimoOisii/TilemapSplitter.git?path=/Packages/com.sunagimo.tilemapsplitter

 B：手動インストールの場合TilemapSplitter フォルダを Assets 下へ配置

 使い方
 １：Tilemap を１つ用意する

 ２：本ツールのウィンドウを開き、設定を行う

Tools → TilemapSplitter を選択でこのウィンドウが開く
以降はこのウィンドウを上から解説する
分割 Tilemap 設定

分割対象をアタッチするだけ
分割後の Tilemap 設定



各項目を分割種類ごとに設定できる

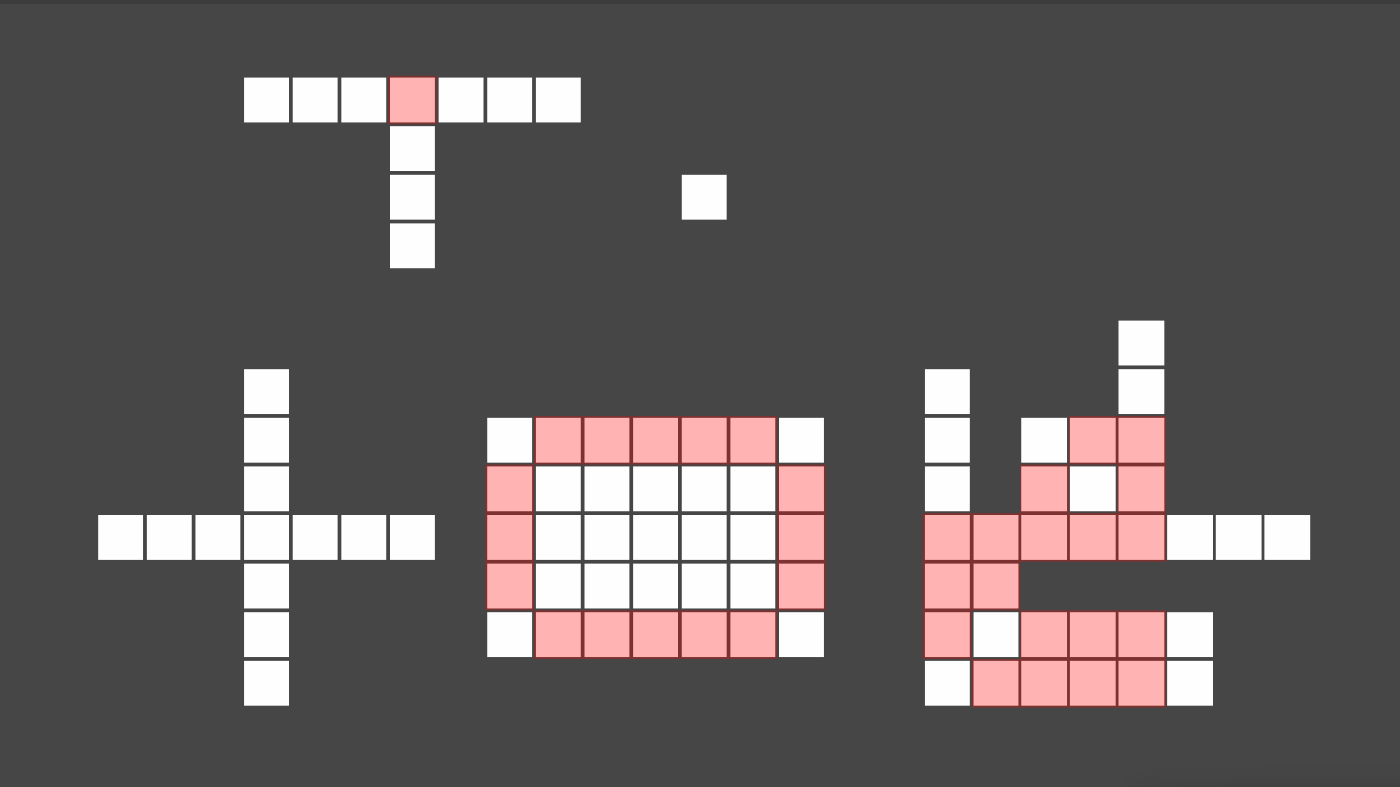

分割種類は縦エッジ, 横エッジ, 交差, T字, 角, 孤立が存在する
具体的にどの種類がどれなのか縦エッジ(VerticalEdge)

横エッジ(HorizontalEdge)

交差(Cross)

T字(TJunction)

角(Corner)

孤立(Isolate)

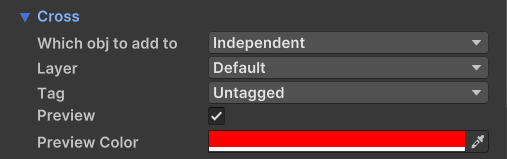

各項目の解説

Which obj to add to：
VerticalEdge, HorizontalEdge 以外の種類のみある設定
分割後、どの Tilemap に組み込むか Nothing, Everything, Vertical, Horizontal, Independent から選択可能
Nothing はその種類の分割を行わない
Everything は Vertical, Horizontal, Independent の全選択
Vertical, Horiontal はそれぞれ縦エッジ, 横エッジの Tilemap に組み込まれる
Independent はその種類で Tilemap(GameObject) を独立させる


Tag：分割後のタグ設定

Layer：分割後のレイヤー設定

Preview：シーンビューで分割プレビューを適用するかどうか

PreviewColor：分割プレビュー時の色の設定

 ３：分割



設定通りの Tilemap(を持つ GameObject)が生成される
ボタンを押して分割実行
処理の間はプログレスバーが表示される
その他 細かい設定

Reset Settings：PreviewColor 等を初期状態に戻す

Attach Colliders：分割 Tilemap の GameObject に Rigidbody2D, TilemapCollider2D, CompositeCollider2D をアタッチする

Merge VerticalEdge, HorizontalEdge：縦, 横エッジを同じ Tilemap に組み込む

 使われているプログラム本ツールを使用するだけであれば、本章より前の解説のみ読むだけでも十分です

本ツールは以下のプログラムで構成されている(2025/07/16 時点)

 TilemapSplitterWindow.cs
EditorWindow 派生クラスとしてメニュー登録, ウィンドウ表示を担当
UIElements を用いて ObjectField, Foldout 等のコントロールを生成, 配置

RefreshPreview(), SplitCoroutine() によるプレビュー更新, 分割処理を実装
実際のコード出典：TilemapSplitterWindow.cs
namespace TilemapSplitter
{
    using System;
    using System.Collections;
    using System.Collections.Generic;
    using UnityEditor;
    using UnityEditor.UIElements;
    using UnityEngine;
    using UnityEngine.Tilemaps;
    using UnityEngine.UIElements;

    internal class TilemapSplitterWindow : EditorWindow
    {
        private const string PrefPrefix = "TilemapSplitter.";
        private static string CreateKey(string name) => PrefPrefix + name;

        private Dictionary<ShapeType, ShapeSetting> settingsDict = CreateDefaultSettings();
        private static Dictionary<ShapeType, ShapeSetting> CreateDefaultSettings() => new()
        {
            [ShapeType.VerticalEdge]   = new() { flags = ShapeFlags.VerticalEdge,   previewColor = Color.green  },
            [ShapeType.HorizontalEdge] = new() { flags = ShapeFlags.HorizontalEdge, previewColor = Color.yellow },
            [ShapeType.Cross]          = new() { flags = ShapeFlags.Independent,    previewColor = Color.red    },
            [ShapeType.TJunction]      = new() { flags = ShapeFlags.Independent,    previewColor = Color.blue   },
            [ShapeType.Corner]         = new() { flags = ShapeFlags.Independent,    previewColor = Color.cyan   },
            [ShapeType.Isolate]        = new() { flags = ShapeFlags.Independent,    previewColor = Color.magenta },
        };

        private Foldout verticalEdgeFoldOut;
        private Foldout horizontalEdgeFoldOut;
        private Foldout crossFoldOut;
        private Foldout tJunctionFoldOut;
        private Foldout cornerFoldOut;
        private Foldout isolateFoldOut;

        private Tilemap source;
        private ShapeCells shapeCells = new();
        private readonly TilemapPreviewDrawer previewDrawer = new();

        private bool canMergeEdges       = false;
        private bool canAttachCollider   = false;
        private bool isRefreshingPreview = false;

        [MenuItem("Tools/TilemapSplitter")]
        public static void ShowWindow() => GetWindow<TilemapSplitterWindow>("Split Tilemap");

        private void OnEnable()
        {
            LoadPrefs();
            previewDrawer.Register();
        }

        private void OnDisable()
        {
            SavePrefs();
            previewDrawer.Unregister();
        }

        public void CreateGUI()
        {
            var root = rootVisualElement;

            //Create a ScrollView and a container VisualElement
            var scroll    = new ScrollView();
            var container = new VisualElement();
            container.style.flexDirection = FlexDirection.Column;
            container.style.paddingLeft   = 10;
            container.style.paddingRight  = 10;
            root.Add(scroll);
            scroll.Add(container);

            //Create an ObjectField and HelpBox for the user to select the source Tilemap asset
            var sourceF = new ObjectField("Split Tilemap");
            var hp      = new HelpBox("Select the subject of the division", HelpBoxMessageType.Info);
            hp.visible = (source == null);
            sourceF.objectType = typeof(Tilemap);
            sourceF.value      = source;
            sourceF.RegisterValueChangedCallback(evt =>
            {
                source = evt.newValue as Tilemap;
                hp.visible = (source == null);
                RefreshPreview();
            });
            container.Add(sourceF);
            container.Add(hp);

            AddHorizontalSeparator(container);

            //Create Split Settings Button
            var resetB = new Button(() =>
            {
                ResetPrefs();
                root.Clear();
                CreateGUI();
            });
            resetB.text            = "Reset Settings";
            resetB.style.marginTop = 5;
            container.Add(resetB);

            //Create Colliders Attach Button
            var attachT = new Toggle("Attach Colliders");
            attachT.value = canAttachCollider;
            attachT.RegisterValueChangedCallback(evt => canAttachCollider = evt.newValue);
            container.Add(attachT);

            //Create Vertical, Horizontal Edge Shape Settings UI
            var mergeT  = new Toggle("Merge VerticalEdge, HorizontalEdge");
            var mergeHB = new HelpBox("When merging, VerticalEdge shapeSettings take precedence",
                HelpBoxMessageType.Info);
            mergeT.value = canMergeEdges;
            mergeT.RegisterValueChangedCallback(evt => canMergeEdges = evt.newValue);
            container.Add(mergeT);
            container.Add(mergeHB);

            //Create Split Each Shape Settings UI
            var infos = new (ShapeType type, string title)[]
            {
                (ShapeType.VerticalEdge,   "VerticalEdge"),
                (ShapeType.HorizontalEdge, "HorizontalEdge"),
                (ShapeType.Cross,          "Cross"),
                (ShapeType.TJunction,      "T-Junction"),
                (ShapeType.Corner,         "Corner"),
                (ShapeType.Isolate,        "Isolate")
            };
            foreach (var info in infos)
            {
                var fold = CreateFoldout(container, info.type, info.title);
                switch (info.type)
                {
                    case ShapeType.VerticalEdge:   verticalEdgeFoldOut   = fold; break;
                    case ShapeType.HorizontalEdge: horizontalEdgeFoldOut = fold; break;
                    case ShapeType.Cross:          crossFoldOut          = fold; break;
                    case ShapeType.TJunction:      tJunctionFoldOut      = fold; break;
                    case ShapeType.Corner:         cornerFoldOut         = fold; break;
                    case ShapeType.Isolate:        isolateFoldOut        = fold; break;
                }
                AddHorizontalSeparator(container);
            }

            //Add the Execute Splitting button at the bottom of the UI
            var splitB = new Button(() =>
            {
                if (source == null)
                {
                    EditorUtility.DisplayDialog("Error", "The split target isn't set", "OK");
                    return;
                }
                StartCoroutine(SplitCoroutine());
            });
            splitB.text            = "Execute Splitting";
            splitB.style.marginTop = 10;
            container.Add(splitB);

            previewDrawer.Setup(source, settingsDict);
        }

        private static void AddHorizontalSeparator(VisualElement parentContainer)
        {
            var separator = new VisualElement();
            separator.style.borderBottomWidth = 1;
            separator.style.borderBottomColor = Color.gray;
            separator.style.marginTop         = 5;
            separator.style.marginBottom      = 5;

            parentContainer.Add(separator);
        }

        private Foldout CreateFoldout(VisualElement parentContainer, ShapeType type, string title)
        {
            var fold = new Foldout();
            fold.text                          = title;
            fold.style.unityFontStyleAndWeight = FontStyle.Bold;

            var setting = settingsDict[type];
            if (type == ShapeType.VerticalEdge ||
                type == ShapeType.HorizontalEdge)
            {
                AddShapeSettingControls(fold, setting);
            }
            else
            {
                var enumF = new EnumFlagsField("Which obj to add to", setting.flags);
                fold.Add(enumF);

                Toggle previewT    = null;
                ColorField colorF  = null;
                (previewT, colorF) = AddShapeSettingControls(fold, setting);

                enumF.RegisterValueChangedCallback(evt =>
                {
                    setting.flags = (ShapeFlags)evt.newValue;
                    RefreshPreview();
                    RefreshFoldoutUI(setting, fold, previewT, colorF);
                });

                RefreshFoldoutUI(setting, fold, previewT, colorF);
            }

            parentContainer.Add(fold);
            return fold;
        }

        private (Toggle previewToggle, ColorField colorField) AddShapeSettingControls(Foldout fold,
            ShapeSetting setting)
        {
            //Create controls and register callbacks
            var layerF   = new LayerField("Layer", setting.layer);
            var tagF     = new TagField("Tag", setting.tag);
            var previewT = new Toggle("Preview") { value = setting.canPreview };
            var colF     = new ColorField("Preview Color") { value = setting.previewColor };
            layerF.RegisterValueChangedCallback(evt => setting.layer = evt.newValue);
            tagF.RegisterValueChangedCallback(evt => setting.tag = evt.newValue);
            previewT.RegisterValueChangedCallback(evt =>
            {
                setting.canPreview = evt.newValue;
                RefreshPreview();
            });
            colF.RegisterValueChangedCallback(evt => setting.previewColor = evt.newValue);

            //Add creation controls to foldout
            fold.Add(layerF);
            fold.Add(tagF);
            fold.Add(previewT);
            fold.Add(colF);

            return (previewT, colF);
        }

        private void RefreshFoldoutUI(ShapeSetting setting, Foldout fold,
            Toggle previewToggle, ColorField colField)
        {
            var opt = setting.flags;

            var exist = fold.Q<HelpBox>();
            if (exist != null) fold.Remove(exist);

            string msg   = null;
            string helpV = "The canPreview complies with VerticalEdge shapeSettings.";
            string helpH = "The canPreview complies with HorizontalEdge shapeSettings.";
            if      (opt.HasFlag(ShapeFlags.VerticalEdge))   msg = helpV;
            else if (opt.HasFlag(ShapeFlags.HorizontalEdge)) msg = helpH;

            if (string.IsNullOrEmpty(msg) == false)
            {
                fold.Add(new HelpBox(msg, HelpBoxMessageType.Info));
            }

            bool isVisible = opt.HasFlag(ShapeFlags.Independent);
            previewToggle.visible = isVisible;
            colField.visible      = isVisible;
        }

        private static void StartCoroutine(IEnumerator e)
        {
            EditorApplication.update += Update;

            void Update()
            {
                if (e.MoveNext() == false) EditorApplication.update -= Update;
            }
        }

        private IEnumerator SplitCoroutine()
        {
            shapeCells = new ShapeCells();
            var  e = TileShapeClassifier.ClassifyCoroutine(source, settingsDict, shapeCells);

            while (e.MoveNext()) yield return null;

            TilemapCreator.GenerateSplitTilemaps(source, shapeCells, settingsDict,
                canMergeEdges, canAttachCollider);
            RefreshPreview();
        }

        private void RefreshPreview()
        {
            if (source == null || isRefreshingPreview) return;
            StartCoroutine(RefreshPreviewCoroutine());

            IEnumerator RefreshPreviewCoroutine()
            {
                isRefreshingPreview = true;

                shapeCells = new ShapeCells();
                var e = TileShapeClassifier.ClassifyCoroutine(source, settingsDict, shapeCells);
                while (e.MoveNext())
                {
                    yield return null;
                }

                previewDrawer.Setup(source, settingsDict);
                previewDrawer.SetShapeCells(shapeCells);
                SceneView.RepaintAll();
                UpdateFoldoutTitles();

                isRefreshingPreview = false;
            }
        }

        private void UpdateFoldoutTitles()
        {
            var list = new (Foldout f, string name, int count)[]
            {
                (verticalEdgeFoldOut,   "VerticalEdge",   shapeCells.VerticalCells.Count),
                (horizontalEdgeFoldOut, "HorizontalEdge", shapeCells.HorizontalCells.Count),
                (crossFoldOut,          "CrossCells",     shapeCells.CrossCells.Count),
                (tJunctionFoldOut,      "TJunctionCells", shapeCells.TJunctionCells.Count),
                (cornerFoldOut,         "CornerCells",    shapeCells.CornerCells.Count),
                (isolateFoldOut,        "IsolateCells",   shapeCells.IsolateCells.Count),
            };
            foreach (var (f, name, count) in list)
            {
                f.text = $"{name} (Count:{count})";
            }
        }

        #region Saving and Loading Split Settings using EditorPrefs

        private void SavePrefs()
        {
            if (source != null)
            {
                string path = AssetDatabase.GetAssetPath(source);
                EditorPrefs.SetString(CreateKey("SourcePath"), path);
            }
            else
            {
                EditorPrefs.DeleteKey(CreateKey("SourcePath"));
            }

            EditorPrefs.SetBool(CreateKey("CanMergeEdges"),  canMergeEdges);
            EditorPrefs.SetBool(CreateKey("AttachCollider"), canAttachCollider);

            foreach (var kv in settingsDict)
            {
                string name = kv.Key.ToString();
                var setting = kv.Value;
                EditorPrefs.SetInt(CreateKey($"{name}.Flags"), (int)setting.flags);
                EditorPrefs.SetInt(CreateKey($"{name}.Layer"), setting.layer);
                EditorPrefs.SetString(CreateKey($"{name}.Tag"), setting.tag);
                EditorPrefs.SetBool(CreateKey($"{name}.CanPreview"), setting.canPreview);
                EditorPrefs.SetString(CreateKey($"{name}.Color"),
                    ColorUtility.ToHtmlStringRGBA(setting.previewColor));
            }
        }

        private void LoadPrefs()
        {
            if (EditorPrefs.HasKey(CreateKey("SourcePath")))
            {
                var path = EditorPrefs.GetString(CreateKey("SourcePath"));
                source   = AssetDatabase.LoadAssetAtPath<Tilemap>(path);
            }

            canMergeEdges     = EditorPrefs.GetBool(CreateKey("CanMergeEdges"), canMergeEdges);
            canAttachCollider = EditorPrefs.GetBool(CreateKey("AttachCollider"), canAttachCollider);

            foreach (var kv in settingsDict)
            {
                var name    = kv.Key.ToString();
                var setting = kv.Value;
                setting.flags      = (ShapeFlags)EditorPrefs.GetInt(CreateKey($"{name}.Flags"), (int)setting.flags);
                setting.layer      = EditorPrefs.GetInt(CreateKey($"{name}.Layer"), setting.layer);
                setting.tag        = EditorPrefs.GetString(CreateKey($"{name}.Tag"), setting.tag);
                setting.canPreview = EditorPrefs.GetBool(CreateKey($"{name}.CanPreview"), setting.canPreview);
                string col = EditorPrefs.GetString(CreateKey($"{name}.Color"), ColorUtility.ToHtmlStringRGBA(setting.previewColor));
                if (ColorUtility.TryParseHtmlString("#" + col, out var c))
                {
                    setting.previewColor = c;
                }
            }
        }

        private void ResetPrefs()
        {
            EditorPrefs.DeleteKey(CreateKey("SourcePath"));
            EditorPrefs.DeleteKey(CreateKey("CanMergeEdges"));
            EditorPrefs.DeleteKey(CreateKey("AttachCollider"));

            foreach (ShapeType t in Enum.GetValues(typeof(ShapeType)))
            {
                string name = t.ToString();
                EditorPrefs.DeleteKey(CreateKey($"{name}.Flags"));
                EditorPrefs.DeleteKey(CreateKey($"{name}.Layer"));
                EditorPrefs.DeleteKey(CreateKey($"{name}.Tag"));
                EditorPrefs.DeleteKey(CreateKey($"{name}.CanPreview"));
                EditorPrefs.DeleteKey(CreateKey($"{name}.Color"));
            }

            settingsDict      = CreateDefaultSettings();
            source            = null;
            canMergeEdges     = false;
            canAttachCollider = false;
        }

        #endregion
    }
}

 TileShapeClassifier.cs分割 Tilemap の各セルを縦エッジ, 横エッジ, 角, 交差, T 字, 孤立に分類

ClassifyCoroutine() で隣接セル判定を行い、ShapeFlags を適用
分類結果を ShapeCells に書き込むロジックを提供
実際のコード出典：TileShapeClassifier.cs
namespace TilemapSplitter
{
    using System;
    using System.Collections;
    using System.Collections.Generic;
    using UnityEditor;
    using UnityEngine;
    using UnityEngine.Tilemaps;

    [Flags]
    internal enum ShapeFlags
    {
        VerticalEdge   = 1 << 0,
        HorizontalEdge = 1 << 1,
        Independent    = 1 << 2,
    }

    internal enum ShapeType
    {
        VerticalEdge = 0,
        HorizontalEdge,
        Cross,
        TJunction,
        Corner,
        Isolate,
    }

    internal class ShapeSetting
    {
        public ShapeFlags flags;
        public int        layer;
        public string     tag        = "Untagged";
        public bool       canPreview = true;
        public Color      previewColor;
    }

    /// <summary>
    /// Store cell coordinates for each tile classification
    /// </summary>
    internal class ShapeCells
    {
        public readonly List<Vector3Int> VerticalCells   = new();
        public readonly List<Vector3Int> HorizontalCells = new();
        public readonly List<Vector3Int> CrossCells      = new();
        public readonly List<Vector3Int> TJunctionCells  = new();
        public readonly List<Vector3Int> CornerCells     = new();
        public readonly List<Vector3Int> IsolateCells    = new();
    }

    internal static class TileShapeClassifier
    {
        /// <summary>
        /// Compress the tilemap bounds to exclude empty rows and columns
        /// </summary>
        public static IEnumerator ClassifyCoroutine(Tilemap source,
            Dictionary<ShapeType, ShapeSetting> settings, ShapeCells sc, int batch = 100)
        {
            sc.VerticalCells.Clear();
            sc.HorizontalCells.Clear();
            sc.CrossCells.Clear();
            sc.TJunctionCells.Clear();
            sc.CornerCells.Clear();
            sc.IsolateCells.Clear();

            //Compress the Tilemap’s cellBounds to skip empty rows and columns
            source.CompressBounds();

            //Get the bounding box in cell coordinates and retrieve all tiles inside it(empty slots = null)
            var cellBounds    = source.cellBounds;
            var tilesInBounds = source.GetTilesBlock(cellBounds);

            //Only cells containing tiles are stored in the collection
            int width  = cellBounds.size.x;
            int height = cellBounds.size.y;
            var occupiedCells = new HashSet<Vector3Int>();

            try
            {
                for (int y = 0; y < height; y++)
                {
                    for (int x = 0; x < width; x++)
                    {
                        int index = x + y * width;
                        if (tilesInBounds[index] == null) continue;

                        //Calculate the world-space offset from the lower-left cell to origin
                        var cell = new Vector3Int(cellBounds.xMin + x,
                                                  cellBounds.yMin + y,
                                                  cellBounds.zMin);
                        occupiedCells.Add(cell);
                    }

                    if (y % batch == 0)
                    {
                        float progress = (float)(y * width) / (width * height);
                        EditorUtility.DisplayProgressBar("Classify", "Collecting cells...", progress);
                        yield return null;
                    }
                }

                int total     = occupiedCells.Count;
                int processed = 0;
                foreach (var cell in occupiedCells)
                {
                    //Perform proximity determination for each cell
                    ClassifyCellNeighbors(cell, occupiedCells, settings, sc);

                    processed++;
                    if (processed % batch == 0)
                    {
                        float progress = (float)processed / total;
                        EditorUtility.DisplayProgressBar("Classify",
                            $"Classifying... {processed}/{total}", progress);
                        yield return null;
                    }
                }
            }
            finally
            {
                EditorUtility.ClearProgressBar();
            }
        }

        /// <summary>
        /// Classify the specified cell based on the four neighbouring cells
        /// </summary>
        private static void ClassifyCellNeighbors(Vector3Int cell, HashSet<Vector3Int> cells,
            Dictionary<ShapeType, ShapeSetting> settings, ShapeCells sc)
        {
            //Determine whether adjacent cells exist
            bool up    = cells.Contains(cell + Vector3Int.up);
            bool down  = cells.Contains(cell + Vector3Int.down);
            bool left  = cells.Contains(cell + Vector3Int.left);
            bool right = cells.Contains(cell + Vector3Int.right);
            bool anyV  = up || down;
            bool anyH  = left || right;

            //Add to collection by Classification
            int neighborCount  = (up ? 1 : 0) + (down ? 1 : 0) + (left ? 1 : 0) + (right ? 1 : 0);
            switch (neighborCount)
            {
                case 4: //Cross
                    ApplyShapeFlags(cell, settings[ShapeType.Cross].flags, sc, sc.CrossCells);
                    break;
                case 3: //TJunction
                    ApplyShapeFlags(cell, settings[ShapeType.TJunction].flags, sc, sc.TJunctionCells);
                    break;
                case 2 when anyV && anyH: //Corner
                    ApplyShapeFlags(cell, settings[ShapeType.Corner].flags, sc, sc.CornerCells);
                    break;
                default:
                    if (anyV && anyH == false) //Vertical
                    {
                        sc.VerticalCells.Add(cell);
                    }
                    else if (anyH && anyV == false) //Horizontal
                    {
                        sc.HorizontalCells.Add(cell);
                    }
                    else if (neighborCount == 0) //Isolate
                    {
                        ApplyShapeFlags(cell, settings[ShapeType.Isolate].flags, sc, sc.IsolateCells);
                    }
                    break;
            }
        }

        /// <summary>
        /// Add to each collection according to the settings
        /// </summary>
        private static void ApplyShapeFlags(Vector3Int cell, ShapeFlags flags,
            ShapeCells sc, List<Vector3Int> indepCells)
        {
            if (flags.HasFlag(ShapeFlags.VerticalEdge))   sc.VerticalCells?.Add(cell);
            if (flags.HasFlag(ShapeFlags.HorizontalEdge)) sc.HorizontalCells?.Add(cell);
            if (flags.HasFlag(ShapeFlags.Independent))    indepCells?.Add(cell);
        }
    }
}

 TilemapPreviewDrawer.csシーンビュー上にプレビューを描画

Setup() で分割 Tilemap と ShapeSetting を受け取る

Register(), Unregister() で描画ハンドラを管理

SetShapeCells() で分類結果を保持、OnSceneGUI() で各タイルのプレビュー描画
実際のコード出典：TilemapPreviewDrawer.cs
namespace TilemapSplitter
{
    using System.Collections.Generic;
    using UnityEditor;
    using UnityEngine;
    using UnityEngine.Tilemaps;

    /// <summary>
    /// Draws color-coded previews of classified tiles on the SceneView
    /// </summary>
    internal class TilemapPreviewDrawer
    {
        private Tilemap tilemap;
        private Dictionary<ShapeType, ShapeSetting> shapeSettings;
        private ShapeCells shapeCells;

        public void Setup(Tilemap source, Dictionary<ShapeType, ShapeSetting> settings)
        {
            tilemap       = source;
            shapeSettings = settings;
        }

        public void SetShapeCells(ShapeCells sc) => shapeCells = sc;

        public void Register() =>   SceneView.duringSceneGui += OnSceneGUI;
        public void Unregister() => SceneView.duringSceneGui -= OnSceneGUI;

        private void OnSceneGUI(SceneView sv)
        {
            if (tilemap == null || shapeCells == null) return;

            //Read preview settings(color, visibility) for each tile classification
            var v       = shapeSettings[ShapeType.VerticalEdge];
            var h       = shapeSettings[ShapeType.HorizontalEdge];
            var cross   = shapeSettings[ShapeType.Cross];
            var t       = shapeSettings[ShapeType.TJunction];
            var corner  = shapeSettings[ShapeType.Corner];
            var isolate = shapeSettings[ShapeType.Isolate];

            //Draw each cell only if its preview flag is enabled, using the specified preview color
            var previewSettings = new (List<Vector3Int> cells, Color c, bool canPreview)[]
            {
                (shapeCells.VerticalCells,   v.previewColor,       v.canPreview),
                (shapeCells.HorizontalCells, h.previewColor,       h.canPreview),
                (shapeCells.CrossCells,      cross.previewColor,   cross.canPreview),
                (shapeCells.TJunctionCells,  t.previewColor ,      t.canPreview),
                (shapeCells.CornerCells,     corner.previewColor,  corner.canPreview),
                (shapeCells.IsolateCells,    isolate.previewColor, isolate.canPreview)
            };
            foreach (var (cells, c, canPreview) in previewSettings)
            {
                if (canPreview) DrawCellPreviews(cells, c);
            }
        }

        private void DrawCellPreviews(List<Vector3Int> cells, Color c)
        {
            if (cells == null || cells.Count == 0) return;

            Handles.color = new Color(c.r, c.g, c.b, 0.4f);
            var cellSize  = tilemap.cellSize;
            foreach (var cell in cells)
            {
                var worldPos = tilemap.CellToWorld(cell) + new Vector3(cellSize.x / 2f, cellSize.y / 2f);
                var rect = new Rect(
                    worldPos.x - cellSize.x / 2f,
                    worldPos.y - cellSize.y / 2f,
                    cellSize.x,
                    cellSize.y);
                Handles.DrawSolidRectangleWithOutline(rect, Handles.color, Color.clear);
            }
        }
    }
}

 TilemapCreator.cs分類済みセル情報に基づき、各形状ごとに新規 Tilemap(と GameObject) 生成

CreateTilemapObjForCells() でタイル転写, レイヤーとタグ設定, コライダー付与実装

GenerateSplitTilemaps() で全体の生成フロー統括
実際のコード出典：TilemapCreator.cs
namespace TilemapSplitter
{
    using System.Collections.Generic;
    using UnityEditor;
    using UnityEngine;
    using UnityEngine.Tilemaps;

    internal static class TilemapCreator
    {
        private const string VerticalObjName   = "VerticalEdge";
        private const string HorizontalObjName = "HorizontalEdge";
        private const string MergeObjName      = "EdgeTiles";
        private const string CrossObjName      = "CrossTiles";
        private const string TJunctionObjName  = "TJunctionTiles";
        private const string CornerObjName     = "CornerTiles";
        private const string IsolateObjName    = "IsolateTiles";

        public static void GenerateSplitTilemaps(Tilemap source, ShapeCells sc,
            Dictionary<ShapeType, ShapeSetting> settings, bool mergeEdges, bool canAttachCollider)
        {
            if (mergeEdges)
            {
                var mergedCells = new List<Vector3Int>(sc.VerticalCells);
                var v           = settings[ShapeType.VerticalEdge];
                v.flags         = ShapeFlags.Independent;
                mergedCells.AddRange(sc.HorizontalCells);
                CreateTilemapObjForCells(source, mergedCells, v, MergeObjName, canAttachCollider);
            }
            else
            {
                var v = settings[ShapeType.VerticalEdge];
                var h = settings[ShapeType.HorizontalEdge];
                CreateTilemapObjForCells(source, sc.VerticalCells,   v, VerticalObjName,   canAttachCollider);
                CreateTilemapObjForCells(source, sc.HorizontalCells, h, HorizontalObjName, canAttachCollider);
            }

            var cross   = settings[ShapeType.Cross];
            var t       = settings[ShapeType.TJunction];
            var corner  = settings[ShapeType.Corner];
            var isolate = settings[ShapeType.Isolate];
            CreateTilemapObjForCells(source, sc.CrossCells,     cross,   CrossObjName,     canAttachCollider);
            CreateTilemapObjForCells(source, sc.TJunctionCells, t,       TJunctionObjName, canAttachCollider);
            CreateTilemapObjForCells(source, sc.CornerCells,    corner,  CornerObjName,    canAttachCollider);
            CreateTilemapObjForCells(source, sc.IsolateCells,   isolate, IsolateObjName,   canAttachCollider);
        }

        private static void CreateTilemapObjForCells(Tilemap source,
            List<Vector3Int> cells, ShapeSetting setting, string name, bool canAttachCollider)
        {
            if (cells == null || cells.Count == 0) return;

            //Skip instantiating this tile collection when the Independent flag is not enabled in settings
            bool isRequiredIndependentFlag = name == CrossObjName  || name == TJunctionObjName ||
                                             name == CornerObjName || name == IsolateObjName;
            if (isRequiredIndependentFlag &&
                setting.flags.HasFlag(ShapeFlags.Independent) == false) return;

            //Instantiate a GameObject with Tilemap and TilemapRenderer components attached
            //Copy the source transform(position, rotation, scale) and apply the specified layer and tag
            var obj = new GameObject(name, typeof(Tilemap), typeof(TilemapRenderer));
            obj.layer                = setting.layer;
            obj.tag                  = setting.tag;
            obj.transform.localScale = source.transform.localScale;
            obj.transform.SetLocalPositionAndRotation(source.transform.localPosition,
                source.transform.localRotation);
            obj.transform.SetParent(source.transform.parent, false);

            //If there is a TilemapRenderer in the source, match its settings.
            var renderer = obj.GetComponent<TilemapRenderer>();
            if (source.TryGetComponent<TilemapRenderer>(out var oriRenderer))
            {
                renderer.sortingLayerID = oriRenderer.sortingLayerID;
                renderer.sortingOrder = oriRenderer.sortingOrder;
            }
            else
            {
                Debug.LogWarning("Since TilemapRenderer is not attached to the split target, " +
                    "the TilemapRenderer of the generated object was generated with the default shapeSettings.");
            }

            //Transfer tile data(sprite, color, transform matrix) from the original to the new tile
            var tm = obj.GetComponent<Tilemap>();
            foreach (var cell in cells)
            {
                tm.SetTile(cell,  source.GetTile(cell));
                tm.SetColor(cell, source.GetColor(cell));
                tm.SetTransformMatrix(cell, source.GetTransformMatrix(cell));
            }

            if (canAttachCollider)
            {
                var tmCol             = obj.AddComponent<TilemapCollider2D>();
                tmCol.usedByComposite = true;

                var rb = obj.AddComponent<Rigidbody2D>();
                rb.bodyType = RigidbodyType2D.Static;

                obj.AddComponent<CompositeCollider2D>();
            }

            Undo.RegisterCreatedObjectUndo(obj, "GenerateSplitTilemaps " + name);
        }
    }
}

 処理の流れ
 １：起動とGUI主に関係するクラス

TilemapSplitterWindow

ShowWindow()：メニュー項目からウィンドウを起動

OnEnable(), OnDisable()：プリファレンス読み込みとプレビュードロワー登録解除

CreateGUI()：各種コントロールを生成・配置


 ２：プレビュー更新主に関係するクラス
TilemapSplitterWindow

RefreshPreview(), RefreshPreviewCoroutine()：セル分類, プレビュー再描画

StartCoroutine(…)：エディタ更新ループにコルーチン登録
TileShapeClassifier

ClassifyCoroutine(Tilemap, …)：セルごとに形状分類を行い ShapeCells を埋める
TilemapPreviewDrawer

Setup(Tilemap, Dictionary<ShapeType,ShapeSetting>)：プレビュー設定受け取り

Register(), Unregister()：SceneView.duringSceneGui に描画ハンドラ登録解除

SetShapeCells(ShapeCells)：分類結果を保持

OnSceneGUI(…)：DrawCellPreviews(…) 経由でセルを色塗り描画

 ３：分割処理主に関係するクラス
TilemapSplitterWindow

SplitCoroutine()：分割用コルーチン起動(分類 → 生成 → プレビュー更新)
TileShapeClassifier

ClassifyCoroutine(…)：再度分類を実行
TilemapCreator

GenerateSplitTilemaps(…)：各形状ごとに新規 Tilemap(とGameObject) を生成

CreateTilemapObjForCells(…)：個別オブジェクトの設定, タイル転写, コライダー付与

 このツールの伸びしろ
 CellLayout が Rectangle 以外の対応(2025/08/06 対応済み)全 CellLayout に対応
しかし、Isometric, Isometric Z as Y だけは描画が分割前から変わってしまう

 プレビュー描画の最適化現状、各セルの矩形を毎フレーム Handles.DrawSolidRectangleWithOutline で描画
ハンドル API をセル数分使う代わりに、メッシュでまとめて描画してしまうとか…？

 改めてhttps://github.com/SunagimoOisii/TilemapSplitter

 余談これっていわゆる OSS 活動にあたるのか
