【入門#1】ECS環境構築準備（EC2環境で作成したものを流用）

2025/04/28に公開

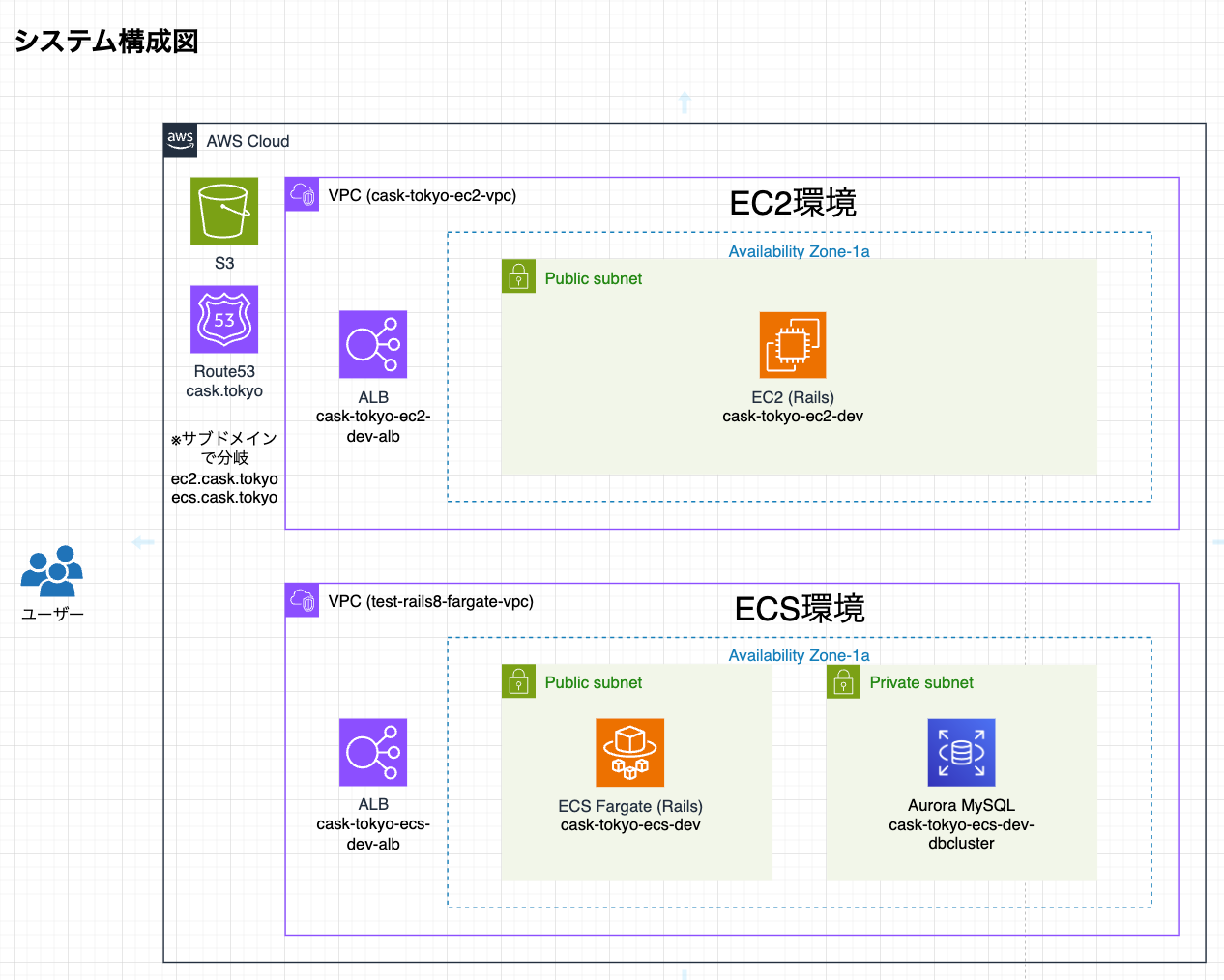

目標とするAWS構成図

本記事は、下記までを完了し、流用元のEC2の環境ができていると飲み込みやすいです。
１２．【入門#12】Terraform環境を変数化をしていこう

EC2環境から流用できるものを一気にコピーします。
variable.tfの変更や、リソース名を変えるのみでOKのものをコピーします。

本記事を行うと下記のリソースが作成されます。
・VPC
・サブネット
・ルートテーブル
・インターネットゲートウェイ
・S3バケット
・ALB
・ALB用Aレコード
・セキュリティグループ(ALB/ECS)

◯main.tf

terraform {
  required_version = "1.11.3"

  required_providers {
    aws = {
      source  = "hashicorp/aws"
      version = "~> 5.0"
    }
  }
}

◯provider.tf

provider "aws" {
  region  = var.region
  profile = var.env_name
}

◯data.tf

# 手動作成したホストゾーン
data "aws_route53_zone" "cask_tokyo" {
  name         = "${var.route53_domain}."
  private_zone = false
}

◯network.tf

# VPN
resource "aws_vpc" "cask_tokyo_ecs_vpc" {
  cidr_block           = "10.0.0.0/16"
  enable_dns_hostnames = true
  tags = {
    Name = "${var.project_name}-vpc"
  }
}

# Subnet
resource "aws_subnet" "cask_tokyo_ecs_subnet_public1" {
  vpc_id                  = aws_vpc.cask_tokyo_ecs_vpc.id
  cidr_block              = "10.0.1.0/24"
  availability_zone       = "ap-northeast-1a"
  map_public_ip_on_launch = true
  tags = {
    Name = "${var.project_name}-subnet-public1-ap-northeast-1a"
  }
}

resource "aws_subnet" "cask_tokyo_ecs_subnet_public2" {
  vpc_id                  = aws_vpc.cask_tokyo_ecs_vpc.id
  cidr_block              = "10.0.2.0/24"
  availability_zone       = "ap-northeast-1c"
  map_public_ip_on_launch = true
  tags = {
    Name = "${var.project_name}-subnet-public2-ap-northeast-1c"
  }
}

# Internet Gateway
resource "aws_internet_gateway" "cask_tokyo_ecs_igw" {
  vpc_id = aws_vpc.cask_tokyo_ecs_vpc.id

  tags = {
    Name = "${var.project_name}-igw"
  }
}

# Route Table
resource "aws_route_table" "cask_tokyo_ecs_rt" {
  vpc_id = aws_vpc.cask_tokyo_ecs_vpc.id
  route {
    cidr_block = "0.0.0.0/0"
    gateway_id = aws_internet_gateway.cask_tokyo_ecs_igw.id
  }

  tags = {
    Name = "${var.project_name}-rt"
  }
}

# Route Table ↔ Subnets Association
resource "aws_route_table_association" "cask_tokyo_ecs_rt_association_public1" {
  subnet_id      = aws_subnet.cask_tokyo_ecs_subnet_public1.id
  route_table_id = aws_route_table.cask_tokyo_ecs_rt.id
}

resource "aws_route_table_association" "cask_tokyo_ecs_rt_association_public2" {
  subnet_id      = aws_subnet.cask_tokyo_ecs_subnet_public2.id
  route_table_id = aws_route_table.cask_tokyo_ecs_rt.id
}

# ACM
resource "aws_acm_certificate" "cask_tokyo_cert" {
  domain_name       = "${var.route53_sub_domain}.${var.route53_domain}"
  validation_method = "DNS"

  tags = {
    Name = "${var.env_name}-acm"
  }
}

# Route53 ACM用CNAMEレコード
resource "aws_route53_record" "cask_tokyo_cert_cname" {
  for_each = {
    for dvo in aws_acm_certificate.cask_tokyo_cert.domain_validation_options : dvo.domain_name => {
      name   = dvo.resource_record_name
      record = dvo.resource_record_value
      type   = dvo.resource_record_type
    }
  }

  allow_overwrite = true
  name            = each.value.name
  records         = [each.value.record]
  type            = each.value.type
  ttl             = "300"

  # HostZoneID
  zone_id = data.aws_route53_zone.cask_tokyo.zone_id
}

# Route53 ALB用Aレコード
resource "aws_route53_record" "cask_tokyo_ecs_alb_a" {
  name = "${var.route53_sub_domain}.${var.route53_domain}"
  type = "A"

  alias {
    name                   = aws_lb.cask_tokyo_ecs.dns_name
    zone_id                = aws_lb.cask_tokyo_ecs.zone_id
    evaluate_target_health = true
  }

  # HostZoneID
  zone_id = data.aws_route53_zone.cask_tokyo.zone_id
}

◯security_groups.tf

# SecurityGroup(ALB)
resource "aws_security_group" "cask_tokyo_ecs_sg_alb" {
  name        = "${var.project_name}-sg-alb"
  description = "For ALB"
  vpc_id      = aws_vpc.cask_tokyo_ecs_vpc.id

  tags = {
    Name = "${var.project_name}-sg-alb"
  }

  ingress {
    description = "From ALL 80"
    protocol    = "tcp"
    from_port   = 80
    to_port     = 80
    cidr_blocks = ["0.0.0.0/0"]
  }

  ingress {
    description = "From ALL 443"
    protocol    = "tcp"
    from_port   = 443
    to_port     = 443
    cidr_blocks = ["0.0.0.0/0"]
  }

  egress {
    description = "Allow all IPv4"
    protocol    = "-1"
    from_port   = 0
    to_port     = 0
    cidr_blocks = ["0.0.0.0/0"]
  }

  egress {
    description      = "Allow all IPv6"
    protocol         = "-1"
    from_port        = 0
    to_port          = 0
    ipv6_cidr_blocks = ["::/0"]
  }
}

# SecurityGroup(ECS)
resource "aws_security_group" "cask_tokyo_ecs_sg_ecs" {
  name        = "${var.project_name}-sg-ecs"
  description = "For ECS"
  vpc_id      = aws_vpc.cask_tokyo_ecs_vpc.id

  tags = {
    Name = "${var.project_name}-sg-ecs"
  }

  ingress {
    description     = "From ALB 80"
    protocol        = "tcp"
    from_port       = 80
    to_port         = 80
    security_groups = [aws_security_group.cask_tokyo_ecs_sg_alb.id]
  }

  egress {
    description = "Allow all IPv4"
    protocol    = "-1"
    from_port   = 0
    to_port     = 0
    cidr_blocks = ["0.0.0.0/0"]
  }

  egress {
    description      = "Allow all IPv6"
    protocol         = "-1"
    from_port        = 0
    to_port          = 0
    ipv6_cidr_blocks = ["::/0"]
  }
}

◯storage.tf

# S3 bucket
resource "aws_s3_bucket" "cask_tokyo_ecs_s3_bucket" {
  bucket = var.s3_bucket_name
}

◯valiables.tf

# 環境名(共通リソースのprefixに使用)
variable "env_name" {
  default = "cask-tokyo"
}

# プロジェクト名(ECS環境リソースのprefixに使用)
variable "project_name" {
  default = "cask-tokyo-ecs"
}

# リージョン
variable "region" {
  default = "ap-northeast-1"
}

# Webアプリ ヘルスチェックパス
variable "tgtgrp_health_check_path" {
  default = "/health"
}

# S3バケット名
variable "s3_bucket_name" {
  default = "cask-tokyo-ecs"
}

# ドメイン名
variable "route53_domain" {
  default = "cask.tokyo"
}

# サブドメイン名
variable "route53_sub_domain" {
  default = "ecs"
}

以上です！

下記の記事を目次として、続きをどんどん構築を行っていきますので、気になる方はぜひ見に来てください！
