Apple 宣言型デバイス管理 めも
Yusuke IwakiMDM構成プロファイル

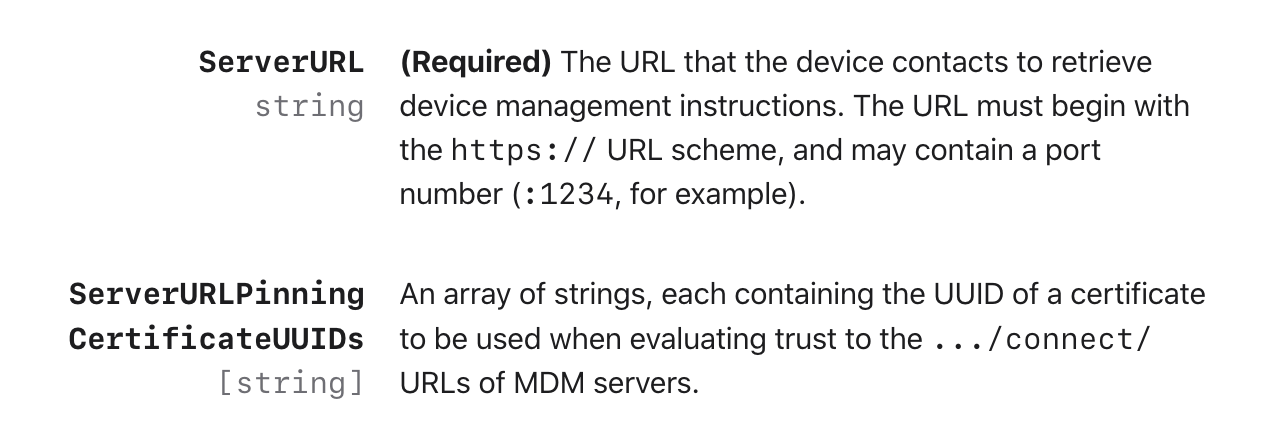

MDMサービスを作るんだったら、対向サーバーは必ず用意してね〜というのがAppleのスタンス。

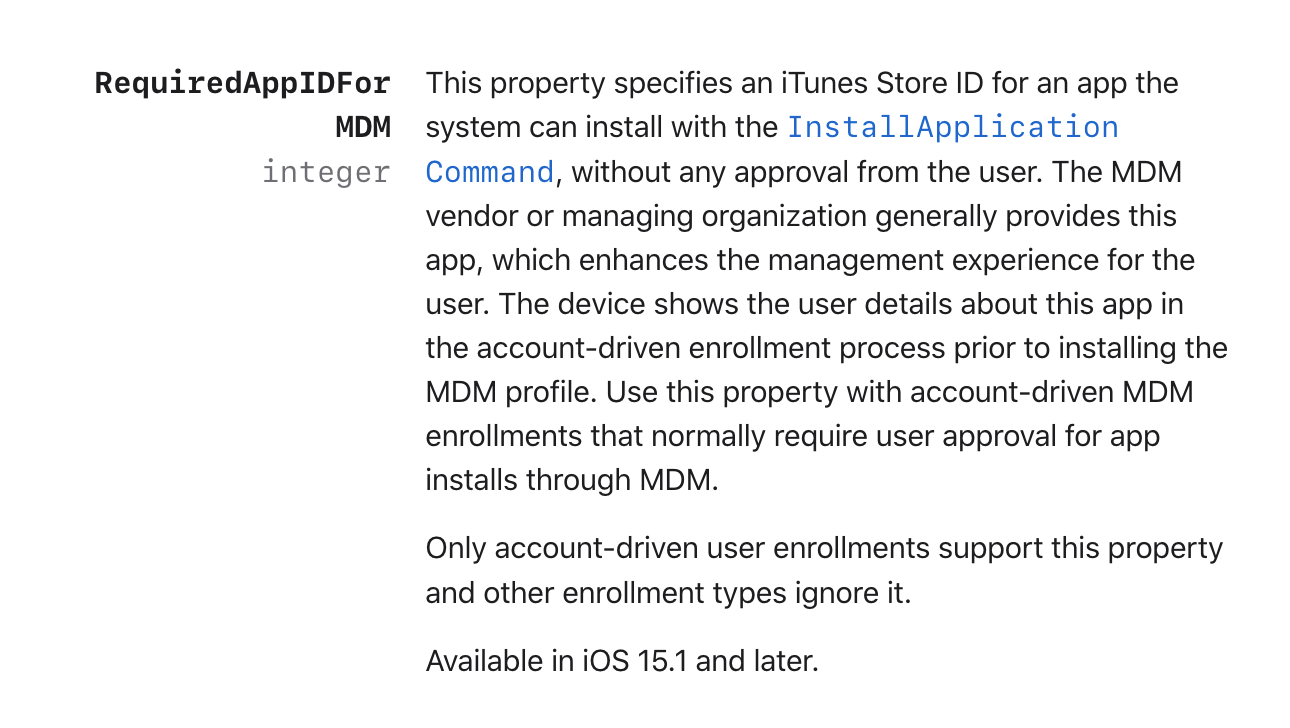

１つのアプリは、無条件にインストールさせることができる
Yusuke Iwaki/checkinとして何を実装しないといけない？

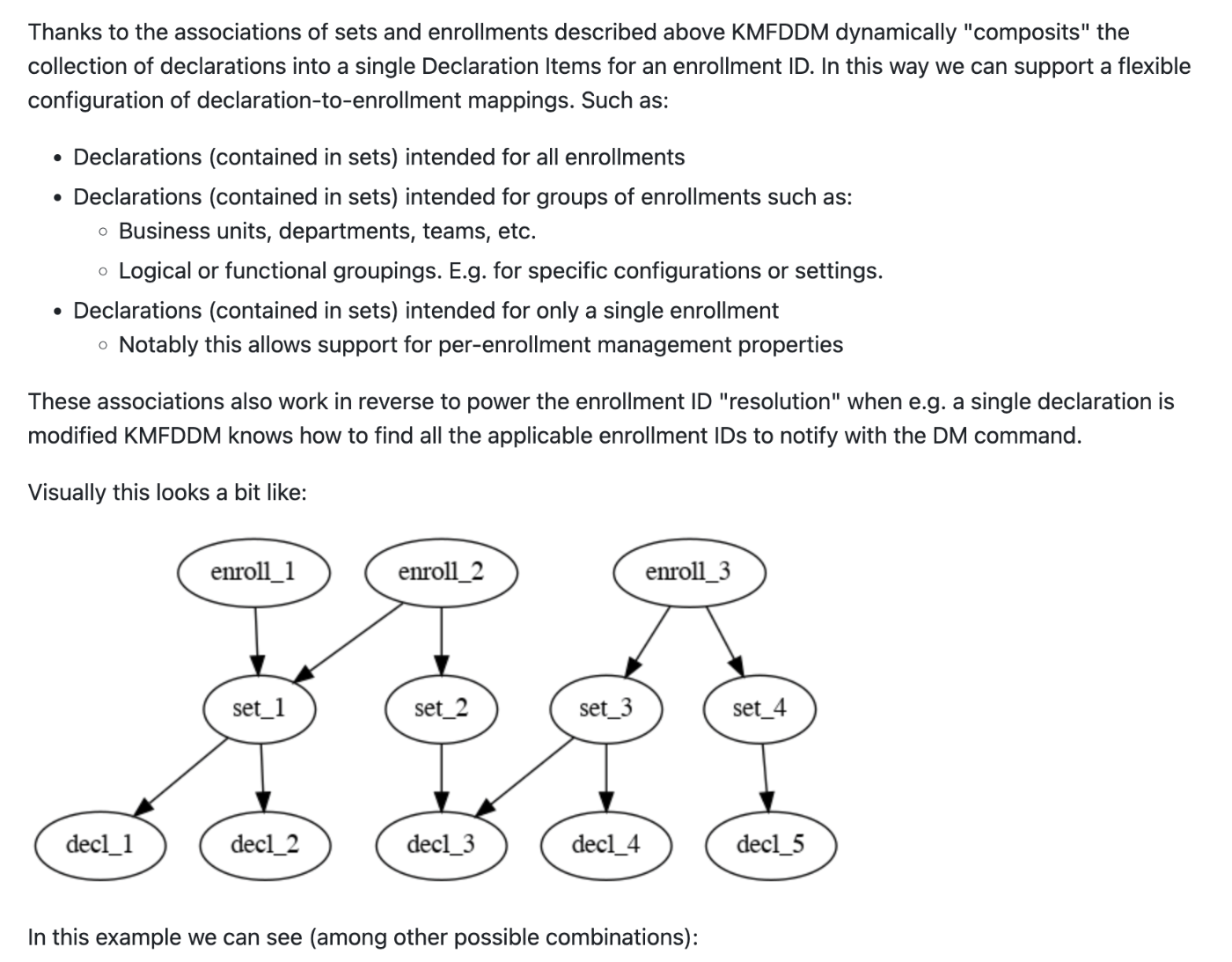

宣言的MDMはこのあたり
NanoMDMの実装例
Yusuke Iwaki
DeclarativeManagementというMDMコマンドを打つところから始まるらしい。
Dataってなんだ？
The base64-encoded Declarative Management JSON request using a TokensResponse.
DeclarationsTokenというのは、iOS側のクライアントが、宣言に変更があるかどうかを識別する用のランダム文字列らしい。
The server maintains a token that represents the current state of the declarations to synchronize with a particular device. The server must persist this token on a per-device and per-user basis because declarations may be different for some devices and some users. Whenever the set of declarations changes (new ones added or existing ones changed or removed), the server must change the value of the token. The token value is an opaque string that the client uses for comparisons, so the server is free to use whatever format it prefers, but needs to limit the size to no more that 256 octets.
$ echo 'eyJTeW5jVG9rZW5zIjogeyJUaW1lc3RhbXAiOiAiMjAyMS0wNi0wMlQwMToy
ODowMFoiLCAiRGVjbGFyYXRpb25zVG9rZW4iOiAiYjY1NDQwMjdhMzE1Y2Qw
MDg1ZDRjZjA4MTc0NjI0YzJkMTQyNDQ0ODA0MzBhODdiMTc2YTI3MjdlNzM2
NjEzOCJ9fQ==' | base64 -d
{"SyncTokens": {"Timestamp": "2021-06-02T01:28:00Z", "DeclarationsToken": "b6544027a315cd0085d4cf08174624c2d14244480430a87b176a2727e7366138"}}
DeclarativeManagementコマンドが無事にデバイスに届くと、デバイス側から /checkin エンドポイントに対して、MessageType=DeclarativeManagementのリクエストがやってきて、「自分はどういう状態になったらいいのか」いろいろ探りをいれにくるらしい。
Yusuke Iwaki実際に適当にDeclarativeManagementコマンドを投げてみると、２発 /checkinエンドポイントに叩きにやってきた。
１発目: endpoint=status
dataに以下のようなデータ（文字列）が詰まっている。
{
"StatusItems" : {
"management" : {
"declarations" : {
"activations" : [
],
"configurations" : [
],
"assets" : [
],
"management" : [
]
},
"client-capabilities" : {
"supported-versions" : [
"1.0.0"
],
"supported-payloads" : {
"declarations" : {
"activations" : [
"com.apple.activation.simple"
],
"assets" : [
"com.apple.asset.credential.userpassword",
"com.apple.asset.useridentity"
],
"configurations" : [
"com.apple.configuration.account.caldav",
"com.apple.configuration.account.carddav",
"com.apple.configuration.account.exchange",
"com.apple.configuration.account.google",
"com.apple.configuration.account.ldap",
"com.apple.configuration.account.mail",
"com.apple.configuration.account.subscribed-calendar",
"com.apple.configuration.legacy",
"com.apple.configuration.legacy.interactive",
"com.apple.configuration.management.status-subscriptions",
"com.apple.configuration.management.test",
"com.apple.configuration.passcode.settings"
],
"management" : [
"com.apple.management.organization-info",
"com.apple.management.properties",
"com.apple.management.server-capabilities"
]
},
"status-items" : [
"account.list.caldav",
"account.list.carddav",
"account.list.exchange",
"account.list.google",
"account.list.ldap",
"account.list.mail.incoming",
"account.list.mail.outgoing",
"account.list.subscribed-calendar",
"device.identifier.serial-number",
"device.identifier.udid",
"device.model.family",
"device.model.identifier",
"device.model.marketing-name",
"device.operating-system.build-version",
"device.operating-system.family",
"device.operating-system.marketing-name",
"device.operating-system.supplemental.build-version",
"device.operating-system.supplemental.extra-version",
"device.operating-system.version",
"management.client-capabilities",
"management.declarations",
"mdm.app",
"passcode.is-compliant",
"passcode.is-present",
"test.array-value",
"test.boolean-value",
"test.dictionary-value",
"test.error-value",
"test.integer-value",
"test.real-value",
"test.string-value"
]
},
"supported-features" : {
}
}
},
"device" : {
"identifier" : {
"serial-number" : "ひみつ",
"udid" : "00008030-ひみつ"
},
"model" : {
"family" : "iPhone"
},
"operating-system" : {
"family" : "iOS",
"build-version" : "20E252",
"supplemental" : {
"extra-version" : ""
},
"version" : "16.4.1"
}
}
},
"Errors" : [
]
}
