SwiftUIでAVFoundationを使ってフレームバッファを取得する

2021/01/12に公開

SwiftUIからAVFoundationのAVCaptureVideoDataOutput()を使用するコードを書いてみました。
基本的にはUIKitから使用する場合と同じようなイメージで利用できました。

  • AVFoundationを呼び出すコードを専用のクラスに記述
  • クロージャを使ってSwiftUI側からAVCaptureVideoDataOutputSampleBufferDelegateのCMSampleBufferを取得する
  • UIImageに変換してImage()で表示

ソースコードはこちらに置きました

https://github.com/yorifuji/swiftui-avfoundation

VideoCapture クラス

import Foundation
import AVFoundation

class VideoCapture: NSObject {
    let captureSession = AVCaptureSession()
    var handler: ((CMSampleBuffer) -> Void)?

    override init() {
        super.init()
        setup()
    }

    func setup() {
        captureSession.beginConfiguration()
        let device = AVCaptureDevice.default(.builtInWideAngleCamera, for: .video, position: .back)
        guard
            let deviceInput = try? AVCaptureDeviceInput(device: device!),
            captureSession.canAddInput(deviceInput)
            else { return }
        captureSession.addInput(deviceInput)

        let videoDataOutput = AVCaptureVideoDataOutput()
        videoDataOutput.setSampleBufferDelegate(self, queue: DispatchQueue(label: "mydispatchqueue"))
        videoDataOutput.alwaysDiscardsLateVideoFrames = true

        guard captureSession.canAddOutput(videoDataOutput) else { return }
        captureSession.addOutput(videoDataOutput)

        // アウトプットの画像を縦向きに変更(標準は横)
        for connection in videoDataOutput.connections {
            if connection.isVideoOrientationSupported {
                connection.videoOrientation = .portrait
            }
        }

        captureSession.commitConfiguration()
    }

    func run(_ handler: @escaping (CMSampleBuffer) -> Void)  {
        if !captureSession.isRunning {
            self.handler = handler
            captureSession.startRunning()
        }
    }

    func stop() {
        if captureSession.isRunning {
            captureSession.stopRunning()
        }
    }
}

extension VideoCapture: AVCaptureVideoDataOutputSampleBufferDelegate {
    func captureOutput(_ output: AVCaptureOutput, didOutput sampleBuffer: CMSampleBuffer, from connection: AVCaptureConnection) {
        if let handler = handler {
            handler(sampleBuffer)
        }
    }
}

SwiftUI側のコード

import SwiftUI
import AVFoundation

struct ContentView: View {
    let videoCapture = VideoCapture()
    @State var image: UIImage? = nil
    var body: some View {
        VStack {
            if let image = image {
                Image(uiImage: image)
                    .resizable()
                    .scaledToFit()
            }
            HStack {
                Button("run") {
                    videoCapture.run { sampleBuffer in
                        if let convertImage = UIImageFromSampleBuffer(sampleBuffer) {
                            DispatchQueue.main.async {
                                self.image = convertImage
                            }
                        }
                    }
                }
                Button("stop") {
                    videoCapture.stop()
                }
            }
            .font(.largeTitle)
        }
    }

    func UIImageFromSampleBuffer(_ sampleBuffer: CMSampleBuffer) -> UIImage? {
        if let pixelBuffer = CMSampleBufferGetImageBuffer(sampleBuffer) {
            let ciImage = CIImage(cvPixelBuffer: pixelBuffer)
            let imageRect = CGRect(x: 0, y: 0, width: CVPixelBufferGetWidth(pixelBuffer), height: CVPixelBufferGetHeight(pixelBuffer))
            let context = CIContext()
            if let image = context.createCGImage(ciImage, from: imageRect) {
                return UIImage(cgImage: image)
            }
        }
        return nil
    }

}

struct ContentView_Previews: PreviewProvider {
    static var previews: some View {
        ContentView()
    }
}

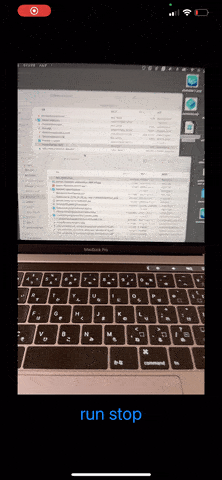

実行画面
