Pytorchでhyperparmeter searchするための Docker-composeのセットアップ( MySQL )

2021/05/03に公開
Docker
MySQL
PyTorch
Optuna
tech

目的: Optunaを分散環境で動かす, ついでにtensorbaordで可視化

完成したコードはここにあります。

手順

  1. docker 及び docker-composeの準備
  2. optunaのsimple exampleを書く

注意:mysqlのパスワードを直書きしたりしてるのでセキュリティ的によくないです

Dockerで環境構築

FROM pytorch/pytorch:1.1.0-cuda10.0-cudnn7.5-runtime
ARG PYTHON_VERSION=3.6

RUN apt-get update
RUN apt-get install -y wget
RUN apt-get -y install language-pack-ja-base language-pack-ja ibus-mozc

RUN update-locale LANG=ja_JP.UTF-8 LANGUAGE=ja_JP:ja
ENV LANG ja_JP.UTF-8
ENV LC_ALL ja_JP.UTF-8
ENV LC_CTYPE ja_JP.UTF-8

RUN pip install -U pip
RUN pip install numpy matplotlib bokeh holoviews pandas tqdm sklearn joblib nose pandas tabulate xgboost lightgbm optuna nose coverage
RUN pip install torch torchvision
# install tensorboardX to /tmp for hparams in tensorboardX
RUN pip install -e git+https://github.com/eisenjulian/tensorboardX.git@add-hparam-support#egg=tensorboardX --src /tmp
RUN pip install tensorflow==1.14.0
RUN pip install future moviepy

# mysqlclient
RUN apt-get install -y libssl-dev
RUN apt-get update
RUN apt-get install -y python3-dev libmysqlclient-dev
RUN pip install mysqlclient

可視化のためにtensorboardもいれた

version: '2.3'

services:
  optuna_pytorch:
    build: ./
    container_name: "optuna_pytorch"
    working_dir: "/workspace"
    ports:
    - "6006:6006"
    - "8888:8888"
    #runtime: nvidia
    volumes:
    - .:/workspace
    tty: true

  db:
    image: mysql:5.7
    container_name: 'db'
    ports:
        - "3306:3306"
    volumes:
        # 初期データを投入するSQLが格納されているdir
        - ./db/mysql_init:/docker-entrypoint-initdb.d
        # 永続化するときにマウントするdir
        - ./db/mysql_data:/var/lib/mysql
    environment:
        MYSQL_ROOT_PASSWORD: root
        MYSQL_USER: root
        MYSQL_ALLOW_EMPTY_PASSWORD: 'yes'
        MYSQL_DATABASE: optuna

MYSQL_DATABASE: optuna　を用意しておくのがポイント (optuna_pytorchからはmysqlはdbというドメインで参照可能になっている)

optunaのコード

from torch.utils.data import DataLoader
from torchvision.datasets import MNIST
from torchvision import transforms
from torch.utils.data.dataset import Subset
import numpy as np
import torch
import torch.nn as nn
import torch.nn.functional as F
import torch.optim as optim
import optuna
from tensorboardX import SummaryWriter
#optuna.logging.disable_default_handler()

from tqdm import tqdm_notebook as tqdm

BATCHSIZE = 128

transform = transforms.Compose(
    [transforms.ToTensor(),
     transforms.Normalize((0.5,), (0.5,))])

train_set = MNIST(root='./data', train=True,
                  download=True, transform=transform)
subset1_indices = list(range(0,6000))
train_set = Subset(train_set, subset1_indices)

train_loader = DataLoader(train_set, batch_size=BATCHSIZE,
                          shuffle=True, num_workers=2)
subset2_indices = list(range(0,1000))
test_set = MNIST(root='./data', train=False,
                 download=True, transform=transform)
test_set = Subset(test_set, subset2_indices)
test_loader = DataLoader(test_set, batch_size=BATCHSIZE,
                         shuffle=False, num_workers=2)

classes = tuple(np.linspace(0, 9, 10, dtype=np.uint8))
h_params = {}
print('finish data load')
EPOCH = 10
writer = SummaryWriter()

class Net(nn.Module):
    def __init__(self, trial):
        super(Net, self).__init__()
        self.activation = get_activation(trial)
        self.conv1 = nn.Conv2d(1, 10, kernel_size=5)
        self.conv2 = nn.Conv2d(10, 20, kernel_size=5)
        self.conv1_drop = nn.Dropout2d(p=trial.suggest_uniform("dropout_prob", 0, 0.8))
        self.fc1 = nn.Linear(320, 50)
        self.fc2 = nn.Linear(50, 10)

    def forward(self, x):
        x = self.activation(F.max_pool2d(self.conv1(x), 2))
        x = self.activation(F.max_pool2d(self.conv1_drop(self.conv2(x)), 2))
        x = x.view(-1, 320)
        x = self.activation(self.fc1(x))
        x = F.dropout(x, training=self.training)
        x = self.fc2(x)
        return F.log_softmax(x, dim=1)


def train(model, device, train_loader, optimizer):
    model.train()
    for batch_idx, (data, target) in enumerate(train_loader):
        data, target = data.to(device), target.to(device)
        optimizer.zero_grad()
        output = model(data)
        loss = F.nll_loss(output, target)
        loss.backward()
        optimizer.step()


def test(model, device, test_loader):
    model.eval()
    correct = 0
    with torch.no_grad():
        for data, target in test_loader:
            data, target = data.to(device), target.to(device)
            output = model(data)
            pred = output.max(1, keepdim=True)[1]
            correct += pred.eq(target.view_as(pred)).sum().item()

    return 1 - correct / len(test_loader.dataset)

def get_optimizer(trial, model):
    optimizer_names = ['Adam', 'MomentumSGD']
    optimizer_name = trial.suggest_categorical('optimizer', optimizer_names)
    h_params['opt_name'] = optimizer_name
    weight_decay = trial.suggest_loguniform('weight_decay', 1e-10, 1e-3)
    if optimizer_name == optimizer_names[0]:
        adam_lr = trial.suggest_loguniform('adam_lr', 1e-5, 1e-1)
        h_params['adam_lr'] = adam_lr
        optimizer = optim.Adam(model.parameters(), lr=adam_lr, weight_decay=weight_decay)
    else:
        momentum_sgd_lr = trial.suggest_loguniform('momentum_sgd_lr', 1e-5, 1e-1)
        h_params['momentum_sgd_lr'] = momentum_sgd_lr
        optimizer = optim.SGD(model.parameters(), lr=momentum_sgd_lr,
                              momentum=0.9, weight_decay=weight_decay)
    return optimizer


def get_activation(trial):
    activation_names = ['ReLU', 'ELU']
    activation_name = trial.suggest_categorical('activation', activation_names)
    h_params['activation'] = activation_name
    if activation_name == activation_names[0]:
        activation = F.relu
    else:
        activation = F.elu
    return activation


def objective_wrapper(pbar):
    def objective(trial):
        global writer
        writer = SummaryWriter()
        device = "cuda" if torch.cuda.is_available() else "cpu"

        model = Net(trial).to(device)
        optimizer = get_optimizer(trial, model)
        writer.add_hparams_start(h_params)
        for step in range(EPOCH):
            train(model, device, train_loader, optimizer)
            error_rate = test(model, device, test_loader)
            writer.add_scalar('test/loss', error_rate, step)
            trial.report(error_rate, step)
            if trial.should_prune(step):
                pbar.update()
                raise optuna.structs.TrialPruned()

        pbar.update()
        writer.add_hparams_end()  # save hyper parameter
        return error_rate
    return objective



TRIAL_SIZE = 50
with tqdm(total=TRIAL_SIZE) as pbar:
    study = optuna.create_study(pruner=optuna.pruners.MedianPruner(), study_name='distributed-mysql', storage='mysql://root:root@db/optuna', load_if_exists=True)
    study.optimize(objective_wrapper(pbar), n_trials=TRIAL_SIZE, n_jobs=2)

print(study.best_params)
print(study.best_value)

df = study.trials_dataframe()
print(df.head)
df.to_csv('result.csv')

本質は

  • optuna.create_study を作り
  • trial.suggest_loguniform, trial.suggest_categorical　で探索の候補を決め
  • study.optimize で探索を実行する

あたりである。
とくにcreate_studyはDBの指定とpruningのルールも指定するところなので重要
documentをみるとよい

枝刈りのルールも確認しておくと良いここ

使い方

run

# create env
docker-compose up -d
docker exec -it optuna_pytorch /bin/bash
# run
python main.py

# remove env
exit
docker-compose down

最適化の過程はmysqlに記録されるのでmysqlが参照できる場所でmain.pyを動かせば分散環境での最適化になる!

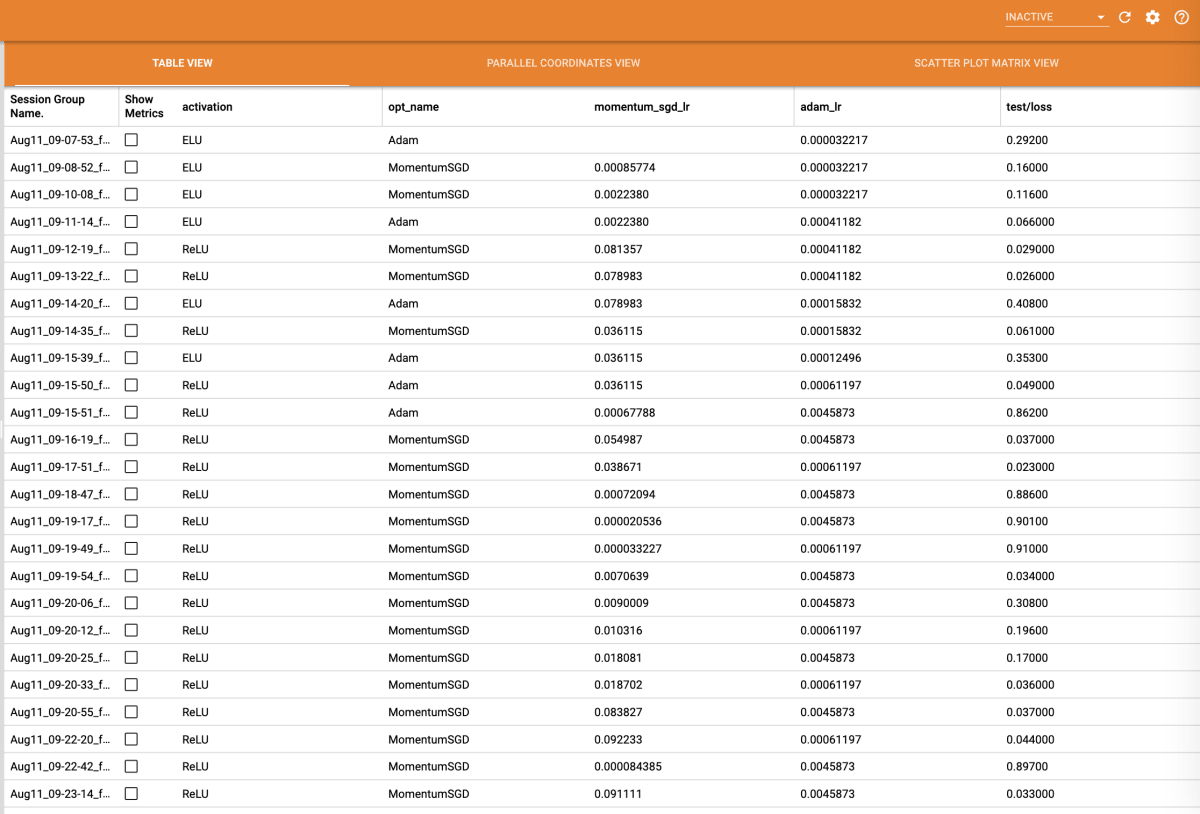

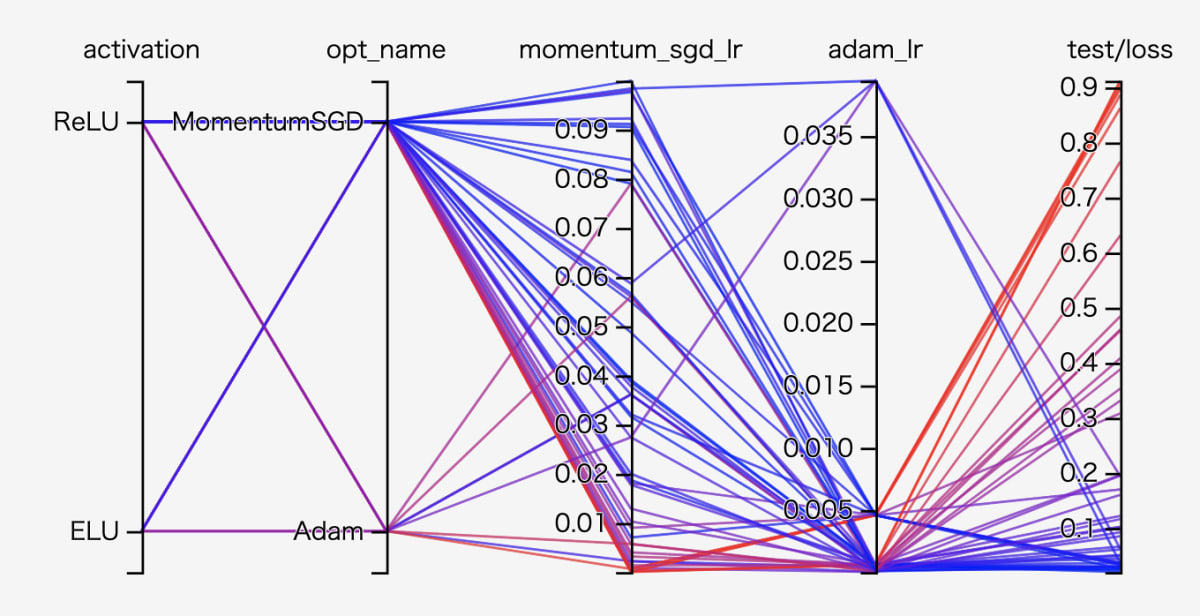

結果をtensorboardで確認

# on host
docker exec -it optuna_pytorch /bin/bassh
tensorboard --logdir runs

# access to http://localhost:6006/#hparams on browser

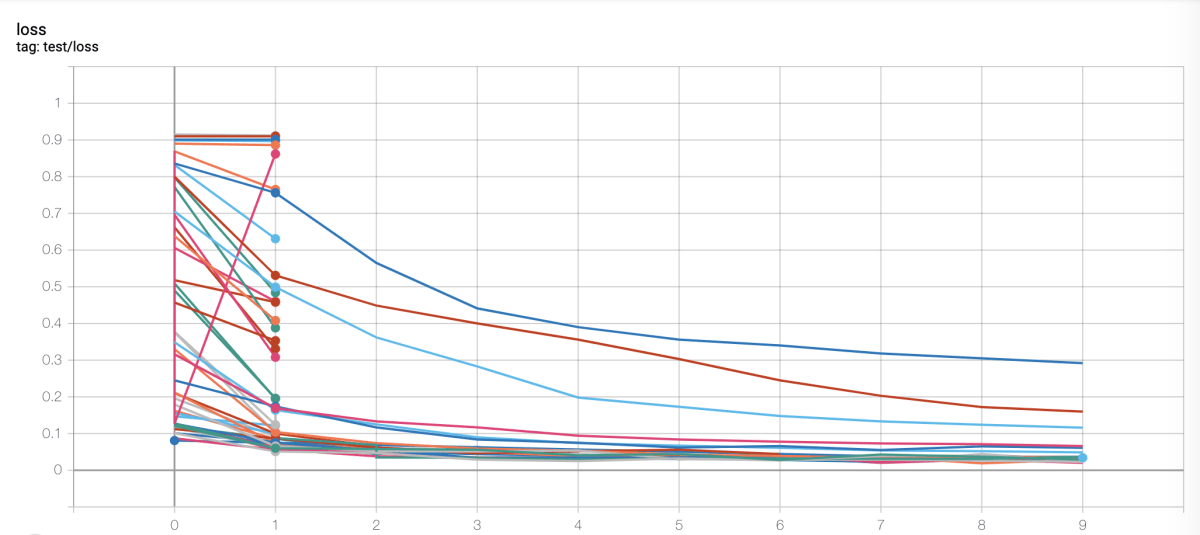

枝刈りが行われてるのがわかる

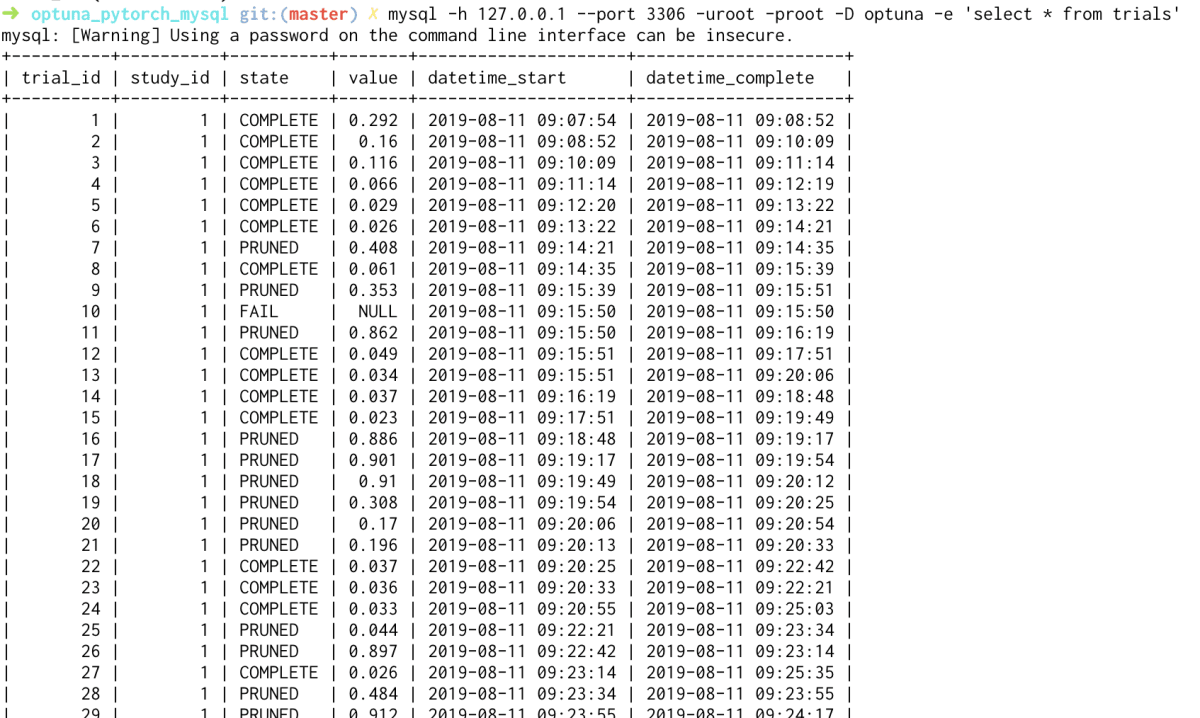

結果をmysqlから確認

# on host
# install mysql
brew install mysql

# check tables on Optuna db
mysql -h 127.0.0.1 --port 3306 -uroot -proot -D optuna -e 'show tables'

# check results on Optuna db
mysql -h 127.0.0.1 --port 3306 -uroot -proot -D optuna -e 'select * from trials'


結果の削除

mysql -h 127.0.0.1 --port 3306 -uroot -proot -D optuna -e 'drop database optuna'
