Difyの全テーブルをまとめました。
totsukaはじめに
Difyについて記事を書くとき毎回テーブル情報を書くのがめんどくさいので、ここに全てのテーブルのスキーマを並べてしまおう！と思い立ち、作成しました。
本記事の方針
- 最新情報を本記事に反映させて常に新しい状態にしておく
- 説明やER図を追加して「ここを見ればOK」な状態にしていく
バージョン
- Dify:
v0.7.2
DifyのDBに接続する

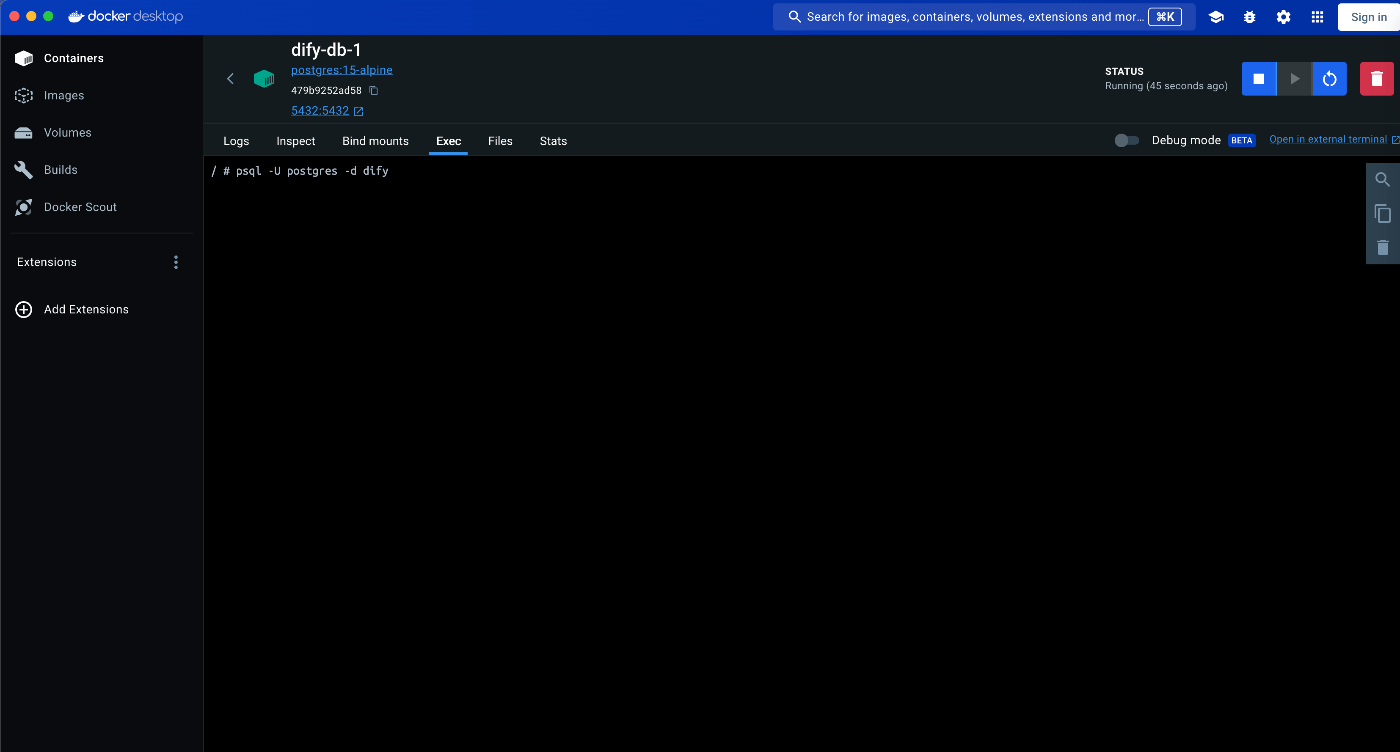

Docker DesktopのUIからPostgresに接続してみます。
※環境変数が.env.exampleから変更していない場合は以下のコマンドで接続できると思います。変更している場合は、自分が設定した値に変更して実行してください。
$ psql -U postgres -d dify
Difyの全テーブル
\dで全てのテーブルを見てみると、71テーブルがあることが確認できました。
今からこのテーブルについて見ていきたいと思います。
dify=# \d
List of relations
Schema | Name | Type | Owner
--------+-----------------------------------+----------+----------
public | account_integrates | table | postgres
public | accounts | table | postgres
public | alembic_version | table | postgres
public | api_based_extensions | table | postgres
public | api_requests | table | postgres
...
(71 rows)
↓全てのテーブルが見たい方は、以下展開すると確認できます。
Difyのテーブル一覧（全テーブル）
dify=# \d
List of relations
Schema | Name | Type | Owner
--------+-----------------------------------+----------+----------
public | account_integrates | table | postgres
public | accounts | table | postgres
public | alembic_version | table | postgres
public | api_based_extensions | table | postgres
public | api_requests | table | postgres
public | api_tokens | table | postgres
public | app_annotation_hit_histories | table | postgres
public | app_annotation_settings | table | postgres
public | app_dataset_joins | table | postgres
public | app_model_configs | table | postgres
public | apps | table | postgres
public | celery_taskmeta | table | postgres
public | celery_tasksetmeta | table | postgres
public | conversations | table | postgres
public | data_source_api_key_auth_bindings | table | postgres
public | data_source_oauth_bindings | table | postgres
public | dataset_collection_bindings | table | postgres
public | dataset_keyword_tables | table | postgres
public | dataset_permissions | table | postgres
public | dataset_process_rules | table | postgres
public | dataset_queries | table | postgres
public | dataset_retriever_resources | table | postgres
public | datasets | table | postgres
public | dify_setups | table | postgres
public | document_segments | table | postgres
public | documents | table | postgres
public | embeddings | table | postgres
public | end_users | table | postgres
public | installed_apps | table | postgres
public | invitation_codes | table | postgres
public | invitation_codes_id_seq | sequence | postgres
public | load_balancing_model_configs | table | postgres
public | message_agent_thoughts | table | postgres
public | message_annotations | table | postgres
public | message_chains | table | postgres
public | message_feedbacks | table | postgres
public | message_files | table | postgres
public | messages | table | postgres
public | operation_logs | table | postgres
public | pinned_conversations | table | postgres
public | provider_model_settings | table | postgres
public | provider_models | table | postgres
public | provider_orders | table | postgres
public | providers | table | postgres
public | recommended_apps | table | postgres
public | saved_messages | table | postgres
public | sites | table | postgres
public | tag_bindings | table | postgres
public | tags | table | postgres
public | task_id_sequence | sequence | postgres
public | taskset_id_sequence | sequence | postgres
public | tenant_account_joins | table | postgres
public | tenant_default_models | table | postgres
public | tenant_preferred_model_providers | table | postgres
public | tenants | table | postgres
public | tool_api_providers | table | postgres
public | tool_builtin_providers | table | postgres
public | tool_conversation_variables | table | postgres
public | tool_files | table | postgres
public | tool_label_bindings | table | postgres
public | tool_model_invokes | table | postgres
public | tool_providers | table | postgres
public | tool_published_apps | table | postgres
public | tool_workflow_providers | table | postgres
public | trace_app_config | table | postgres
public | upload_files | table | postgres
public | workflow_app_logs | table | postgres
public | workflow_conversation_variables | table | postgres
public | workflow_node_executions | table | postgres
public | workflow_runs | table | postgres
public | workflows | table | postgres
(71 rows)
account_integrates
dify=# \d account_integrates
Table "public.account_integrates"
Column | Type | Collation | Nullable | Default
-----------------+-----------------------------+-----------+----------+----------------------
id | uuid | | not null | uuid_generate_v4()
account_id | uuid | | not null |
provider | character varying(16) | | not null |
open_id | character varying(255) | | not null |
encrypted_token | character varying(255) | | not null |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
updated_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
Indexes:
"account_integrate_pkey" PRIMARY KEY, btree (id)
"unique_account_provider" UNIQUE CONSTRAINT, btree (account_id, provider)
"unique_provider_open_id" UNIQUE CONSTRAINT, btree (provider, open_id)
accounts
dify=# \d accounts
Table "public.accounts"
Column | Type | Collation | Nullable | Default
--------------------+-----------------------------+-----------+----------+-----------------------------
id | uuid | | not null | uuid_generate_v4()
name | character varying(255) | | not null |
email | character varying(255) | | not null |
password | character varying(255) | | |
password_salt | character varying(255) | | |
avatar | character varying(255) | | |
interface_language | character varying(255) | | |
interface_theme | character varying(255) | | |
timezone | character varying(255) | | |
last_login_at | timestamp without time zone | | |
last_login_ip | character varying(255) | | |
status | character varying(16) | | not null | 'active'::character varying
initialized_at | timestamp without time zone | | |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
updated_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
last_active_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
Indexes:
"account_pkey" PRIMARY KEY, btree (id)
"account_email_idx" btree (email)
alembic_version
dify=# \d alembic_version
Table "public.alembic_version"
Column | Type | Collation | Nullable | Default
-------------+-----------------------+-----------+----------+---------
version_num | character varying(32) | | not null |
Indexes:
"alembic_version_pkc" PRIMARY KEY, btree (version_num)
api_based_extensions
dify=# \d alembic_version
Table "public.alembic_version"
Column | Type | Collation | Nullable | Default
-------------+-----------------------+-----------+----------+---------
version_num | character varying(32) | | not null |
Indexes:
"alembic_version_pkc" PRIMARY KEY, btree (version_num)
dify=# \d api_based_extensions
Table "public.api_based_extensions"
Column | Type | Collation | Nullable | Default
--------------+-----------------------------+-----------+----------+----------------------
id | uuid | | not null | uuid_generate_v4()
tenant_id | uuid | | not null |
name | character varying(255) | | not null |
api_endpoint | character varying(255) | | not null |
api_key | text | | not null |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
Indexes:
"api_based_extension_pkey" PRIMARY KEY, btree (id)
"api_based_extension_tenant_idx" btree (tenant_id)
api_requests
dify=# \d api_requests
Table "public.api_requests"
Column | Type | Collation | Nullable | Default
--------------+-----------------------------+-----------+----------+----------------------
id | uuid | | not null | uuid_generate_v4()
tenant_id | uuid | | not null |
api_token_id | uuid | | not null |
path | character varying(255) | | not null |
request | text | | |
response | text | | |
ip | character varying(255) | | not null |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
Indexes:
"api_request_pkey" PRIMARY KEY, btree (id)
"api_request_token_idx" btree (tenant_id, api_token_id)
api_tokens
dify=# \d api_tokens
Table "public.api_tokens"
Column | Type | Collation | Nullable | Default
--------------+-----------------------------+-----------+----------+----------------------
id | uuid | | not null | uuid_generate_v4()
app_id | uuid | | |
type | character varying(16) | | not null |
token | character varying(255) | | not null |
last_used_at | timestamp without time zone | | |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
tenant_id | uuid | | |
Indexes:
"api_token_pkey" PRIMARY KEY, btree (id)
"api_token_app_id_type_idx" btree (app_id, type)
"api_token_tenant_idx" btree (tenant_id, type)
"api_token_token_idx" btree (token, type)
app_annotation_hit_histories
dify=# \d app_annotation_hit_histories
Table "public.app_annotation_hit_histories"
Column | Type | Collation | Nullable | Default
---------------------+-----------------------------+-----------+----------+----------------------
id | uuid | | not null | uuid_generate_v4()
app_id | uuid | | not null |
annotation_id | uuid | | not null |
source | text | | not null |
question | text | | not null |
account_id | uuid | | not null |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
score | double precision | | not null | 0
message_id | uuid | | not null |
annotation_question | text | | not null |
annotation_content | text | | not null |
Indexes:
"app_annotation_hit_histories_pkey" PRIMARY KEY, btree (id)
"app_annotation_hit_histories_account_idx" btree (account_id)
"app_annotation_hit_histories_annotation_idx" btree (annotation_id)
"app_annotation_hit_histories_app_idx" btree (app_id)
"app_annotation_hit_histories_message_idx" btree (message_id)
app_annotation_settings
dify=# \d app_annotation_settings
Table "public.app_annotation_settings"
Column | Type | Collation | Nullable | Default
-----------------------+-----------------------------+-----------+----------+----------------------
id | uuid | | not null | uuid_generate_v4()
app_id | uuid | | not null |
score_threshold | double precision | | not null | 0
collection_binding_id | uuid | | not null |
created_user_id | uuid | | not null |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
updated_user_id | uuid | | not null |
updated_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
Indexes:
"app_annotation_settings_pkey" PRIMARY KEY, btree (id)
"app_annotation_settings_app_idx" btree (app_id)
app_dataset_joins
dify=# \d app_dataset_joins
Table "public.app_dataset_joins"
Column | Type | Collation | Nullable | Default
------------+-----------------------------+-----------+----------+--------------------
id | uuid | | not null | uuid_generate_v4()
app_id | uuid | | not null |
dataset_id | uuid | | not null |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP
Indexes:
"app_dataset_join_pkey" PRIMARY KEY, btree (id)
"app_dataset_join_app_dataset_idx" btree (dataset_id, app_id)
app_model_configs
dify=# \d app_model_configs
Table "public.app_model_configs"
Column | Type | Collation | Nullable | Default
----------------------------------+-----------------------------+-----------+----------+-----------------------------
id | uuid | | not null | uuid_generate_v4()
app_id | uuid | | not null |
provider | character varying(255) | | |
model_id | character varying(255) | | |
configs | json | | |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
updated_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
opening_statement | text | | |
suggested_questions | text | | |
suggested_questions_after_answer | text | | |
more_like_this | text | | |
model | text | | |
user_input_form | text | | |
pre_prompt | text | | |
agent_mode | text | | |
speech_to_text | text | | |
sensitive_word_avoidance | text | | |
retriever_resource | text | | |
dataset_query_variable | character varying(255) | | |
prompt_type | character varying(255) | | not null | 'simple'::character varying
chat_prompt_config | text | | |
completion_prompt_config | text | | |
dataset_configs | text | | |
external_data_tools | text | | |
file_upload | text | | |
text_to_speech | text | | |
created_by | uuid | | |
updated_by | uuid | | |
Indexes:
"app_model_config_pkey" PRIMARY KEY, btree (id)
"app_app_id_idx" btree (app_id)
apps
dify=# \d apps
Table "public.apps"
Column | Type | Collation | Nullable | Default
---------------------+-----------------------------+-----------+----------+-----------------------------
id | uuid | | not null | uuid_generate_v4()
tenant_id | uuid | | not null |
name | character varying(255) | | not null |
mode | character varying(255) | | not null |
icon | character varying(255) | | |
icon_background | character varying(255) | | |
app_model_config_id | uuid | | |
status | character varying(255) | | not null | 'normal'::character varying
enable_site | boolean | | not null |
enable_api | boolean | | not null |
api_rpm | integer | | not null | 0
api_rph | integer | | not null | 0
is_demo | boolean | | not null | false
is_public | boolean | | not null | false
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
updated_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
is_universal | boolean | | not null | false
workflow_id | uuid | | |
description | text | | not null | ''::character varying
tracing | text | | |
max_active_requests | integer | | |
icon_type | character varying(255) | | |
created_by | uuid | | |
updated_by | uuid | | |
Indexes:
"app_pkey" PRIMARY KEY, btree (id)
"app_tenant_id_idx" btree (tenant_id)
Referenced by:
TABLE "tool_published_apps" CONSTRAINT "tool_published_apps_app_id_fkey" FOREIGN KEY (app_id) REFERENCES apps(id)
celery_taskmeta
dify=# \d celery_taskmeta
Table "public.celery_taskmeta"
Column | Type | Collation | Nullable | Default
-----------+-----------------------------+-----------+----------+---------------------------------------
id | integer | | not null | nextval('task_id_sequence'::regclass)
task_id | character varying(155) | | |
status | character varying(50) | | |
result | bytea | | |
date_done | timestamp without time zone | | |
traceback | text | | |
name | character varying(155) | | |
args | bytea | | |
kwargs | bytea | | |
worker | character varying(155) | | |
retries | integer | | |
queue | character varying(155) | | |
Indexes:
"celery_taskmeta_pkey" PRIMARY KEY, btree (id)
"celery_taskmeta_task_id_key" UNIQUE CONSTRAINT, btree (task_id)
celery_tasksetmeta
dify=# \d celery_tasksetmeta
Table "public.celery_tasksetmeta"
Column | Type | Collation | Nullable | Default
------------+-----------------------------+-----------+----------+------------------------------------------
id | integer | | not null | nextval('taskset_id_sequence'::regclass)
taskset_id | character varying(155) | | |
result | bytea | | |
date_done | timestamp without time zone | | |
Indexes:
"celery_tasksetmeta_pkey" PRIMARY KEY, btree (id)
"celery_tasksetmeta_taskset_id_key" UNIQUE CONSTRAINT, btree (taskset_id)
conversations
dify=# \d conversations
Table "public.conversations"
Column | Type | Collation | Nullable | Default
---------------------------+-----------------------------+-----------+----------+----------------------
id | uuid | | not null | uuid_generate_v4()
app_id | uuid | | not null |
app_model_config_id | uuid | | |
model_provider | character varying(255) | | |
override_model_configs | text | | |
model_id | character varying(255) | | |
mode | character varying(255) | | not null |
name | character varying(255) | | not null |
summary | text | | |
inputs | json | | |
introduction | text | | |
system_instruction | text | | |
system_instruction_tokens | integer | | not null | 0
status | character varying(255) | | not null |
from_source | character varying(255) | | not null |
from_end_user_id | uuid | | |
from_account_id | uuid | | |
read_at | timestamp without time zone | | |
read_account_id | uuid | | |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
updated_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
is_deleted | boolean | | not null | false
invoke_from | character varying(255) | | |
dialogue_count | integer | | not null | 0
Indexes:
"conversation_pkey" PRIMARY KEY, btree (id)
"conversation_app_from_user_idx" btree (app_id, from_source, from_end_user_id)
data_source_api_key_auth_bindings
dify=# \d data_source_api_key_auth_bindings
Table "public.data_source_api_key_auth_bindings"
Column | Type | Collation | Nullable | Default
-------------+-----------------------------+-----------+----------+----------------------
id | uuid | | not null | uuid_generate_v4()
tenant_id | uuid | | not null |
category | character varying(255) | | not null |
provider | character varying(255) | | not null |
credentials | text | | |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
updated_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
disabled | boolean | | | false
Indexes:
"data_source_api_key_auth_binding_pkey" PRIMARY KEY, btree (id)
"data_source_api_key_auth_binding_provider_idx" btree (provider)
"data_source_api_key_auth_binding_tenant_id_idx" btree (tenant_id)
data_source_oauth_bindings
dify=# \d data_source_oauth_bindings
Table "public.data_source_oauth_bindings"
Column | Type | Collation | Nullable | Default
--------------+-----------------------------+-----------+----------+----------------------
id | uuid | | not null | uuid_generate_v4()
tenant_id | uuid | | not null |
access_token | character varying(255) | | not null |
provider | character varying(255) | | not null |
source_info | jsonb | | not null |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
updated_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
disabled | boolean | | | false
Indexes:
"source_binding_pkey" PRIMARY KEY, btree (id)
"source_binding_tenant_id_idx" btree (tenant_id)
"source_info_idx" gin (source_info)
dataset_collection_bindings
dify=# \d dataset_collection_bindings
Table "public.dataset_collection_bindings"
Column | Type | Collation | Nullable | Default
-----------------+-----------------------------+-----------+----------+------------------------------
id | uuid | | not null | uuid_generate_v4()
provider_name | character varying(40) | | not null |
model_name | character varying(255) | | not null |
collection_name | character varying(64) | | not null |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
type | character varying(40) | | not null | 'dataset'::character varying
Indexes:
"dataset_collection_bindings_pkey" PRIMARY KEY, btree (id)
"provider_model_name_idx" btree (provider_name, model_name)
dataset_keyword_tables
dify=# \d dataset_keyword_tables
Table "public.dataset_keyword_tables"
Column | Type | Collation | Nullable | Default
------------------+------------------------+-----------+----------+-------------------------------
id | uuid | | not null | uuid_generate_v4()
dataset_id | uuid | | not null |
keyword_table | text | | not null |
data_source_type | character varying(255) | | not null | 'database'::character varying
Indexes:
"dataset_keyword_table_pkey" PRIMARY KEY, btree (id)
"dataset_keyword_table_dataset_id_idx" btree (dataset_id)
"dataset_keyword_tables_dataset_id_key" UNIQUE CONSTRAINT, btree (dataset_id)
dataset_permissions
dify=# \d dataset_permissions
Table "public.dataset_permissions"
Column | Type | Collation | Nullable | Default
----------------+-----------------------------+-----------+----------+----------------------
id | uuid | | not null | uuid_generate_v4()
dataset_id | uuid | | not null |
account_id | uuid | | not null |
has_permission | boolean | | not null | true
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
tenant_id | uuid | | not null |
Indexes:
"dataset_permission_pkey" PRIMARY KEY, btree (id)
"idx_dataset_permissions_account_id" btree (account_id)
"idx_dataset_permissions_dataset_id" btree (dataset_id)
"idx_dataset_permissions_tenant_id" btree (tenant_id)
dataset_process_rules
dify=# \d dataset_process_rules
Table "public.dataset_process_rules"
Column | Type | Collation | Nullable | Default
------------+-----------------------------+-----------+----------+--------------------------------
id | uuid | | not null | uuid_generate_v4()
dataset_id | uuid | | not null |
mode | character varying(255) | | not null | 'automatic'::character varying
rules | text | | |
created_by | uuid | | not null |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
Indexes:
"dataset_process_rule_pkey" PRIMARY KEY, btree (id)
"dataset_process_rule_dataset_id_idx" btree (dataset_id)
dataset_queries
dify=# \d dataset_queries
Table "public.dataset_queries"
Column | Type | Collation | Nullable | Default
-----------------+-----------------------------+-----------+----------+--------------------
id | uuid | | not null | uuid_generate_v4()
dataset_id | uuid | | not null |
content | text | | not null |
source | character varying(255) | | not null |
source_app_id | uuid | | |
created_by_role | character varying | | not null |
created_by | uuid | | not null |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP
Indexes:
"dataset_query_pkey" PRIMARY KEY, btree (id)
"dataset_query_dataset_id_idx" btree (dataset_id)
dataset_retriever_resources
dify=# \d dataset_retriever_resources
Table "public.dataset_retriever_resources"
Column | Type | Collation | Nullable | Default
------------------+-----------------------------+-----------+----------+--------------------
id | uuid | | not null | uuid_generate_v4()
message_id | uuid | | not null |
position | integer | | not null |
dataset_id | uuid | | not null |
dataset_name | text | | not null |
document_id | uuid | | not null |
document_name | text | | not null |
data_source_type | text | | not null |
segment_id | uuid | | not null |
score | double precision | | |
content | text | | not null |
hit_count | integer | | |
word_count | integer | | |
segment_position | integer | | |
index_node_hash | text | | |
retriever_from | text | | not null |
created_by | uuid | | not null |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP
Indexes:
"dataset_retriever_resource_pkey" PRIMARY KEY, btree (id)
"dataset_retriever_resource_message_id_idx" btree (message_id)
datasets
dify=# \d datasets
Table "public.datasets"
Column | Type | Collation | Nullable | Default
--------------------------+-----------------------------+-----------+----------+---------------------------------------------
id | uuid | | not null | uuid_generate_v4()
tenant_id | uuid | | not null |
name | character varying(255) | | not null |
description | text | | |
provider | character varying(255) | | not null | 'vendor'::character varying
permission | character varying(255) | | not null | 'only_me'::character varying
data_source_type | character varying(255) | | |
indexing_technique | character varying(255) | | |
index_struct | text | | |
created_by | uuid | | not null |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
updated_by | uuid | | |
updated_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
embedding_model | character varying(255) | | | 'text-embedding-ada-002'::character varying
embedding_model_provider | character varying(255) | | | 'openai'::character varying
collection_binding_id | uuid | | |
retrieval_model | jsonb | | |
Indexes:
"dataset_pkey" PRIMARY KEY, btree (id)
"dataset_tenant_idx" btree (tenant_id)
"retrieval_model_idx" gin (retrieval_model)
dify_setups
dify=# \d dify_setups
Table "public.dify_setups"
Column | Type | Collation | Nullable | Default
----------+-----------------------------+-----------+----------+----------------------
version | character varying(255) | | not null |
setup_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
Indexes:
"dify_setup_pkey" PRIMARY KEY, btree (version)
document_segments
dify=# \d document_segments
Table "public.document_segments"
Column | Type | Collation | Nullable | Default
-----------------+-----------------------------+-----------+----------+------------------------------
id | uuid | | not null | uuid_generate_v4()
tenant_id | uuid | | not null |
dataset_id | uuid | | not null |
document_id | uuid | | not null |
position | integer | | not null |
content | text | | not null |
word_count | integer | | not null |
tokens | integer | | not null |
keywords | json | | |
index_node_id | character varying(255) | | |
index_node_hash | character varying(255) | | |
hit_count | integer | | not null |
enabled | boolean | | not null | true
disabled_at | timestamp without time zone | | |
disabled_by | uuid | | |
status | character varying(255) | | not null | 'waiting'::character varying
created_by | uuid | | not null |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
indexing_at | timestamp without time zone | | |
completed_at | timestamp without time zone | | |
error | text | | |
stopped_at | timestamp without time zone | | |
answer | text | | |
updated_by | uuid | | |
updated_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
Indexes:
"document_segment_pkey" PRIMARY KEY, btree (id)
"document_segment_dataset_id_idx" btree (dataset_id)
"document_segment_dataset_node_idx" btree (dataset_id, index_node_id)
"document_segment_document_id_idx" btree (document_id)
"document_segment_tenant_dataset_idx" btree (dataset_id, tenant_id)
"document_segment_tenant_document_idx" btree (document_id, tenant_id)
"document_segment_tenant_idx" btree (tenant_id)
documents
dify=# \d documents
Table "public.documents"
Column | Type | Collation | Nullable | Default
-------------------------+-----------------------------+-----------+----------+---------------------------------
id | uuid | | not null | uuid_generate_v4()
tenant_id | uuid | | not null |
dataset_id | uuid | | not null |
position | integer | | not null |
data_source_type | character varying(255) | | not null |
data_source_info | text | | |
dataset_process_rule_id | uuid | | |
batch | character varying(255) | | not null |
name | character varying(255) | | not null |
created_from | character varying(255) | | not null |
created_by | uuid | | not null |
created_api_request_id | uuid | | |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
processing_started_at | timestamp without time zone | | |
file_id | text | | |
word_count | integer | | |
parsing_completed_at | timestamp without time zone | | |
cleaning_completed_at | timestamp without time zone | | |
splitting_completed_at | timestamp without time zone | | |
tokens | integer | | |
indexing_latency | double precision | | |
completed_at | timestamp without time zone | | |
is_paused | boolean | | | false
paused_by | uuid | | |
paused_at | timestamp without time zone | | |
error | text | | |
stopped_at | timestamp without time zone | | |
indexing_status | character varying(255) | | not null | 'waiting'::character varying
enabled | boolean | | not null | true
disabled_at | timestamp without time zone | | |
disabled_by | uuid | | |
archived | boolean | | not null | false
archived_reason | character varying(255) | | |
archived_by | uuid | | |
archived_at | timestamp without time zone | | |
updated_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
doc_type | character varying(40) | | |
doc_metadata | json | | |
doc_form | character varying(255) | | not null | 'text_model'::character varying
doc_language | character varying(255) | | |
Indexes:
"document_pkey" PRIMARY KEY, btree (id)
"document_dataset_id_idx" btree (dataset_id)
embeddings
dify-# \d embeddings
Table "public.embeddings"
Column | Type | Collation | Nullable | Default
---------------+-----------------------------+-----------+----------+---------------------------------------------
id | uuid | | not null | uuid_generate_v4()
hash | character varying(64) | | not null |
embedding | bytea | | not null |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
model_name | character varying(255) | | not null | 'text-embedding-ada-002'::character varying
provider_name | character varying(255) | | not null | ''::character varying
Indexes:
"embedding_pkey" PRIMARY KEY, btree (id)
"created_at_idx" btree (created_at)
"embedding_hash_idx" UNIQUE CONSTRAINT, btree (model_name, hash, provider_name)
end_users
dify-# \d end_users
Table "public.end_users"
Column | Type | Collation | Nullable | Default
------------------+-----------------------------+-----------+----------+----------------------
id | uuid | | not null | uuid_generate_v4()
tenant_id | uuid | | not null |
app_id | uuid | | |
type | character varying(255) | | not null |
external_user_id | character varying(255) | | |
name | character varying(255) | | |
is_anonymous | boolean | | not null | true
session_id | character varying(255) | | not null |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
updated_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
Indexes:
"end_user_pkey" PRIMARY KEY, btree (id)
"end_user_session_id_idx" btree (session_id, type)
"end_user_tenant_session_id_idx" btree (tenant_id, session_id, type)
installed_apps
dify-# \d installed_apps
Table "public.installed_apps"
Column | Type | Collation | Nullable | Default
---------------------+-----------------------------+-----------+----------+----------------------
id | uuid | | not null | uuid_generate_v4()
tenant_id | uuid | | not null |
app_id | uuid | | not null |
app_owner_tenant_id | uuid | | not null |
position | integer | | not null |
is_pinned | boolean | | not null | false
last_used_at | timestamp without time zone | | |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
Indexes:
"installed_app_pkey" PRIMARY KEY, btree (id)
"installed_app_app_id_idx" btree (app_id)
"installed_app_tenant_id_idx" btree (tenant_id)
"unique_tenant_app" UNIQUE CONSTRAINT, btree (tenant_id, app_id)
invitation_codes
dify-# \d invitation_codes
Table "public.invitation_codes"
Column | Type | Collation | Nullable | Default
--------------------+-----------------------------+-----------+----------+----------------------------------------------
id | integer | | not null | nextval('invitation_codes_id_seq'::regclass)
batch | character varying(255) | | not null |
code | character varying(32) | | not null |
status | character varying(16) | | not null | 'unused'::character varying
used_at | timestamp without time zone | | |
used_by_tenant_id | uuid | | |
used_by_account_id | uuid | | |
deprecated_at | timestamp without time zone | | |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
Indexes:
"invitation_code_pkey" PRIMARY KEY, btree (id)
"invitation_codes_batch_idx" btree (batch)
"invitation_codes_code_idx" btree (code, status)
invitation_codes_id_seq
dify-# \d invitation_codes_id_seq
Sequence "public.invitation_codes_id_seq"
Type | Start | Minimum | Maximum | Increment | Cycles? | Cache
---------+-------+---------+------------+-----------+---------+-------
integer | 1 | 1 | 2147483647 | 1 | no | 1
Owned by: public.invitation_codes.id
load_balancing_model_configs
dify-# \d load_balancing_model_configs
Table "public.load_balancing_model_configs"
Column | Type | Collation | Nullable | Default
------------------+-----------------------------+-----------+----------+----------------------
id | uuid | | not null | uuid_generate_v4()
tenant_id | uuid | | not null |
provider_name | character varying(255) | | not null |
model_name | character varying(255) | | not null |
model_type | character varying(40) | | not null |
name | character varying(255) | | not null |
encrypted_config | text | | |
enabled | boolean | | not null | true
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
updated_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
Indexes:
"load_balancing_model_config_pkey" PRIMARY KEY, btree (id)
"load_balancing_model_config_tenant_provider_model_idx" btree (tenant_id, provider_name, model_type)
message_agent_thoughts
dify-# \d message_agent_thoughts
Table "public.message_agent_thoughts"
Column | Type | Collation | Nullable | Default
--------------------+-----------------------------+-----------+----------+--------------------
id | uuid | | not null | uuid_generate_v4()
message_id | uuid | | not null |
message_chain_id | uuid | | |
position | integer | | not null |
thought | text | | |
tool | text | | |
tool_input | text | | |
observation | text | | |
tool_process_data | text | | |
message | text | | |
message_token | integer | | |
message_unit_price | numeric | | |
answer | text | | |
answer_token | integer | | |
answer_unit_price | numeric | | |
tokens | integer | | |
total_price | numeric | | |
currency | character varying | | |
latency | double precision | | |
created_by_role | character varying | | not null |
created_by | uuid | | not null |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP
message_price_unit | numeric(10,7) | | not null | 0.001
answer_price_unit | numeric(10,7) | | not null | 0.001
message_files | text | | |
tool_labels_str | text | | not null | '{}'::text
tool_meta_str | text | | not null | '{}'::text
Indexes:
"message_agent_thought_pkey" PRIMARY KEY, btree (id)
"message_agent_thought_message_chain_id_idx" btree (message_chain_id)
"message_agent_thought_message_id_idx" btree (message_id)
message_annotations
dify-# \d message_annotations
Table "public.message_annotations"
Column | Type | Collation | Nullable | Default
-----------------+-----------------------------+-----------+----------+----------------------
id | uuid | | not null | uuid_generate_v4()
app_id | uuid | | not null |
conversation_id | uuid | | |
message_id | uuid | | |
content | text | | not null |
account_id | uuid | | not null |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
updated_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
question | text | | |
hit_count | integer | | not null | 0
Indexes:
"message_annotation_pkey" PRIMARY KEY, btree (id)
"message_annotation_app_idx" btree (app_id)
"message_annotation_conversation_idx" btree (conversation_id)
"message_annotation_message_idx" btree (message_id)
message_chains
dify-# \d message_chains
Table "public.message_chains"
Column | Type | Collation | Nullable | Default
------------+-----------------------------+-----------+----------+--------------------
id | uuid | | not null | uuid_generate_v4()
message_id | uuid | | not null |
type | character varying(255) | | not null |
input | text | | |
output | text | | |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP
Indexes:
"message_chain_pkey" PRIMARY KEY, btree (id)
"message_chain_message_id_idx" btree (message_id)
message_feedbacks
dify-# \d message_feedbacks
Table "public.message_feedbacks"
Column | Type | Collation | Nullable | Default
------------------+-----------------------------+-----------+----------+----------------------
id | uuid | | not null | uuid_generate_v4()
app_id | uuid | | not null |
conversation_id | uuid | | not null |
message_id | uuid | | not null |
rating | character varying(255) | | not null |
content | text | | |
from_source | character varying(255) | | not null |
from_end_user_id | uuid | | |
from_account_id | uuid | | |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
updated_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
Indexes:
"message_feedback_pkey" PRIMARY KEY, btree (id)
"message_feedback_app_idx" btree (app_id)
"message_feedback_conversation_idx" btree (conversation_id, from_source, rating)
"message_feedback_message_idx" btree (message_id, from_source)
message_files
dify-# \d message_files
Table "public.message_files"
Column | Type | Collation | Nullable | Default
-----------------+-----------------------------+-----------+----------+----------------------
id | uuid | | not null | uuid_generate_v4()
message_id | uuid | | not null |
type | character varying(255) | | not null |
transfer_method | character varying(255) | | not null |
url | text | | |
upload_file_id | uuid | | |
created_by_role | character varying(255) | | not null |
created_by | uuid | | not null |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
belongs_to | character varying(255) | | |
Indexes:
"message_file_pkey" PRIMARY KEY, btree (id)
"message_file_created_by_idx" btree (created_by)
"message_file_message_idx" btree (message_id)
messages
dify-# \d messages
Table "public.messages"
Column | Type | Collation | Nullable | Default
---------------------------+-----------------------------+-----------+----------+-----------------------------
id | uuid | | not null | uuid_generate_v4()
app_id | uuid | | not null |
model_provider | character varying(255) | | |
model_id | character varying(255) | | |
override_model_configs | text | | |
conversation_id | uuid | | not null |
inputs | json | | |
query | text | | not null |
message | json | | not null |
message_tokens | integer | | not null | 0
message_unit_price | numeric(10,4) | | not null |
answer | text | | not null |
answer_tokens | integer | | not null | 0
answer_unit_price | numeric(10,4) | | not null |
provider_response_latency | double precision | | not null | 0
total_price | numeric(10,7) | | |
currency | character varying(255) | | not null |
from_source | character varying(255) | | not null |
from_end_user_id | uuid | | |
from_account_id | uuid | | |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
updated_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
agent_based | boolean | | not null | false
message_price_unit | numeric(10,7) | | not null | 0.001
answer_price_unit | numeric(10,7) | | not null | 0.001
workflow_run_id | uuid | | |
status | character varying(255) | | not null | 'normal'::character varying
error | text | | |
message_metadata | text | | |
invoke_from | character varying(255) | | |
Indexes:
"message_pkey" PRIMARY KEY, btree (id)
"message_account_idx" btree (app_id, from_source, from_account_id)
"message_app_id_idx" btree (app_id, created_at)
"message_conversation_id_idx" btree (conversation_id)
"message_end_user_idx" btree (app_id, from_source, from_end_user_id)
"message_workflow_run_id_idx" btree (conversation_id, workflow_run_id)
operation_logs
dify-# \d operation_logs
Table "public.operation_logs"
Column | Type | Collation | Nullable | Default
------------+-----------------------------+-----------+----------+----------------------
id | uuid | | not null | uuid_generate_v4()
tenant_id | uuid | | not null |
account_id | uuid | | not null |
action | character varying(255) | | not null |
content | json | | |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
created_ip | character varying(255) | | not null |
updated_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
Indexes:
"operation_log_pkey" PRIMARY KEY, btree (id)
"operation_log_account_action_idx" btree (tenant_id, account_id, action)
pinned_conversations
dify-# \d pinned_conversations
Table "public.pinned_conversations"
Column | Type | Collation | Nullable | Default
-----------------+-----------------------------+-----------+----------+-------------------------------
id | uuid | | not null | uuid_generate_v4()
app_id | uuid | | not null |
conversation_id | uuid | | not null |
created_by | uuid | | not null |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
created_by_role | character varying(255) | | not null | 'end_user'::character varying
Indexes:
"pinned_conversation_pkey" PRIMARY KEY, btree (id)
"pinned_conversation_conversation_idx" btree (app_id, conversation_id, created_by_role, created_by)
provider_model_settings
dify-# \d provider_model_settings
Table "public.provider_model_settings"
Column | Type | Collation | Nullable | Default
------------------------+-----------------------------+-----------+----------+----------------------
id | uuid | | not null | uuid_generate_v4()
tenant_id | uuid | | not null |
provider_name | character varying(255) | | not null |
model_name | character varying(255) | | not null |
model_type | character varying(40) | | not null |
enabled | boolean | | not null | true
load_balancing_enabled | boolean | | not null | false
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
updated_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
Indexes:
"provider_model_setting_pkey" PRIMARY KEY, btree (id)
"provider_model_setting_tenant_provider_model_idx" btree (tenant_id, provider_name, model_type)
provider_models
dify-# \d provider_models
Table "public.provider_models"
Column | Type | Collation | Nullable | Default
------------------+-----------------------------+-----------+----------+----------------------
id | uuid | | not null | uuid_generate_v4()
tenant_id | uuid | | not null |
provider_name | character varying(255) | | not null |
model_name | character varying(255) | | not null |
model_type | character varying(40) | | not null |
encrypted_config | text | | |
is_valid | boolean | | not null | false
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
updated_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
Indexes:
"provider_model_pkey" PRIMARY KEY, btree (id)
"provider_model_tenant_id_provider_idx" btree (tenant_id, provider_name)
"unique_provider_model_name" UNIQUE CONSTRAINT, btree (tenant_id, provider_name, model_name, model_type)
provider_orders
dify-# \d provider_orders
Table "public.provider_orders"
Column | Type | Collation | Nullable | Default
--------------------+-----------------------------+-----------+----------+-------------------------------
id | uuid | | not null | uuid_generate_v4()
tenant_id | uuid | | not null |
provider_name | character varying(255) | | not null |
account_id | uuid | | not null |
payment_product_id | character varying(191) | | not null |
payment_id | character varying(191) | | |
transaction_id | character varying(191) | | |
quantity | integer | | not null | 1
currency | character varying(40) | | |
total_amount | integer | | |
payment_status | character varying(40) | | not null | 'wait_pay'::character varying
paid_at | timestamp without time zone | | |
pay_failed_at | timestamp without time zone | | |
refunded_at | timestamp without time zone | | |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
updated_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
Indexes:
"provider_order_pkey" PRIMARY KEY, btree (id)
"provider_order_tenant_provider_idx" btree (tenant_id, provider_name)
providers
dify-# \d providers
Table "public.providers"
Column | Type | Collation | Nullable | Default
------------------+-----------------------------+-----------+----------+-----------------------------
id | uuid | | not null | uuid_generate_v4()
tenant_id | uuid | | not null |
provider_name | character varying(255) | | not null |
provider_type | character varying(40) | | not null | 'custom'::character varying
encrypted_config | text | | |
is_valid | boolean | | not null | false
last_used | timestamp without time zone | | |
quota_type | character varying(40) | | | ''::character varying
quota_limit | bigint | | |
quota_used | bigint | | |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
updated_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
Indexes:
"provider_pkey" PRIMARY KEY, btree (id)
"provider_tenant_id_provider_idx" btree (tenant_id, provider_name)
"unique_provider_name_type_quota" UNIQUE CONSTRAINT, btree (tenant_id, provider_name, provider_type, quota_type)
recommended_apps
dify-# \d recommended_apps
Table "public.recommended_apps"
Column | Type | Collation | Nullable | Default
-------------------+-----------------------------+-----------+----------+----------------------------
id | uuid | | not null | uuid_generate_v4()
app_id | uuid | | not null |
description | json | | not null |
copyright | character varying(255) | | not null |
privacy_policy | character varying(255) | | not null |
category | character varying(255) | | not null |
position | integer | | not null |
is_listed | boolean | | not null |
install_count | integer | | not null |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
updated_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
language | character varying(255) | | not null | 'en-US'::character varying
custom_disclaimer | character varying(255) | | |
Indexes:
"recommended_app_pkey" PRIMARY KEY, btree (id)
"recommended_app_app_id_idx" btree (app_id)
"recommended_app_is_listed_idx" btree (is_listed, language)
saved_messages
dify-# \d saved_messages
Table "public.saved_messages"
Column | Type | Collation | Nullable | Default
-----------------+-----------------------------+-----------+----------+-------------------------------
id | uuid | | not null | uuid_generate_v4()
app_id | uuid | | not null |
message_id | uuid | | not null |
created_by | uuid | | not null |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
created_by_role | character varying(255) | | not null | 'end_user'::character varying
Indexes:
"saved_message_pkey" PRIMARY KEY, btree (id)
"saved_message_message_idx" btree (app_id, message_id, created_by_role, created_by)
sites
dify-# \d sites
Table "public.sites"
Column | Type | Collation | Nullable | Default
---------------------------+-----------------------------+-----------+----------+-----------------------------
id | uuid | | not null | uuid_generate_v4()
app_id | uuid | | not null |
title | character varying(255) | | not null |
icon | character varying(255) | | |
icon_background | character varying(255) | | |
description | text | | |
default_language | character varying(255) | | not null |
copyright | character varying(255) | | |
privacy_policy | character varying(255) | | |
customize_domain | character varying(255) | | |
customize_token_strategy | character varying(255) | | not null |
prompt_public | boolean | | not null | false
status | character varying(255) | | not null | 'normal'::character varying
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
updated_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
code | character varying(255) | | |
custom_disclaimer | character varying(255) | | |
show_workflow_steps | boolean | | not null | true
chat_color_theme | character varying(255) | | |
chat_color_theme_inverted | boolean | | not null | false
icon_type | character varying(255) | | |
created_by | uuid | | |
updated_by | uuid | | |
Indexes:
"site_pkey" PRIMARY KEY, btree (id)
"site_app_id_idx" btree (app_id)
"site_code_idx" btree (code, status)
tag_bindings
dify-# \d tag_bindings
Table "public.tag_bindings"
Column | Type | Collation | Nullable | Default
------------+-----------------------------+-----------+----------+----------------------
id | uuid | | not null | uuid_generate_v4()
tenant_id | uuid | | |
tag_id | uuid | | |
target_id | uuid | | |
created_by | uuid | | not null |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
Indexes:
"tag_binding_pkey" PRIMARY KEY, btree (id)
"tag_bind_tag_id_idx" btree (tag_id)
"tag_bind_target_id_idx" btree (target_id)
tags
dify-# \d tags
Table "public.tags"
Column | Type | Collation | Nullable | Default
------------+-----------------------------+-----------+----------+----------------------
id | uuid | | not null | uuid_generate_v4()
tenant_id | uuid | | |
type | character varying(16) | | not null |
name | character varying(255) | | not null |
created_by | uuid | | not null |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
Indexes:
"tag_pkey" PRIMARY KEY, btree (id)
"tag_name_idx" btree (name)
"tag_type_idx" btree (type)
task_id_sequence
dify-# \d task_id_sequence
Sequence "public.task_id_sequence"
Type | Start | Minimum | Maximum | Increment | Cycles? | Cache
--------+-------+---------+---------------------+-----------+---------+-------
bigint | 1 | 1 | 9223372036854775807 | 1 | no | 1
taskset_id_sequence
dify-# \d taskset_id_sequence
Sequence "public.taskset_id_sequence"
Type | Start | Minimum | Maximum | Increment | Cycles? | Cache
--------+-------+---------+---------------------+-----------+---------+-------
bigint | 1 | 1 | 9223372036854775807 | 1 | no | 1
tenant_account_joins
dify-# \d tenant_account_joins
Table "public.tenant_account_joins"
Column | Type | Collation | Nullable | Default
------------+-----------------------------+-----------+----------+-----------------------------
id | uuid | | not null | uuid_generate_v4()
tenant_id | uuid | | not null |
account_id | uuid | | not null |
role | character varying(16) | | not null | 'normal'::character varying
invited_by | uuid | | |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
updated_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
current | boolean | | not null | false
Indexes:
"tenant_account_join_pkey" PRIMARY KEY, btree (id)
"tenant_account_join_account_id_idx" btree (account_id)
"tenant_account_join_tenant_id_idx" btree (tenant_id)
"unique_tenant_account_join" UNIQUE CONSTRAINT, btree (tenant_id, account_id)
tenant_default_models
dify-# \d tenant_default_models
Table "public.tenant_default_models"
Column | Type | Collation | Nullable | Default
---------------+-----------------------------+-----------+----------+----------------------
id | uuid | | not null | uuid_generate_v4()
tenant_id | uuid | | not null |
provider_name | character varying(255) | | not null |
model_name | character varying(255) | | not null |
model_type | character varying(40) | | not null |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
updated_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
Indexes:
"tenant_default_model_pkey" PRIMARY KEY, btree (id)
"tenant_default_model_tenant_id_provider_type_idx" btree (tenant_id, provider_name, model_type)
tenant_preferred_model_providers
dify-# \d tenant_preferred_model_providers
Table "public.tenant_preferred_model_providers"
Column | Type | Collation | Nullable | Default
-------------------------+-----------------------------+-----------+----------+----------------------
id | uuid | | not null | uuid_generate_v4()
tenant_id | uuid | | not null |
provider_name | character varying(255) | | not null |
preferred_provider_type | character varying(40) | | not null |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
updated_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
Indexes:
"tenant_preferred_model_provider_pkey" PRIMARY KEY, btree (id)
"tenant_preferred_model_provider_tenant_provider_idx" btree (tenant_id, provider_name)
tenants
dify-# \d tenants
Table "public.tenants"
Column | Type | Collation | Nullable | Default
--------------------+-----------------------------+-----------+----------+-----------------------------
id | uuid | | not null | uuid_generate_v4()
name | character varying(255) | | not null |
encrypt_public_key | text | | |
plan | character varying(255) | | not null | 'basic'::character varying
status | character varying(255) | | not null | 'normal'::character varying
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
updated_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
custom_config | text | | |
Indexes:
"tenant_pkey" PRIMARY KEY, btree (id)
tool_api_providers
dify-# \d tool_api_providers
Table "public.tool_api_providers"
Column | Type | Collation | Nullable | Default
-------------------+-----------------------------+-----------+----------+----------------------
id | uuid | | not null | uuid_generate_v4()
name | character varying(40) | | not null |
schema | text | | not null |
schema_type_str | character varying(40) | | not null |
user_id | uuid | | not null |
tenant_id | uuid | | not null |
tools_str | text | | not null |
icon | character varying(255) | | not null |
credentials_str | text | | not null |
description | text | | not null |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
updated_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
privacy_policy | character varying(255) | | |
custom_disclaimer | character varying(255) | | |
Indexes:
"tool_api_provider_pkey" PRIMARY KEY, btree (id)
"unique_api_tool_provider" UNIQUE CONSTRAINT, btree (name, tenant_id)
tool_builtin_providers
dify-# \d tool_builtin_providers
Table "public.tool_builtin_providers"
Column | Type | Collation | Nullable | Default
-----------------------+-----------------------------+-----------+----------+----------------------
id | uuid | | not null | uuid_generate_v4()
tenant_id | uuid | | |
user_id | uuid | | not null |
provider | character varying(40) | | not null |
encrypted_credentials | text | | |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
updated_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
Indexes:
"tool_builtin_provider_pkey" PRIMARY KEY, btree (id)
"unique_builtin_tool_provider" UNIQUE CONSTRAINT, btree (tenant_id, provider)
tool_conversation_variables
dify-# \d tool_conversation_variables
Table "public.tool_conversation_variables"
Column | Type | Collation | Nullable | Default
-----------------+-----------------------------+-----------+----------+----------------------
id | uuid | | not null | uuid_generate_v4()
user_id | uuid | | not null |
tenant_id | uuid | | not null |
conversation_id | uuid | | not null |
variables_str | text | | not null |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
updated_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
Indexes:
"tool_conversation_variables_pkey" PRIMARY KEY, btree (id)
"conversation_id_idx" btree (conversation_id)
"user_id_idx" btree (user_id)
tool_files
dify-# \d tool_files
Table "public.tool_files"
Column | Type | Collation | Nullable | Default
-----------------+-------------------------+-----------+----------+--------------------
id | uuid | | not null | uuid_generate_v4()
user_id | uuid | | not null |
tenant_id | uuid | | not null |
conversation_id | uuid | | |
file_key | character varying(255) | | not null |
mimetype | character varying(255) | | not null |
original_url | character varying(2048) | | |
Indexes:
"tool_file_pkey" PRIMARY KEY, btree (id)
"tool_file_conversation_id_idx" btree (conversation_id)
tool_label_bindings
dify-# \d tool_label_bindings
Table "public.tool_label_bindings"
Column | Type | Collation | Nullable | Default
------------+-----------------------+-----------+----------+--------------------
id | uuid | | not null | uuid_generate_v4()
tool_id | character varying(64) | | not null |
tool_type | character varying(40) | | not null |
label_name | character varying(40) | | not null |
Indexes:
"tool_label_bind_pkey" PRIMARY KEY, btree (id)
"unique_tool_label_bind" UNIQUE CONSTRAINT, btree (tool_id, label_name)
tool_model_invokes
dify-# \d tool_model_invokes
Table "public.tool_model_invokes"
Column | Type | Collation | Nullable | Default
---------------------------+-----------------------------+-----------+----------+----------------------
id | uuid | | not null | uuid_generate_v4()
user_id | uuid | | not null |
tenant_id | uuid | | not null |
provider | character varying(40) | | not null |
tool_type | character varying(40) | | not null |
tool_name | character varying(40) | | not null |
model_parameters | text | | not null |
prompt_messages | text | | not null |
model_response | text | | not null |
prompt_tokens | integer | | not null | 0
answer_tokens | integer | | not null | 0
answer_unit_price | numeric(10,4) | | not null |
answer_price_unit | numeric(10,7) | | not null | 0.001
provider_response_latency | double precision | | not null | 0
total_price | numeric(10,7) | | |
currency | character varying(255) | | not null |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
updated_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
Indexes:
"tool_model_invoke_pkey" PRIMARY KEY, btree (id)
tool_providers
dify-# \d tool_providers
Table "public.tool_providers"
Column | Type | Collation | Nullable | Default
-----------------------+-----------------------------+-----------+----------+----------------------
id | uuid | | not null | uuid_generate_v4()
tenant_id | uuid | | not null |
tool_name | character varying(40) | | not null |
encrypted_credentials | text | | |
is_enabled | boolean | | not null | false
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
updated_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
Indexes:
"tool_provider_pkey" PRIMARY KEY, btree (id)
"unique_tool_provider_tool_name" UNIQUE CONSTRAINT, btree (tenant_id, tool_name)
tool_published_apps
dify-# \d tool_published_apps
Table "public.tool_published_apps"
Column | Type | Collation | Nullable | Default
-------------------+-----------------------------+-----------+----------+----------------------
id | uuid | | not null | uuid_generate_v4()
app_id | uuid | | not null |
user_id | uuid | | not null |
description | text | | not null |
llm_description | text | | not null |
query_description | text | | not null |
query_name | character varying(40) | | not null |
tool_name | character varying(40) | | not null |
author | character varying(40) | | not null |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
updated_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
Indexes:
"published_app_tool_pkey" PRIMARY KEY, btree (id)
"unique_published_app_tool" UNIQUE CONSTRAINT, btree (app_id, user_id)
Foreign-key constraints:
"tool_published_apps_app_id_fkey" FOREIGN KEY (app_id) REFERENCES apps(id)
tool_workflow_providers
dify-# \d tool_workflow_providers
Table "public.tool_workflow_providers"
Column | Type | Collation | Nullable | Default
-------------------------+-----------------------------+-----------+----------+-----------------------
id | uuid | | not null | uuid_generate_v4()
name | character varying(40) | | not null |
icon | character varying(255) | | not null |
app_id | uuid | | not null |
user_id | uuid | | not null |
tenant_id | uuid | | not null |
description | text | | not null |
parameter_configuration | text | | not null | '[]'::text
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
updated_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
privacy_policy | character varying(255) | | | ''::character varying
version | character varying(255) | | not null | ''::character varying
label | character varying(255) | | not null | ''::character varying
Indexes:
"tool_workflow_provider_pkey" PRIMARY KEY, btree (id)
"unique_workflow_tool_provider" UNIQUE CONSTRAINT, btree (name, tenant_id)
"unique_workflow_tool_provider_app_id" UNIQUE CONSTRAINT, btree (tenant_id, app_id)
trace_app_config
dify-# \d trace_app_config
Table "public.trace_app_config"
Column | Type | Collation | Nullable | Default
------------------+-----------------------------+-----------+----------+--------------------
id | uuid | | not null | uuid_generate_v4()
app_id | uuid | | not null |
tracing_provider | character varying(255) | | |
tracing_config | json | | |
created_at | timestamp without time zone | | not null | now()
updated_at | timestamp without time zone | | not null | now()
is_active | boolean | | not null | true
Indexes:
"trace_app_config_pkey" PRIMARY KEY, btree (id)
"trace_app_config_app_id_idx" btree (app_id)
upload_files
dify-# \d upload_files
Table "public.upload_files"
Column | Type | Collation | Nullable | Default
-----------------+-----------------------------+-----------+----------+------------------------------
id | uuid | | not null | uuid_generate_v4()
tenant_id | uuid | | not null |
storage_type | character varying(255) | | not null |
key | character varying(255) | | not null |
name | character varying(255) | | not null |
size | integer | | not null |
extension | character varying(255) | | not null |
mime_type | character varying(255) | | |
created_by | uuid | | not null |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
used | boolean | | not null | false
used_by | uuid | | |
used_at | timestamp without time zone | | |
hash | character varying(255) | | |
created_by_role | character varying(255) | | not null | 'account'::character varying
Indexes:
"upload_file_pkey" PRIMARY KEY, btree (id)
"upload_file_tenant_idx" btree (tenant_id)
workflow_app_logs
dify-# \d workflow_app_logs
Table "public.workflow_app_logs"
Column | Type | Collation | Nullable | Default
-----------------+-----------------------------+-----------+----------+----------------------
id | uuid | | not null | uuid_generate_v4()
tenant_id | uuid | | not null |
app_id | uuid | | not null |
workflow_id | uuid | | not null |
workflow_run_id | uuid | | not null |
created_from | character varying(255) | | not null |
created_by_role | character varying(255) | | not null |
created_by | uuid | | not null |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
Indexes:
"workflow_app_log_pkey" PRIMARY KEY, btree (id)
"workflow_app_log_app_idx" btree (tenant_id, app_id)
workflow_conversation_variables
dify-# \d workflow_conversation_variables
Table "public.workflow_conversation_variables"
Column | Type | Collation | Nullable | Default
-----------------+-----------------------------+-----------+----------+----------------------
id | uuid | | not null |
conversation_id | uuid | | not null |
app_id | uuid | | not null |
data | text | | not null |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
updated_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP
Indexes:
"workflow__conversation_variables_pkey" PRIMARY KEY, btree (id, conversation_id)
"workflow__conversation_variables_app_id_idx" btree (app_id)
"workflow__conversation_variables_created_at_idx" btree (created_at)
workflow_node_executions
dify-# \d workflow_node_executions
Table "public.workflow_node_executions"
Column | Type | Collation | Nullable | Default
---------------------+-----------------------------+-----------+----------+----------------------
id | uuid | | not null | uuid_generate_v4()
tenant_id | uuid | | not null |
app_id | uuid | | not null |
workflow_id | uuid | | not null |
triggered_from | character varying(255) | | not null |
workflow_run_id | uuid | | |
index | integer | | not null |
predecessor_node_id | character varying(255) | | |
node_id | character varying(255) | | not null |
node_type | character varying(255) | | not null |
title | character varying(255) | | not null |
inputs | text | | |
process_data | text | | |
outputs | text | | |
status | character varying(255) | | not null |
error | text | | |
elapsed_time | double precision | | not null | 0
execution_metadata | text | | |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
created_by_role | character varying(255) | | not null |
created_by | uuid | | not null |
finished_at | timestamp without time zone | | |
Indexes:
"workflow_node_execution_pkey" PRIMARY KEY, btree (id)
"workflow_node_execution_node_run_idx" btree (tenant_id, app_id, workflow_id, triggered_from, node_id)
"workflow_node_execution_workflow_run_idx" btree (tenant_id, app_id, workflow_id, triggered_from, workflow_run_id)
workflow_runs
dify-# \d workflow_runs
Table "public.workflow_runs"
Column | Type | Collation | Nullable | Default
-----------------+-----------------------------+-----------+----------+----------------------
id | uuid | | not null | uuid_generate_v4()
tenant_id | uuid | | not null |
app_id | uuid | | not null |
sequence_number | integer | | not null |
workflow_id | uuid | | not null |
type | character varying(255) | | not null |
triggered_from | character varying(255) | | not null |
version | character varying(255) | | not null |
graph | text | | |
inputs | text | | |
status | character varying(255) | | not null |
outputs | text | | |
error | text | | |
elapsed_time | double precision | | not null | 0
total_tokens | integer | | not null | 0
total_steps | integer | | | 0
created_by_role | character varying(255) | | not null |
created_by | uuid | | not null |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
finished_at | timestamp without time zone | | |
Indexes:
"workflow_run_pkey" PRIMARY KEY, btree (id)
"workflow_run_tenant_app_sequence_idx" btree (tenant_id, app_id, sequence_number)
"workflow_run_triggerd_from_idx" btree (tenant_id, app_id, triggered_from)
workflows
dify-# \d workflows
Table "public.workflows"
Column | Type | Collation | Nullable | Default
------------------------+-----------------------------+-----------+----------+----------------------
id | uuid | | not null | uuid_generate_v4()
tenant_id | uuid | | not null |
app_id | uuid | | not null |
type | character varying(255) | | not null |
version | character varying(255) | | not null |
graph | text | | |
features | text | | |
created_by | uuid | | not null |
created_at | timestamp without time zone | | not null | CURRENT_TIMESTAMP(0)
updated_by | uuid | | |
updated_at | timestamp without time zone | | |
environment_variables | text | | not null | '{}'::text
conversation_variables | text | | not null | '{}'::text
Indexes:
"workflow_pkey" PRIMARY KEY, btree (id)
"workflow_version_idx" btree (tenant_id, app_id, version)
このスクラップは2025/01/26にクローズされました
