LangGraph の新機能Command について

2025/02/14に公開

LangGraph(Python 版)のver.0.2.58 において、Command 機能がリリースされた。
旧機能と比較しながらその特徴をメモ。

Command とは

従来のLangGraph では、

  • ノードはState の差分を返す
  • add_conditional_edges に分岐候補のノード群と、分岐する次ノードを決定する関数(router)を設定する

で、ノードの遷移先を動的に制御していた。

サンプルコード

単純な一本道のグラフを生成する。LLM も使わないので、これだけならLangGraph を使う意味は無いのだが、まず雰囲気だけ。

from langgraph.graph import StateGraph, MessagesState, START, END

class State(MessagesState):
    text: str

def node1(state: State):
    return {
            "messages": ["こんにちは"]
        }

def node2(state: State):
    return {
            "text": "hoge"
        }

builder = StateGraph(State)
builder.add_node("node1", node1)
builder.add_node("node2", node2)
builder.add_conditional_edges(
    "node1",
    lambda x: "next",
    {"next": "node2"}
)
builder.add_edge(START, "node1")
builder.add_edge("node2", END)
graph = builder.compile()

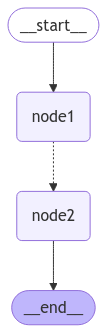

グラフを図示するとこうなる。

Command 機能を使うと、

  • ノードは Command クラスのオブジェクトを返す
  • オブジェクトのupdate パラメータにState の差分を、goto パラメータに分岐する次ノード(変数でOK。現ノードの処理終了までに決定すれば良い)を入力

で、ノードの遷移先を動的に制御できる。

サンプルコード

同様の、単純な一本道のグラフを生成する。

from langgraph.graph import StateGraph, MessagesState, START, END
from langgraph.types import Command

class State(MessagesState):
    text: str

def node1(state: State) -> Command[Literal["node2"]]:
    goto="node2"
    return Command(
        update={
            "messages": ["こんにちは"]
        },
        goto=goto,
    )

def node2(state: State):
    return Command(
        update={
            "text": "hoge"
        }
    )

builder = StateGraph(State)
builder.add_node("node1", node1)
builder.add_node("node2", node2)

builder.add_edge(START, "node1")
builder.add_edge("node2", END)
graph = builder.compile()

Command の利点

従来のadd_conditional_edges と比較して、Command を使うメリットを述べる。

ノードが返す変数の型アノテーションをCommand クラスで指定できる

個人的にはこれが一番大きい。以前はノードが返す変数はState の差分であったため、型アノテーションが書きにくかった。

なおgraph.get_graph() する際にこの型アノテーションを参照しているようで、(実際の分岐先である、ノードが返すパラメータgoto に関わらず)図示されるグラフの分岐先となる。

参考

ノードの関数はサンプルコードと同様(=動作する際の制御フローは同じ)だが、返り値の型アノテーションを滅茶苦茶に書いた。

def node1(state: State) -> Command[Literal["node2", END]]:
    return Command(
        update={
            "messages": ["こんにちは"]
        },
        goto="node2",  # 次のノードは必ずnode2
    )

def node2(state: State) -> Command[Literal["node1"]]:
    return Command(
        update={
            "text": "hoge"
        }
    )

ところがdisplay(Image(graph.get_graph().draw_mermaid_png())) で図示すると、型アノテーション通りのものが表示されてしまう。これはちょっと微妙な点かも(State の型アノテーションは動作に関係するので...)。

子グラフの遷移先に親グラフのノードを指定できる

よく言われてるやつ。マルチエージェントを実装する際に、親グラフから子グラフ(サブグラフ)を呼び出すことが想定されるが、その自由度が上がった。

まず子グラフgraph_childを定義し、そのノードnode2_child の遷移先を親グラフのノードnode2_parentとする。

from typing import Literal, Annotated

class State(MessagesState):
    text: Annotated[str, lambda old, new: new]

def node1_child(state: State) -> Command[Literal["node2_child"]]:
    return Command(
        update={
            "messages": ["こんにちは"]
        },
        goto="node2_child",
    )

def node2_child(state: State):
    return Command(
        update={
            "text": "hoge"
        },
        goto="node2_parent",
        graph=Command.PARENT,
    )

builder_child = StateGraph(State)
builder_child.add_node("node1_child", node1_child)
builder_child.add_node("node2_child", node2_child)

builder_child.add_edge(START, "node1_child")
graph_child = builder_child.compile()

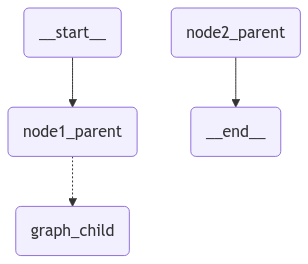

この子グラフを、node1_parent から呼び出すような親グラフgraph_parentを定義する。

def node1_parent(state: State) -> Command[Literal["graph_child"]]:
    return Command(
        update={
            "messages": ["こんばんは"]
        },
        goto="graph_child",
    )

def node2_parent(state: State):
    return Command(
        update={
            "text": "fuga"
        }
    )

builder_parent = StateGraph(State)
builder_parent.add_node("node1_parent", node1_parent)
builder_parent.add_node("node2_parent", node2_parent)
builder_parent.add_node("graph_child", graph_child)

builder_parent.add_edge(START, "node1_parent")
builder_parent.add_edge("node2_parent", END)
graph_parent = builder_parent.compile()

このとき、node1_parent → (親グラフ側の指定) → graph_childnode1_childnode2_child)→ (子グラフ側の指定) → node2_parent のような制御になる。

for s in graph_parent.stream(
    {"text": "piyo"},
    {"recursion_limit": 100},
):
    print(s)
    print("---")
{'node1_parent': {'messages': ['こんばんは']}}
---
{'graph_child': [{'messages': [HumanMessage(content='こんばんは', additional_kwargs={}, response_metadata={}, id='73dde28b-7cda-4f6d-877a-d0d9868882c9'), HumanMessage(content='こんにちは', additional_kwargs={}, response_metadata={}, id='173ad002-5644-4de0-bcb3-1a7554d7c875')]}, {'text': 'piyo'}, {'text': 'hoge'}]}
---
{'node2_parent': {'text': 'fuga'}}
---

Command を使わない実装では、子グラフの処理終了 →(親グラフ側の指定)→ 親グラフの次ノード しか出来なかったので、単純に便利になった。

追記

子グラフに親グラフと別のState を入力していても、graph= の機能を使って親グラフに戻すと、子グラフのState が親グラフに反映されるので注意。

親グラフ

def node_graph_child(state: State):
    graph_child.invoke({"messages": "おはようございます", "text": "hogefuga"})

builder_parent = StateGraph(State)
builder_parent.add_node("node1_parent", node1_parent)
builder_parent.add_node("node2_parent", node2_parent)
builder_parent.add_node("node_graph_child", node_graph_child)

builder_parent.add_edge(START, "node1_parent")
builder_parent.add_edge("node2_parent", END)
graph_parent = builder_parent.compile()

実行結果

{'node1_parent': {'messages': ['こんばんは']}}
---
{'node_graph_child': [{'messages': [HumanMessage(content='おはようございます', additional_kwargs={}, response_metadata={}, id='48b8d0be-bed7-42ff-ac5d-7dc088f141e0'), HumanMessage(content='こんにちは', additional_kwargs={}, response_metadata={}, id='af63375c-6b66-4a47-9252-942701d26a71')]}, {'text': 'hoge'}, {'text': 'hogehoge'}]}
---
{'node2_parent': {'text': 'fuga'}}
---

当然だが、子グラフの葉ノード(node3_child)でgraphgoto を指定せず、親グラフ側で戻した場合(builder_parent.add_edge("node_graph_child", "node2_parent"))、子グラフでのState 情報は親グラフに反映されない。

他にも見つかったら追記予定。

余談

add_edgegoto が両方設定しているとき、add_edge による次ノード指定と、パラメータgoto による遷移先指定では、前者が優先される。ただしその場合でも、update によるState 更新は実施される

動作確認コード

add_edge が優先されるなら無限ループし、goto が優先されるなら正常終了するグラフを作成。

class State(MessagesState):
    text: str

def node1(state: State) -> Command[Literal["node2"]]:
    return Command(
        update={
            "messages": ["こんにちは"]
        },
        goto="node2",
    )

def node2(state: State):
    return Command(
        update={
            "text": "hoge"
        },
        goto=END,  #goto ではEND を指定
    )

builder = StateGraph(State)
builder.add_node("node1", node1)
builder.add_node("node2", node2)

builder.add_edge(START, "node1")
builder.add_edge("node2", "node1")  #add_edge ではnode1 を指定
graph = builder.compile()

for s in graph.stream(
    {"messages": [("user", "Hello, wolrd!")]},
    {"recursion_limit": 100},
):
    print(s)
    print("---")

実行したところ無限ループしたので、add_edge が優先される仕様であることが分かった。またnode2update によるState 更新も行われていることを確認。

{'node1': {'messages': ['こんにちは']}}
---
{'node2': {'text': 'hoge'}}
---
{'node1': {'messages': ['こんにちは']}}
---
{'node2': {'text': 'hoge'}}
---
...
