Siv3DでVSCodeを使いながら、ユニットテストもしたい(欲張りセット)

2025/06/15に公開
VS Code
siv3d
tech
 注意事項この記事は、そこそこにVS2022をちょっと使っている人ではないと理解できません。
vcxprojは手で書くものやる派なので、VS2022を使ったことがない初心者の方は、読まない方がいいですし、やらない方がいいです。

プログラミング初心者だと、プロジェクト壊す可能性もあるので、こんなことを考えてない方がいいです。

 何をしたいのか？？？VS20XX系統って動作重い。もはや起動が面倒。起動している間に寝る。
AIちゃんとイチャイチャ♡あんなこと♡こんなこと♡したい♡♡

 この記事で出来ないことVS20XX系統と違いVSCodeでは、ファイルを追加してもvcxprojにファイルを追加しないので、自動でやってほしいにゃん！という方には向きません。

 参考資料
 VSCode(Windows)向けOpenSiv3D開発環境https://github.com/sthairno/siv3d_vscode_config
神＆神。この記事のほとんどの要素はこちらから来ています。

 Catch2の数多の資料なんかどれもピンとこなかったです。

とりあえず、全部ごった煮しました。

 ChatGPTさん正直♡あんまり役に立たなかったけどぉ♡VSCode把握のヒントになったのでぇ～♡すきすきすき♡♡♡♡♡

 やってみよう！
 フォルダ構造ガッチャガッチャ開発用にフォルダ構造を書き換えています。

後、超久しぶりにC++触っているので、王道から外れたファイル名だったら申し訳ございません。

それと、Siv3D初期デフォルトのソースコードです。
test
Example.cpp

include\ui
Example.cpp
Base.cpp

src\ui
Example.cpp

Main.cpp
TestProject.vcxproj

 test/Example.cpp適当に必ずユニットテストエラーが出てくる実装にしています。
test/Example.cpp
#include <ThirdParty/Catch2/catch.hpp>
#include "../include/ui/Example.hpp"

TEST_CASE("TestName", "[tag1][tag2]")
{
	SECTION("Empty")
	{
		Example test = Example();
		REQUIRE(test.TestTest() == 500);
	}
}

 include\ui\Example.hppUIとなるhppファイル
include\ui\Example.hpp
# include <Siv3D.hpp> // Siv3D v0.6.16
# include "Base.hpp"

class Example : public Base {

	// 画像ファイルからテクスチャを作成する | Create a texture from an image file
	const Texture texture{ U"example/windmill.png" };

	// 絵文字からテクスチャを作成する | Create a texture from an emoji
	const Texture emoji{ U"🦖"_emoji };

	// 太文字のフォントを作成する | Create a bold font with MSDF method
	const Font font{ FontMethod::MSDF, 48, Typeface::Bold };

	// テキストに含まれる絵文字のためのフォントを作成し、font に追加する | Create a font for emojis in text and add it to font as a fallback
	const Font emojiFont{ 48, Typeface::ColorEmoji };

	// ボタンを押した回数 | Number of button presses
	int32 count = 0;

	// チェックボックスの状態 | Checkbox state
	bool checked = false;

	// プレイヤーの移動スピード | Player's movement speed
	double speed = 200.0;

	// プレイヤーの X 座標 | Player's X position
	double playerPosX = 400;

	// プレイヤーが右を向いているか | Whether player is facing right
	bool isPlayerFacingRight = true;

public:
	void Init() override;
	void Update() override;

	/// @brief ユニットテスト用関数
	int TestTest() {
		return 100;
	}
};

 include\ui\Base.hppベースとなるhppファイル
include\ui\Base.hpp
class Base {
public:
	/// @brief グラフィック描画前事前処理
	virtual void Init() {};
	/// @brief グラフィック中処理
	virtual void Update() {};
};


 Main.cppここで、テストの最初のプログラムを走ります。
Main.cpp
# include <Siv3D.hpp>
# include "include/ui/Example.hpp"

#define CATCH_CONFIG_RUNNER
#include <ThirdParty/Catch2/catch.hpp>

void UnitTest() {
#if UNIT_TEST
	// コンソールを出す必要がある
	Console.open();

	Catch::Session session;
	// テスト後にキー入力を待つための設定
	session.useConfigData({
		.waitForKeypress = Catch::WaitForKeypress::BeforeExit
	});

	// テスト実行
	session.run();
#endif
}

void Main()
{
	UnitTest();
	auto test = Example();
	test.Init();

	while (System::Update())
	{
		test.Update();
	}
}

 TestProject.vcxproj殆どが、初回の機械生成ですが、ところどころ追加されているので、全部載せておきます。

差分表示しているので、分かりやすいでしょ…多分。
TestProject.vcxproj
<?xml version="1.0" encoding="utf-8"?>
<Project DefaultTargets="Build" xmlns="http://schemas.microsoft.com/developer/msbuild/2003">
  <ItemGroup Label="ProjectConfigurations">
+    <ProjectConfiguration Include="Test|x64">
+      <Configuration>Test</Configuration>
+      <Platform>x64</Platform>
+    </ProjectConfiguration>
    <ProjectConfiguration Include="Debug|x64">
      <Configuration>Debug</Configuration>
      <Platform>x64</Platform>
    </ProjectConfiguration>
    <ProjectConfiguration Include="Release|x64">
      <Configuration>Release</Configuration>
      <Platform>x64</Platform>
    </ProjectConfiguration>
  </ItemGroup>
  <PropertyGroup Label="Globals">
    <VCProjectVersion>15.0</VCProjectVersion>
    <ProjectGuid>{33fe8c4d-cd86-479b-860b-10b516a52205}</ProjectGuid>
    <Keyword>Win32Proj</Keyword>
    <RootNamespace>TestProject</RootNamespace>
    <WindowsTargetPlatformVersion>10.0</WindowsTargetPlatformVersion>
  </PropertyGroup>
  <Import Project="$(VCTargetsPath)\Microsoft.Cpp.Default.props" />
+  <PropertyGroup Condition="'$(Configuration)|$(Platform)'=='Test|x64'" Label="Configuration">
+    <ConfigurationType>Application</ConfigurationType>
+    <UseDebugLibraries>true</UseDebugLibraries>
+    <PlatformToolset>v143</PlatformToolset>
+    <CharacterSet>Unicode</CharacterSet>
+  </PropertyGroup>
  <PropertyGroup Condition="'$(Configuration)|$(Platform)'=='Debug|x64'" Label="Configuration">
    <ConfigurationType>Application</ConfigurationType>
    <UseDebugLibraries>true</UseDebugLibraries>
    <PlatformToolset>v143</PlatformToolset>
    <CharacterSet>Unicode</CharacterSet>
  </PropertyGroup>
  <PropertyGroup Condition="'$(Configuration)|$(Platform)'=='Release|x64'" Label="Configuration">
    <ConfigurationType>Application</ConfigurationType>
    <UseDebugLibraries>false</UseDebugLibraries>
    <PlatformToolset>v143</PlatformToolset>
    <WholeProgramOptimization>true</WholeProgramOptimization>
    <CharacterSet>Unicode</CharacterSet>
  </PropertyGroup>
  <Import Project="$(VCTargetsPath)\Microsoft.Cpp.props" />
  <ImportGroup Label="ExtensionSettings">
  </ImportGroup>
  <ImportGroup Label="Shared">
  </ImportGroup>
+  <ImportGroup Label="PropertySheets" Condition="'$(Configuration)|$(Platform)'=='Debug|x64' Or '$(Configuration)|$(Platform)'=='Test|x64'">
+    <Import Project="$(UserRootDir)\Microsoft.Cpp.$(Platform).user.props" Condition="exists('$(UserRootDir)\Microsoft.Cpp.$(Platform).user.props')" Label="LocalAppDataPlatform" />
+  </ImportGroup>
  <ImportGroup Label="PropertySheets" Condition="'$(Configuration)|$(Platform)'=='Release|x64'">
    <Import Project="$(UserRootDir)\Microsoft.Cpp.$(Platform).user.props" Condition="exists('$(UserRootDir)\Microsoft.Cpp.$(Platform).user.props')" Label="LocalAppDataPlatform" />
  </ImportGroup>
  <PropertyGroup Label="UserMacros" />
+  <PropertyGroup Condition="'$(Configuration)|$(Platform)'=='Test|x64'">
+    <LinkIncremental>true</LinkIncremental>
+    <OutDir>$(SolutionDir)Intermediate\$(ProjectName)\Debug\</OutDir>
+    <IntDir>$(SolutionDir)Intermediate\$(ProjectName)\Debug\Intermediate\</IntDir>
+    <TargetName>$(ProjectName)(test)</TargetName>
+    <LocalDebuggerWorkingDirectory>$(ProjectDir)App</LocalDebuggerWorkingDirectory>
+    <IncludePath>$(SIV3D_0_6_16)\include;$(SIV3D_0_6_16)\include\ThirdParty;$(IncludePath)</IncludePath>
+    <LibraryPath>$(SIV3D_0_6_16)\lib\Windows;$(LibraryPath)</LibraryPath>
+  </PropertyGroup>
  <PropertyGroup Condition="'$(Configuration)|$(Platform)'=='Debug|x64'">
    <LinkIncremental>true</LinkIncremental>
    <OutDir>$(SolutionDir)Intermediate\$(ProjectName)\Debug\</OutDir>
    <IntDir>$(SolutionDir)Intermediate\$(ProjectName)\Debug\Intermediate\</IntDir>
    <TargetName>$(ProjectName)(debug)</TargetName>
    <LocalDebuggerWorkingDirectory>$(ProjectDir)App</LocalDebuggerWorkingDirectory>
    <IncludePath>$(SIV3D_0_6_16)\include;$(SIV3D_0_6_16)\include\ThirdParty;$(IncludePath)</IncludePath>
    <LibraryPath>$(SIV3D_0_6_16)\lib\Windows;$(LibraryPath)</LibraryPath>
  </PropertyGroup>
  <PropertyGroup Condition="'$(Configuration)|$(Platform)'=='Release|x64'">
    <LinkIncremental>false</LinkIncremental>
    <OutDir>$(SolutionDir)Intermediate\$(ProjectName)\Release\</OutDir>
    <IntDir>$(SolutionDir)Intermediate\$(ProjectName)\Release\Intermediate\</IntDir>
    <LocalDebuggerWorkingDirectory>$(ProjectDir)App</LocalDebuggerWorkingDirectory>
    <IncludePath>$(SIV3D_0_6_16)\include;$(SIV3D_0_6_16)\include\ThirdParty;$(IncludePath)</IncludePath>
    <LibraryPath>$(SIV3D_0_6_16)\lib\Windows;$(LibraryPath)</LibraryPath>
  </PropertyGroup>
+  <ItemDefinitionGroup Condition="'$(Configuration)|$(Platform)'=='Test|x64'">
+    <ClCompile>
+      <WarningLevel>Level4</WarningLevel>
+      <Optimization>Disabled</Optimization>
+      <SDLCheck>true</SDLCheck>
+      <PreprocessorDefinitions>UNIT_TEST;_DEBUG;_WINDOWS;_ENABLE_EXTENDED_ALIGNED_STORAGE;_SILENCE_CXX20_CISO646_REMOVED_WARNING;_SILENCE_ALL_CXX23_DEPRECATION_WARNINGS;_SILENCE_ALL_MS_EXT_DEPRECATION_WARNINGS;%(PreprocessorDefinitions)</PreprocessorDefinitions>
+      <ConformanceMode>true</ConformanceMode>
+      <MultiProcessorCompilation>true</MultiProcessorCompilation>
+      <RuntimeLibrary>MultiThreadedDebug</RuntimeLibrary>
+      <LanguageStandard>stdcpplatest</LanguageStandard>
+      <DisableSpecificWarnings>26451;26812;%(DisableSpecificWarnings)</DisableSpecificWarnings>
+      <AdditionalOptions>/Zc:__cplusplus %(AdditionalOptions)</AdditionalOptions>
+      <PrecompiledHeader>Use</PrecompiledHeader>
+      <ForcedIncludeFiles>stdafx.h;%(ForcedIncludeFiles)</ForcedIncludeFiles>
+      <BuildStlModules>false</BuildStlModules>
+    </ClCompile>
+    <Link>
+      <GenerateDebugInformation>true</GenerateDebugInformation>
+      <SubSystem>Windows</SubSystem>
+      <DelayLoadDLLs>advapi32.dll;crypt32.dll;dwmapi.dll;gdi32.dll;imm32.dll;ole32.dll;oleaut32.dll;opengl32.dll;shell32.dll;shlwapi.dll;user32.dll;winmm.dll;ws2_32.dll;%(DelayLoadDLLs)</DelayLoadDLLs>
+    </Link>
+    <PostBuildEvent>
+      <Command>xcopy /I /D /Y "$(OutDir)$(TargetFileName)" "$(ProjectDir)App"</Command>
+    </PostBuildEvent>
+  </ItemDefinitionGroup>
  <ItemDefinitionGroup Condition="'$(Configuration)|$(Platform)'=='Debug|x64'">
    <ClCompile>
      <WarningLevel>Level4</WarningLevel>
      <Optimization>Disabled</Optimization>
      <SDLCheck>true</SDLCheck>
      <PreprocessorDefinitions>_DEBUG;_WINDOWS;_ENABLE_EXTENDED_ALIGNED_STORAGE;_SILENCE_CXX20_CISO646_REMOVED_WARNING;_SILENCE_ALL_CXX23_DEPRECATION_WARNINGS;_SILENCE_ALL_MS_EXT_DEPRECATION_WARNINGS;%(PreprocessorDefinitions)</PreprocessorDefinitions>
      <ConformanceMode>true</ConformanceMode>
      <MultiProcessorCompilation>true</MultiProcessorCompilation>
      <RuntimeLibrary>MultiThreadedDebug</RuntimeLibrary>
      <LanguageStandard>stdcpplatest</LanguageStandard>
      <DisableSpecificWarnings>26451;26812;%(DisableSpecificWarnings)</DisableSpecificWarnings>
      <AdditionalOptions>/Zc:__cplusplus %(AdditionalOptions)</AdditionalOptions>
      <PrecompiledHeader>Use</PrecompiledHeader>
      <ForcedIncludeFiles>stdafx.h;%(ForcedIncludeFiles)</ForcedIncludeFiles>
      <BuildStlModules>false</BuildStlModules>
    </ClCompile>
    <Link>
      <GenerateDebugInformation>true</GenerateDebugInformation>
      <SubSystem>Windows</SubSystem>
      <DelayLoadDLLs>advapi32.dll;crypt32.dll;dwmapi.dll;gdi32.dll;imm32.dll;ole32.dll;oleaut32.dll;opengl32.dll;shell32.dll;shlwapi.dll;user32.dll;winmm.dll;ws2_32.dll;%(DelayLoadDLLs)</DelayLoadDLLs>
    </Link>
    <PostBuildEvent>
      <Command>xcopy /I /D /Y "$(OutDir)$(TargetFileName)" "$(ProjectDir)App"</Command>
    </PostBuildEvent>
  </ItemDefinitionGroup>
  <ItemDefinitionGroup Condition="'$(Configuration)|$(Platform)'=='Release|x64'">
    <ClCompile>
      <WarningLevel>Level4</WarningLevel>
      <Optimization>MaxSpeed</Optimization>
      <FunctionLevelLinking>true</FunctionLevelLinking>
      <IntrinsicFunctions>true</IntrinsicFunctions>
      <SDLCheck>true</SDLCheck>
      <PreprocessorDefinitions>NDEBUG;_WINDOWS;_ENABLE_EXTENDED_ALIGNED_STORAGE;_SILENCE_CXX20_CISO646_REMOVED_WARNING;_SILENCE_ALL_CXX23_DEPRECATION_WARNINGS;_SILENCE_ALL_MS_EXT_DEPRECATION_WARNINGS;%(PreprocessorDefinitions)</PreprocessorDefinitions>
      <ConformanceMode>true</ConformanceMode>
      <MultiProcessorCompilation>true</MultiProcessorCompilation>
      <RuntimeLibrary>MultiThreaded</RuntimeLibrary>
      <LanguageStandard>stdcpplatest</LanguageStandard>
      <DisableSpecificWarnings>26451;26812;%(DisableSpecificWarnings)</DisableSpecificWarnings>
      <AdditionalOptions>/Zc:__cplusplus %(AdditionalOptions)</AdditionalOptions>
      <PrecompiledHeader>Use</PrecompiledHeader>
      <ForcedIncludeFiles>stdafx.h;%(ForcedIncludeFiles)</ForcedIncludeFiles>
      <BuildStlModules>false</BuildStlModules>
    </ClCompile>
    <Link>
      <EnableCOMDATFolding>true</EnableCOMDATFolding>
      <OptimizeReferences>true</OptimizeReferences>
      <GenerateDebugInformation>true</GenerateDebugInformation>
      <SubSystem>Windows</SubSystem>
      <DelayLoadDLLs>advapi32.dll;crypt32.dll;dwmapi.dll;gdi32.dll;imm32.dll;ole32.dll;oleaut32.dll;opengl32.dll;shell32.dll;shlwapi.dll;user32.dll;winmm.dll;ws2_32.dll;%(DelayLoadDLLs)</DelayLoadDLLs>
    </Link>
    <PostBuildEvent>
      <Command>xcopy /I /D /Y "$(OutDir)$(TargetFileName)" "$(ProjectDir)App"</Command>
    </PostBuildEvent>
  </ItemDefinitionGroup>
  <ItemGroup>
    <ClCompile Include="Main.cpp" />
    <ClCompile Include="stdafx.cpp">
+      <PrecompiledHeader Condition="'$(Configuration)|$(Platform)'=='Test|x64'">Create</PrecompiledHeader>
      <PrecompiledHeader Condition="'$(Configuration)|$(Platform)'=='Debug|x64'">Create</PrecompiledHeader>
      <PrecompiledHeader Condition="'$(Configuration)|$(Platform)'=='Release|x64'">Create</PrecompiledHeader>
    </ClCompile>
  </ItemGroup>
+  <ItemGroup>
+    <ClCompile Include="test\Example.cpp">
+      <ObjectFileName>$(IntDir)test\</ObjectFileName>
+    </ClCompile>
+  </ItemGroup>
+  <ItemGroup>
+    <ClCompile Include="src\ui\Main.cpp">
+      <ObjectFileName>$(IntDir)ui\</ObjectFileName>
+    </ClCompile>
+    <ClCompile Include="src\ui\Example.cpp">
+      <ObjectFileName>$(IntDir)ui\</ObjectFileName>
+    </ClCompile>
+  </ItemGroup>
+  <ItemGroup>
+    <ClInclude  Include="include\ui\Base.hpp">
+      <ObjectFileName>$(IntDir)ui\</ObjectFileName>
+    </ClInclude>
+    <ClInclude  Include="include\ui\Main.hpp">
+      <ObjectFileName>$(IntDir)ui\</ObjectFileName>
+    </ClInclude>
+    <ClInclude  Include="include\ui\Example.hpp">
+      <ObjectFileName>$(IntDir)ui\</ObjectFileName>
+    </ClInclude>
+  </ItemGroup>
  <ItemGroup>
    <Image Include="App\engine\texture\box-shadow\128.png" />
    <Image Include="App\engine\texture\box-shadow\16.png" />
    <Image Include="App\engine\texture\box-shadow\256.png" />
    <Image Include="App\engine\texture\box-shadow\32.png" />
    <Image Include="App\engine\texture\box-shadow\64.png" />
    <Image Include="App\engine\texture\box-shadow\8.png" />
    <Image Include="App\example\bay.jpg" />
    <Image Include="App\example\gif\test.gif" />
    <Image Include="App\example\obj\bark.jpg" />
    <Image Include="App\example\obj\leaves.png" />
    <Image Include="App\example\obj\pine_leaves_red.png" />
    <Image Include="App\example\obj\siv3d-kun-eye.png" />
    <Image Include="App\example\obj\siv3d-kun.png" />
    <Image Include="App\example\particle.png" />
    <Image Include="App\example\siv3d-kun.png" />
    <Image Include="App\example\spritesheet\siv3d-kun-16.png" />
    <Image Include="App\example\texture\earth.jpg" />
    <Image Include="App\example\texture\grass.jpg" />
    <Image Include="App\example\texture\ground.jpg" />
    <Image Include="App\example\texture\rock.jpg" />
    <Image Include="App\example\texture\uv.png" />
    <Image Include="App\example\texture\wood.jpg" />
    <Image Include="App\example\windmill.png" />
    <Image Include="App\icon.ico" />
  </ItemGroup>
  <ItemGroup>
    <ResourceCompile Include="App\Resource.rc" />
  </ItemGroup>
  <ItemGroup>
    <Text Include="App\dll\soundtouch\COPYING.TXT" />
    <Text Include="App\engine\font\fontawesome\LICENSE.txt" />
    <Text Include="App\engine\soundfont\GMGSx.sf2.txt" />
    <Text Include="App\example\font\DotGothic16\OFL.txt" />
    <Text Include="App\example\font\RocknRoll\OFL.txt" />
    <Text Include="App\example\LICENSE.txt" />
    <Text Include="App\example\midi\test.txt" />
    <Text Include="App\example\obj\credit.txt" />
    <Text Include="App\example\spritesheet\siv3d-kun-16.txt" />
    <Text Include="App\example\svg\README.txt" />
    <Text Include="App\example\texture\credit.txt" />
    <Text Include="App\example\txt\en.txt" />
    <Text Include="App\example\txt\jp.txt" />
    <Text Include="App\example\txt\kr.txt" />
    <Text Include="App\example\txt\sc.txt" />
    <Text Include="App\example\video\river.txt" />
  </ItemGroup>
  <ItemGroup>
    <None Include=".editorconfig" />
    <None Include="App\dll\soundtouch\SoundTouch_x64.dll" />
    <None Include="App\engine\font\fontawesome\fontawesome-brands.otf.zstdcmp" />
    <None Include="App\engine\font\fontawesome\fontawesome-solid.otf.zstdcmp" />
    <None Include="App\engine\font\materialdesignicons\license.md" />
    <None Include="App\engine\font\materialdesignicons\materialdesignicons-webfont.ttf.zstdcmp" />
    <None Include="App\engine\font\min\LICENSE" />
    <None Include="App\engine\font\min\siv3d-min.woff" />
    <None Include="App\engine\font\mplus\LICENSE_E" />
    <None Include="App\engine\font\mplus\mplus-1p-black.ttf.zstdcmp" />
    <None Include="App\engine\font\mplus\mplus-1p-bold.ttf.zstdcmp" />
    <None Include="App\engine\font\mplus\mplus-1p-heavy.ttf.zstdcmp" />
    <None Include="App\engine\font\mplus\mplus-1p-light.ttf.zstdcmp" />
    <None Include="App\engine\font\mplus\mplus-1p-medium.ttf.zstdcmp" />
    <None Include="App\engine\font\mplus\mplus-1p-regular.ttf.zstdcmp" />
    <None Include="App\engine\font\mplus\mplus-1p-thin.ttf.zstdcmp" />
    <None Include="App\engine\font\noto-cjk\LICENSE" />
    <None Include="App\engine\font\noto-cjk\NotoSansCJK-Regular.ttc.zstdcmp" />
    <None Include="App\engine\font\noto-cjk\NotoSansJP-Regular.otf.zstdcmp" />
    <None Include="App\engine\font\noto-emoji\LICENSE" />
    <None Include="App\engine\font\noto-emoji\NotoColorEmoji.ttf.zstdcmp" />
    <None Include="App\engine\font\noto-emoji\NotoEmoji-Regular.ttf.zstdcmp" />
    <None Include="App\engine\shader\d3d11\apply_srgb_curve.ps" />
    <None Include="App\engine\shader\d3d11\bitmapfont.ps" />
    <None Include="App\engine\shader\d3d11\copy.ps" />
    <None Include="App\engine\shader\d3d11\forward3d.ps" />
    <None Include="App\engine\shader\d3d11\forward3d.vs" />
    <None Include="App\engine\shader\d3d11\fullscreen_triangle.ps" />
    <None Include="App\engine\shader\d3d11\fullscreen_triangle.vs" />
    <None Include="App\engine\shader\d3d11\gaussian_blur_13.ps" />
    <None Include="App\engine\shader\d3d11\gaussian_blur_5.ps" />
    <None Include="App\engine\shader\d3d11\gaussian_blur_9.ps" />
    <None Include="App\engine\shader\d3d11\line3d.ps" />
    <None Include="App\engine\shader\d3d11\line3d.vs" />
    <None Include="App\engine\shader\d3d11\msdffont.ps" />
    <None Include="App\engine\shader\d3d11\msdffont_outline.ps" />
    <None Include="App\engine\shader\d3d11\msdffont_outlineshadow.ps" />
    <None Include="App\engine\shader\d3d11\msdffont_shadow.ps" />
    <None Include="App\engine\shader\d3d11\msdfprint.ps" />
    <None Include="App\engine\shader\d3d11\quad_warp.ps" />
    <None Include="App\engine\shader\d3d11\quad_warp.vs" />
    <None Include="App\engine\shader\d3d11\round_dot.ps" />
    <None Include="App\engine\shader\d3d11\sdffont.ps" />
    <None Include="App\engine\shader\d3d11\sdffont_outline.ps" />
    <None Include="App\engine\shader\d3d11\sdffont_outlineshadow.ps" />
    <None Include="App\engine\shader\d3d11\sdffont_shadow.ps" />
    <None Include="App\engine\shader\d3d11\shape.ps" />
    <None Include="App\engine\shader\d3d11\sky.ps" />
    <None Include="App\engine\shader\d3d11\sprite.vs" />
    <None Include="App\engine\shader\d3d11\square_dot.ps" />
    <None Include="App\engine\shader\d3d11\texture.ps" />
    <None Include="App\engine\shader\glsl\apply_srgb_curve.frag" />
    <None Include="App\engine\shader\glsl\bitmapfont.frag" />
    <None Include="App\engine\shader\glsl\copy.frag" />
    <None Include="App\engine\shader\glsl\forward3d.frag" />
    <None Include="App\engine\shader\glsl\forward3d.vert" />
    <None Include="App\engine\shader\glsl\fullscreen_triangle.frag" />
    <None Include="App\engine\shader\glsl\fullscreen_triangle.vert" />
    <None Include="App\engine\shader\glsl\gaussian_blur_13.frag" />
    <None Include="App\engine\shader\glsl\gaussian_blur_5.frag" />
    <None Include="App\engine\shader\glsl\gaussian_blur_9.frag" />
    <None Include="App\engine\shader\glsl\line3d.frag" />
    <None Include="App\engine\shader\glsl\line3d.vert" />
    <None Include="App\engine\shader\glsl\msdffont.frag" />
    <None Include="App\engine\shader\glsl\msdffont_outline.frag" />
    <None Include="App\engine\shader\glsl\msdffont_outlineshadow.frag" />
    <None Include="App\engine\shader\glsl\msdffont_shadow.frag" />
    <None Include="App\engine\shader\glsl\msdfprint.frag" />
    <None Include="App\engine\shader\glsl\quad_warp.frag" />
    <None Include="App\engine\shader\glsl\quad_warp.vert" />
    <None Include="App\engine\shader\glsl\round_dot.frag" />
    <None Include="App\engine\shader\glsl\sdffont.frag" />
    <None Include="App\engine\shader\glsl\sdffont_outline.frag" />
    <None Include="App\engine\shader\glsl\sdffont_outlineshadow.frag" />
    <None Include="App\engine\shader\glsl\sdffont_shadow.frag" />
    <None Include="App\engine\shader\glsl\shape.frag" />
    <None Include="App\engine\shader\glsl\sky.frag" />
    <None Include="App\engine\shader\glsl\sprite.vert" />
    <None Include="App\engine\shader\glsl\square_dot.frag" />
    <None Include="App\engine\shader\glsl\texture.frag" />
    <None Include="App\engine\soundfont\GMGSx.sf2.zstdcmp" />
    <None Include="App\example\csv\config.csv" />
    <None Include="App\example\font\DotGothic16\README-JP.md" />
    <None Include="App\example\font\DotGothic16\README.md" />
    <None Include="App\example\font\RocknRoll\README-JP.md" />
    <None Include="App\example\font\RocknRoll\README.md" />
    <None Include="App\example\geojson\countries.geojson" />
    <None Include="App\example\ini\config.ini" />
    <None Include="App\example\json\config.json" />
    <None Include="App\example\json\empty.json" />
    <None Include="App\example\json\invalid-blank.json" />
    <None Include="App\example\json\invalid-syntax.json" />
    <None Include="App\example\json\test.json" />
    <None Include="App\example\midi\test.mid" />
    <None Include="App\example\obj\blacksmith.mtl" />
    <None Include="App\example\obj\crystal1.mtl" />
    <None Include="App\example\obj\crystal2.mtl" />
    <None Include="App\example\obj\crystal3.mtl" />
    <None Include="App\example\obj\mill.mtl" />
    <None Include="App\example\obj\pine.mtl" />
    <None Include="App\example\obj\siv3d-kun.mtl" />
    <None Include="App\example\obj\tree.mtl" />
    <None Include="App\example\script\breakout.as" />
    <None Include="App\example\script\hello.as" />
    <None Include="App\example\script\paint.as" />
    <None Include="App\example\script\piano.as" />
    <None Include="App\example\script\test.as" />
    <None Include="App\example\shader\glsl\default2d.vert" />
    <None Include="App\example\shader\glsl\default2d_shape.frag" />
    <None Include="App\example\shader\glsl\default2d_texture.frag" />
    <None Include="App\example\shader\glsl\default3d_forward.frag" />
    <None Include="App\example\shader\glsl\default3d_forward.vert" />
    <None Include="App\example\shader\glsl\default3d_forward_shadow_depth.frag" />
    <None Include="App\example\shader\glsl\default3d_forward_shadow_shading.frag" />
    <None Include="App\example\shader\glsl\extract_bright_linear.frag" />
    <None Include="App\example\shader\glsl\forward_fog.frag" />
    <None Include="App\example\shader\glsl\forward_triplanar.frag" />
    <None Include="App\example\shader\glsl\game_of_life.frag" />
    <None Include="App\example\shader\glsl\grayscale.frag" />
    <None Include="App\example\shader\glsl\homography.frag" />
    <None Include="App\example\shader\glsl\homography.vert" />
    <None Include="App\example\shader\glsl\multi_texture_blend.frag" />
    <None Include="App\example\shader\glsl\multi_texture_mask.frag" />
    <None Include="App\example\shader\glsl\poisson_disk.frag" />
    <None Include="App\example\shader\glsl\posterize.frag" />
    <None Include="App\example\shader\glsl\rgb_shift.frag" />
    <None Include="App\example\shader\glsl\rgb_to_bgr.frag" />
    <None Include="App\example\shader\glsl\soft_shape.vert" />
    <None Include="App\example\shader\glsl\swirl.frag" />
    <None Include="App\example\shader\glsl\terrain_forward.frag" />
    <None Include="App\example\shader\glsl\terrain_forward.vert" />
    <None Include="App\example\shader\glsl\terrain_normal.frag" />
    <None Include="App\example\svg\cat.svg" />
    <None Include="App\example\svg\turtle.svg" />
    <None Include="App\example\toml\config.toml" />
    <None Include="App\example\toml\test.toml" />
    <None Include="App\example\zip\zip_test.zip" />
  </ItemGroup>
  <ItemGroup>
    <Media Include="App\example\shot.mp3" />
    <Media Include="App\example\test.mp3" />
    <Media Include="App\example\video\river.mp4" />
  </ItemGroup>
  <ItemGroup>
    <Font Include="App\example\font\DotGothic16\DotGothic16-Regular.ttf" />
    <Font Include="App\example\font\RocknRoll\RocknRollOne-Regular.ttf" />
  </ItemGroup>
  <ItemGroup>
    <Xml Include="App\example\objdetect\haarcascade\eye.xml" />
    <Xml Include="App\example\objdetect\haarcascade\face_anime.xml" />
    <Xml Include="App\example\objdetect\haarcascade\frontal_catface.xml" />
    <Xml Include="App\example\objdetect\haarcascade\frontal_face_alt2.xml" />
    <Xml Include="App\example\xml\config.xml" />
    <Xml Include="App\example\xml\test.xml" />
  </ItemGroup>
  <ItemGroup>
    <ClInclude Include="stdafx.h" />
  </ItemGroup>
  <ItemGroup>
    <None Include="App\example\obj\blacksmith.obj">
      <FileType>Document</FileType>
    </None>
    <None Include="App\example\obj\crystal1.obj">
      <FileType>Document</FileType>
    </None>
    <None Include="App\example\obj\crystal2.obj">
      <FileType>Document</FileType>
    </None>
    <None Include="App\example\obj\crystal3.obj">
      <FileType>Document</FileType>
    </None>
    <None Include="App\example\obj\mill.obj">
      <FileType>Document</FileType>
    </None>
    <None Include="App\example\obj\pine.obj">
      <FileType>Document</FileType>
    </None>
    <None Include="App\example\obj\siv3d-kun.obj">
      <FileType>Document</FileType>
    </None>
    <None Include="App\example\obj\tree.obj">
      <FileType>Document</FileType>
    </None>
  </ItemGroup>
  <ItemGroup>
    <None Include="App\example\shader\hlsl\default2d.hlsl">
      <FileType>Document</FileType>
    </None>
    <None Include="App\example\shader\hlsl\default3d_forward.hlsl">
      <FileType>Document</FileType>
    </None>
    <None Include="App\example\shader\hlsl\default3d_forward_shadow.hlsl">
      <FileType>Document</FileType>
    </None>
    <None Include="App\example\shader\hlsl\extract_bright_linear.hlsl">
      <FileType>Document</FileType>
    </None>
    <None Include="App\example\shader\hlsl\forward_fog.hlsl">
      <FileType>Document</FileType>
    </None>
    <None Include="App\example\shader\hlsl\forward_triplanar.hlsl">
      <FileType>Document</FileType>
    </None>
    <None Include="App\example\shader\hlsl\game_of_life.hlsl">
      <FileType>Document</FileType>
    </None>
    <None Include="App\example\shader\hlsl\grayscale.hlsl">
      <FileType>Document</FileType>
    </None>
    <None Include="App\example\shader\hlsl\homography.hlsl">
      <FileType>Document</FileType>
    </None>
    <None Include="App\example\shader\hlsl\multi_texture_blend.hlsl">
      <FileType>Document</FileType>
    </None>
    <None Include="App\example\shader\hlsl\multi_texture_mask.hlsl">
      <FileType>Document</FileType>
    </None>
    <None Include="App\example\shader\hlsl\poisson_disk.hlsl">
      <FileType>Document</FileType>
    </None>
    <None Include="App\example\shader\hlsl\posterize.hlsl">
      <FileType>Document</FileType>
    </None>
    <None Include="App\example\shader\hlsl\rgb_shift.hlsl">
      <FileType>Document</FileType>
    </None>
    <None Include="App\example\shader\hlsl\rgb_to_bgr.hlsl">
      <FileType>Document</FileType>
    </None>
    <None Include="App\example\shader\hlsl\soft_shape.hlsl">
      <FileType>Document</FileType>
    </None>
    <None Include="App\example\shader\hlsl\swirl.hlsl">
      <FileType>Document</FileType>
    </None>
    <None Include="App\example\shader\hlsl\terrain_forward.hlsl">
      <FileType>Document</FileType>
    </None>
    <None Include="App\example\shader\hlsl\terrain_normal.hlsl">
      <FileType>Document</FileType>
    </None>
  </ItemGroup>
  <Import Project="$(VCTargetsPath)\Microsoft.Cpp.targets" />
  <ImportGroup Label="ExtensionTargets">
  </ImportGroup>
</Project>

 .vscodeフォルダhttps://github.com/sthairno/siv3d_vscode_config
こちらの.vscodeフォルダをコピー＆ペーストします。

 .vscode/tasks.json.vscode/tasks.json
{
    "version": "2.0.0",
    "tasks": [
+        {
+            "label": "Build (Test)",
+            "type": "shell",
+            "command": ".vscode/msbuild.bat",
+            "args": [
+                "/property:GenerateFullPaths=true",
+                "/t:build",
+                "/p:configuration=Test",
+                "/p:platform=x64"
+            ],
+            "group": "build",
+            "presentation": {
+                "reveal": "silent"
+            },
+            "problemMatcher": "$msCompile",
+        },
        {
            "label": "Build (Debug)",
            "type": "shell",
            "command": ".vscode/msbuild.bat",
            "args": [
                "/property:GenerateFullPaths=true",
                "/t:build",
                "/p:configuration=Debug",
                "/p:platform=x64"
            ],
            "group": "build",
            "presentation": {
                "reveal": "silent"
            },
            "problemMatcher": "$msCompile"
        },
        {
            "label": "Build (Release)",
            "type": "shell",
            "command": ".vscode/msbuild.bat",
            "args": [
                "/property:GenerateFullPaths=true",
                "/t:build",
                "/p:configuration=Release",
                "/p:platform=x64"
            ],
            "group": "build",
            "presentation": {
                "reveal": "silent"
            },
            "problemMatcher": "$msCompile"
        }
    ]
}

 .vscode/lanuch.json実際に呼び出す時に必要な設定ですねぇ～
.vscode/lanuch.json
{
    "version": "0.2.0",
    "configurations": [
+        {
+            "name": "Launch (Test)",
+            "type": "cppvsdbg",
+            "request": "launch",
+            "program": "${workspaceFolder}/App/${workspaceFolderBasename}(test).exe",
+            "args": [],
+            "cwd": "${workspaceFolder}/App",
+            "environment": [],
+            "preLaunchTask": "Build (Test)",
+        },
        {
            "name": "Launch (Debug)",
            "type": "cppvsdbg",
            "request": "launch",
            "program": "${workspaceFolder}/App/${workspaceFolderBasename}(debug).exe",
            "args": [],
            "cwd": "${workspaceFolder}/App",
            "environment": [],
            "preLaunchTask": "Build (Debug)",
        },
        {
            "name": "Launch (Release)",
            "type": "cppvsdbg",
            "request": "launch",
            "program": "${workspaceFolder}/App/${workspaceFolderBasename}.exe",
            "args": [],
            "cwd": "${workspaceFolder}/App",
            "environment": [],
            "preLaunchTask": "Build (Release)",
        },
    ]
}

 実際のテスト呼び出し

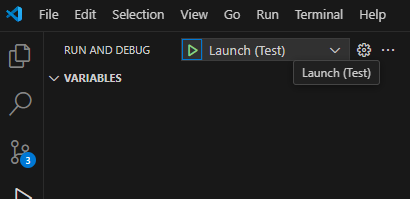

適当に、ビルドの選択欄で「Lanuch(Test)」をクリックで RUN！！！

 テスト呼び出した結果
うわ見ずらい！！！！！！

目が目がーーーー！！！！！
結果では、エラーが出ていますが、これは正常です。
test/Example.cppで「REQUIRE(test.TestTest() == 500);」と書いてあって、「testクラスのTestTest()関数が100を戻り値として返す」からですね！

 オワリ本日は、ここで終わりです。乙でした！
注意事項

何をしたいのか？？？

この記事で出来ないこと

参考資料

VSCode(Windows)向けOpenSiv3D開発環境

Catch2の数多の資料

ChatGPTさん

やってみよう！

フォルダ構造

test/Example.cpp

include\ui\Example.hpp

include\ui\Base.hpp

Main.cpp

TestProject.vcxproj

.vscodeフォルダ

.vscode/tasks.json

.vscode/lanuch.json

実際のテスト呼び出し

テスト呼び出した結果

オワリ

Discussion
