create mkdocs server on AWS Amazon Linux 2023 EC2

参考ブログ : MkDocsによるドキュメント作成
OS:Amazon Linux 2023
- サービス：EC2
  - インスタンス
    - セキュリティ
      - インバウンドルール：以下を追加
インバウンドルール

ポート範囲	プロトコル	送信先	セキュリティグループ
8000	すべて	0.0.0.0/0	launch-wizard-2

セキュリティグループ：aunch-wizard-2

IPバージョン	タイプ	プロトコル	ポート範囲	ソース
IPv4	カスタム TCP	TCP	8000	0.0.0.0/0

(base) macpro:aws sharland$
- ssh -i "protoTeruroom.pem" ec2-user@パブリック IPv4 DNS
- ssh -i "protoTeruroom.pem" ec2-user@パブリック IPv4 アドレス
[ec2-user@ip-172-31-44-51 ~]$ sudo yum update

実行結果

Last metadata expiration check: 0:39:41 ago on Sun Jun 11 02:04:48 2023.
Dependencies resolved.
Nothing to do.
Complete!

[ec2-user@ip-172-31-44-51 ~]$ python3 --version

Python 3.9.16

[ec2-user@ip-172-31-44-51 ~]$ yum info python3

実行結果

Amazon Linux 2023 repository                                [===                                                    ] ---  B/s |   0  B   Amazon Linux 2023 repository                            38% [=====================                                  ]  18 MB/s | 5.4 MB   Amazon Linux 2023 repository                                                                                           32 MB/s |  14 MB     00:00
Amazon Linux 2023 Kernel Livepatch repository               [===                                                    ] ---  B/s |   0  B   Amazon Linux 2023 Kernel Livepatch repository                                                                         759 kB/s | 156 kB     00:00
Installed Packages
History database cannot be created, using in-memory database instead: SQLite error on "/var/lib/dnf/history.sqlite": Open failed: unable to open database file
Name         : python3
Version      : 3.9.16
Release      : 1.amzn2023.0.3
Architecture : x86_64
Size         : 33 k
Source       : python3.9-3.9.16-1.amzn2023.0.3.src.rpm
Repository   : @System
Summary      : Python 3.9 interpreter
URL          : https://www.python.org/
License      : Python
Description  : Python 3.9 is an accessible, high-level, dynamically typed, interpreted
             : programming language, designed with an emphasis on code readability.
             : It includes an extensive standard library, and has a vast ecosystem of
             : third-party libraries.
             :
             : The python3 package provides the "python3" executable: the reference
             : interpreter for the Python language, version 3.
             : The majority of its standard library is provided in the python3-libs package,
             : which should be installed automatically along with python3.
             : The remaining parts of the Python standard library are broken out into the
             : python3-tkinter and python3-test packages, which may need to be installed
             : separately.
             :
             : Documentation for Python is provided in the python3-docs package.
             :
             : Packages containing additional libraries for Python are generally named with
             : the "python3-" prefix.

[ec2-user@ip-172-31-44-51 ~]$ sudo yum install pip

実行結果

Last metadata expiration check: 0:41:32 ago on Sun Jun 11 02:04:48 2023.
Dependencies resolved.
======================================================================================================================================================
 Package                               Architecture                Version                                     Repository                        Size
======================================================================================================================================================
Installing:
 python3-pip                           noarch                      21.3.1-2.amzn2023.0.5                       amazonlinux                      1.8 M
Installing weak dependencies:
 libxcrypt-compat                      x86_64                      4.4.33-7.amzn2023                           amazonlinux                       92 k
・・・・
Installed:
  libxcrypt-compat-4.4.33-7.amzn2023.x86_64                                  python3-pip-21.3.1-2.amzn2023.0.5.noarch

Complete!

[ec2-user@ip-172-31-44-51 ~]$ pip --version

実行結果

pip 21.3.1 from /usr/lib/python3.9/site-packages/pip (python 3.9)

[ec2-user@ip-172-31-44-51 mkdocs]$ pip install --upgrade pip

実行結果

Defaulting to user installation because normal site-packages is not writeable
Requirement already satisfied: pip in /usr/lib/python3.9/site-packages (21.3.1)
Collecting pip
  Downloading pip-23.1.2-py3-none-any.whl (2.1 MB)
     |████████████████████████████████| 2.1 MB 6.0 MB/s
Installing collected packages: pip
Successfully installed pip-23.1.2

[ec2-user@ip-172-31-44-51 mkdocs]$ sudo yum install tree

実行結果

Last metadata expiration check: 1:12:44 ago on Sun Jun 11 02:04:48 2023.
Dependencies resolved.
======================================================================================================================================================
 Package                      Architecture                   Version                                        Repository                           Size
======================================================================================================================================================
Installing:
 tree                         x86_64                         1.8.0-6.amzn2023.0.2                           amazonlinux                          56 k

Transaction Summary
======================================================================================================================================================
Install  1 Package

Total download size: 56 k
Installed size: 113 k
Is this ok [y/N]: y
Downloading Packages:
                                                            [===                                                    ] ---  B/s |   0  B   tree-1.8.0-6.amzn2023.0.2.x86_64.rpm                     0% [                                                       ] ---  B/s |   0  B   tree-1.8.0-6.amzn2023.0.2.x86_64.rpm                                                                                  548 kB/s |  56 kB     00:00
------------------------------------------------------------------------------------------------------------------------------------------------------
Total                                                                                                                 330 kB/s |  56 kB     00:00
Running transaction check
Transaction check succeeded.
Running transaction test
Transaction test succeeded.
Running transaction
  Preparing        :                                                                                                                              1/1
  Installing       : tree-1.8.0-6.amzn2023.0.2.x86_64 [                                                                                     Installing       : tree-1.8.0-6.amzn2023.0.2.x86_64 [========================                                                             Installing       : tree-1.8.0-6.amzn2023.0.2.x86_64 [=================================================                                    Installing       : tree-1.8.0-6.amzn2023.0.2.x86_64 [=================================================================                    Installing       : tree-1.8.0-6.amzn2023.0.2.x86_64 [==================================================================                   Installing       : tree-1.8.0-6.amzn2023.0.2.x86_64 [================================================================================     Installing       : tree-1.8.0-6.amzn2023.0.2.x86_64 [===================================================================================  Installing       : tree-1.8.0-6.amzn2023.0.2.x86_64 [===================================================================================  Installing       : tree-1.8.0-6.amzn2023.0.2.x86_64                                                                                             1/1
  Running scriptlet: tree-1.8.0-6.amzn2023.0.2.x86_64                                                                                             1/1
  Verifying        : tree-1.8.0-6.amzn2023.0.2.x86_64                                                                                             1/1

Installed:
  tree-1.8.0-6.amzn2023.0.2.x86_64

Complete!

[ec2-user@ip-172-31-44-51 ~]$ mkdir mkdocs && cd mkdocs
[ec2-user@ip-172-31-44-51 mkdocs]$ python3 -m venv ./venv
[ec2-user@ip-172-31-44-51 mkdocs]$ . venv/bin/activate
(venv) [ec2-user@ip-172-31-44-51 mkdocs]$ pip install --upgrade pip

実行結果

Requirement already satisfied: pip in ./venv/lib/python3.9/site-packages (21.3.1)
Collecting pip
  Using cached pip-23.1.2-py3-none-any.whl (2.1 MB)
Installing collected packages: pip
  Attempting uninstall: pip
    Found existing installation: pip 21.3.1
    Uninstalling pip-21.3.1:
      Successfully uninstalled pip-21.3.1
Successfully installed pip-23.1.2

[ec2-user@ip-172-31-44-51 mkdocs]$ pip install mkdocs

実行結果

Collecting mkdocs
  Using cached mkdocs-1.4.3-py3-none-any.whl (3.7 MB)
Collecting click>=7.0 (from mkdocs)
  Using cached click-8.1.3-py3-none-any.whl (96 kB)
Collecting ghp-import>=1.0 (from mkdocs)
  Using cached ghp_import-2.1.0-py3-none-any.whl (11 kB)
Collecting importlib-metadata>=4.3 (from mkdocs)
  Using cached importlib_metadata-6.6.0-py3-none-any.whl (22 kB)
Collecting jinja2>=2.11.1 (from mkdocs)
  Downloading Jinja2-3.1.2-py3-none-any.whl (133 kB)
     ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 133.1/133.1 kB 6.5 MB/s eta 0:00:00
Collecting markdown<3.4,>=3.2.1 (from mkdocs)
  Using cached Markdown-3.3.7-py3-none-any.whl (97 kB)
Collecting mergedeep>=1.3.4 (from mkdocs)
  Using cached mergedeep-1.3.4-py3-none-any.whl (6.4 kB)
Collecting packaging>=20.5 (from mkdocs)
  Using cached packaging-23.1-py3-none-any.whl (48 kB)
Collecting pyyaml-env-tag>=0.1 (from mkdocs)
  Using cached pyyaml_env_tag-0.1-py3-none-any.whl (3.9 kB)
Collecting pyyaml>=5.1 (from mkdocs)
  Downloading PyYAML-6.0-cp39-cp39-manylinux_2_5_x86_64.manylinux1_x86_64.manylinux_2_12_x86_64.manylinux2010_x86_64.whl (661 kB)
     ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 661.8/661.8 kB 22.5 MB/s eta 0:00:00
Collecting watchdog>=2.0 (from mkdocs)
  Using cached watchdog-3.0.0-py3-none-manylinux2014_x86_64.whl (82 kB)
Collecting python-dateutil>=2.8.1 (from ghp-import>=1.0->mkdocs)
  Downloading python_dateutil-2.8.2-py2.py3-none-any.whl (247 kB)
     ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 247.7/247.7 kB 24.8 MB/s eta 0:00:00
Collecting zipp>=0.5 (from importlib-metadata>=4.3->mkdocs)
  Using cached zipp-3.15.0-py3-none-any.whl (6.8 kB)
Collecting MarkupSafe>=2.0 (from jinja2>=2.11.1->mkdocs)
  Downloading MarkupSafe-2.1.3-cp39-cp39-manylinux_2_17_x86_64.manylinux2014_x86_64.whl (25 kB)
Collecting six>=1.5 (from python-dateutil>=2.8.1->ghp-import>=1.0->mkdocs)
  Downloading six-1.16.0-py2.py3-none-any.whl (11 kB)
Installing collected packages: zipp, watchdog, six, pyyaml, packaging, mergedeep, MarkupSafe, click, pyyaml-env-tag, python-dateutil, jinja2, importlib-metadata, markdown, ghp-import, mkdocs
Successfully installed MarkupSafe-2.1.3 click-8.1.3 ghp-import-2.1.0 importlib-metadata-6.6.0 jinja2-3.1.2 markdown-3.3.7 mergedeep-1.3.4 mkdocs-1.4.3 packaging-23.1 python-dateutil-2.8.2 pyyaml-6.0 pyyaml-env-tag-0.1 six-1.16.0 watchdog-3.0.0 zipp-3.15.0

(venv) [ec2-user@ip-172-31-44-51 mkdocs]$ mkdocs --version

実行結果

mkdocs, version 1.4.3 from /home/ec2-user/mkdocs/venv/lib64/python3.9/site-packages/mkdocs (Python 3.9)

(venv) [ec2-user@ip-172-31-44-51 mkdocs]$ pip install click-man

実行結果

Collecting click-man
  Downloading click_man-0.4.1-py3-none-any.whl (9.1 kB)
Requirement already satisfied: click in ./venv/lib/python3.9/site-packages (from click-man) (8.1.3)
Installing collected packages: click-man
Successfully installed click-man-0.4.1

(venv) [ec2-user@ip-172-31-44-51 mkdocs]$ mkdir man && click-man --target ./man mkdocs

実行結果

Load entry point mkdocs
Generate man pages for mkdocs in /home/ec2-user/mkdocs/man

(venv) [ec2-user@ip-172-31-44-51 mkdocs]$ ls man

実行結果

mkdocs-build.1  mkdocs-gh-deploy.1  mkdocs-new.1  mkdocs-serve.1  mkdocs.1

(venv) [ec2-user@ip-172-31-44-51 mkdocs]$ mkdocs new proto-proj

実行結果

INFO     -  Creating project directory: proto-proj
INFO     -  Writing config file: proto-proj/mkdocs.yml
INFO     -  Writing initial docs: proto-proj/docs/index.md

(venv) [ec2-user@ip-172-31-44-51 mkdocs]$ cd proto-proj/ && tree

実行結果

.
├── docs
│   └── index.md
└── mkdocs.yml

1 directory, 2 files

(venv) [ec2-user@ip-172-31-44-51 proto-proj]$ mkdocs serve -a 0.0.0.0:8000

実行結果

IWARNING  -  Config value 'dev_addr': The use of the IP address '0.0.0.0' suggests a production environment or the use of a proxy to connect to the
            MkDocs server. However, the MkDocs' server is intended for local development purposes only. Please use a third party production-ready
            server instead.
INFO     -  Building documentation...
INFO     -  Cleaning site directory
INFO     -  Documentation built in 0.07 seconds
INFO     -  [03:51:42] Watching paths for changes: 'docs', 'mkdocs.yml'
INFO     -  [03:51:42] Serving on http://0.0.0.0:8000/

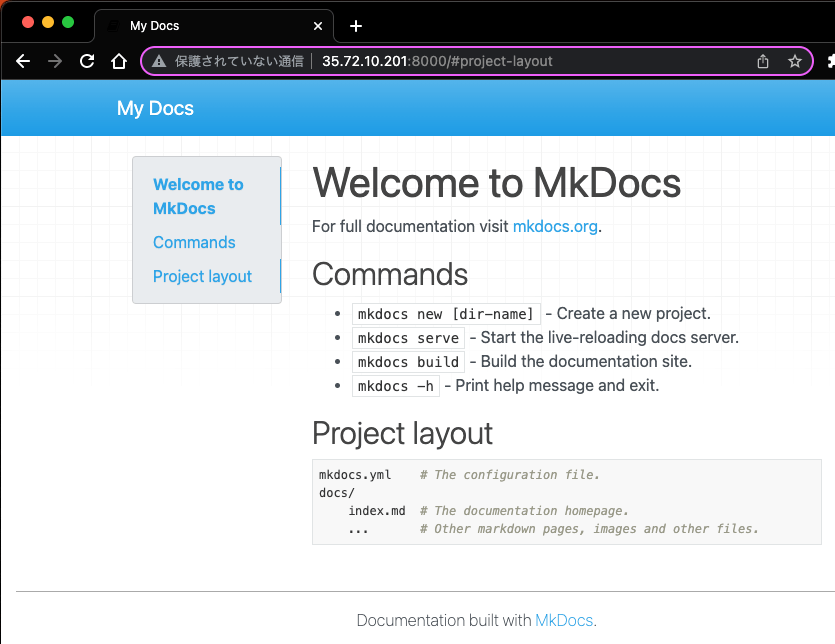

URL：http://35.72.10.201:8000/
- パブリック IPv4 アドレス：35.72.10.201

[ec2-user@ip-172-31-44-51 proto-proj]$ curl 'https://jaspervdj.be/lorem-markdownum/markdown.txt' > docs/about.md

実行結果

% Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100  1772    0  1772    0     0   1219      0 --:--:--  0:00:01 --:--:--  1220

[ec2-user@ip-172-31-44-51 proto-proj]$ vim mkdocs.yml

mkdocs.yml

site_name : ProtoPlan
site_url: http://35.72.10.201:8000/
theme:
    name: material
nav:
  - 要件定義:
    - Version1: requirement/index.md
  - プロトタイプ:
    - コンセプト: prototype/index.md
  - Home: index.md
  - About: about.md
plugins:
  - awesome-pages

:::

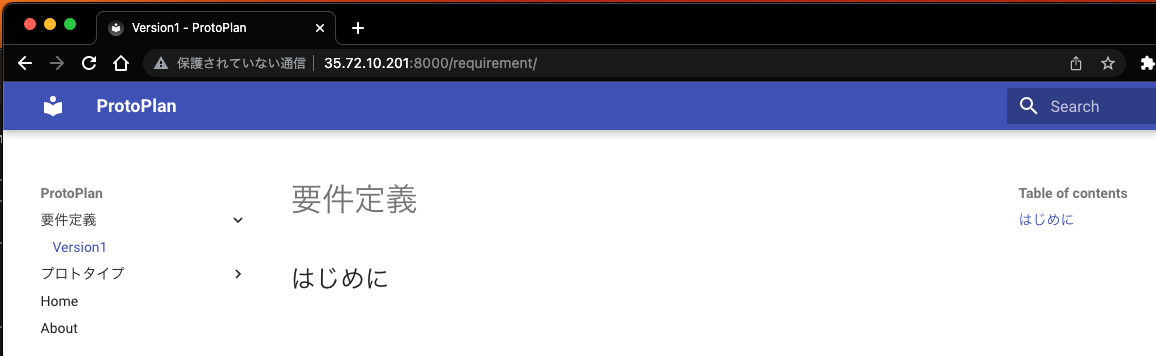

URL : http://35.72.10.201:8000/about/

[ec2-user@ip-172-31-44-51 mkdocs]$ touch requirements.txt && vim requirements.txt

requirements.txt

mkdocs
mkdocs-material
pymdown-extensions
mkdocs-awesome-pages-plugin
pygments

(venv) [ec2-user@ip-172-31-44-51 mkdocs]$ pip install -r requirements.txt

実行結果

Requirement already satisfied: mkdocs in ./venv/lib/python3.9/site-packages (from -r requirements.txt (line 1)) (1.4.3)
Collecting mkdocs-material (from -r requirements.txt (line 2))
  Using cached mkdocs_material-9.1.15-py3-none-any.whl (7.8 MB)
Collecting pymdown-extensions (from -r requirements.txt (line 3))
  Downloading pymdown_extensions-10.0.1-py3-none-any.whl (240 kB)
     ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 240.1/240.1 kB 8.6 MB/s eta 0:00:00
・・・・・
Successfully installed certifi-2023.5.7 charset-normalizer-3.1.0 colorama-0.4.6 idna-3.4 mkdocs-material-9.1.15 mkdocs-material-extensions-1.1.1 pygments-2.15.1 pymdown-extensions-10.0.1 regex-2023.6.3 requests-2.31.0 urllib3-2.0.3

[ec2-user@ip-172-31-44-51 ~]$ cd /home/ec2-user/mkdocs/proto-proj/docs
[ec2-user@ip-172-31-44-51 docs]$ mkdir requirement && mkdir prototype
[ec2-user@ip-172-31-44-51 docs]$ touch requirement/index.md && vim requirement/index.md

requirement/index.md

# 要件定義
## はじめに

[ec2-user@ip-172-31-44-51 docs]$ touch prototype/index.md && vim prototype/index.md

requirement/index.md

# プロトタイプ開発
## はじめに

[ec2-user@ip-172-31-44-51 proto-proj]$ vim mkdocs.yml

/home/ec2-user/mkdocs/proto-proj/mkdocs.yml

site_name : ProtoPlan
site_url: http://35.72.10.201:8000/
theme:
  feature:
    tabs: true
  language: ja
  name: material
  palette:
    accent: Blue
    primary: Blue
extra_javascript:
  - javascripts/extra.js
  - https://cdnjs.cloudflare.com/ajax/libs/tablesort/5.2.1/tablesort.min.js
  - iavascripts/tables.js
extra css:
  - "https://fonts.googleapis.com/earlyaccess/notosansjp.css"
  - "https://fonts.googleapis.com/css?family=Open+ Sans:600,800"
  - "css/custom.css"
markdown -extensions:
  - codehilite
plugins:
  - awesome-pages

URL : ç

[ec2-user@ip-172-31-44-51 proto-proj]$ mkdocs build
[ec2-user@ip-172-31-44-51 proto-proj]$ tree site

site
├── 404.html
├── about
│   └── index.html
├── css
│   ├── base.css
│   ├── bootstrap.min.css
│   └── font-awesome.min.css
├── fonts
│   ├── fontawesome-webfont.eot
│   ├── fontawesome-webfont.svg
│   ├── fontawesome-webfont.ttf
│   ├── fontawesome-webfont.woff
│   └── fontawesome-webfont.woff2
├── img
│   ├── favicon.ico
│   └── grid.png
├── index.html
├── js
│   ├── base.js
│   ├── bootstrap.min.js
│   └── jquery-1.10.2.min.js
├── prototype
│   └── index.html
├── requirement
│   └── index.html
├── search
│   ├── lunr.js
│   ├── main.js
│   ├── search_index.json
│   └── worker.js
├── sitemap.xml
└── sitemap.xml.gz
