漏水モニタリング用のダッシュボードを作る

2024/02/03に公開

SORACOM Harvest Data,Harvest Filesの有効化

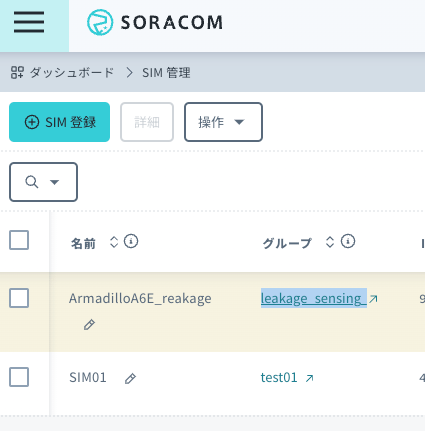

対象のSIMのグループを選択

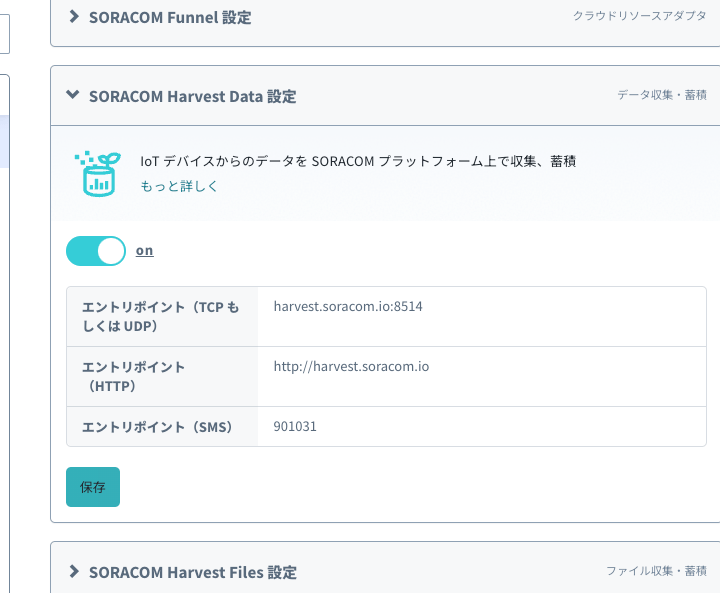

SORACOM Harvest Data設定を有効化(on)して「保存」

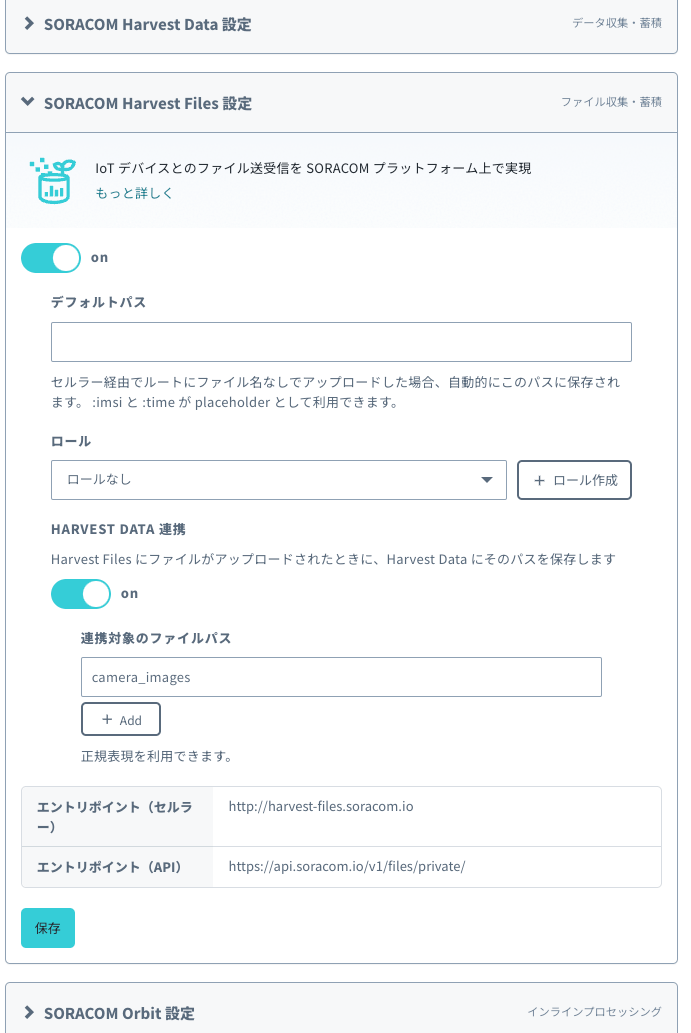

SORACOM Harvest Files設定を有効化(on)、HARVEST DATA連携をonして、連携対象のファイルパスに「camera_images」を入力して「保存」

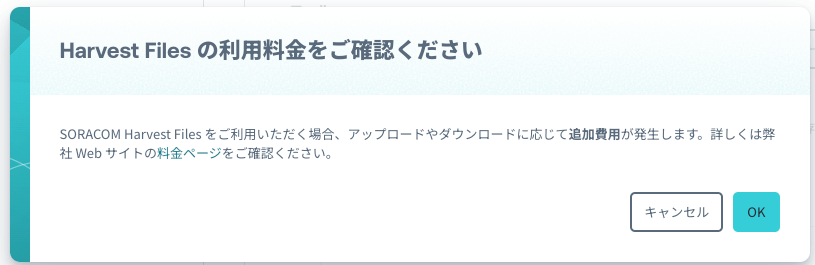

料金の発生に注意

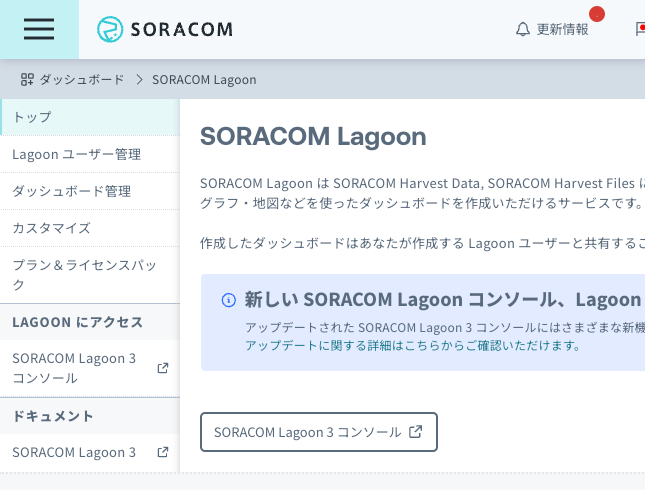

SORACOM Lagoonにアクセス

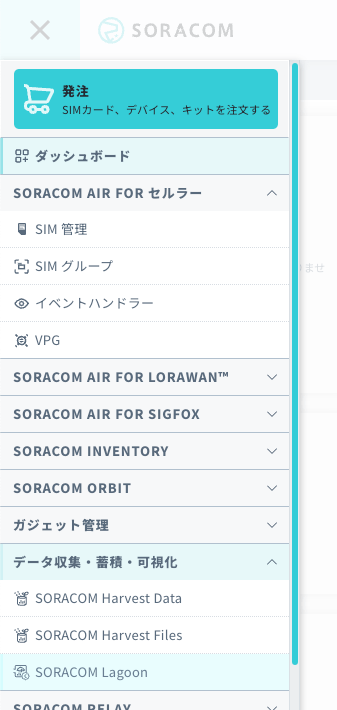

「メニュー」(左上)  -> 「データ収集・蓄積・可視化」 -> 「SORACOM Lagoon」

SORACOM Lagoon3コンソールにアクセス

SORACOM Lagoon3にログイン

emailとパスワードを入力して Log in

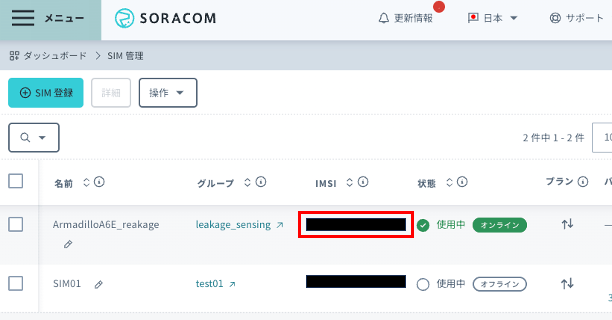

IMSIをコピペ

以下のテンプレートをコピーし、テキストエディタに貼り付け

{
  "__inputs": [
    {
      "name": "DS_HARVEST",
      "label": "Harvest",
      "description": "",
      "type": "datasource",
      "pluginId": "harvest-backend-datasource",
      "pluginName": "harvest-backend"
    }
  ],
  "__elements": {},
  "__requires": [
    {
      "type": "grafana",
      "id": "grafana",
      "name": "Grafana",
      "version": "9.3.9"
    },
    {
      "type": "datasource",
      "id": "harvest-backend-datasource",
      "name": "harvest-backend",
      "version": "1.0.0"
    },
    {
      "type": "panel",
      "id": "soracom-dynamic-image-panel",
      "name": "Soracom Dynamic Image Panel",
      "version": "0.0.1"
    },
    {
      "type": "panel",
      "id": "stat",
      "name": "Stat",
      "version": ""
    },
    {
      "type": "panel",
      "id": "table",
      "name": "Table",
      "version": ""
    }
  ],
  "annotations": {
    "list": [
      {
        "builtIn": 1,
        "datasource": {
          "type": "grafana",
          "uid": "-- Grafana --"
        },
        "enable": true,
        "hide": true,
        "iconColor": "rgba(0, 211, 255, 1)",
        "name": "Annotations & Alerts",
        "target": {
          "limit": 100,
          "matchAny": false,
          "tags": [],
          "type": "dashboard"
        },
        "type": "dashboard"
      }
    ]
  },
  "description": "",
  "editable": true,
  "fiscalYearStartMonth": 0,
  "graphTooltip": 0,
  "id": null,
  "links": [],
  "liveNow": false,
  "panels": [
    {
      "collapsed": false,
      "gridPos": {
        "h": 1,
        "w": 24,
        "x": 0,
        "y": 0
      },
      "id": 28,
      "panels": [],
      "title": "漏水センサ状況一覧",
      "type": "row"
    },
    {
      "datasource": {
        "type": "harvest-backend-datasource",
        "uid": "${DS_HARVEST}"
      },
      "fieldConfig": {
        "defaults": {
          "mappings": [
            {
              "options": {
                "10": {
                  "color": "red",
                  "index": 1,
                  "text": "漏水検知"
                },
                "11": {
                  "color": "green",
                  "index": 0,
                  "text": "正常"
                },
                "20": {
                  "color": "red",
                  "index": 3,
                  "text": "死活監視異常検知"
                },
                "21": {
                  "color": "green",
                  "index": 2,
                  "text": "死活監視異常検知解除"
                }
              },
              "type": "value"
            }
          ],
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "green",
                "value": null
              }
            ]
          },
          "unit": "short"
        },
        "overrides": [
          {
            "matcher": {
              "id": "byName",
              "options": "notification_type_01"
            },
            "properties": [
              {
                "id": "displayName",
                "value": "漏水センサ1"
              }
            ]
          },
          {
            "matcher": {
              "id": "byName",
              "options": "notification_type_02"
            },
            "properties": [
              {
                "id": "displayName",
                "value": "漏水センサ2"
              }
            ]
          },
          {
            "matcher": {
              "id": "byName",
              "options": "notification_type_03"
            },
            "properties": [
              {
                "id": "displayName",
                "value": "漏水センサ3"
              }
            ]
          },
          {
            "matcher": {
              "id": "byName",
              "options": "notification_type_04"
            },
            "properties": [
              {
                "id": "displayName",
                "value": "漏水センサ4"
              }
            ]
          },
          {
            "matcher": {
              "id": "byName",
              "options": "notification_type_05"
            },
            "properties": [
              {
                "id": "displayName",
                "value": "漏水センサ5"
              }
            ]
          },
          {
            "matcher": {
              "id": "byName",
              "options": "notification_type_06"
            },
            "properties": [
              {
                "id": "displayName",
                "value": "漏水センサ6"
              }
            ]
          },
          {
            "matcher": {
              "id": "byName",
              "options": "notification_type_07"
            },
            "properties": [
              {
                "id": "displayName",
                "value": "漏水センサ7"
              }
            ]
          },
          {
            "matcher": {
              "id": "byName",
              "options": "notification_type_08"
            },
            "properties": [
              {
                "id": "displayName",
                "value": "漏水センサ8"
              }
            ]
          },
          {
            "matcher": {
              "id": "byName",
              "options": "notification_type_09"
            },
            "properties": [
              {
                "id": "displayName",
                "value": "漏水センサ9"
              }
            ]
          },
          {
            "matcher": {
              "id": "byName",
              "options": "notification_type_10"
            },
            "properties": [
              {
                "id": "displayName",
                "value": "漏水センサ10"
              }
            ]
          }
        ]
      },
      "gridPos": {
        "h": 6,
        "w": 24,
        "x": 0,
        "y": 1
      },
      "id": 2,
      "options": {
        "colorMode": "background",
        "graphMode": "none",
        "justifyMode": "auto",
        "orientation": "auto",
        "reduceOptions": {
          "calcs": [
            "lastNotNull"
          ],
          "fields": "",
          "values": false
        },
        "textMode": "auto"
      },
      "pluginVersion": "9.3.9",
      "targets": [
        {
          "browser": true,
          "datasource": {
            "type": "harvest-backend-datasource",
            "uid": "${DS_HARVEST}"
          },
          "datatype": "standard",
          "devicetype": "subscribers",
          "latprop": "",
          "lngprop": "",
          "pro": false,
          "properties": "notification_type_01",
          "refId": "A",
          "target": "${IMSI}",
          "type": "timeSeriesQuery",
          "withStreaming": false
        },
        {
          "browser": true,
          "datasource": {
            "type": "harvest-backend-datasource",
            "uid": "${DS_HARVEST}"
          },
          "datatype": "standard",
          "devicetype": "subscribers",
          "hide": false,
          "latprop": "",
          "lngprop": "",
          "pro": false,
          "properties": "notification_type_02",
          "refId": "B",
          "target": "${IMSI}",
          "type": "timeSeriesQuery",
          "withStreaming": false
        },
        {
          "browser": true,
          "datasource": {
            "type": "harvest-backend-datasource",
            "uid": "${DS_HARVEST}"
          },
          "datatype": "standard",
          "devicetype": "subscribers",
          "hide": false,
          "latprop": "",
          "lngprop": "",
          "pro": false,
          "properties": "notification_type_03",
          "refId": "C",
          "target": "${IMSI}",
          "type": "timeSeriesQuery",
          "withStreaming": false
        },
        {
          "browser": true,
          "datasource": {
            "type": "harvest-backend-datasource",
            "uid": "${DS_HARVEST}"
          },
          "datatype": "standard",
          "devicetype": "subscribers",
          "hide": false,
          "latprop": "",
          "lngprop": "",
          "pro": false,
          "properties": "notification_type_04",
          "refId": "D",
          "target": "${IMSI}",
          "type": "timeSeriesQuery",
          "withStreaming": false
        }
      ],
      "title": "漏水検知状況",
      "type": "stat"
    },
    {
      "collapsed": false,
      "gridPos": {
        "h": 1,
        "w": 24,
        "x": 0,
        "y": 7
      },
      "id": 4,
      "panels": [],
      "title": "漏水検知履歴",
      "type": "row"
    },
    {
      "datasource": {
        "type": "harvest-backend-datasource",
        "uid": "${DS_HARVEST}"
      },
      "fieldConfig": {
        "defaults": {
          "color": {
            "mode": "thresholds"
          },
          "custom": {
            "align": "auto",
            "displayMode": "auto",
            "inspect": false
          },
          "mappings": [
            {
              "options": {
                "10": {
                  "index": 1,
                  "text": "漏水検知"
                },
                "11": {
                  "index": 0,
                  "text": "正常"
                },
                "20": {
                  "index": 3,
                  "text": "死活監視異常検知"
                },
                "21": {
                  "index": 2,
                  "text": "死活監視異常検知解除"
                }
              },
              "type": "value"
            }
          ],
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "green",
                "value": null
              },
              {
                "color": "red",
                "value": 80
              }
            ]
          }
        },
        "overrides": [
          {
            "matcher": {
              "id": "byName",
              "options": "notification_type_01"
            },
            "properties": [
              {
                "id": "custom.width",
                "value": 0
              }
            ]
          },
          {
            "matcher": {
              "id": "byName",
              "options": "Time"
            },
            "properties": [
              {
                "id": "custom.width",
                "value": 145
              }
            ]
          }
        ]
      },
      "gridPos": {
        "h": 14,
        "w": 6,
        "x": 0,
        "y": 8
      },
      "id": 6,
      "options": {
        "footer": {
          "fields": "",
          "reducer": [
            "sum"
          ],
          "show": false
        },
        "frameIndex": 0,
        "showHeader": true,
        "sortBy": [
          {
            "desc": true,
            "displayName": "Time"
          }
        ]
      },
      "pluginVersion": "9.3.9",
      "targets": [
        {
          "browser": true,
          "datasource": {
            "type": "harvest-backend-datasource",
            "uid": "${DS_HARVEST}"
          },
          "datatype": "standard",
          "devicetype": "subscribers",
          "latprop": "",
          "lngprop": "",
          "pro": false,
          "properties": "notification_type_01",
          "refId": "A",
          "target": "${IMSI}",
          "type": "timeSeriesQuery",
          "withStreaming": false
        }
      ],
      "title": "センサ1",
      "type": "table"
    },
    {
      "datasource": {
        "type": "harvest-backend-datasource",
        "uid": "${DS_HARVEST}"
      },
      "fieldConfig": {
        "defaults": {
          "custom": {
            "align": "auto",
            "displayMode": "auto",
            "inspect": false
          },
          "mappings": [
            {
              "options": {
                "10": {
                  "index": 1,
                  "text": "漏水検知"
                },
                "11": {
                  "index": 0,
                  "text": "正常"
                },
                "20": {
                  "index": 3,
                  "text": "死活監視異常検知"
                },
                "21": {
                  "index": 2,
                  "text": "死活監視異常検知解除"
                }
              },
              "type": "value"
            }
          ],
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "green",
                "value": null
              },
              {
                "color": "red",
                "value": 80
              }
            ]
          }
        },
        "overrides": [
          {
            "matcher": {
              "id": "byName",
              "options": "Time"
            },
            "properties": [
              {
                "id": "custom.width",
                "value": 159
              }
            ]
          }
        ]
      },
      "gridPos": {
        "h": 14,
        "w": 6,
        "x": 6,
        "y": 8
      },
      "id": 7,
      "options": {
        "footer": {
          "fields": "",
          "reducer": [
            "sum"
          ],
          "show": false
        },
        "frameIndex": 0,
        "showHeader": true,
        "sortBy": [
          {
            "desc": true,
            "displayName": "Time"
          }
        ]
      },
      "pluginVersion": "9.3.9",
      "targets": [
        {
          "browser": true,
          "datasource": {
            "type": "harvest-backend-datasource",
            "uid": "${DS_HARVEST}"
          },
          "datatype": "standard",
          "devicetype": "subscribers",
          "latprop": "",
          "lngprop": "",
          "pro": false,
          "properties": "notification_type_02",
          "refId": "A",
          "target": "${IMSI}",
          "type": "timeSeriesQuery",
          "withStreaming": false
        }
      ],
      "title": "センサ2",
      "type": "table"
    },
    {
      "datasource": {
        "type": "harvest-backend-datasource",
        "uid": "${DS_HARVEST}"
      },
      "fieldConfig": {
        "defaults": {
          "custom": {
            "align": "auto",
            "displayMode": "auto",
            "inspect": false
          },
          "mappings": [
            {
              "options": {
                "10": {
                  "index": 0,
                  "text": "漏水検知"
                },
                "11": {
                  "index": 1,
                  "text": "正常"
                },
                "20": {
                  "index": 2,
                  "text": "死活監視異常検知"
                },
                "21": {
                  "index": 3,
                  "text": "死活監視異常検知解除"
                }
              },
              "type": "value"
            }
          ],
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "green",
                "value": null
              },
              {
                "color": "red",
                "value": 80
              }
            ]
          }
        },
        "overrides": [
          {
            "matcher": {
              "id": "byName",
              "options": "Time"
            },
            "properties": [
              {
                "id": "custom.width",
                "value": 157
              }
            ]
          }
        ]
      },
      "gridPos": {
        "h": 14,
        "w": 6,
        "x": 12,
        "y": 8
      },
      "id": 8,
      "options": {
        "footer": {
          "fields": "",
          "reducer": [
            "sum"
          ],
          "show": false
        },
        "frameIndex": 0,
        "showHeader": true,
        "sortBy": [
          {
            "desc": true,
            "displayName": "Time"
          }
        ]
      },
      "pluginVersion": "9.3.9",
      "targets": [
        {
          "browser": true,
          "datasource": {
            "type": "harvest-backend-datasource",
            "uid": "${DS_HARVEST}"
          },
          "datatype": "standard",
          "devicetype": "subscribers",
          "latprop": "",
          "lngprop": "",
          "pro": false,
          "properties": "notification_type_03",
          "refId": "A",
          "target": "${IMSI}",
          "type": "timeSeriesQuery",
          "withStreaming": false
        }
      ],
      "title": "センサ3",
      "type": "table"
    },
    {
      "datasource": {
        "type": "harvest-backend-datasource",
        "uid": "${DS_HARVEST}"
      },
      "fieldConfig": {
        "defaults": {
          "custom": {
            "align": "auto",
            "displayMode": "auto",
            "inspect": false
          },
          "mappings": [
            {
              "options": {
                "10": {
                  "index": 0,
                  "text": "漏水検知"
                },
                "11": {
                  "index": 1,
                  "text": "正常"
                },
                "20": {
                  "index": 2,
                  "text": "死活監視異常検知"
                },
                "21": {
                  "index": 3,
                  "text": "死活監視異常検知解除"
                }
              },
              "type": "value"
            }
          ],
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "green",
                "value": null
              },
              {
                "color": "red",
                "value": 80
              }
            ]
          }
        },
        "overrides": [
          {
            "matcher": {
              "id": "byName",
              "options": "Time"
            },
            "properties": [
              {
                "id": "custom.width",
                "value": 158
              }
            ]
          }
        ]
      },
      "gridPos": {
        "h": 14,
        "w": 6,
        "x": 18,
        "y": 8
      },
      "id": 9,
      "options": {
        "footer": {
          "fields": "",
          "reducer": [
            "sum"
          ],
          "show": false
        },
        "frameIndex": 0,
        "showHeader": true,
        "sortBy": [
          {
            "desc": true,
            "displayName": "Time"
          }
        ]
      },
      "pluginVersion": "9.3.9",
      "targets": [
        {
          "browser": true,
          "datasource": {
            "type": "harvest-backend-datasource",
            "uid": "${DS_HARVEST}"
          },
          "datatype": "standard",
          "devicetype": "subscribers",
          "latprop": "",
          "lngprop": "",
          "pro": false,
          "properties": "notification_type_04",
          "refId": "A",
          "target": "${IMSI}",
          "type": "timeSeriesQuery",
          "withStreaming": false
        }
      ],
      "title": "センサ4",
      "type": "table"
    },
    {
      "collapsed": false,
      "gridPos": {
        "h": 1,
        "w": 24,
        "x": 0,
        "y": 22
      },
      "id": 26,
      "panels": [],
      "title": "現場画像",
      "type": "row"
    },
    {
      "backgroundMeta": {
        "height": 1024,
        "url": "/api/datasources/1/resources/proxy/v1/files/private/images/pic4_202401231421.png",
        "width": 1024
      },
      "backgroundSize": "contain",
      "basicAuth": false,
      "basicAuthPassword": "",
      "basicAuthUsername": "",
      "bgimage": "",
      "bgimageSuffix": ".png",
      "bustCache": false,
      "datasource": {
        "type": "harvest-backend-datasource",
        "uid": "${DS_HARVEST}"
      },
      "displayImage": 0,
      "fixRatio": true,
      "gridPos": {
        "h": 13,
        "w": 12,
        "x": 0,
        "y": 23
      },
      "height": "400px",
      "id": 22,
      "language": "english",
      "mode": "harvest_files",
      "series": [],
      "seriesList": [],
      "targets": [
        {
          "browser": true,
          "datasource": {
            "type": "harvest-backend-datasource",
            "uid": "${DS_HARVEST}"
          },
          "datatype": "table",
          "devicetype": "subscribers",
          "latprop": "",
          "lngprop": "",
          "pro": false,
          "properties": "",
          "refId": "A",
          "target": "${IMSI}",
          "type": "timeSeriesQuery",
          "withStreaming": false
        }
      ],
      "title": "Panel Title",
      "type": "soracom-dynamic-image-panel",
      "urlValue": "A-url",
      "valueMaps": {
        "A-Time": {
          "name": "A-Time",
          "value": 1706901887826
        },
        "A-keepalive_01": {
          "name": "A-keepalive_01",
          "value": 0
        },
        "A-keepalive_02": {
          "name": "A-keepalive_02"
        },
        "A-keepalive_03": {
          "name": "A-keepalive_03"
        },
        "A-keepalive_04": {
          "name": "A-keepalive_04"
        },
        "A-leakage01": {
          "name": "A-leakage01"
        },
        "A-leakage02": {
          "name": "A-leakage02"
        },
        "A-leakage03": {
          "name": "A-leakage03"
        },
        "A-leakage04": {
          "name": "A-leakage04"
        },
        "A-leakage_01": {
          "name": "A-leakage_01"
        },
        "A-leakage_02": {
          "name": "A-leakage_02"
        },
        "A-leakage_03": {
          "name": "A-leakage_03"
        },
        "A-leakage_04": {
          "name": "A-leakage_04"
        },
        "A-notification_time_01": {
          "name": "A-notification_time_01",
          "value": "Fri, 02 Feb 2024 19:24:47 GMT"
        },
        "A-notification_time_02": {
          "name": "A-notification_time_02"
        },
        "A-notification_time_03": {
          "name": "A-notification_time_03"
        },
        "A-notification_time_04": {
          "name": "A-notification_time_04"
        },
        "A-notification_type_01": {
          "name": "A-notification_type_01",
          "value": 21
        },
        "A-notification_type_02": {
          "name": "A-notification_type_02"
        },
        "A-notification_type_03": {
          "name": "A-notification_type_03"
        },
        "A-notification_type_04": {
          "name": "A-notification_type_04"
        },
        "A-sensor_id": {
          "name": "A-sensor_id",
          "value": 1
        }
      },
      "variables": [],
      "width": "100px"
    }
  ],
  "refresh": "5s",
  "schemaVersion": 37,
  "style": "dark",
  "tags": [],
  "templating": {
    "list": []
  },
  "time": {
    "from": "now-2d",
    "to": "now"
  },
  "timepicker": {},
  "timezone": "",
  "title": "漏水センサダッシュボード",
  "uid": "r-MfneKSz2",
  "version": 6,
  "weekStart": ""
}

${IMSI}を先ほどコピーしたIMSI番号で置き換える。
sedコマンドや、テキストエディタの置換機能を利用する。

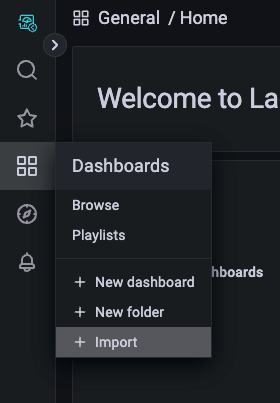

Dashboardのインポート

${IMSI}書き換え後jsonをクリップボードに貼り付け、「import vei panel json」にペーストし、「Load」

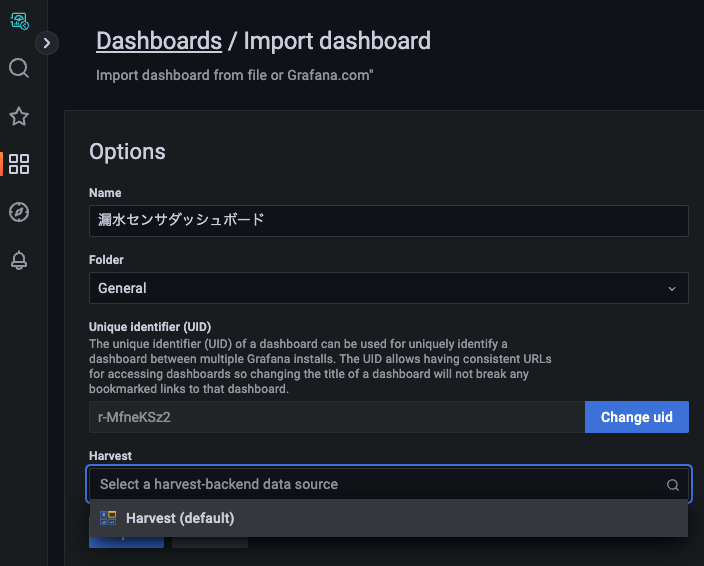

Harvestを選択して「Import」

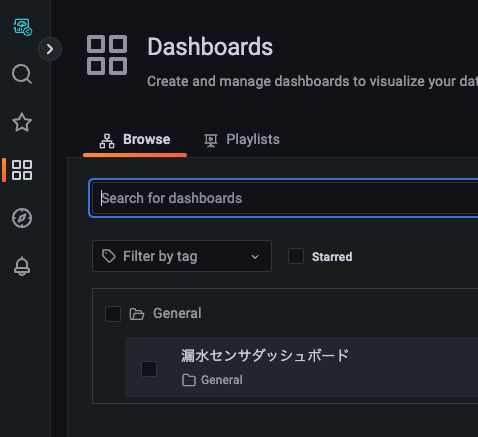

Inport直後にエラーが出るが、左側メニューのdashboardsボタンをクリックすると、「漏水センサダッシュボード」ができている。

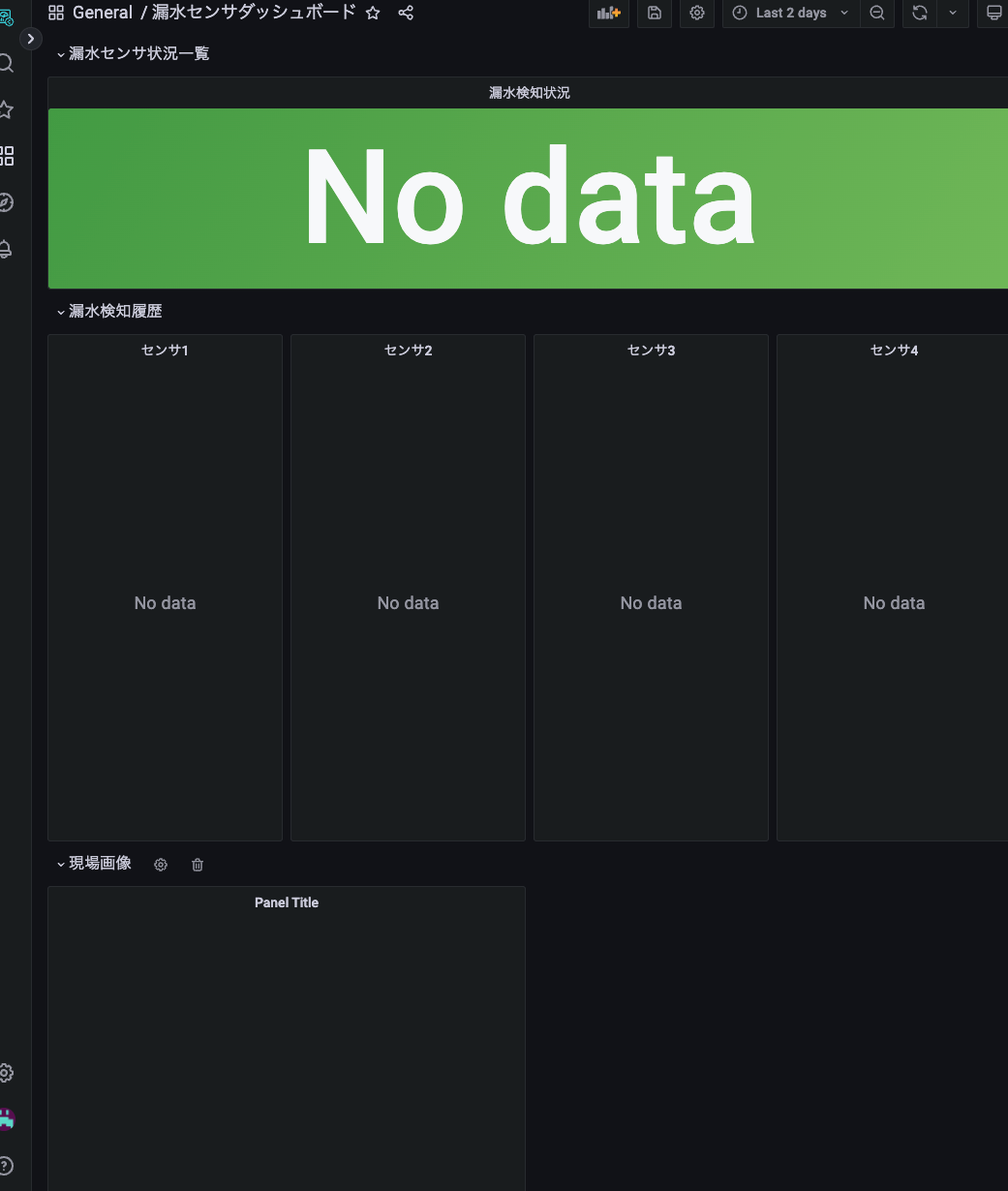

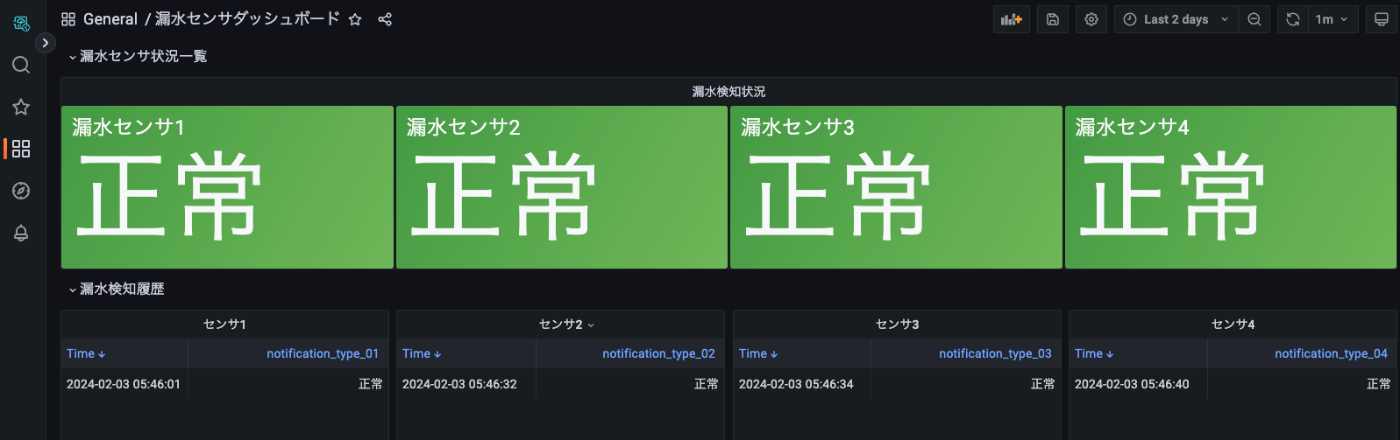

データが入っていない場合のダッシュボードの表示

データ送信が開始されると、ダッシュボードにデータが表示される。

Alert設定

Alert rulesの設定(漏水検知)

「Alerting」 -> 「Alert rules」

Nes alert ruleをクリック

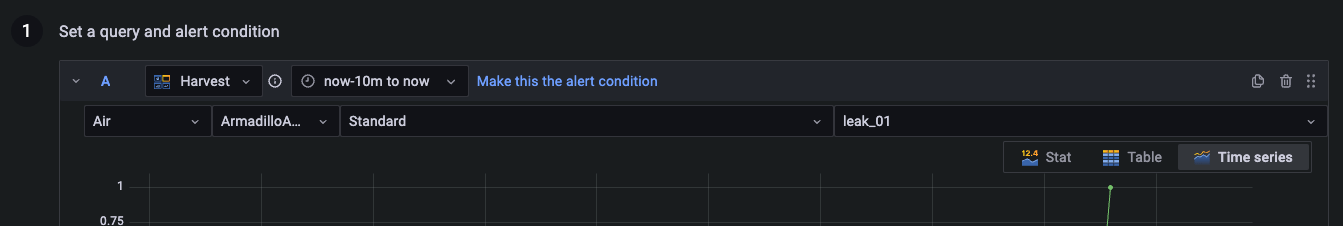

「1  Set a query and alert condition」のAの系列は左から順番に、Air、SIM管理画面のSIMの名前、Standard、leak_01を選択する。

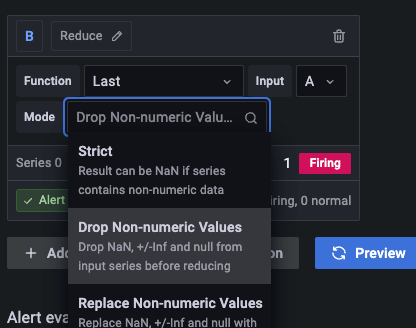

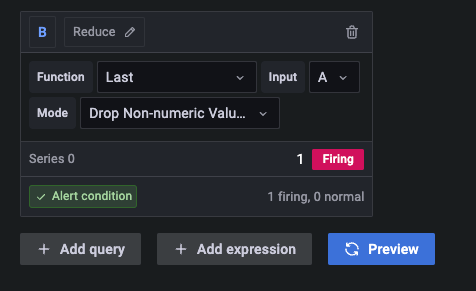

Bの系列は、
Function:Last
Input:A
Mode:Drop Non-numeric Values
として、Alert conditionをクリックする

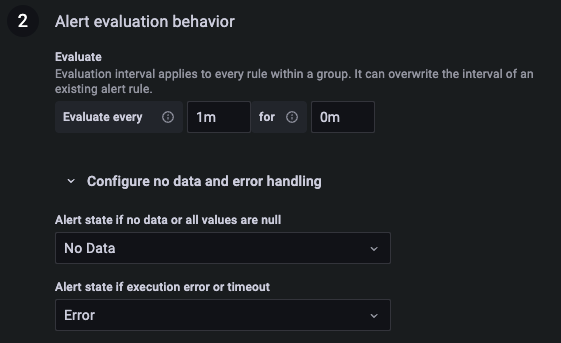

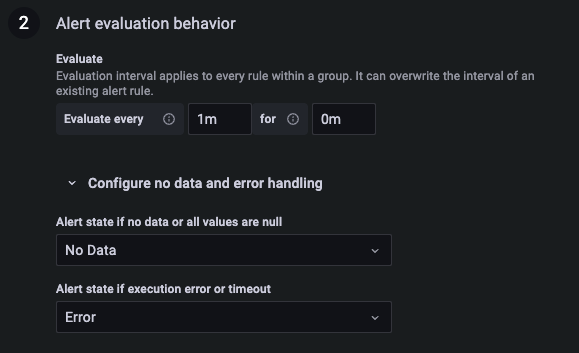

「2 Alert evaluation behavior」は以下のように設定
Evaruate every :1m
for : 0m
Alert state if no data or all values are null : No Data
Alert state if execution error or timeout : Error

「3 Add details for your alert」は以下のように設定
Rule name : 漏水検知1
Folder : 「+add new」からLeakage sensor

Group : No.1
Summary : センサ1で漏水を検知しました
Dashboard UID : r-MfneKSz2
Panel ID : 2

「4 Notifications」のCustom Labelsは
LabelにSensor1と入力し、Enter
= leakを入力し、Enter

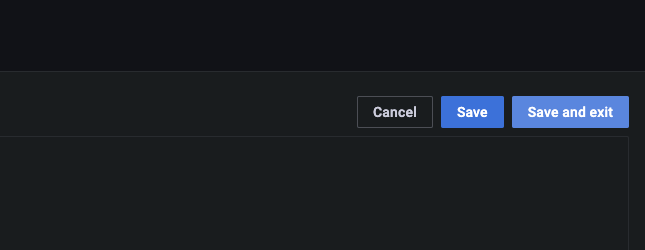

Save and exit

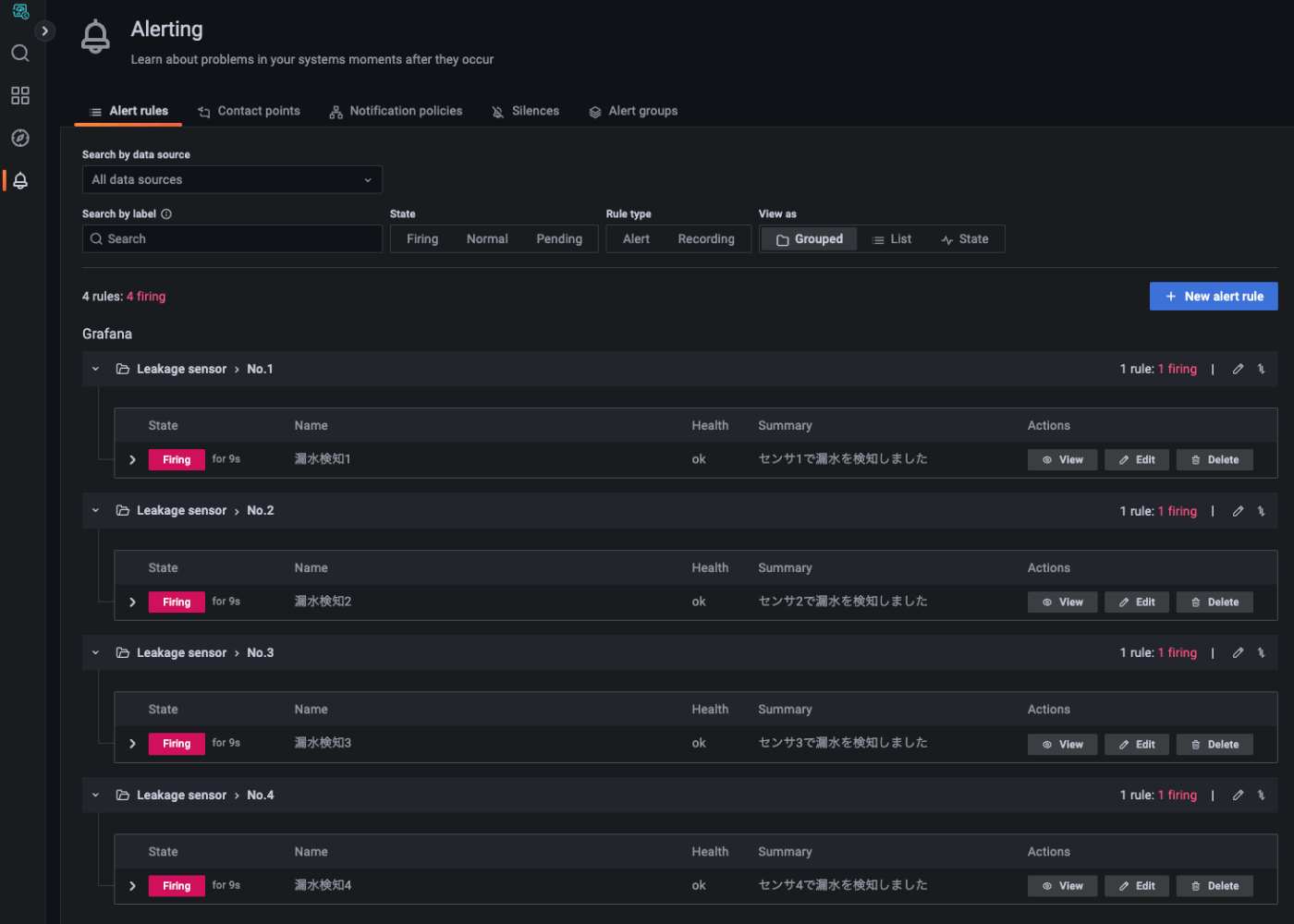

同様に他3つのセンサも設定を行う

Alert rulesの設定(死活監視)

Nes alert ruleをクリック

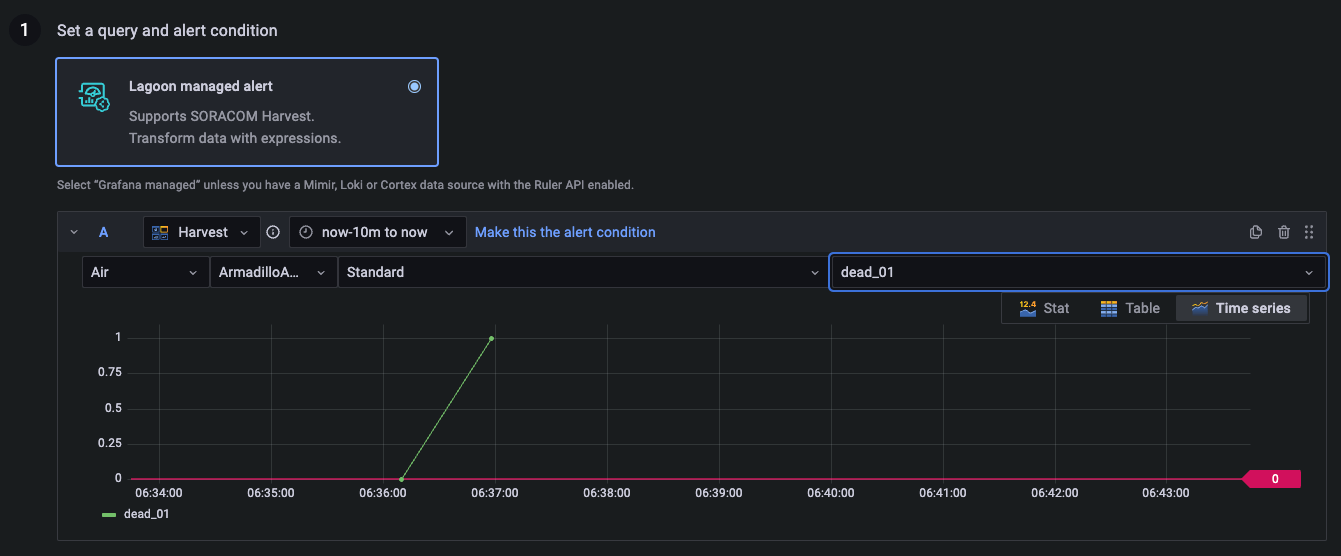

「1  Set a query and alert condition」のAの系列は左から順番に、Air、SIM管理画面のSIMの名前、Standard、dead_01を選択する。

Bの系列は、先ほどと全く同じで、
Function:Last
Input:A
Mode:Drop Non-numeric Values
として、Alert conditionをクリックする

「2 Alert evaluation behavior」の設定は先ほどと全く同じ

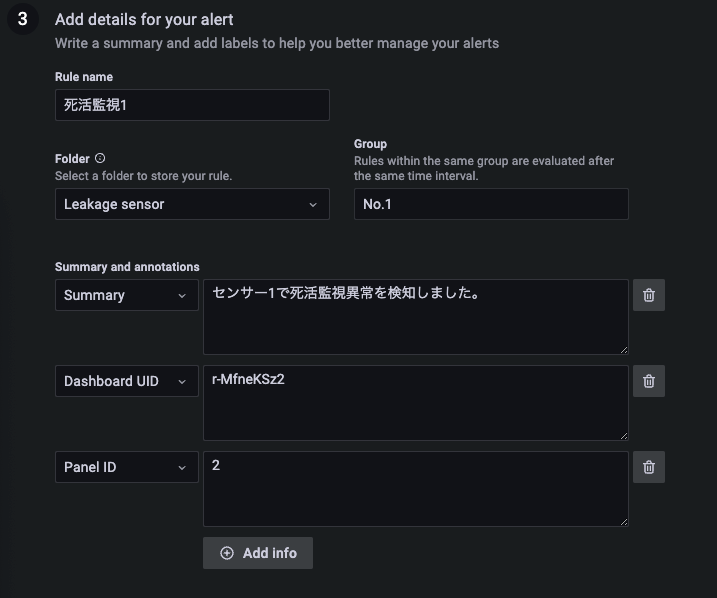

「3 Add details for your alert」は以下のように設定
Rule name : 死活監視1
Folder :Leakage sensor
Group : No.1
Summary : センサ1で漏水を検知しました
Dashboard UID : r-MfneKSz2
Panel ID : 2

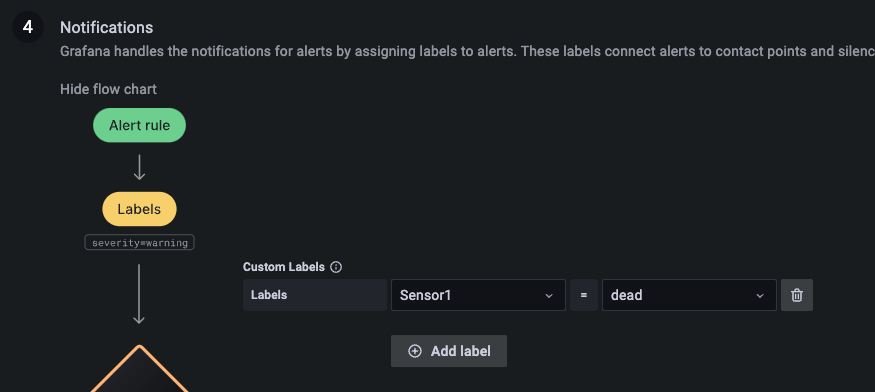

「4 Notifications」のCustom Labelsは
LabelにSensor1を選択
= deadを入力し、Enter

Save and exit

同様に他3つのセンサも設定を行う

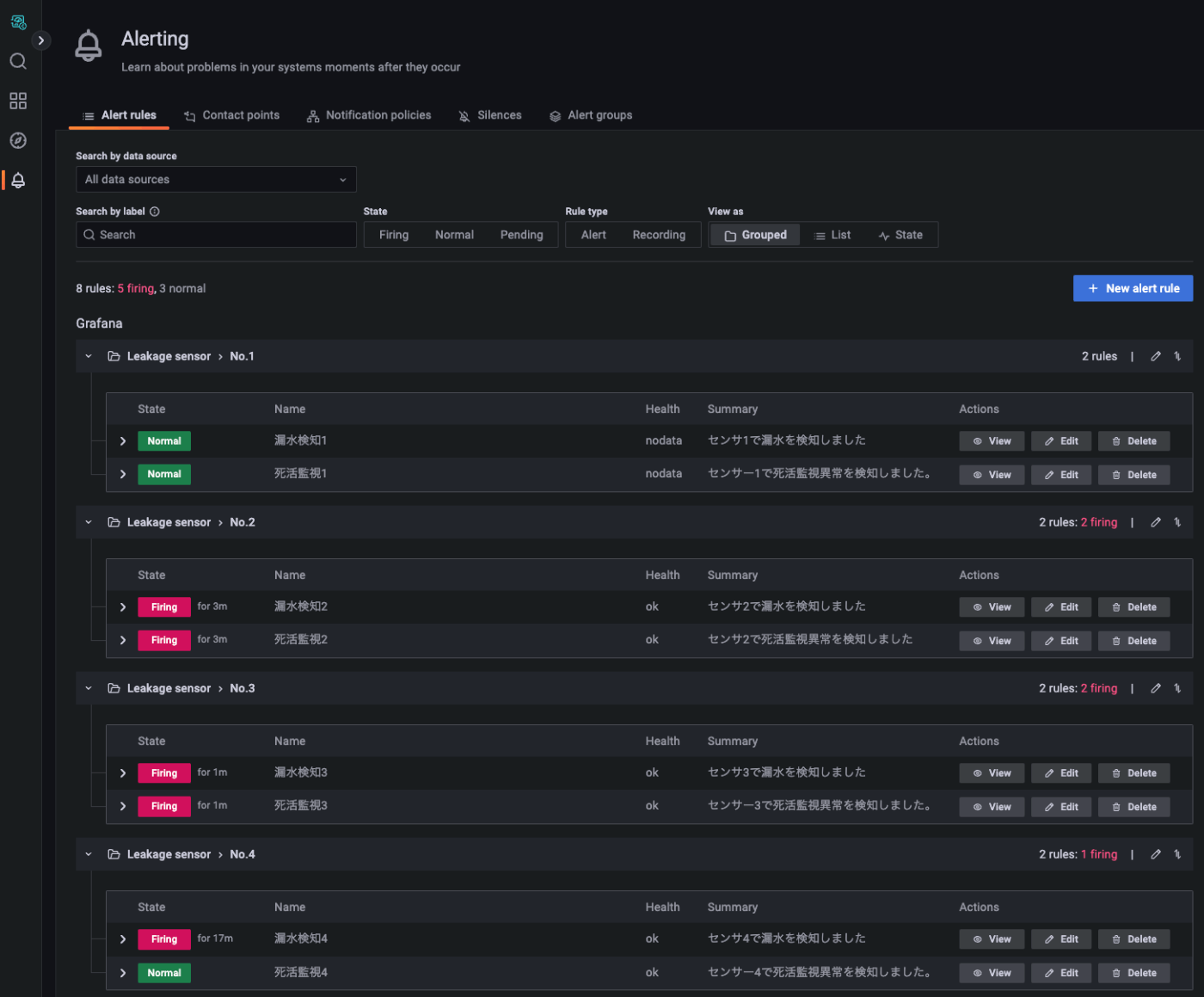

全部で合計8つのルールができたらOKです。

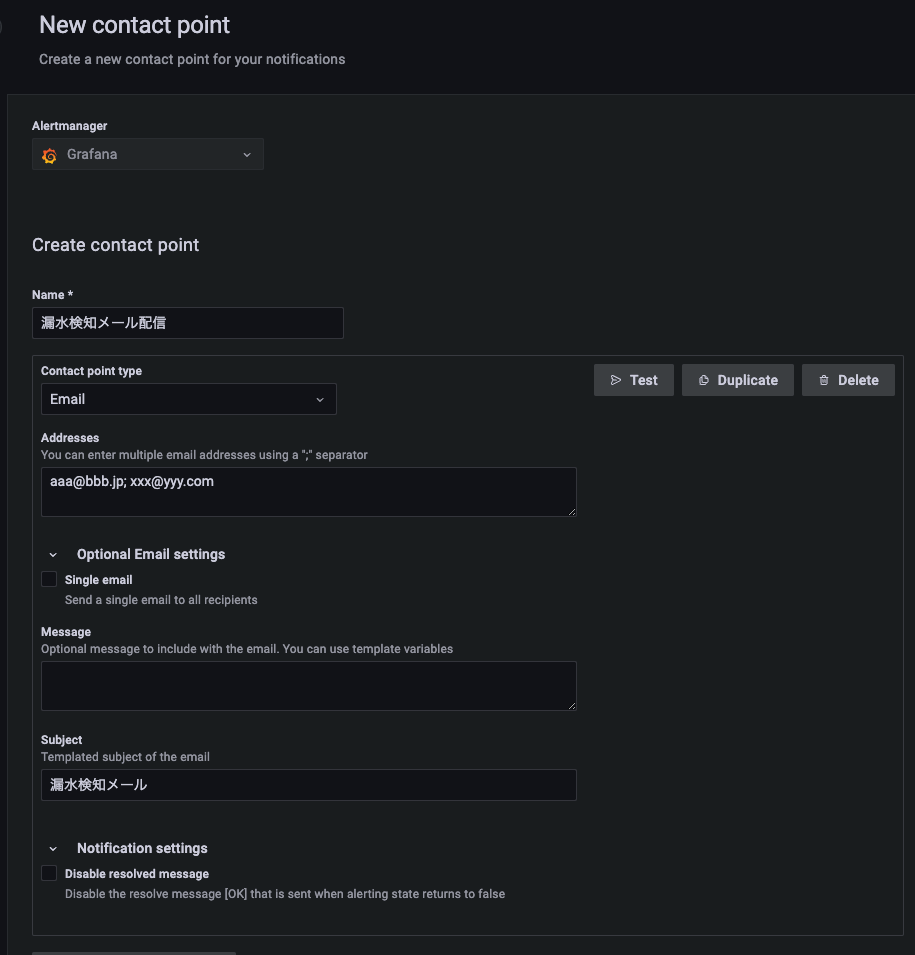

contact points(メール送付先と本文)の設定

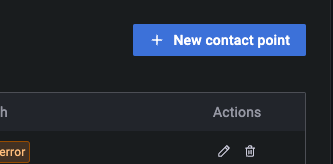

「+ New contact point をクリック」

Name:何の配信先かわかりやすい名前
Contact point type:今回はメールなのでEmail
Addresses:セミコロン区切りで、メールアドレスを入力
subject:メールの件名(今回は、漏水検知メール)
その他は空欄(デフォルトの設定が反映される)

「Save contact point」をクリックして保存

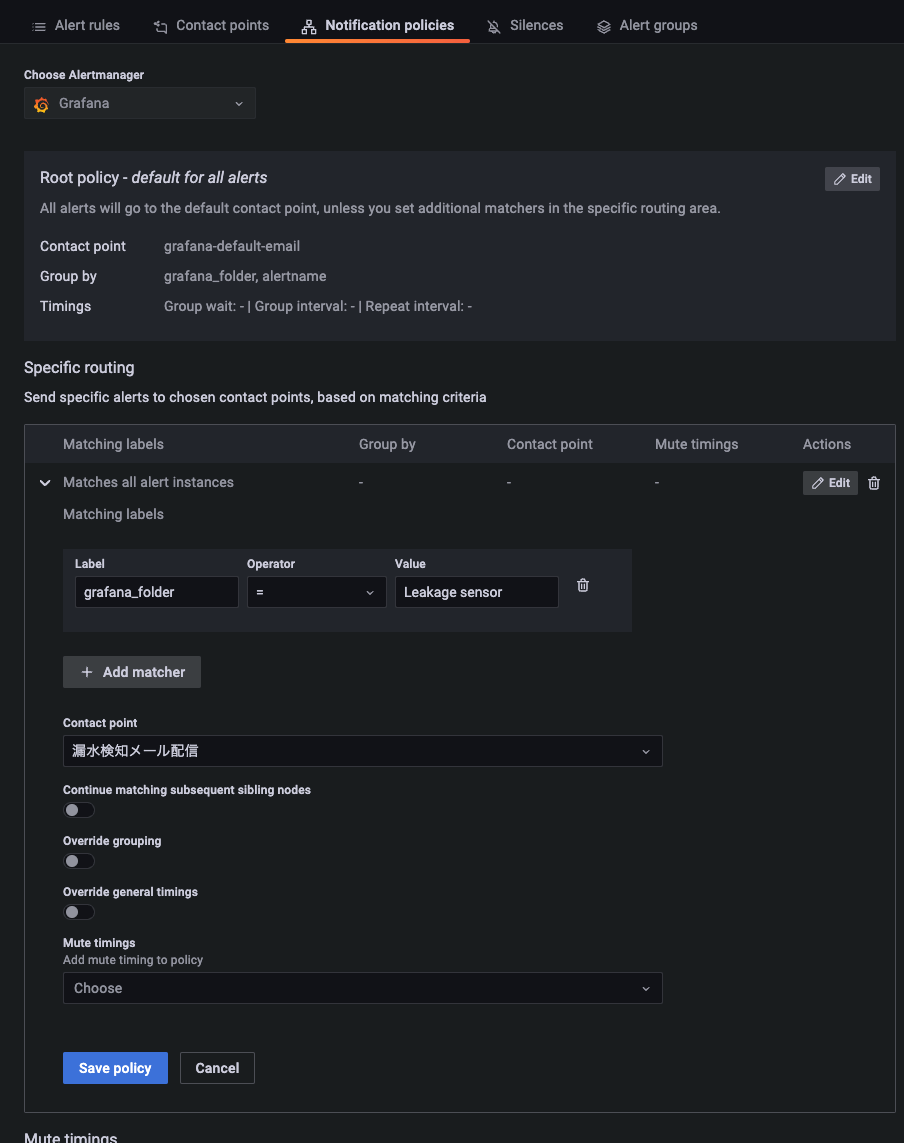

notification policies()の設定

以下を設定
label : grafana_folder
Operator : =
Value : Leakage sensor
Contact point : 漏水検知メール配信

「Save policy」をクリック

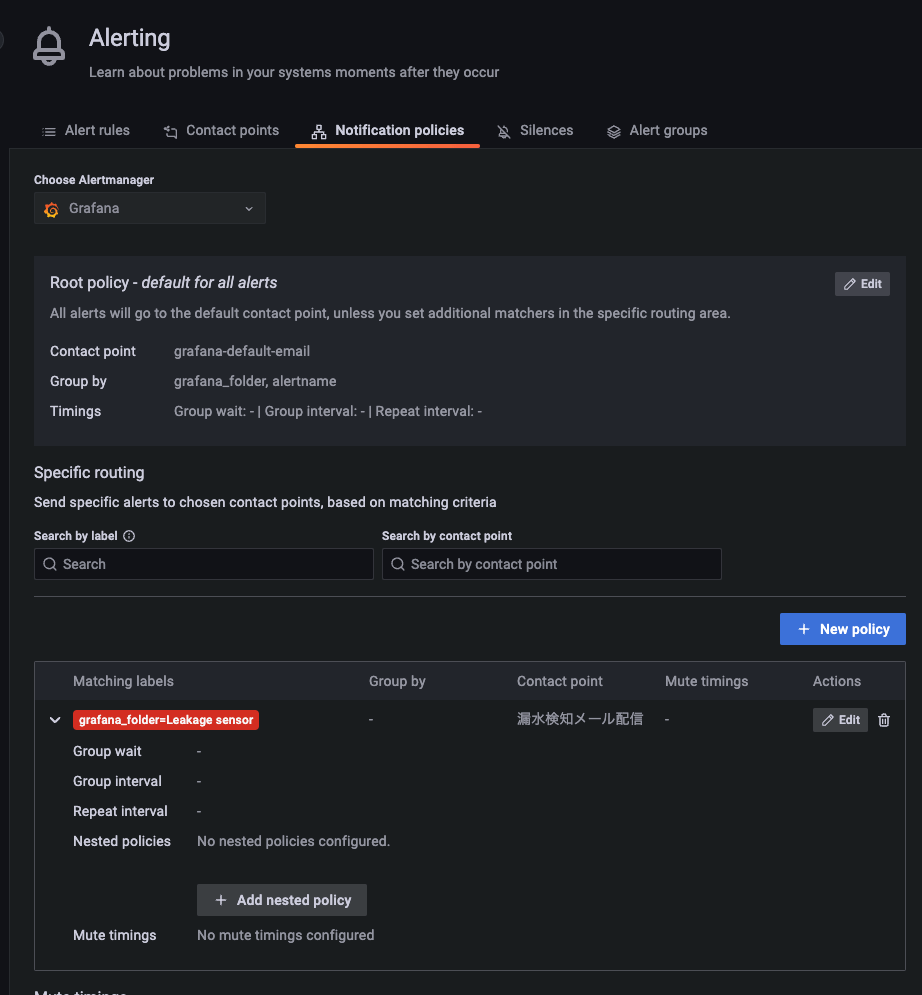

以下のような状態になれば設定完了

GitHubで編集を提案

Discussion
