Open2022/05/18にコメント追加14

REST APIをTypescript（NestJS）でつくる

環境構築

nest new backend
# select npm
cd backend
npm run start

REST API構築

nest g resource tasks

VSCode拡張機能

ESLintとPrettierを入れる

settings.jsonを開いて、以下のように変更する。

settings.json

{
    "[typescript]": {
        "editor.defaultFormatter": "esbenp.prettier-vscode" // フォーマッタをprettierに指定
    },
    "editor.formatOnSave": true, // 保存時にフォーマット
 }

formatter設定

.eslintrc.js

module.exports = {
  parser: '@typescript-eslint/parser',
  parserOptions: {
    project: 'tsconfig.json',
    tsconfigRootDir: __dirname,
    sourceType: 'module',
  },
  plugins: ['@typescript-eslint/eslint-plugin'],
  extends: [
    'plugin:@typescript-eslint/recommended',
    'plugin:prettier/recommended',
  ],
  root: true,
  env: {
    node: true,
    jest: true,
  },
  ignorePatterns: ['.eslintrc.js'],
  rules: {
    '@typescript-eslint/interface-name-prefix': 'off',
    '@typescript-eslint/explicit-function-return-type': 'off',
    '@typescript-eslint/explicit-module-boundary-types': 'off',
    '@typescript-eslint/no-explicit-any': 'off',
  },
};

.prettierrc

{
    "singleQuote": true,
    "trailingComma": "es5",
    "semi": true,
    "tabWidth": 2
}

dto

npm i --save class-validator class-transformer

tasks/dto/create-task.dto.ts

import { IsNotEmpty } from 'class-validator';

export class CreateTaskDto {
  @IsNotEmpty()
  title: string;

  @IsNotEmpty()
  description: string;
}

get-tasks-filter.dto.ts

import { IsEnum, IsOptional, IsString } from 'class-validator';
import { TaskStatus } from '../task-status.enum';

export class GetTasksFilterDto {
  @IsOptional()
  @IsEnum(TaskStatus)
  status?: TaskStatus;

  @IsOptional()
  @IsString()
  search?: string;
}

update-tasks-stautus.dto.ts

import { IsEnum } from 'class-validator';
import { TaskStatus } from '../task-status.enum';

export class UpdateTaskStatusDto {
  @IsEnum(TaskStatus)
  status: TaskStatus;
}

TypeORM

npm install --save @nestjs/typeorm typeorm@0.2 mysql2

tasks.repository.ts

import { EntityRepository, Repository } from 'typeorm';
import { CreateTaskDto } from './dto/create-task.dto';
import { GetTasksFilterDto } from './dto/get-tasks-filter.dto';
import { TaskStatus } from './task-status.enum';
import { Task } from './entities/task.entity';

@EntityRepository(Task)
export class TasksRepository extends Repository<Task> {
  async getTasks(filterDto: GetTasksFilterDto): Promise<Task[]> {
    const { status, search } = filterDto;

    const query = this.createQueryBuilder('task');

    if (status) {
      query.andWhere('task.status = :status', { status });
    }

    if (search) {
      query.andWhere(
        'LOWER(task.title) LIKE LOWER(:search) OR LOWER(task.description) LIKE LOWER(:search)',
        { search: `%${search}%` }
      );
    }

    const tasks = await query.getMany();
    return tasks;
  }

  async createTask(createTaskDto: CreateTaskDto): Promise<Task> {
    const { title, description } = createTaskDto;

    const task = this.create({
      title,
      description,
      status: TaskStatus.OPEN,
    });

    await this.save(task);
    return task;
  }
}

Controller

tasks.controller.ts

import {
  Body,
  Controller,
  Delete,
  Get,
  Param,
  Patch,
  Post,
  Query,
} from '@nestjs/common';
import { CreateTaskDto } from './dto/create-task.dto';
import { GetTasksFilterDto } from './dto/get-tasks-filter.dto';
import { UpdateTaskStatusDto } from './dto/update-task-status.dto';
import { TaskStatus } from './task-status.enum';
import { Task } from './entities/task.entity';
import { TasksService } from './tasks.service';

@Controller('tasks')
export class TasksController {
  constructor(private tasksService: TasksService) {}

  @Get()
  getTasks(@Query() filterDto: GetTasksFilterDto): Promise<Task[]> {
    return this.tasksService.getTasks(filterDto);
  }

  @Get('/:id')
  getTaskById(@Param('id') id: string): Promise<Task> {
    return this.tasksService.getTaskById(id);
  }

  @Post()
  createTask(@Body() createTaskDto: CreateTaskDto): Promise<Task> {
    return this.tasksService.createTask(createTaskDto);
  }

  @Delete('/:id')
  deleteTask(@Param('id') id: string): Promise<void> {
    return this.tasksService.deleteTask(id);
  }

  @Patch('/:id/status')
  updateTaskStatus(
    @Param('id') id: string,
    @Body() updateTaskStatusDto: UpdateTaskStatusDto
  ): Promise<Task> {
    const { status } = updateTaskStatusDto;
    return this.tasksService.updateTaskStatus(id, status);
  }
}

Service

tasks.service.ts

import { Injectable, NotFoundException } from '@nestjs/common';
import { TaskStatus } from './task-status.enum';
import { CreateTaskDto } from './dto/create-task.dto';
import { GetTasksFilterDto } from './dto/get-tasks-filter.dto';
import { TasksRepository } from './tasks.repository';
import { InjectRepository } from '@nestjs/typeorm';
import { Task } from './entities/task.entity';

@Injectable()
export class TasksService {
  constructor(
    @InjectRepository(TasksRepository)
    private tasksRepository: TasksRepository
  ) {}

  getTasks(filterDto: GetTasksFilterDto): Promise<Task[]> {
    return this.tasksRepository.getTasks(filterDto);
  }

  async getTaskById(id: string): Promise<Task> {
    const found = await this.tasksRepository.findOne(id);

    if (!found) {
      throw new NotFoundException(`Task with ID "${id}" not found`);
    }

    return found;
  }

  createTask(createTaskDto: CreateTaskDto): Promise<Task> {
    return this.tasksRepository.createTask(createTaskDto);
  }

  async deleteTask(id: string): Promise<void> {
    const result = await this.tasksRepository.delete(id);

    if (result.affected === 0) {
      throw new NotFoundException(`Task with ID "${id}" not found`);
    }
  }

  async updateTaskStatus(id: string, status: TaskStatus): Promise<Task> {
    const task = await this.getTaskById(id);

    task.status = status;
    await this.tasksRepository.save(task);

    return task;
  }
}

Module

tasks.module.ts

import { Module } from '@nestjs/common';
import { TypeOrmModule } from '@nestjs/typeorm';
import { TasksController } from './tasks.controller';
import { TasksRepository } from './tasks.repository';
import { TasksService } from './tasks.service';

@Module({
  imports: [TypeOrmModule.forFeature([TasksRepository])],
  controllers: [TasksController],
  providers: [TasksService],
})
export class TasksModule {}

Docker

ローカルでテストするMySQLコンテナを立ち上げる。

docker-compose.yml

version: "3"

services:
  mysql:
    image: mysql:5.7
    container_name: mysql_container
    environment:
      MYSQL_ROOT_PASSWORD: root
      MYSQL_DATABASE: test
      TZ: "Asia/Tokyo"
    ports:
      - "3306:3306"

docker compose up

APIテスト

DBコンテナおよびバックエンドを立ち上げる。

docker compose up
npm run start

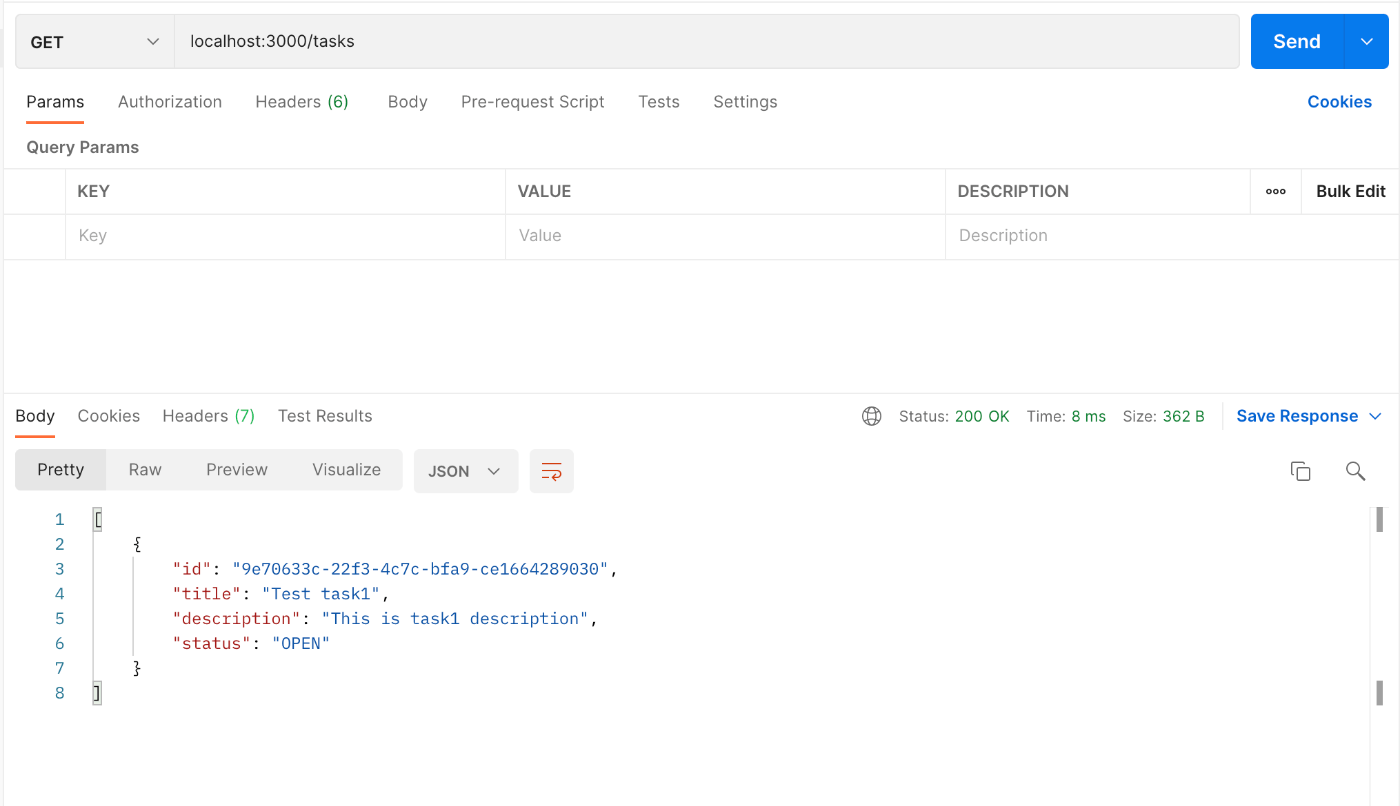

PostManでテスト

POST

GET

POSTで投入したデータを確認できた。

DELETE

GET

DELETEも正常に動作したことを確認。

環境変数準備

npm i --save @nestjs/config
touch .env.stage.prod
touch .env.stage.dev

app.module.ts

...
@Module({
  imports: [
    ConfigModule.forRoot({
      envFilePath: [`.env.stage.${process.env.STAGE}`],
    }),
 ...

DB接続情報を外だし

.env.stage.dev

DB_HOST=localhost
DB_PORT=3306
DB_USERNAME=root
DB_PASSWORD=root
DB_DATABASE=test

app.module.ts


...

@Module({
  imports: [
    ConfigModule.forRoot({
      envFilePath: [`.env.stage.${process.env.STAGE}`],
    }),
    TasksModule,
    TypeOrmModule.forRootAsync({
      imports: [ConfigModule],
      inject: [ConfigService],
      useFactory: async (configService: ConfigService) => ({
        type: 'mysql',
        autoLoadEntities: true,
        synchronize: true,
        host: configService.get('DB_HOST'),
        port: configService.get('DB_PORT'),
        username: configService.get('DB_USERNAME'),
        password: configService.get('DB_PASSWORD'),
        database: configService.get('DB_DATABASE'),
      }),
    }),
  ],
})
...

Schema Validation

公式docs参照

npm i --save joi

config.schema.ts

import * as Joi from 'joi';

export const configValidationSchema = Joi.object({
  NODE_ENV: Joi.string().valid('dev', 'prod').default('dev'),
  STAGE: Joi.string().required(),
  DB_HOST: Joi.string().required(),
  DB_PORT: Joi.string().default(3306).required(),
  DB_USERNAME: Joi.string().required(),
  DB_PASSWORD: Joi.string().required(),
  DB_DATABASE: Joi.string().required(),
});

app.module.ts

import { configValidationSchema } from './config.schema';
...
@Module({
  imports: [
    ConfigModule.forRoot({
      envFilePath: [`.env.stage.${process.env.STAGE}`],
      validationSchema: configValidationSchema,
    })
...

Heroku セットアップ

Heroku CLIをインストール

npm i -g heroku
heroku -v

Heroku ログイン

heroku login

できた

Heroku上に無料のMySQLを用意する

heroku addons:create cleardb:ignite -a [Heroku App Name]

Herokuにデプロイするためにソースを修正

main.ts

import { ValidationPipe } from '@nestjs/common';
import { NestFactory } from '@nestjs/core';
import { AppModule } from './app.module';

async function bootstrap() {
  const app = await NestFactory.create(AppModule);
  app.useGlobalPipes(new ValidationPipe());
  const port = process.env.PORT;
  await app.listen(port);
}
bootstrap();

config.schema.ts

import * as Joi from 'joi';

export const configValidationSchema = Joi.object({
  PORT: Joi.number().default(3000),
  NODE_ENV: Joi.string().valid('dev', 'prod').default('dev'),
  STAGE: Joi.string().required(),
  DB_HOST: Joi.string().required(),
  DB_PORT: Joi.string().default(3306).required(),
  DB_USERNAME: Joi.string().required(),
  DB_PASSWORD: Joi.string().required(),
  DB_DATABASE: Joi.string().required(),
});

app.module.ts

import { configValidationSchema } from './config.schema';
import { Module } from '@nestjs/common';
import { ConfigModule, ConfigService } from '@nestjs/config';
import { TypeOrmModule } from '@nestjs/typeorm';
import { TasksModule } from './tasks/tasks.module';

@Module({
  imports: [
    ConfigModule.forRoot({
      envFilePath: [`.env.stage.${process.env.STAGE}`],
      validationSchema: configValidationSchema,
    }),
    TasksModule,
    TypeOrmModule.forRootAsync({
      imports: [ConfigModule],
      inject: [ConfigService],
      useFactory: async (configService: ConfigService) => {
        const isProduction = configService.get('STAGE') === 'prod';

        return {
          ssl: isProduction,
          extra: {
            ssl: isProduction ? { rejectUnauthorized: false } : null,
          },
          type: 'mysql',
          autoLoadEntities: true,
          synchronize: true,
          host: configService.get('DB_HOST'),
          port: configService.get('DB_PORT'),
          username: configService.get('DB_USERNAME'),
          password: configService.get('DB_PASSWORD'),
          database: configService.get('DB_DATABASE'),
        };
      },
    }),
  ],
})
export class AppModule {}

HerokuのリモートGitリポジトリを追加する

heroku git:remote -a [Heroku App Name]

HerokuのConfigを変更する

heroku config:set NPM_CONFIG_PRODUCTION=false
heroku config:set NODE_ENV=production
heroku config:set STAGE=prod
heroku config:set DB_HOST=us-cdbr-east-05.cleardb.net
heroku config:set DB_PORT=3306
heroku config:set DB_USER=bac****
heroku config:set DB_PASSWORD=****
heroku config:set DB_DATABASE=heroku_ba***

Herokuデプロイ

Herokuの実行ファイルを作成する

echo "web: npm run start:prod" > Procfile

これらの変更をGitコミット

git add .
git commit -m "Heroku Deploy"

HerokuのリモートGitリポジトリにpush

git push heroku master

ログを確認する

heroku logs --tail

OpenAPI

Install

npm install --save @nestjs/swagger swagger-ui-express

main.tsにコードを追記

main.ts


  const config = new DocumentBuilder()
    .setTitle('API example')
    .setDescription('API description')
    .setVersion('1.0')
    .addTag('poc')
    .build();
  const document = SwaggerModule.createDocument(app, config);
  SwaggerModule.setup('api', app, document);
