netbox 3.4.4 on Kubernetes

t_umet_ume

環境情報

  • Kubernetes:v1.24.5
    ※kubeadmで構築
  • helm:v3.10.3
  • Ingress Controller:nginx-ingress controller
  • netbox:v3.4.4
t_umet_ume
helm-repo登録
$ helm repo add bootc https://charts.boo.tc
"bootc" has been added to your repositories

$ helm repo update
Hang tight while we grab the latest from your chart repositories...
...Successfully got an update from the "bootc" chart repository
Update Complete. ?Happy Helming!?
values.yamlを取得して編集
$ helm pull bootc/netbox --untar
$ cd netbox
$ vim values.yaml
  • 利用コンテナイメージと ingress の設定を編集
values.yaml
@@ -8,7 +8,7 @@
   repository: netboxcommunity/netbox
   pullPolicy: IfNotPresent
   # Overrides the image tag whose default is the chart appVersion.
-  tag: ""
+  tag: "v3.4.4"

 # You can also use an existing secret for the superuser password and API token
 # See `existingSecret` for details
@@ -540,13 +540,13 @@
   # - 10.0.0.0/8

 ingress:
-  enabled: false
-  className: ""
+  enabled: true
+  className: "nginx"
   annotations: {}
     # kubernetes.io/ingress.class: nginx
     # kubernetes.io/tls-acme: "true"
   hosts:
-    - host: chart-example.local
+    - host: netbox.192-168-10-51.nip.io
       paths:
         # You can manually specify the service name and service port if
         # required. This could be useful if for exemple you are using the AWS
t_umet_ume
netboxデプロイ
$ kc create ns netbox2023
namespace/netbox2023 created

$ helm install netbox bootc/netbox -n netbox2023 -f values.yaml
NAME: netbox
LAST DEPLOYED: Thu Feb 16 18:01:47 2023
NAMESPACE: netbox2023
STATUS: deployed
REVISION: 1
NOTES:
NetBox should be available at the following URL(s) shortly:

  http://netbox.192-168-10-51.nip.io/

$  kubectl get all
NAME                                 READY   STATUS    RESTARTS        AGE
pod/netbox-6968449995-9r4h2          1/1     Running   0               2m40s
pod/netbox-postgresql-0              1/1     Running   0               2m40s
pod/netbox-redis-master-0            1/1     Running   0               2m40s
pod/netbox-redis-replicas-0          1/1     Running   0               2m40s
pod/netbox-redis-replicas-1          1/1     Running   0               114s
pod/netbox-redis-replicas-2          1/1     Running   0               77s
pod/netbox-worker-579b5c4bf7-j72d8   1/1     Running   2 (2m14s ago)   2m40s

NAME                                 TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)    AGE
service/netbox                       ClusterIP   10.108.90.167    <none>        80/TCP     2m40s
service/netbox-postgresql            ClusterIP   10.106.192.130   <none>        5432/TCP   2m40s
service/netbox-postgresql-headless   ClusterIP   None             <none>        5432/TCP   2m40s
service/netbox-redis-headless        ClusterIP   None             <none>        6379/TCP   2m40s
service/netbox-redis-master          ClusterIP   10.105.71.127    <none>        6379/TCP   2m40s
service/netbox-redis-replicas        ClusterIP   10.104.101.188   <none>        6379/TCP   2m40s

NAME                            READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/netbox          1/1     1            1           2m40s
deployment.apps/netbox-worker   1/1     1            1           2m40s

NAME                                       DESIRED   CURRENT   READY   AGE
replicaset.apps/netbox-6968449995          1         1         1       2m40s
replicaset.apps/netbox-worker-579b5c4bf7   1         1         1       2m40s

NAME                                     READY   AGE
statefulset.apps/netbox-postgresql       1/1     2m40s
statefulset.apps/netbox-redis-master     1/1     2m40s
statefulset.apps/netbox-redis-replicas   3/3     2m40s

NAME                                SCHEDULE    SUSPEND   ACTIVE   LAST SCHEDULE   AGE
cronjob.batch/netbox-housekeeping   0 0 * * *   False     0        <none>          2m40s

$ kubectl get pvc
NAME                                 STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS      AGE
data-netbox-postgresql-0             Bound    pvc-bf0bba9b-ab2e-4775-aae3-0189d05f27b4   8Gi        RWO            rook-ceph-block   3m2s
netbox-media                         Bound    pvc-4b2e8ad1-ba6d-41ba-bf2a-ca316c64466d   1Gi        RWO            rook-ceph-block   3m2s
redis-data-netbox-redis-master-0     Bound    pvc-1a858b45-9391-40be-9b25-f00aa23f6cb6   8Gi        RWO            rook-ceph-block   3m2s
redis-data-netbox-redis-replicas-0   Bound    pvc-5ec63db9-a7c5-4850-98e2-1d30a9e2345b   8Gi        RWO            rook-ceph-block   3m2s
redis-data-netbox-redis-replicas-1   Bound    pvc-5265b992-ee2f-4e64-89f0-6a774e1cc5ab   8Gi        RWO            rook-ceph-block   2m16s
redis-data-netbox-redis-replicas-2   Bound    pvc-4452c2b2-18c6-446b-aa8c-73e052d0fe3d   8Gi        RWO            rook-ceph-block   99s

$ kubectl get ing
NAME     CLASS   HOSTS                         ADDRESS          PORTS   AGE
netbox   nginx   netbox.192-168-10-51.nip.io   10.106.174.233   80      3m4s
t_umet_ume

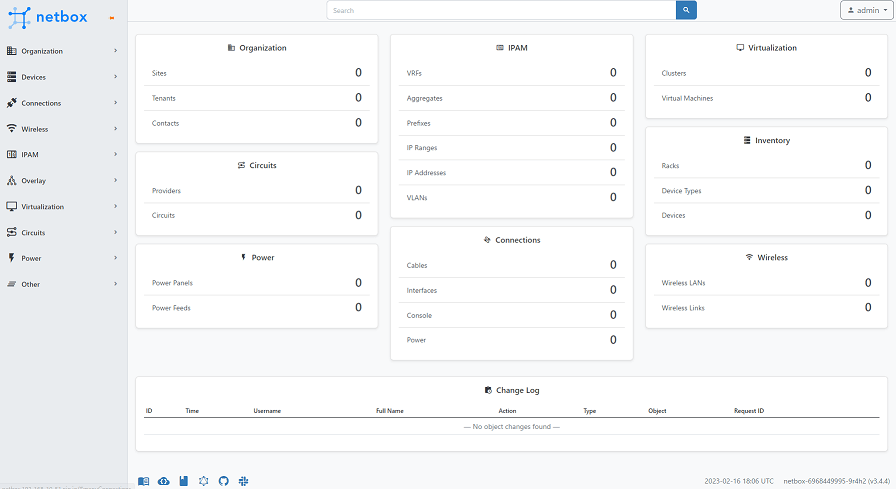

  • ingress で指定した URL でアクセスできました。
  • デフォルトのユーザー/パスワードは admin/admin
