Access another repository using SSH deploy key on GitHub Actions

2022/09/20に公開

Sample Application

FYI:

0. Prerequisite

  • Install Apache Maven
  • Install Azul JDK(for Apple Ailicon Mac)

1. Bootstrapping the project

% mvn io.quarkus.platform:quarkus-maven-plugin:2.12.2.Final:create \
    -DprojectGroupId=org.acme \
    -DprojectArtifactId=getting-started \
    -Dextensions="resteasy-reactive"
...
...
% ls getting-started
README.md       mvnw.cmd        src
mvnw            pom.xml         target
%

2. Running the application

% ./mvnw quarkus:dev

3. Packaging and run the application

% ./mvnw clean package
% java -jar target/quarkus-app/quarkus-run.jar

GitHub Actions

FYI:
https://docs.github.com/en/developers/overview/managing-deploy-keys#deploy-keys
https://docs.github.com/en/rest/pulls/pulls#create-a-pull-request

Screehshot

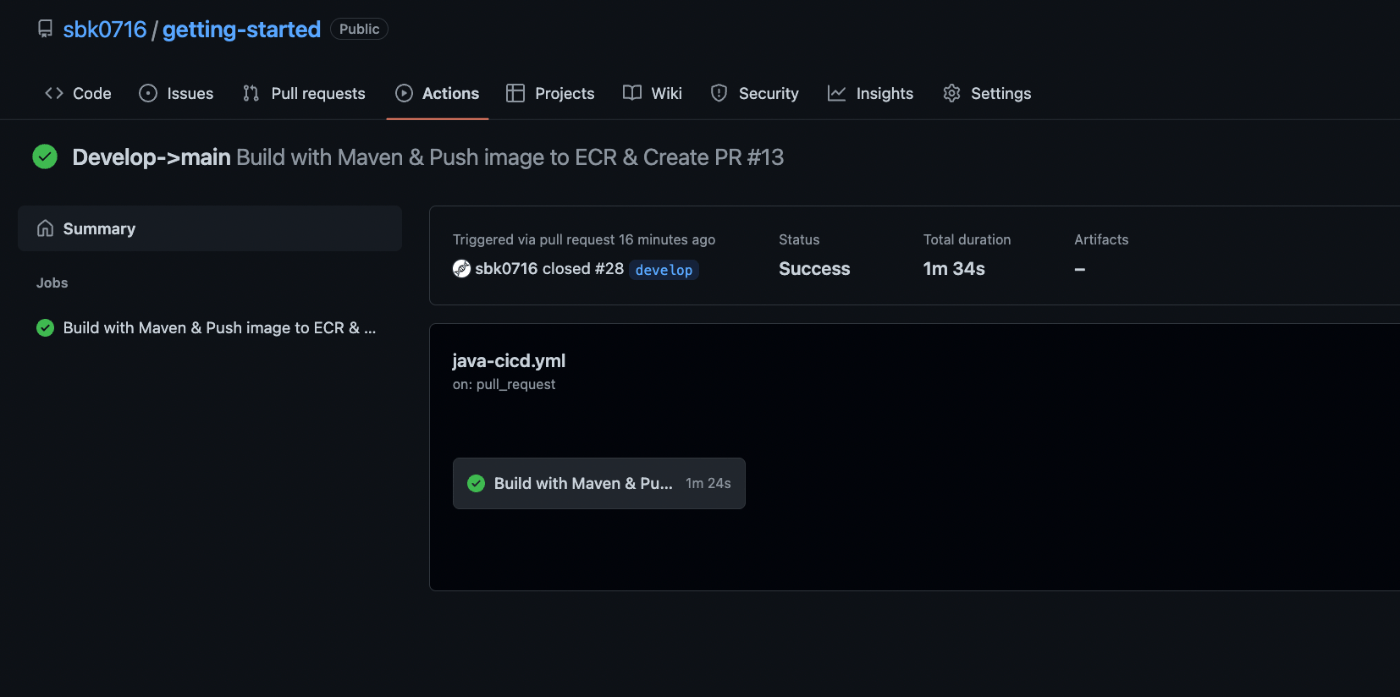

Workflow

Workflow1

Workflow2

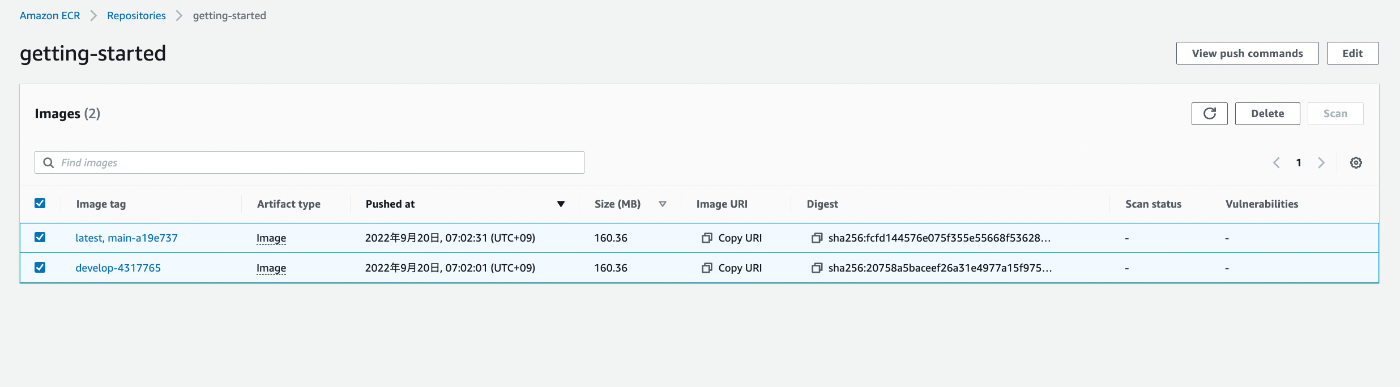

Push Image to ECR

Push Image to ECR

Create Pull Request

Create Pull Request

Slack Notification

Slack Notification

Workflow

name: 'Build with Maven & Push image to ECR & Create PR'

on:
  pull_request:
    types: [closed]
    branches:
      - main
      - develop

env:
  AWS_REGION: 'ap-northeast-1'
  ECR_REPOSITORY: 'getting-started'
  SLACK_WEBHOOK: ${{ secrets.SLACK_WEBHOOK }}

jobs:
  buildAndPush:
    name: 'Build with Maven & Push image to ECR & Create PR'
    # Execute Job if GITHUB_EVENT_PR_HEAD_REF does not contain dependabot
    if: ${{ github.event.pull_request.merged == true && contains(github.event.pull_request.head.ref, 'dependabot') != true}}
    runs-on: ubuntu-latest
    # ========================================
    # Assigning permissions to jobs
    # ========================================
    # https://docs.github.com/en/actions/using-jobs/assigning-permissions-to-jobs
    permissions:
      actions: write
      checks: write
      contents: write
      deployments: write
      issues: write
      packages: write
      pull-requests: write
      repository-projects: write
      security-events: write
      statuses: write
    steps:
    # ========================================
    # Dump GITHUB_EVENT
    # ========================================
    # https://docs.github.com/en/actions/learn-github-actions/contexts
    - name: Dump GITHUB_EVENT
      env:
        GITHUB_EVENT_PR_BASE_REF: ${{ github.event.pull_request.base.ref }}
        GITHUB_EVENT_PR_HEAD_REF: ${{ github.event.pull_request.head.ref }}
      run: |
        echo "$GITHUB_EVENT_PR_BASE_REF"
        echo "$GITHUB_EVENT_PR_HEAD_REF"
    # ========================================
    # Check out repository code
    # ========================================
    - name: 'Check out repository code'
      uses: actions/checkout@v3
    # ========================================
    # Check out repository code of k8s-on-aws
    # ========================================
    - name: 'Check out repository code of k8s-on-aws'
      uses: actions/checkout@v3
      with:
        repository: sbk0716/k8s-on-aws
        path: k8s-on-aws
    # ========================================
    # Set up JDK 17
    # ========================================
    - name: 'Set up JDK 17'
      uses: actions/setup-java@v3
      with:
        distribution: 'zulu' # See 'Supported distributions' for available options
        java-version: '17'
    # ========================================
    # Cache local Maven repository
    # ========================================
    - name: 'Cache local Maven repository'
      uses: actions/cache@v3
      with:
        path: ~/.m2/repository
        key: ${{ runner.os }}-maven-${{ hashFiles('**/pom.xml') }}
        restore-keys: |
          ${{ runner.os }}-maven-
    # ========================================
    # Build with Maven
    # ========================================
    - name: 'Build with Maven'
      run: mvn -B package --file pom.xml -Dquarkus.package.type=fast-jar
    # ========================================
    # Configure AWS credentials
    # ========================================
    - name: 'Configure AWS credentials'
      uses: aws-actions/configure-aws-credentials@v1
      with:
        aws-access-key-id: ${{ secrets.AWS_ACCESS_KEY_ID }}
        aws-secret-access-key: ${{ secrets.AWS_SECRET_ACCESS_KEY }}
        aws-region: ${{ env.AWS_REGION }}
    # ========================================
    # Login to Amazon
    # ========================================
    - name: 'Login to Amazon'
      id: login-ecr
      uses: aws-actions/amazon-ecr-login@v1
    # ========================================
    # Build, tag, and push image to Amazon ECR
    # ========================================
    - name: 'Build, tag, and push image to Amazon ECR'
      id: build-image-service
      env:
        DOCKER_BUILDKIT: 1
        ECR_REGISTRY: ${{ steps.login-ecr.outputs.registry }}
        COMMIT_HASH: ${{ github.sha }}
        GITHUB_EVENT_PR_BASE_REF: ${{ github.event.pull_request.base.ref }}
      run: |
        SHORT_COMMIT_HASH=$(echo $COMMIT_HASH | cut -c 1-7)
        if [ $(echo $GITHUB_EVENT_PR_BASE_REF | grep 'main') ]; then
          IMAGE_TAG=main-$SHORT_COMMIT_HASH
        elif [ $(echo $GITHUB_EVENT_PR_BASE_REF | grep 'develop') ]; then
          IMAGE_TAG=develop-$SHORT_COMMIT_HASH
        else
          IMAGE_TAG=$SHORT_COMMIT_HASH
        fi
        docker build --cache-from=$ECR_REGISTRY/$ECR_REPOSITORY:latest --build-arg BUILDKIT_INLINE_CACHE=1 -t $ECR_REGISTRY/$ECR_REPOSITORY:latest -t $ECR_REGISTRY/$ECR_REPOSITORY:$IMAGE_TAG -f ./src/main/docker/Dockerfile.jvm .
        docker push $ECR_REGISTRY/$ECR_REPOSITORY:latest
        docker push $ECR_REGISTRY/$ECR_REPOSITORY:$IMAGE_TAG
        echo "::set-output name=image::$ECR_REGISTRY/$ECR_REPOSITORY:$IMAGE_TAG"
    # ========================================
    # Create Pull Request
    # ========================================
    - name: 'Create Pull Request'
      id: create-pull-request
      env:
        COMMIT_HASH: ${{ github.sha }}
        GITHUB_EVENT_PR_BASE_REF: ${{ github.event.pull_request.base.ref }}
        DEPLOY_KEY: ${{ secrets.DEPLOY_KEY }}
        TOKEN: ${{ secrets.TOKEN }}
      run: |
        SHORT_COMMIT_HASH=$(echo $COMMIT_HASH | cut -c 1-7)
        if [ $(echo $GITHUB_EVENT_PR_BASE_REF | grep 'main') ]; then
          BASE_BRANCH=main
          TAG=main-$SHORT_COMMIT_HASH
        elif [ $(echo $GITHUB_EVENT_PR_BASE_REF | grep 'develop') ]; then
          BASE_BRANCH=develop
          TAG=develop-$SHORT_COMMIT_HASH
        else
          BASE_BRANCH=develop
          TAG=$SHORT_COMMIT_HASH
        fi
        pwd;ls -la
        echo "TAG: $TAG"
        echo "BASE_BRANCH: $BASE_BRANCH"
        git checkout -b $TAG
        sed -i "s/image: dummy-image-url/image: ${{ secrets.AWS_ACCOUNT_ID }}.dkr.ecr.${{ env.AWS_REGION }}.amazonaws.com\/${{ env.ECR_REPOSITORY }}:$TAG/" ./deployment.yaml
        sed -i "s/host: dummy-host-name/host: my-load-balancer-${{ secrets.AWS_ACCOUNT_ID }}.${{ env.AWS_REGION }}.elb.amazonaws.com/" ./ingress.yaml
        git remote -v
        eval "$(ssh-agent -s)"
        mkdir ~/.ssh
        echo "$DEPLOY_KEY" > ~/.ssh/id_ed25519
        chmod 600 ~/.ssh/id_ed25519
        git remote set-url origin git@github.com:sbk0716/k8s-on-aws.git
        git remote -v
        git config user.name sbk0716
        git config user.email ${{ secrets.EMAIL }}
        git add .
        git commit -m "update manifest"
        git push --set-upstream origin $TAG
        curl -X POST -H "Accept: application/vnd.github+json" -H "Authorization: Bearer $TOKEN" https://api.github.com/repos/sbk0716/k8s-on-aws/pulls -d '{"title":"'$TAG': new app deploy request","head": "sbk0716:'$TAG'", "base": "'$BASE_BRANCH'"}'
      working-directory: ./k8s-on-aws/getting-started-manifest
    # ========================================
    # Slack Notification on Success
    # ========================================
    - name: 'Slack Notification on Success'
      if: success()
      uses: rtCamp/action-slack-notify@v2
      env:
        SLACK_COLOR: ${{ job.status }}
        SLACK_TITLE: '${{ github.repository }} | Success :rocket:'
        SLACK_MESSAGE: 'See ${{ github.event.repository.url }}/actions/runs/${{ github.run_id }}'
    # ========================================
    # Slack Notification on Failure
    # ========================================
    - name: 'Slack Notification on Failure'
      uses: rtCamp/action-slack-notify@v2
      if: failure()
      env:
        SLACK_COLOR: ${{ job.status }}
        SLACK_TITLE: '${{ github.repository }} | Failure :boom:'
        SLACK_MESSAGE: 'See ${{ github.event.repository.url }}/actions/runs/${{ github.run_id }}'

Repository
https://github.com/sbk0716/getting-started
https://github.com/sbk0716/k8s-on-aws
