Zenn
Open12

MediaPipe の Custom OP 追加分析

TensorFlow
MediaPipe
#
tenforflowlite
PINTOPINTO

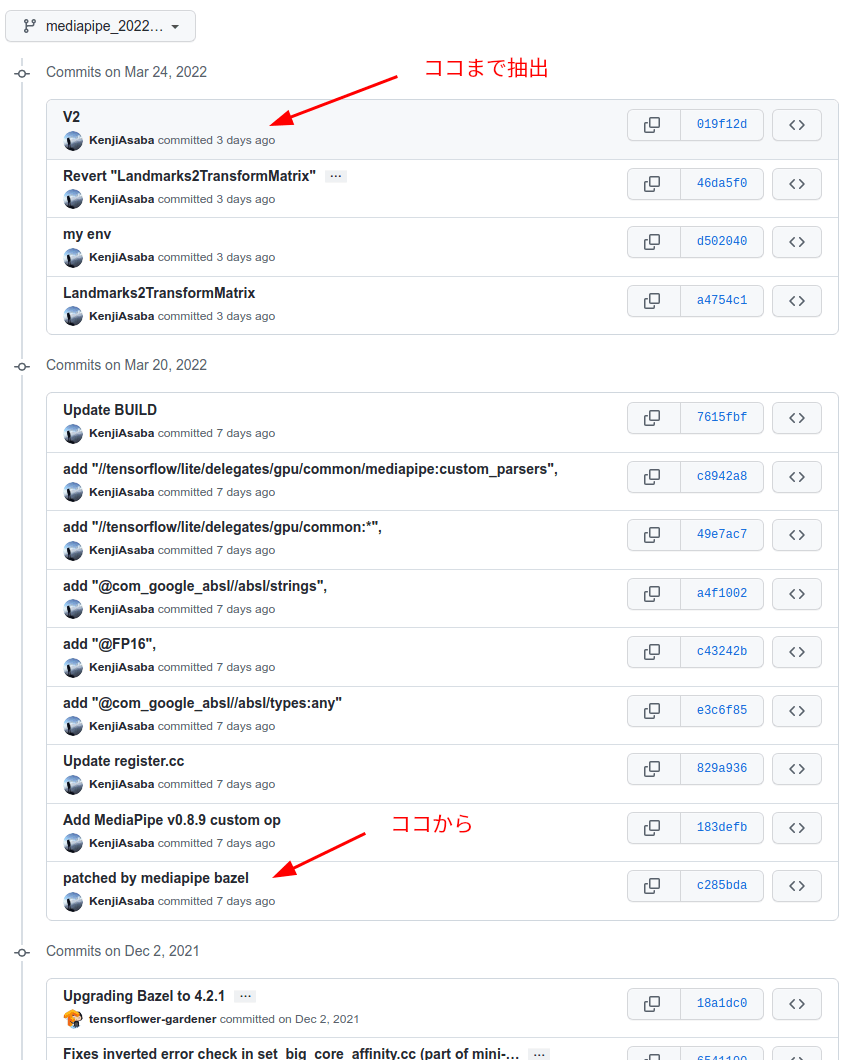

抽出したいコミットのひとつ前のコミットハッシュを指定する。

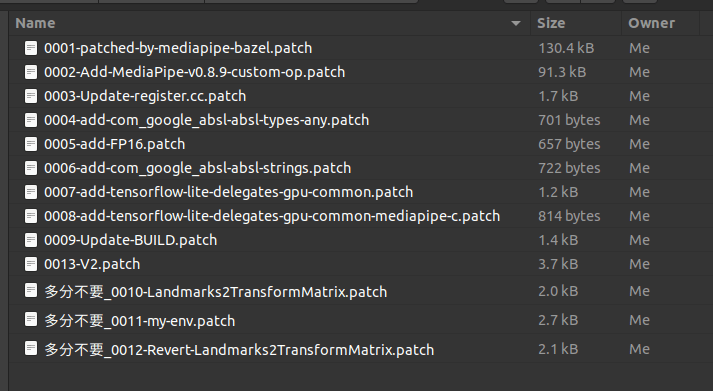

git format-patch 18a1dc0ba806dc023808531f0373d9ec068e64bf \
-o mediapipe_customop_patch
PINTOPINTO

カスタムOPのロードテスト
https://github.com/google/mediapipe/raw/v0.8.9/mediapipe/modules/face_landmark/face_landmark_with_attention.tflite
https://github.com/google/mediapipe/raw/v0.8.9/mediapipe/models/hair_segmentation.tflite

$ python
>>> from tflite_runtime.interpreter import Interpreter
>>> interpreter = Interpreter(
...   model_path="face_landmark_with_attention.tflite",
...   num_threads=4
... )
>>> interpreter.allocate_tensors()
INFO: Created TensorFlow Lite XNNPACK delegate for CPU.
>>>
PINTOPINTO

ココから

$ git clone -b v2.9.0-rc0 https://github.com/tensorflow/tensorflow.git \
&& cd tensorflow
PINTOPINTO
git clone -b v2.9.0-rc0 https://github.com/tensorflow/tensorflow.git && cd tensorflow
curl -L -o tensorflow/tools/ci_build/Dockerfile.pi-python37 https://github.com/tensorflow/tensorflow/raw/v2.8.0/tensorflow/tools/ci_build/Dockerfile.pi-python37
curl -L -o tensorflow/tools/ci_build/Dockerfile.pi-python38 https://github.com/tensorflow/tensorflow/raw/v2.8.0/tensorflow/tools/ci_build/Dockerfile.pi-python38
curl -L -o tensorflow/tools/ci_build/Dockerfile.pi-python39 https://github.com/tensorflow/tensorflow/raw/v2.8.0/tensorflow/tools/ci_build/Dockerfile.pi-python39
curl -OL https://github.com/PINTO0309/TensorflowLite-bin/releases/download/v2.9.0-rc0/mediapipe_customop_patch.zip
unzip -d mediapipe_customop_patch mediapipe_customop_patch.zip
git apply mediapipe_customop_patch/*
PINTOPINTO
nano tensorflow/lite/tools/pip_package/build_pip_package_with_bazel.sh

# Build python interpreter_wrapper.
cd "${BUILD_DIR}"
case "${TENSORFLOW_TARGET}" in
  armhf)
    BAZEL_FLAGS="--config=elinux_armhf
      --copt=-march=armv7-a --copt=-mfpu=neon-vfpv4
      --copt=-O3 --copt=-fno-tree-pre --copt=-fpermissive
      --define tensorflow_mkldnn_contraction_kernel=0
      --define=raspberry_pi_with_neon=true"
    ;;
  aarch64)
    BAZEL_FLAGS="--config=elinux_aarch64
      --define tensorflow_mkldnn_contraction_kernel=0
      --copt=-O3"
    ;;
  native)
    BAZEL_FLAGS="--copt=-O3 --copt=-march=native"
    ;;
  *)
    BAZEL_FLAGS="--copt=-O3"
    ;;
esac

　↓

# Build python interpreter_wrapper.
cd "${BUILD_DIR}"
case "${TENSORFLOW_TARGET}" in
  armhf)
    BAZEL_FLAGS="--config=elinux_armhf
      --copt=-march=armv7-a --copt=-mfpu=neon-vfpv4
      --copt=-O3 --copt=-fno-tree-pre --copt=-fpermissive
      --define tensorflow_mkldnn_contraction_kernel=0
      --define=raspberry_pi_with_neon=true
      --define=tflite_pip_with_flex=true
      --define=tflite_with_xnnpack=false"
    ;;
  aarch64)
    BAZEL_FLAGS="--config=elinux_aarch64
      --define tensorflow_mkldnn_contraction_kernel=0
      --define=tflite_pip_with_flex=true
      --define=tflite_with_xnnpack=true
      --copt=-O3"
    ;;
  native)
    BAZEL_FLAGS="--copt=-O3 --copt=-march=native
      --define=tflite_pip_with_flex=true
      --define=tflite_with_xnnpack=true"
    ;;
  *)
    BAZEL_FLAGS="--copt=-O3
      --define=tflite_pip_with_flex=true
      --define=tflite_with_xnnpack=true"
    ;;
esac

sed -i -e 's/FROM ubuntu:16.04/FROM ubuntu:18.04/g' tensorflow/tools/ci_build/Dockerfile.pi-python37
sed -i -e 's/FROM ubuntu:16.04/FROM ubuntu:18.04/g' tensorflow/tools/ci_build/Dockerfile.pi-python38
sed -i -e 's/FROM ubuntu:16.04/FROM ubuntu:18.04/g' tensorflow/tools/ci_build/Dockerfile.pi-python39
sed -i '5a ENV DEBIAN_FRONTEND=noninteractive' tensorflow/tools/ci_build/Dockerfile.pi-python39
sed -i '30a apt-get update && apt-get install -y dirmngr' tensorflow/tools/ci_build/install/install_deb_packages.sh
sed -i -e 's/xenial/bionic/g' tensorflow/tools/ci_build/install/install_pi_python3x_toolchain.sh

### Python 3.7
sudo CI_DOCKER_EXTRA_PARAMS="-e CI_BUILD_PYTHON=python3.7 -e CROSSTOOL_PYTHON_INCLUDE_PATH=/usr/include/python3.7" \
  tensorflow/tools/ci_build/ci_build.sh PI-PYTHON37 \
  tensorflow/lite/tools/pip_package/build_pip_package_with_bazel.sh aarch64

sudo CI_DOCKER_EXTRA_PARAMS="-e CI_BUILD_PYTHON=python3.7 -e CROSSTOOL_PYTHON_INCLUDE_PATH=/usr/include/python3.7" \
  tensorflow/tools/ci_build/ci_build.sh PI-PYTHON37 \
  tensorflow/lite/tools/pip_package/build_pip_package_with_bazel.sh armhf

### Python 3.8
sudo CI_DOCKER_EXTRA_PARAMS="-e CI_BUILD_PYTHON=python3.8 -e CROSSTOOL_PYTHON_INCLUDE_PATH=/usr/include/python3.8" \
  tensorflow/tools/ci_build/ci_build.sh PI-PYTHON38 \
  tensorflow/lite/tools/pip_package/build_pip_package_with_bazel.sh aarch64

sudo CI_DOCKER_EXTRA_PARAMS="-e CI_BUILD_PYTHON=python3.8 -e CROSSTOOL_PYTHON_INCLUDE_PATH=/usr/include/python3.8" \
  tensorflow/tools/ci_build/ci_build.sh PI-PYTHON38 \
  tensorflow/lite/tools/pip_package/build_pip_package_with_bazel.sh armhf

### Python 3.9
sed -i '19a sudo pip3 install setuptools==60.7.0' tensorflow/tools/ci_build/install/install_auditwheel.sh
sed -i '20a sudo pip3 install numpy==1.22.1' tensorflow/tools/ci_build/install/install_auditwheel.sh

sudo CI_DOCKER_EXTRA_PARAMS="-e CI_BUILD_PYTHON=python3.9 -e CROSSTOOL_PYTHON_INCLUDE_PATH=/usr/include/python3.9" \
  tensorflow/tools/ci_build/ci_build.sh PI-PYTHON39 \
  tensorflow/lite/tools/pip_package/build_pip_package_with_bazel.sh aarch64

sudo CI_DOCKER_EXTRA_PARAMS="-e CI_BUILD_PYTHON=python3.9 -e CROSSTOOL_PYTHON_INCLUDE_PATH=/usr/include/python3.9" \
  tensorflow/tools/ci_build/ci_build.sh PI-PYTHON39 \
  tensorflow/lite/tools/pip_package/build_pip_package_with_bazel.sh armhf
