[Flutter]pageviewのスクロール状態を検知(スクロール開始、page切り替え、スクロール完了)

2023/10/10に公開

Flutterプロジェクト開発では、上下にスクロールするためにPageViewを使用しました。通常のPageViewでは、onPageChangedコールバックはページが中央にスライドすると、次のページのpageIndex値が渡されます。しかし、実際の要件では、ページがスクロールが終了した時点で、ページが完全に表示された後に処理を実行する必要があります。そのため、PageViewをカスタマイズする必要があります

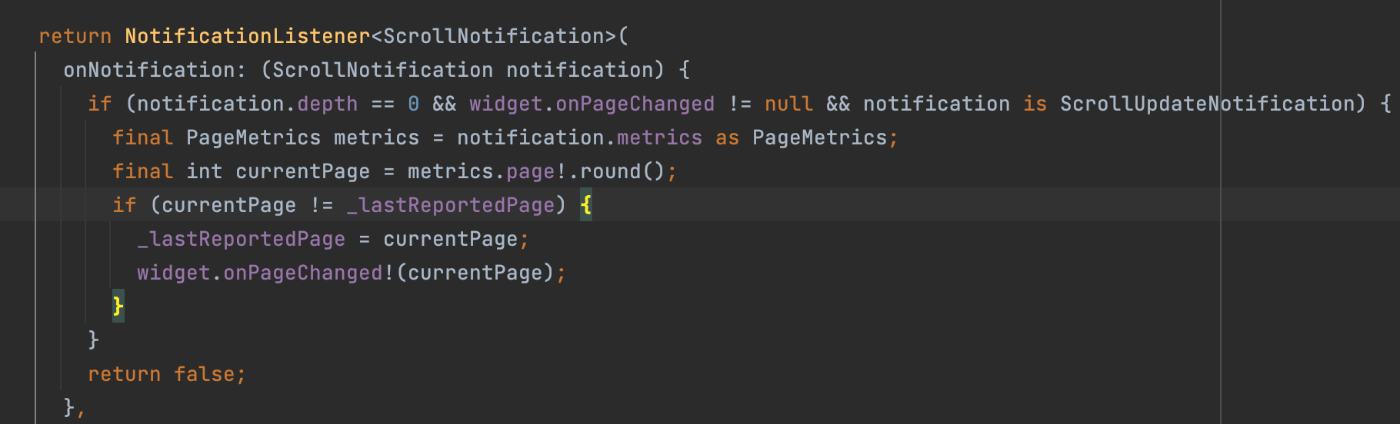

pageview、onPageChanged が途中でコールバックを返す理由

カスタム PageView の完全なコードは次のとおりです。


import 'package:flutter/gestures.dart' show DragStartBehavior;
import 'package:flutter/material.dart';
import 'package:flutter/rendering.dart';

// Having this global (mutable) page controller is a bit of a hack. We need it
// to plumb in the factory for _PagePosition, but it will end up accumulating
// a large list of scroll positions. As long as you don't try to actually
// control the scroll positions, everything should be fine.
final PageController _defaultPageController = PageController();
const PageScrollPhysics _kPagePhysics = PageScrollPhysics();

/// A scrollable list that works page by page.
///
/// Each child of a page view is forced to be the same size as the viewport.
///
/// You can use a [PageController] to control which page is visible in the view.
/// In addition to being able to control the pixel offset of the content inside
/// the [CustomPageView], a [PageController] also lets you control the offset in terms
/// of pages, which are increments of the viewport size.
///
/// The [PageController] can also be used to control the
/// [PageController.initialPage], which determines which page is shown when the
/// [CustomPageView] is first constructed, and the [PageController.viewportFraction],
/// which determines the size of the pages as a fraction of the viewport size.
///
/// {@youtube 560 315 https://www.youtube.com/watch?v=J1gE9xvph-A}
///
/// {@tool dartpad}
/// Here is an example of [CustomPageView]. It creates a centered [Text] in each of the three pages
/// which scroll horizontally.
///
/// ** See code in examples/api/lib/widgets/page_view/page_view.0.dart **
/// {@end-tool}
///
/// See also:
///
///  * [PageController], which controls which page is visible in the view.
///  * [SingleChildScrollView], when you need to make a single child scrollable.
///  * [ListView], for a scrollable list of boxes.
///  * [GridView], for a scrollable grid of boxes.
///  * [ScrollNotification] and [NotificationListener], which can be used to watch
///    the scroll position without using a [ScrollController].
class CustomPageView extends StatefulWidget {
  /// Creates a scrollable list that works page by page from an explicit [List]
  /// of widgets.
  ///
  /// This constructor is appropriate for page views with a small number of
  /// children because constructing the [List] requires doing work for every
  /// child that could possibly be displayed in the page view, instead of just
  /// those children that are actually visible.
  ///
  /// Like other widgets in the framework, this widget expects that
  /// the [children] list will not be mutated after it has been passed in here.
  /// See the documentation at [SliverChildListDelegate.children] for more details.
  ///
  /// {@template flutter.widgets.PageView.allowImplicitScrolling}
  /// The [allowImplicitScrolling] parameter must not be null. If true, the
  /// [CustomPageView] will participate in accessibility scrolling more like a
  /// [ListView], where implicit scroll actions will move to the next page
  /// rather than into the contents of the [CustomPageView].
  /// {@endtemplate}
  CustomPageView({
    super.key,
    this.scrollDirection = Axis.horizontal,
    this.reverse = false,
    PageController? controller,
    this.physics,
    this.pageSnapping = true,
    this.onPageChanged,
    this.onPageStartChanged,
    this.onPageEndChanged,
    List<Widget> children = const <Widget>[],
    this.dragStartBehavior = DragStartBehavior.start,
    this.allowImplicitScrolling = false,
    this.restorationId,
    this.clipBehavior = Clip.hardEdge,
    this.scrollBehavior,
    this.padEnds = true,
  })  : controller = controller ?? _defaultPageController,
        childrenDelegate = SliverChildListDelegate(children);

  /// Creates a scrollable list that works page by page using widgets that are
  /// created on demand.
  ///
  /// This constructor is appropriate for page views with a large (or infinite)
  /// number of children because the builder is called only for those children
  /// that are actually visible.
  ///
  /// Providing a non-null [itemCount] lets the [CustomPageView] compute the maximum
  /// scroll extent.
  ///
  /// [itemBuilder] will be called only with indices greater than or equal to
  /// zero and less than [itemCount].
  ///
  /// {@macro flutter.widgets.ListView.builder.itemBuilder}
  ///
  /// {@template flutter.widgets.PageView.findChildIndexCallback}
  /// The [findChildIndexCallback] corresponds to the
  /// [SliverChildBuilderDelegate.findChildIndexCallback] property. If null,
  /// a child widget may not map to its existing [RenderObject] when the order
  /// of children returned from the children builder changes.
  /// This may result in state-loss. This callback needs to be implemented if
  /// the order of the children may change at a later time.
  /// {@endtemplate}
  ///
  /// {@macro flutter.widgets.PageView.allowImplicitScrolling}
  CustomPageView.builder({
    super.key,
    this.scrollDirection = Axis.horizontal,
    this.reverse = false,
    PageController? controller,
    this.physics,
    this.pageSnapping = true,
    this.onPageChanged,
    this.onPageStartChanged,
    this.onPageEndChanged,
    required NullableIndexedWidgetBuilder itemBuilder,
    ChildIndexGetter? findChildIndexCallback,
    int? itemCount,
    this.dragStartBehavior = DragStartBehavior.start,
    this.allowImplicitScrolling = false,
    this.restorationId,
    this.clipBehavior = Clip.hardEdge,
    this.scrollBehavior,
    this.padEnds = true,
  })  : controller = controller ?? _defaultPageController,
        childrenDelegate = SliverChildBuilderDelegate(
          itemBuilder,
          findChildIndexCallback: findChildIndexCallback,
          childCount: itemCount,
        );

  /// Creates a scrollable list that works page by page with a custom child
  /// model.
  ///
  /// {@tool snippet}
  ///
  /// This [CustomPageView] uses a custom [SliverChildBuilderDelegate] to support child
  /// reordering.
  ///
  /// ```dart
  /// class MyPageView extends StatefulWidget {
  ///   const MyPageView({super.key});
  ///
  ///   @override
  ///   State<MyPageView> createState() => _MyPageViewState();
  /// }
  ///
  /// class _MyPageViewState extends State<MyPageView> {
  ///   List<String> items = <String>['1', '2', '3', '4', '5'];
  ///
  ///   void _reverse() {
  ///     setState(() {
  ///       items = items.reversed.toList();
  ///     });
  ///   }
  ///
  ///   @override
  ///   Widget build(BuildContext context) {
  ///     return Scaffold(
  ///       body: SafeArea(
  ///         child: PageView.custom(
  ///           childrenDelegate: SliverChildBuilderDelegate(
  ///             (BuildContext context, int index) {
  ///               return KeepAlive(
  ///                 data: items[index],
  ///                 key: ValueKey<String>(items[index]),
  ///               );
  ///             },
  ///             childCount: items.length,
  ///             findChildIndexCallback: (Key key) {
  ///               final ValueKey<String> valueKey = key as ValueKey<String>;
  ///               final String data = valueKey.value;
  ///               return items.indexOf(data);
  ///             }
  ///           ),
  ///         ),
  ///       ),
  ///       bottomNavigationBar: BottomAppBar(
  ///         child: Row(
  ///           mainAxisAlignment: MainAxisAlignment.center,
  ///           children: <Widget>[
  ///             TextButton(
  ///               onPressed: () => _reverse(),
  ///               child: const Text('Reverse items'),
  ///             ),
  ///           ],
  ///         ),
  ///       ),
  ///     );
  ///   }
  /// }
  ///
  /// class KeepAlive extends StatefulWidget {
  ///   const KeepAlive({super.key, required this.data});
  ///
  ///   final String data;
  ///
  ///   @override
  ///   State<KeepAlive> createState() => _KeepAliveState();
  /// }
  ///
  /// class _KeepAliveState extends State<KeepAlive> with AutomaticKeepAliveClientMixin{
  ///   @override
  ///   bool get wantKeepAlive => true;
  ///
  ///   @override
  ///   Widget build(BuildContext context) {
  ///     super.build(context);
  ///     return Text(widget.data);
  ///   }
  /// }
  /// ```
  /// {@end-tool}
  ///
  /// {@macro flutter.widgets.PageView.allowImplicitScrolling}
  CustomPageView.custom({
    super.key,
    this.scrollDirection = Axis.horizontal,
    this.reverse = false,
    PageController? controller,
    this.physics,
    this.pageSnapping = true,
    this.onPageChanged,
    this.onPageStartChanged,
    this.onPageEndChanged,
    required this.childrenDelegate,
    this.dragStartBehavior = DragStartBehavior.start,
    this.allowImplicitScrolling = false,
    this.restorationId,
    this.clipBehavior = Clip.hardEdge,
    this.scrollBehavior,
    this.padEnds = true,
  }) : controller = controller ?? _defaultPageController;

  /// Controls whether the widget's pages will respond to
  /// [RenderObject.showOnScreen], which will allow for implicit accessibility
  /// scrolling.
  ///
  /// With this flag set to false, when accessibility focus reaches the end of
  /// the current page and the user attempts to move it to the next element, the
  /// focus will traverse to the next widget outside of the page view.
  ///
  /// With this flag set to true, when accessibility focus reaches the end of
  /// the current page and user attempts to move it to the next element, focus
  /// will traverse to the next page in the page view.
  final bool allowImplicitScrolling;

  /// {@macro flutter.widgets.scrollable.restorationId}
  final String? restorationId;

  /// The [Axis] along which the scroll view's offset increases with each page.
  ///
  /// For the direction in which active scrolling may be occurring, see
  /// [ScrollDirection].
  ///
  /// Defaults to [Axis.horizontal].
  final Axis scrollDirection;

  /// Whether the page view scrolls in the reading direction.
  ///
  /// For example, if the reading direction is left-to-right and
  /// [scrollDirection] is [Axis.horizontal], then the page view scrolls from
  /// left to right when [reverse] is false and from right to left when
  /// [reverse] is true.
  ///
  /// Similarly, if [scrollDirection] is [Axis.vertical], then the page view
  /// scrolls from top to bottom when [reverse] is false and from bottom to top
  /// when [reverse] is true.
  ///
  /// Defaults to false.
  final bool reverse;

  /// An object that can be used to control the position to which this page
  /// view is scrolled.
  final PageController controller;

  /// How the page view should respond to user input.
  ///
  /// For example, determines how the page view continues to animate after the
  /// user stops dragging the page view.
  ///
  /// The physics are modified to snap to page boundaries using
  /// [PageScrollPhysics] prior to being used.
  ///
  /// If an explicit [ScrollBehavior] is provided to [scrollBehavior], the
  /// [ScrollPhysics] provided by that behavior will take precedence after
  /// [physics].
  ///
  /// Defaults to matching platform conventions.
  final ScrollPhysics? physics;

  /// Set to false to disable page snapping, useful for custom scroll behavior.
  ///
  /// If the [padEnds] is false and [PageController.viewportFraction] < 1.0,
  /// the page will snap to the beginning of the viewport; otherwise, the page
  /// will snap to the center of the viewport.
  final bool pageSnapping;

  /// Called whenever the page in the center of the viewport changes.
  final ValueChanged<int>? onPageChanged;
  final ValueChanged<int>? onPageStartChanged;
  final ValueChanged<int>? onPageEndChanged;

  /// A delegate that provides the children for the [CustomPageView].
  ///
  /// The [PageView.custom] constructor lets you specify this delegate
  /// explicitly. The [CustomPageView] and [PageView.builder] constructors create a
  /// [childrenDelegate] that wraps the given [List] and [IndexedWidgetBuilder],
  /// respectively.
  final SliverChildDelegate childrenDelegate;

  /// {@macro flutter.widgets.scrollable.dragStartBehavior}
  final DragStartBehavior dragStartBehavior;

  /// {@macro flutter.material.Material.clipBehavior}
  ///
  /// Defaults to [Clip.hardEdge].
  final Clip clipBehavior;

  /// {@macro flutter.widgets.shadow.scrollBehavior}
  ///
  /// [ScrollBehavior]s also provide [ScrollPhysics]. If an explicit
  /// [ScrollPhysics] is provided in [physics], it will take precedence,
  /// followed by [scrollBehavior], and then the inherited ancestor
  /// [ScrollBehavior].
  ///
  /// The [ScrollBehavior] of the inherited [ScrollConfiguration] will be
  /// modified by default to not apply a [Scrollbar].
  final ScrollBehavior? scrollBehavior;

  /// Whether to add padding to both ends of the list.
  ///
  /// If this is set to true and [PageController.viewportFraction] < 1.0, padding will be added
  /// such that the first and last child slivers will be in the center of
  /// the viewport when scrolled all the way to the start or end, respectively.
  ///
  /// If [PageController.viewportFraction] >= 1.0, this property has no effect.
  ///
  /// This property defaults to true and must not be null.
  final bool padEnds;


  State<CustomPageView> createState() => _CustomPageViewState();
}

class _CustomPageViewState extends State<CustomPageView> {
  int _lastReportedPage = 0;
  int _currentReportedPage = 0;


  void initState() {
    super.initState();
    _lastReportedPage = widget.controller.initialPage;
    _currentReportedPage = widget.controller.initialPage;
  }

  AxisDirection _getDirection(BuildContext context) {
    switch (widget.scrollDirection) {
      case Axis.horizontal:
        assert(debugCheckHasDirectionality(context));
        final TextDirection textDirection = Directionality.of(context);
        final AxisDirection axisDirection = textDirectionToAxisDirection(textDirection);
        return widget.reverse ? flipAxisDirection(axisDirection) : axisDirection;
      case Axis.vertical:
        return widget.reverse ? AxisDirection.up : AxisDirection.down;
    }
  }


  Widget build(BuildContext context) {
    final AxisDirection axisDirection = _getDirection(context);
    final ScrollPhysics physics = _ForceImplicitScrollPhysics(
      allowImplicitScrolling: widget.allowImplicitScrolling,
    ).applyTo(
      widget.pageSnapping
          ? _kPagePhysics
              .applyTo(widget.physics ?? widget.scrollBehavior?.getScrollPhysics(context))
          : widget.physics ?? widget.scrollBehavior?.getScrollPhysics(context),
    );

    return NotificationListener<ScrollNotification>(
      onNotification: (ScrollNotification notification) {
        /// スクロール開始
        if (notification.depth == 0 &&
            widget.onPageStartChanged != null &&
            notification is ScrollStartNotification) {
          widget.onPageStartChanged!(_currentReportedPage);
        }

        /// スクロール中、切り替え
        if (notification.depth == 0 &&
            widget.onPageChanged != null &&
            notification is ScrollUpdateNotification) {
          final PageMetrics metrics = notification.metrics as PageMetrics;
          final int currentPage = metrics.page!.round();
          if (currentPage != _lastReportedPage) {
            _currentReportedPage = currentPage;
            _lastReportedPage = currentPage;
            widget.onPageChanged!(currentPage);
          }
        }

        /// スクロール終了
        if (notification.depth == 0 &&
            widget.onPageEndChanged != null &&
            notification is ScrollEndNotification) {
          widget.onPageEndChanged!(_currentReportedPage);
        }

        return false;
      },
      child: Scrollable(
        dragStartBehavior: widget.dragStartBehavior,
        axisDirection: axisDirection,
        controller: widget.controller,
        physics: physics,
        restorationId: widget.restorationId,
        scrollBehavior:
            widget.scrollBehavior ?? ScrollConfiguration.of(context).copyWith(scrollbars: false),
        viewportBuilder: (BuildContext context, ViewportOffset position) {
          return Viewport(
            // TODO(dnfield): we should provide a way to set cacheExtent
            // independent of implicit scrolling:
            // https://github.com/flutter/flutter/issues/45632
            cacheExtent: widget.allowImplicitScrolling ? 1.0 : 0.0,
            cacheExtentStyle: CacheExtentStyle.viewport,
            axisDirection: axisDirection,
            offset: position,
            clipBehavior: widget.clipBehavior,
            slivers: <Widget>[
              SliverFillViewport(
                viewportFraction: widget.controller.viewportFraction,
                delegate: widget.childrenDelegate,
                padEnds: widget.padEnds,
              ),
            ],
          );
        },
      ),
    );
  }


  void debugFillProperties(DiagnosticPropertiesBuilder description) {
    super.debugFillProperties(description);
    description.add(EnumProperty<Axis>('scrollDirection', widget.scrollDirection));
    description.add(FlagProperty('reverse', value: widget.reverse, ifTrue: 'reversed'));
    description
        .add(DiagnosticsProperty<PageController>('controller', widget.controller, showName: false));
    description.add(DiagnosticsProperty<ScrollPhysics>('physics', widget.physics, showName: false));
    description.add(
        FlagProperty('pageSnapping', value: widget.pageSnapping, ifFalse: 'snapping disabled'));
    description.add(FlagProperty('allowImplicitScrolling',
        value: widget.allowImplicitScrolling, ifTrue: 'allow implicit scrolling'));
  }
}

class _ForceImplicitScrollPhysics extends ScrollPhysics {
  const _ForceImplicitScrollPhysics({
    required this.allowImplicitScrolling,
    super.parent,
  });


  _ForceImplicitScrollPhysics applyTo(ScrollPhysics? ancestor) {
    return _ForceImplicitScrollPhysics(
      allowImplicitScrolling: allowImplicitScrolling,
      parent: buildParent(ancestor),
    );
  }


  final bool allowImplicitScrolling;
}

Discussion
