Nuxt3 x Vuetify x Cytoscape

2023/11/18に公開

概要

Nuxt3とVuetifyを使用したサンプルリポジトリに、Cytoscapeの動作デモを追加しました。

https://github.com/nakamura196/nuxt3-demo

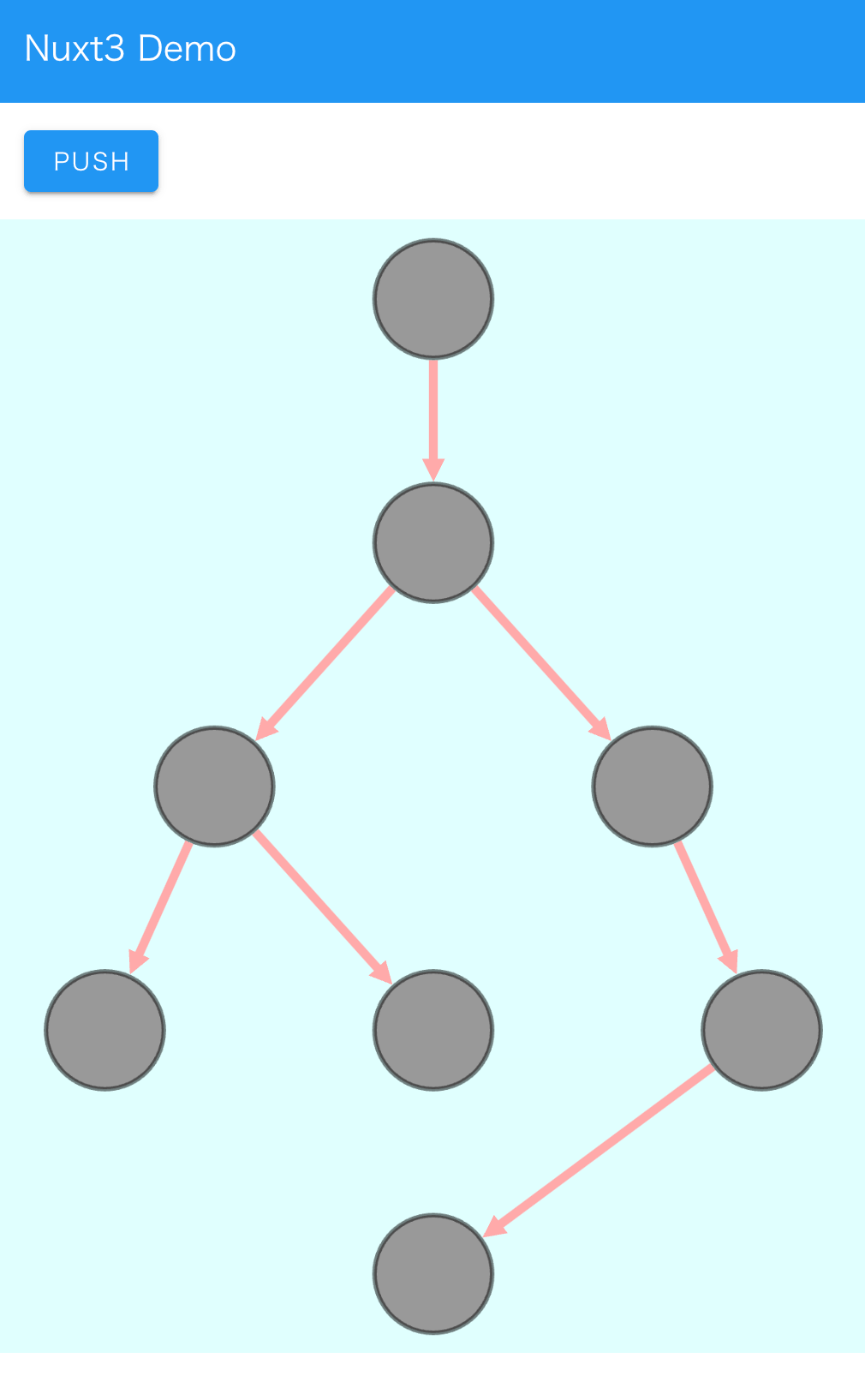

以下のページで動作確認いただけます。

https://nakamura196.github.io/nuxt3-demo/

インストール

以下を実行しました。

npm i cytoscape
npm i @types/cytoscape

ソースコード

/nuxt3-demo/pages/cytoscape/index.vue
<template>
    <div id="view">
      <v-btn class="ma-4" color="primary" v-on:click="addNode">push</v-btn>
      <div id="cy"></div>
    </div>
  </template>
  <script setup lang="ts">
  import cytoscape from "cytoscape";

  let cy: any = null; // = ref(null); //reactive({}); //: any

  const count: number = 0; // = ref(0); //reactive(0);

  const addNode = () => {
    cy.add([
      {
        group: "nodes",
        data: { id: "node" + count },
        position: { x: 300, y: 200 },
      },
      {
        group: "edges",
        data: { id: "edge" + count, source: "node" + count, target: "cat" },
      },
    ]);
  };

  onMounted(() => {
    cy = cytoscape({
      container: document.getElementById("cy"),
      boxSelectionEnabled: false,
      autounselectify: true,
      style: cytoscape
        .stylesheet()
        .selector("node")
        .css({
          height: 80,
          width: 80,
          "background-fit": "cover",
          "border-color": "#000",
          "border-width": 3,
          "border-opacity": 0.5,
          content: "data(name)",
          "text-valign": "center",
        })
        .selector("edge")
        .css({
          width: 6,
          "target-arrow-shape": "triangle",
          "line-color": "#ffaaaa",
          "target-arrow-color": "#ffaaaa",
          "curve-style": "bezier",
        }),
      elements: {
        nodes: [
          { data: { id: "cat" } },
          { data: { id: "bird" } },
          { data: { id: "ladybug" } },
          { data: { id: "aphid" } },
          { data: { id: "rose" } },
          { data: { id: "grasshopper" } },
          { data: { id: "plant" } },
          { data: { id: "wheat" } },
        ],
        edges: [
          { data: { source: "cat", target: "bird" } },
          { data: { source: "bird", target: "ladybug" } },
          { data: { source: "bird", target: "grasshopper" } },
          { data: { source: "grasshopper", target: "plant" } },
          { data: { source: "grasshopper", target: "wheat" } },
          { data: { source: "ladybug", target: "aphid" } },
          { data: { source: "aphid", target: "rose" } },
        ],
      },
      layout: {
        name: "breadthfirst",
        directed: true,
        padding: 10,
      },
    });
  });
  </script>
  <style scoped>
  #cy {
    width: 100%;
    height: 80%;
    position: absolute;
    background-color: lightcyan;
  }
  </style>

まとめ

参考になりましたら幸いです。
