「前近代日本-アジア関係資料デジタルアーカイブ」のビューアを試す

2025/07/29に公開
 概要「前近代日本-アジア関係資料デジタルアーカイブ」が2025年7月25日に公開されました。
https://asia-da.lit.kyushu-u.ac.jp/
また、以下でビューアが公開されています。
https://github.com/localmedialabs/tei_comparative_viewer
本記事では、本ビューアを試した記録を共有します。

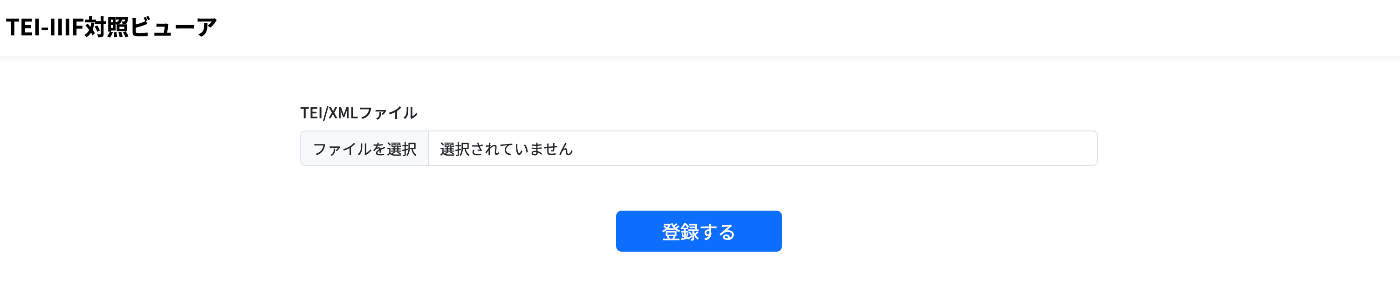

結果、以下のように、セルフホストすることができました。
https://tei-comparative-viewer.aws.ldas.jp/
以下の「海東諸国紀」のXMLファイルを読み込んでいます。
https://asia-da.lit.kyushu-u.ac.jp/viewer/300

 ローカルで起動する以下に丁寧な説明がなされていますので、手順にしたがって起動させることができました。
https://github.com/localmedialabs/tei_comparative_viewer/blob/main/docs/SETUP.md

 サーバで起動するサーバで起動するにあたり、Dockerを用いて起動しました。
フォークしたリポジトリは以下です。
https://github.com/nakamura196/tei_comparative_viewer/tree/docker-traefik-setup
以下のようなファイルを用意しました。
Dockerfile.prod.traefik
FROM php:8.2-fpm

# Install system dependencies
RUN apt-get update && apt-get install -y \
    git \
    curl \
    libpng-dev \
    libonig-dev \
    libxml2-dev \
    zip \
    unzip \
    nodejs \
    npm \
    nginx \
    supervisor

# Clear cache
RUN apt-get clean && rm -rf /var/lib/apt/lists/*

# Install PHP extensions
RUN docker-php-ext-install mbstring exif pcntl bcmath gd

# Get latest Composer
COPY --from=composer:latest /usr/bin/composer /usr/bin/composer

# Set working directory
WORKDIR /var/www

# Copy existing application directory contents
COPY . /var/www

# Install dependencies
RUN composer install --no-dev --optimize-autoloader

# Install and build frontend assets
RUN npm install && npm run build

# Remove default nginx site
RUN rm -f /etc/nginx/sites-enabled/default

# Copy nginx config
COPY docker/nginx/app.conf /etc/nginx/sites-available/app.conf
RUN ln -s /etc/nginx/sites-available/app.conf /etc/nginx/sites-enabled/

# Copy PHP-FPM config
COPY docker/php/www.conf /usr/local/etc/php-fpm.d/www.conf

# Copy supervisor config
COPY docker/supervisor/supervisord.conf /etc/supervisor/conf.d/supervisord.conf

# Create necessary directories and set permissions
RUN mkdir -p /var/log/supervisor \
    && chown -R www-data:www-data /var/www \
    && chmod -R 755 /var/www/storage \
    && chmod -R 755 /var/www/bootstrap/cache

# Generate key
RUN php artisan key:generate

# Optimize Laravel
RUN php artisan config:cache && \
    php artisan route:cache && \
    php artisan view:cache

# Expose port 80
EXPOSE 80

# Create PHP-FPM socket directory
RUN mkdir -p /var/run/php

# Start supervisord
CMD ["/usr/bin/supervisord", "-c", "/etc/supervisor/conf.d/supervisord.conf"]
docker-compose-external.yml.example
services:
  app:
    build:
      context: .
      dockerfile: Dockerfile.prod.traefik
    container_name: tei_viewer_app
    restart: unless-stopped
    env_file:
      - .env.external
    volumes:
      - ./storage:/var/www/storage
      - ./public/assets:/var/www/public/assets
    networks:
      - traefik-network
    labels:
      - "traefik.enable=true"
      # HTTP router (redirects to HTTPS)
      - "traefik.http.routers.app-insecure.rule=Host(`xxx.yyy.zzz`)"
      - "traefik.http.routers.app-insecure.entrypoints=web"
      - "traefik.http.routers.app-insecure.middlewares=https-redirect"
      - "traefik.http.middlewares.https-redirect.redirectscheme.scheme=https"

      # HTTPS router
      - "traefik.http.routers.app.rule=Host(`xxx.yyy.zzz`)"
      - "traefik.http.routers.app.entrypoints=websecure"
      - "traefik.http.routers.app.tls.certresolver=myresolver"
      - "traefik.http.services.app.loadbalancer.server.port=80"

      # Security headers
      - "traefik.http.middlewares.app-headers.headers.frameDeny=true"
      - "traefik.http.middlewares.app-headers.headers.contentTypeNosniff=true"
      - "traefik.http.middlewares.app-headers.headers.browserXssFilter=true"
      - "traefik.http.middlewares.app-headers.headers.referrerPolicy=strict-origin-when-cross-origin"
      - "traefik.http.middlewares.app-headers.headers.stsSeconds=31536000"
      - "traefik.http.middlewares.app-headers.headers.stsIncludeSubdomains=true"
      - "traefik.http.middlewares.app-headers.headers.stsPreload=true"

      # Apply middlewares
      - "traefik.http.routers.app.middlewares=app-headers"

networks:
  traefik-network:
    external: true
.env.external.example
# Application Environment
APP_ENV=production
APP_DEBUG=false
APP_KEY=
APP_URL=https://xxx.yyy.zzz

# Domain Configuration (used in docker-compose labels)
DOMAIN=xxx.yyy.zzz

# Database
DB_CONNECTION=sqlite

# Session and Cache
SESSION_DRIVER=file
CACHE_DRIVER=file

# Logging
LOG_CHANNEL=stack

# Mail (if needed)
MAIL_MAILER=smtp

# Other Laravel configurations as needed
setup-external-traefik.sh
#!/bin/bash

echo "=== TEI Comparative Viewer Setup with External Traefik ==="

# .env.externalファイルが存在しない場合は作成
if [ ! -f .env.external ]; then
    echo "Creating .env.external file..."
    cp .env.external.example .env.external

    # アプリケーションキーを生成
    echo "Generating application key..."
    docker run --rm \
        -v $(pwd):/var/www \
        -w /var/www \
        php:8.2-cli \
        php artisan key:generate --env=production --show | sed 's/base64://' > app_key.tmp

    # 生成したキーを.env.externalに設定
    APP_KEY=$(cat app_key.tmp)
    sed -i.bak "s/APP_KEY=/APP_KEY=base64:$APP_KEY/" .env.external
    rm app_key.tmp .env.external.bak

    echo "Application key generated successfully!"
fi

# 設定の確認
echo ""
echo "⚠️  IMPORTANT: Please edit .env.external and configure the following:"
echo "   1. DOMAIN=your-domain.com (your actual domain)"
echo "   2. APP_URL=https://your-domain.com (with HTTPS)"
echo "   3. ASSET_URL=https://your-domain.com (for proper asset loading)"
echo ""
echo "Note: This setup assumes you have an external Traefik instance running"
echo "with the 'traefik-network' already created."
echo ""
read -p "Press Enter to continue with the current settings..."

# .envファイルをロード
export $(cat .env.external | grep -v '^#' | xargs)

# traefik-networkが存在するか確認
echo "Checking if traefik-network exists..."
if ! docker network ls | grep -q traefik-network; then
    echo "❌ Error: traefik-network not found!"
    echo "Please ensure your external Traefik is running with traefik-network created."
    echo ""
    echo "If you need to create the network manually:"
    echo "  docker network create traefik-network"
    exit 1
fi

echo "✅ traefik-network found!"

# 必要なディレクトリを作成
echo "Creating necessary directories..."
mkdir -p storage/app/public
mkdir -p storage/framework/{cache,sessions,views}
mkdir -p storage/logs
mkdir -p bootstrap/cache

# まず.envファイルをコピー
echo "Copying environment file..."
cp .env.external .env

# Dockerイメージをビルド（キー生成なしのDockerfileを使用）
echo "Building Docker images..."
if ! docker compose -f docker-compose-external.yml build; then
    echo "❌ Docker build failed. Trying without cache..."
    docker compose -f docker-compose-external.yml build --no-cache
fi

# コンテナを起動
echo "Starting containers..."
docker compose -f docker-compose-external.yml up -d

# 起動確認
echo "Waiting for services to be ready..."
sleep 15

# アプリケーションキーが設定されていない場合は生成
echo "Checking and generating application key if needed..."
if docker compose -f docker-compose-external.yml exec app php artisan key:generate --show | grep -q "base64:"; then
    echo "Generating new application key..."
    docker compose -f docker-compose-external.yml exec app php artisan key:generate --force
fi

# 権限を設定
echo "Setting permissions..."
docker compose -f docker-compose-external.yml exec app chown -R www-data:www-data /var/www/storage /var/www/bootstrap/cache || echo "Permission setting completed"

# 設定キャッシュをクリア
echo "Clearing configuration cache..."
docker compose -f docker-compose-external.yml exec app php artisan config:clear
docker compose -f docker-compose-external.yml exec app php artisan config:cache
docker compose -f docker-compose-external.yml exec app php artisan route:clear

# アプリケーションの状態確認
echo "Checking application status..."
if docker compose -f docker-compose-external.yml ps | grep -q "Up"; then
    echo "✅ Application container is running!"
else
    echo "❌ Application container may have issues. Check logs:"
    echo "  docker compose -f docker-compose-external.yml logs app"
fi

echo ""
echo "✅ Setup complete!"
echo ""
echo "Application should be available at your configured domain (HTTPS)"
echo "(assuming your external Traefik is properly configured and SSL certificates are set up)"
echo ""
echo "To stop the application, run:"
echo "  docker compose -f docker-compose-external.yml down"
echo ""
echo "To view logs, run:"
echo "  docker compose -f docker-compose-external.yml logs -f app"
echo ""
echo "To check Traefik routing (if dashboard is accessible):"
echo "  Check your Traefik dashboard for the new routes"
echo ""
echo "📝 Next steps:"
echo "  1. Edit .env.external with your actual domain settings"
echo "  2. Update docker-compose-external.yml Traefik labels with your domain"
echo "  3. Ensure DNS is properly configured for your domain"

 まとめ間違っている点もあるかもしれませんが、参考になりましたら幸いです。
システムおよびツールを公開してくださった関係者に感謝いたします。
