【Flutter】Isar Databaseについて

2023/07/08に公開

はじめに

Flutterを用いて開発を進める中で、アプリ内で不揮発で情報を保持する場面は
必ず遭遇することかと思います。
ネイティブ言語のSwiftやKotlinにも主要なライブラリは存在しているかと思います。

その中で、Flutterを用いた際に、どのDBパッケージが良いかを確認していた中で
hiveの後継としてIsarが登場していたことを知ったため、記述いたしました。

概要

導入

以下を実行

flutter pub add isar isar_flutter_libs
flutter pub add -d isar_generator build_runner
# Isarを開く際に指定したdirectlyのpathを指定するために使用するため追加が必要
flutter pub add path_provider

↓実行後

pubspec.yaml
dependencies:
  isar: ^3.1.0+1
  isar_flutter_libs: ^3.1.0+1
  path_provider: ^2.0.15

dev_dependencies:
  build_runner: ^2.4.6
  isar_generator: ^3.1.0+1

collection定義

user.dart
import 'package:isar/isar.dart';

part 'user.g.dart';


class User {
  // 一意に識別するID(必須)
  // [autoIncrement]にて、自動でIDを割り当てることが可能(独自で設定も可能)
  Id id = Isar.autoIncrement;
  String? name;
  int? age;
}
  • coleectionを定義するには@collection or @Collection()アノテーションを使用します。
    • collectionを付与したクラスには、主キー(PK)となるフィールドを定義する必要があります。

collection定義後、build_runnerにて、.gファイルを自動生成する

flutter pub run build_runner build --delete-conflicting-outputs
生成された.gファイル
user.g.dart
// GENERATED CODE - DO NOT MODIFY BY HAND

part of 'user.dart';

// **************************************************************************
// IsarCollectionGenerator
// **************************************************************************

// coverage:ignore-file
// ignore_for_file: duplicate_ignore, non_constant_identifier_names, constant_identifier_names, invalid_use_of_protected_member, unnecessary_cast, prefer_const_constructors, lines_longer_than_80_chars, require_trailing_commas, inference_failure_on_function_invocation, unnecessary_parenthesis, unnecessary_raw_strings, unnecessary_null_checks, join_return_with_assignment, prefer_final_locals, avoid_js_rounded_ints, avoid_positional_boolean_parameters, always_specify_types

extension GetUserCollection on Isar {
  IsarCollection<User> get users => this.collection();
}

const UserSchema = CollectionSchema(
  name: r'User',
  id: -7838171048429979076,
  properties: {
    r'age': PropertySchema(
      id: 0,
      name: r'age',
      type: IsarType.long,
    ),
    r'name': PropertySchema(
      id: 1,
      name: r'name',
      type: IsarType.string,
    )
  },
  estimateSize: _userEstimateSize,
  serialize: _userSerialize,
  deserialize: _userDeserialize,
  deserializeProp: _userDeserializeProp,
  idName: r'id',
  indexes: {},
  links: {},
  embeddedSchemas: {},
  getId: _userGetId,
  getLinks: _userGetLinks,
  attach: _userAttach,
  version: '3.1.0+1',
);

int _userEstimateSize(
  User object,
  List<int> offsets,
  Map<Type, List<int>> allOffsets,
) {
  var bytesCount = offsets.last;
  {
    final value = object.name;
    if (value != null) {
      bytesCount += 3 + value.length * 3;
    }
  }
  return bytesCount;
}

void _userSerialize(
  User object,
  IsarWriter writer,
  List<int> offsets,
  Map<Type, List<int>> allOffsets,
) {
  writer.writeLong(offsets[0], object.age);
  writer.writeString(offsets[1], object.name);
}

User _userDeserialize(
  Id id,
  IsarReader reader,
  List<int> offsets,
  Map<Type, List<int>> allOffsets,
) {
  final object = User();
  object.age = reader.readLongOrNull(offsets[0]);
  object.id = id;
  object.name = reader.readStringOrNull(offsets[1]);
  return object;
}

P _userDeserializeProp<P>(
  IsarReader reader,
  int propertyId,
  int offset,
  Map<Type, List<int>> allOffsets,
) {
  switch (propertyId) {
    case 0:
      return (reader.readLongOrNull(offset)) as P;
    case 1:
      return (reader.readStringOrNull(offset)) as P;
    default:
      throw IsarError('Unknown property with id $propertyId');
  }
}

Id _userGetId(User object) {
  return object.id;
}

List<IsarLinkBase<dynamic>> _userGetLinks(User object) {
  return [];
}

void _userAttach(IsarCollection<dynamic> col, Id id, User object) {
  object.id = id;
}

extension UserQueryWhereSort on QueryBuilder<User, User, QWhere> {
  QueryBuilder<User, User, QAfterWhere> anyId() {
    return QueryBuilder.apply(this, (query) {
      return query.addWhereClause(const IdWhereClause.any());
    });
  }
}

extension UserQueryWhere on QueryBuilder<User, User, QWhereClause> {
  QueryBuilder<User, User, QAfterWhereClause> idEqualTo(Id id) {
    return QueryBuilder.apply(this, (query) {
      return query.addWhereClause(IdWhereClause.between(
        lower: id,
        upper: id,
      ));
    });
  }

  QueryBuilder<User, User, QAfterWhereClause> idNotEqualTo(Id id) {
    return QueryBuilder.apply(this, (query) {
      if (query.whereSort == Sort.asc) {
        return query
            .addWhereClause(
              IdWhereClause.lessThan(upper: id, includeUpper: false),
            )
            .addWhereClause(
              IdWhereClause.greaterThan(lower: id, includeLower: false),
            );
      } else {
        return query
            .addWhereClause(
              IdWhereClause.greaterThan(lower: id, includeLower: false),
            )
            .addWhereClause(
              IdWhereClause.lessThan(upper: id, includeUpper: false),
            );
      }
    });
  }

  QueryBuilder<User, User, QAfterWhereClause> idGreaterThan(Id id,
      {bool include = false}) {
    return QueryBuilder.apply(this, (query) {
      return query.addWhereClause(
        IdWhereClause.greaterThan(lower: id, includeLower: include),
      );
    });
  }

  QueryBuilder<User, User, QAfterWhereClause> idLessThan(Id id,
      {bool include = false}) {
    return QueryBuilder.apply(this, (query) {
      return query.addWhereClause(
        IdWhereClause.lessThan(upper: id, includeUpper: include),
      );
    });
  }

  QueryBuilder<User, User, QAfterWhereClause> idBetween(
    Id lowerId,
    Id upperId, {
    bool includeLower = true,
    bool includeUpper = true,
  }) {
    return QueryBuilder.apply(this, (query) {
      return query.addWhereClause(IdWhereClause.between(
        lower: lowerId,
        includeLower: includeLower,
        upper: upperId,
        includeUpper: includeUpper,
      ));
    });
  }
}

extension UserQueryFilter on QueryBuilder<User, User, QFilterCondition> {
  QueryBuilder<User, User, QAfterFilterCondition> ageIsNull() {
    return QueryBuilder.apply(this, (query) {
      return query.addFilterCondition(const FilterCondition.isNull(
        property: r'age',
      ));
    });
  }

  QueryBuilder<User, User, QAfterFilterCondition> ageIsNotNull() {
    return QueryBuilder.apply(this, (query) {
      return query.addFilterCondition(const FilterCondition.isNotNull(
        property: r'age',
      ));
    });
  }

  QueryBuilder<User, User, QAfterFilterCondition> ageEqualTo(int? value) {
    return QueryBuilder.apply(this, (query) {
      return query.addFilterCondition(FilterCondition.equalTo(
        property: r'age',
        value: value,
      ));
    });
  }

  QueryBuilder<User, User, QAfterFilterCondition> ageGreaterThan(
    int? value, {
    bool include = false,
  }) {
    return QueryBuilder.apply(this, (query) {
      return query.addFilterCondition(FilterCondition.greaterThan(
        include: include,
        property: r'age',
        value: value,
      ));
    });
  }

  QueryBuilder<User, User, QAfterFilterCondition> ageLessThan(
    int? value, {
    bool include = false,
  }) {
    return QueryBuilder.apply(this, (query) {
      return query.addFilterCondition(FilterCondition.lessThan(
        include: include,
        property: r'age',
        value: value,
      ));
    });
  }

  QueryBuilder<User, User, QAfterFilterCondition> ageBetween(
    int? lower,
    int? upper, {
    bool includeLower = true,
    bool includeUpper = true,
  }) {
    return QueryBuilder.apply(this, (query) {
      return query.addFilterCondition(FilterCondition.between(
        property: r'age',
        lower: lower,
        includeLower: includeLower,
        upper: upper,
        includeUpper: includeUpper,
      ));
    });
  }

  QueryBuilder<User, User, QAfterFilterCondition> idEqualTo(Id value) {
    return QueryBuilder.apply(this, (query) {
      return query.addFilterCondition(FilterCondition.equalTo(
        property: r'id',
        value: value,
      ));
    });
  }

  QueryBuilder<User, User, QAfterFilterCondition> idGreaterThan(
    Id value, {
    bool include = false,
  }) {
    return QueryBuilder.apply(this, (query) {
      return query.addFilterCondition(FilterCondition.greaterThan(
        include: include,
        property: r'id',
        value: value,
      ));
    });
  }

  QueryBuilder<User, User, QAfterFilterCondition> idLessThan(
    Id value, {
    bool include = false,
  }) {
    return QueryBuilder.apply(this, (query) {
      return query.addFilterCondition(FilterCondition.lessThan(
        include: include,
        property: r'id',
        value: value,
      ));
    });
  }

  QueryBuilder<User, User, QAfterFilterCondition> idBetween(
    Id lower,
    Id upper, {
    bool includeLower = true,
    bool includeUpper = true,
  }) {
    return QueryBuilder.apply(this, (query) {
      return query.addFilterCondition(FilterCondition.between(
        property: r'id',
        lower: lower,
        includeLower: includeLower,
        upper: upper,
        includeUpper: includeUpper,
      ));
    });
  }

  QueryBuilder<User, User, QAfterFilterCondition> nameIsNull() {
    return QueryBuilder.apply(this, (query) {
      return query.addFilterCondition(const FilterCondition.isNull(
        property: r'name',
      ));
    });
  }

  QueryBuilder<User, User, QAfterFilterCondition> nameIsNotNull() {
    return QueryBuilder.apply(this, (query) {
      return query.addFilterCondition(const FilterCondition.isNotNull(
        property: r'name',
      ));
    });
  }

  QueryBuilder<User, User, QAfterFilterCondition> nameEqualTo(
    String? value, {
    bool caseSensitive = true,
  }) {
    return QueryBuilder.apply(this, (query) {
      return query.addFilterCondition(FilterCondition.equalTo(
        property: r'name',
        value: value,
        caseSensitive: caseSensitive,
      ));
    });
  }

  QueryBuilder<User, User, QAfterFilterCondition> nameGreaterThan(
    String? value, {
    bool include = false,
    bool caseSensitive = true,
  }) {
    return QueryBuilder.apply(this, (query) {
      return query.addFilterCondition(FilterCondition.greaterThan(
        include: include,
        property: r'name',
        value: value,
        caseSensitive: caseSensitive,
      ));
    });
  }

  QueryBuilder<User, User, QAfterFilterCondition> nameLessThan(
    String? value, {
    bool include = false,
    bool caseSensitive = true,
  }) {
    return QueryBuilder.apply(this, (query) {
      return query.addFilterCondition(FilterCondition.lessThan(
        include: include,
        property: r'name',
        value: value,
        caseSensitive: caseSensitive,
      ));
    });
  }

  QueryBuilder<User, User, QAfterFilterCondition> nameBetween(
    String? lower,
    String? upper, {
    bool includeLower = true,
    bool includeUpper = true,
    bool caseSensitive = true,
  }) {
    return QueryBuilder.apply(this, (query) {
      return query.addFilterCondition(FilterCondition.between(
        property: r'name',
        lower: lower,
        includeLower: includeLower,
        upper: upper,
        includeUpper: includeUpper,
        caseSensitive: caseSensitive,
      ));
    });
  }

  QueryBuilder<User, User, QAfterFilterCondition> nameStartsWith(
    String value, {
    bool caseSensitive = true,
  }) {
    return QueryBuilder.apply(this, (query) {
      return query.addFilterCondition(FilterCondition.startsWith(
        property: r'name',
        value: value,
        caseSensitive: caseSensitive,
      ));
    });
  }

  QueryBuilder<User, User, QAfterFilterCondition> nameEndsWith(
    String value, {
    bool caseSensitive = true,
  }) {
    return QueryBuilder.apply(this, (query) {
      return query.addFilterCondition(FilterCondition.endsWith(
        property: r'name',
        value: value,
        caseSensitive: caseSensitive,
      ));
    });
  }

  QueryBuilder<User, User, QAfterFilterCondition> nameContains(String value,
      {bool caseSensitive = true}) {
    return QueryBuilder.apply(this, (query) {
      return query.addFilterCondition(FilterCondition.contains(
        property: r'name',
        value: value,
        caseSensitive: caseSensitive,
      ));
    });
  }

  QueryBuilder<User, User, QAfterFilterCondition> nameMatches(String pattern,
      {bool caseSensitive = true}) {
    return QueryBuilder.apply(this, (query) {
      return query.addFilterCondition(FilterCondition.matches(
        property: r'name',
        wildcard: pattern,
        caseSensitive: caseSensitive,
      ));
    });
  }

  QueryBuilder<User, User, QAfterFilterCondition> nameIsEmpty() {
    return QueryBuilder.apply(this, (query) {
      return query.addFilterCondition(FilterCondition.equalTo(
        property: r'name',
        value: '',
      ));
    });
  }

  QueryBuilder<User, User, QAfterFilterCondition> nameIsNotEmpty() {
    return QueryBuilder.apply(this, (query) {
      return query.addFilterCondition(FilterCondition.greaterThan(
        property: r'name',
        value: '',
      ));
    });
  }
}

extension UserQueryObject on QueryBuilder<User, User, QFilterCondition> {}

extension UserQueryLinks on QueryBuilder<User, User, QFilterCondition> {}

extension UserQuerySortBy on QueryBuilder<User, User, QSortBy> {
  QueryBuilder<User, User, QAfterSortBy> sortByAge() {
    return QueryBuilder.apply(this, (query) {
      return query.addSortBy(r'age', Sort.asc);
    });
  }

  QueryBuilder<User, User, QAfterSortBy> sortByAgeDesc() {
    return QueryBuilder.apply(this, (query) {
      return query.addSortBy(r'age', Sort.desc);
    });
  }

  QueryBuilder<User, User, QAfterSortBy> sortByName() {
    return QueryBuilder.apply(this, (query) {
      return query.addSortBy(r'name', Sort.asc);
    });
  }

  QueryBuilder<User, User, QAfterSortBy> sortByNameDesc() {
    return QueryBuilder.apply(this, (query) {
      return query.addSortBy(r'name', Sort.desc);
    });
  }
}

extension UserQuerySortThenBy on QueryBuilder<User, User, QSortThenBy> {
  QueryBuilder<User, User, QAfterSortBy> thenByAge() {
    return QueryBuilder.apply(this, (query) {
      return query.addSortBy(r'age', Sort.asc);
    });
  }

  QueryBuilder<User, User, QAfterSortBy> thenByAgeDesc() {
    return QueryBuilder.apply(this, (query) {
      return query.addSortBy(r'age', Sort.desc);
    });
  }

  QueryBuilder<User, User, QAfterSortBy> thenById() {
    return QueryBuilder.apply(this, (query) {
      return query.addSortBy(r'id', Sort.asc);
    });
  }

  QueryBuilder<User, User, QAfterSortBy> thenByIdDesc() {
    return QueryBuilder.apply(this, (query) {
      return query.addSortBy(r'id', Sort.desc);
    });
  }

  QueryBuilder<User, User, QAfterSortBy> thenByName() {
    return QueryBuilder.apply(this, (query) {
      return query.addSortBy(r'name', Sort.asc);
    });
  }

  QueryBuilder<User, User, QAfterSortBy> thenByNameDesc() {
    return QueryBuilder.apply(this, (query) {
      return query.addSortBy(r'name', Sort.desc);
    });
  }
}

extension UserQueryWhereDistinct on QueryBuilder<User, User, QDistinct> {
  QueryBuilder<User, User, QDistinct> distinctByAge() {
    return QueryBuilder.apply(this, (query) {
      return query.addDistinctBy(r'age');
    });
  }

  QueryBuilder<User, User, QDistinct> distinctByName(
      {bool caseSensitive = true}) {
    return QueryBuilder.apply(this, (query) {
      return query.addDistinctBy(r'name', caseSensitive: caseSensitive);
    });
  }
}

extension UserQueryProperty on QueryBuilder<User, User, QQueryProperty> {
  QueryBuilder<User, int, QQueryOperations> idProperty() {
    return QueryBuilder.apply(this, (query) {
      return query.addPropertyName(r'id');
    });
  }

  QueryBuilder<User, int?, QQueryOperations> ageProperty() {
    return QueryBuilder.apply(this, (query) {
      return query.addPropertyName(r'age');
    });
  }

  QueryBuilder<User, String?, QQueryOperations> nameProperty() {
    return QueryBuilder.apply(this, (query) {
      return query.addPropertyName(r'name');
    });
  }
}

Data base定義

※Riverpodを使用して、databaseにアクセスする形としています。

database.dart
import 'package:app/user.dart';
import 'package:isar/isar.dart';
import 'package:path_provider/path_provider.dart';
import 'package:riverpod_annotation/riverpod_annotation.dart';

part 'database.g.dart';

(keepAlive: true)
Database database(DatabaseRef ref) => Database()..init();

class Database {
  late final Isar isar;

  /// 初期化処理
  Future<void> init() async {
    final dir = await getApplicationDocumentsDirectory();
    isar = await Isar.open([UserSchema], directory: dir.path);
  }

  /// 追加
  Future<void> put(User user) async {
    await isar.writeTxn(() async => await isar.users.put(user));
  }

  /// 取得
  Future<User?> get(Id id) async => await isar.users.get(id);

  /// 複数取得
  Future<List<User?>> getAll(List<Id> ids) async =>
      await isar.users.getAll(ids);

  /// 削除
  Future<void> delete(Id id) async {
    await isar.writeTxn(() => isar.users.delete(id));
  }

  /// 複数削除
  Future<void> deleteAll(List<Id> ids) async {
    await isar.writeTxn(() => isar.users.deleteAll(ids));
  }
}

呼び出し側

app.dart
import 'package:app/app_notifier.dart';
import 'package:flutter/material.dart';
import 'package:flutter_hooks/flutter_hooks.dart';
import 'package:hooks_riverpod/hooks_riverpod.dart';

class App extends HookConsumerWidget {
  const App({Key? key}) : super(key: key);


  Widget build(BuildContext context, WidgetRef ref) {
    final nameController = useTextEditingController();
    final ageController = useTextEditingController();

    final appNotifier = ref.watch(appNotifierProvider.notifier);
    final state = ref.watch(appNotifierProvider);

    return Scaffold(
      appBar: AppBar(title: const Text('DB')),
      body: Padding(
        padding: const EdgeInsets.symmetric(horizontal: 20),
        child: Column(
          mainAxisAlignment: MainAxisAlignment.center,
          children: [
            Text('先頭の情報を取得 : 名前 - ${state.name} / 年齢 - ${state.age}'),
            const SizedBox(height: 24),
            _AppTextField(
              text: '名前',
              controller: nameController,
            ),
            const SizedBox(height: 8),
            _AppTextField(
              text: '年齢',
              controller: ageController,
            ),
            const SizedBox(height: 16),
            Row(
              mainAxisAlignment: MainAxisAlignment.center,
              children: [
                ElevatedButton(
                  onPressed: () {
                    appNotifier.put(
                      nameController.value.text,
                      int.parse(ageController.value.text),
                    );
                  },
                  child: const Text('登録'),
                ),
                const SizedBox(width: 16),
                ElevatedButton(
                  onPressed: () {
                    appNotifier.delete(1);
                  },
                  child: const Text('削除'),
                ),
              ],
            ),
          ],
        ),
      ),
    );
  }
}

class _AppTextField extends StatelessWidget {
  const _AppTextField({
    required this.text,
    required this.controller,
  });

  final String text;
  final TextEditingController controller;


  Widget build(BuildContext context) {
    return TextField(
      controller: controller,
      decoration: InputDecoration(
        labelText: text,
        focusedBorder: const OutlineInputBorder(
          borderRadius: BorderRadius.all(Radius.circular(10.0)),
          borderSide: BorderSide(width: 1, color: Colors.blueAccent),
        ),
        enabledBorder: const OutlineInputBorder(
          borderRadius: BorderRadius.all(Radius.circular(10.0)),
          borderSide: BorderSide(width: 1, color: Colors.blueAccent),
        ),
        border: const OutlineInputBorder(
          borderRadius: BorderRadius.all(Radius.circular(10.0)),
        ),
      ),
    );
  }
}

app_notifier.dart
import 'package:app/database.dart';
import 'package:app/user.dart';
import 'package:freezed_annotation/freezed_annotation.dart';
import 'package:isar/isar.dart';
import 'package:riverpod_annotation/riverpod_annotation.dart';

part 'app_notifier.freezed.dart';
part 'app_notifier.g.dart';


class AppState with _$AppState {
  factory AppState({
    (null) String? name,
    (null) int? age,
  }) = _AppState;
}


class AppNotifier extends _$AppNotifier {
  AppNotifier();

  late Database database;


  AppState build() {
    database = ref.watch(databaseProvider);
    return AppState();
  }

  Future<void> put(String name, int age) async {
    final user = User()
      ..name = name
      ..age = age;
    database.put(user);

    state = state.copyWith(name: name, age: age);
  }

  Future<void> delete(Id id) async {
    database.delete(id);
    state = state.copyWith(name: null, age: null);
  }

  Future<User?> get(Id id) async => await database.get(id);
}

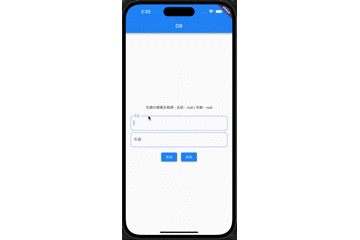

altテキスト

Isar Inspector

  1. Isar Inspectorのリリースノートから、libisar_macos.dylibをダウンロードします。
    https://github.com/isar/isar/releases

  2. その後、アプリを再ビルドしてください。

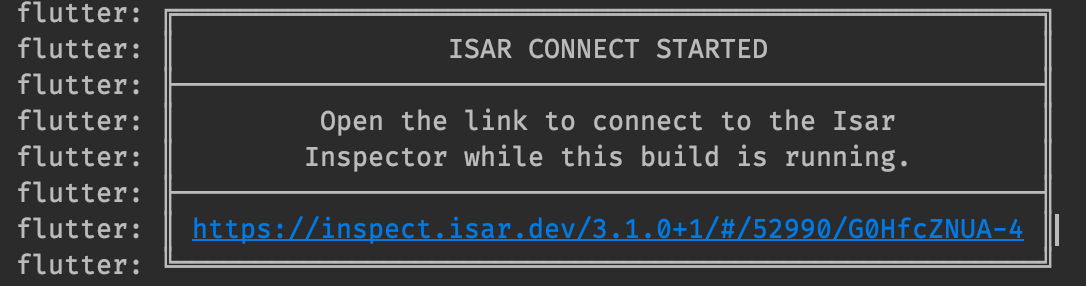

    ビルド時にDebugに以下URLが表示されるため、アクセスしましょう。
    altテキスト

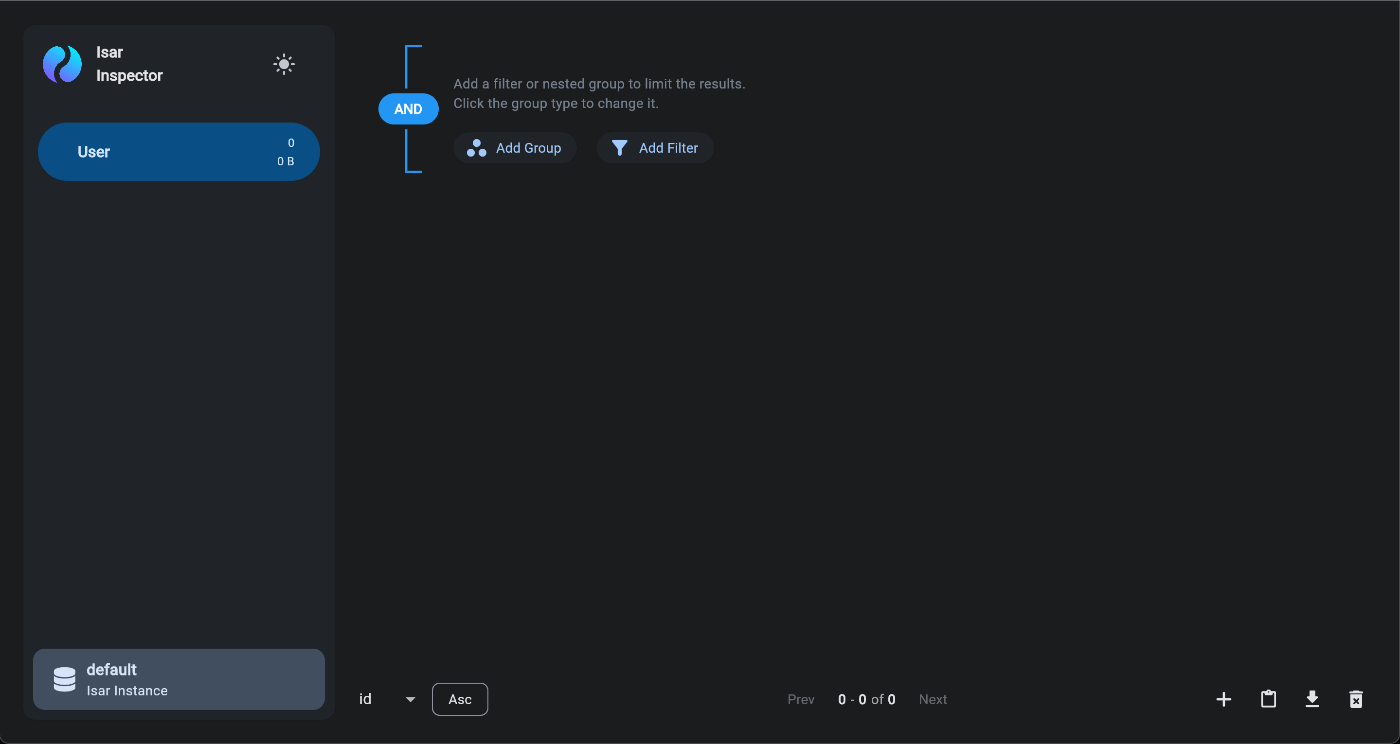

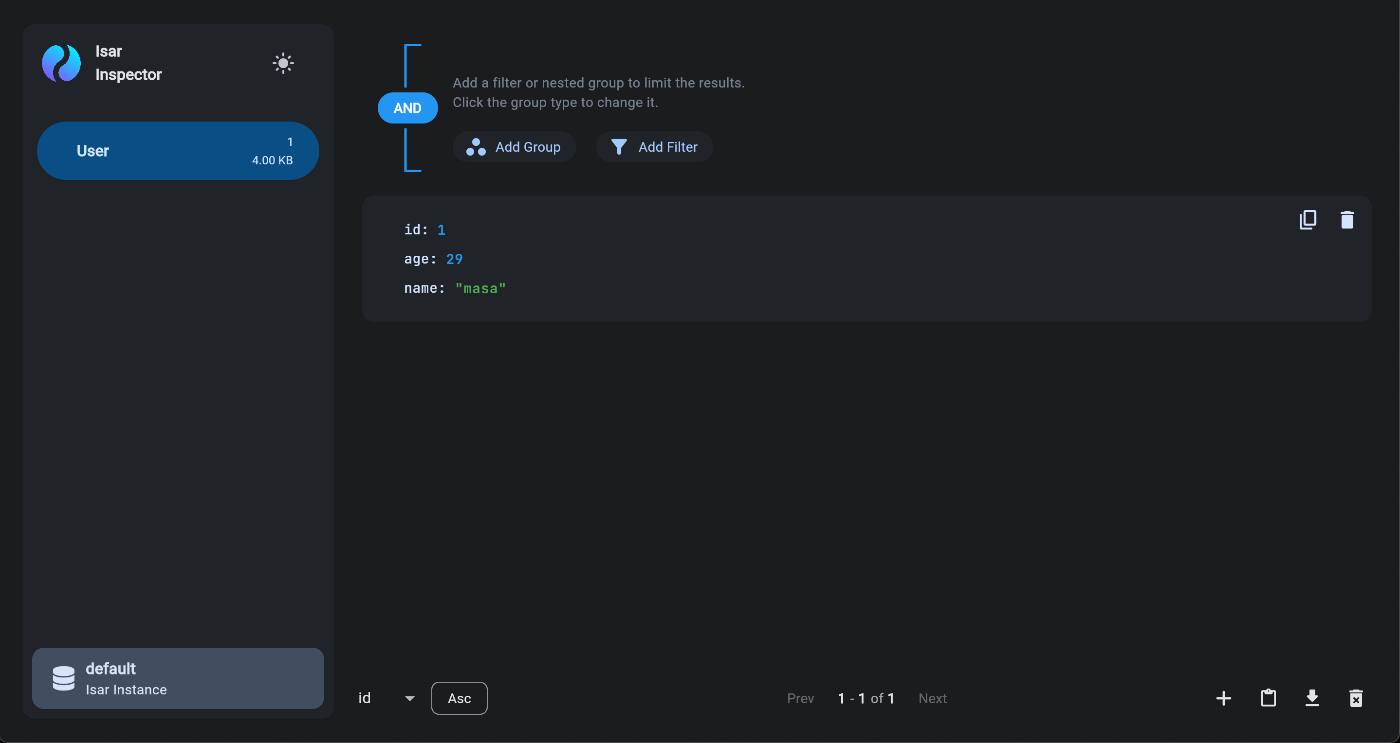

  1. アクセスすると以下のように、Inspectorが表示され、先ほど追加した情報が保存されていることが確認できます。
    altテキスト

まとめ

今回は基本的な部分をピックアップしましたが
クエリを操作したり、値の状態を監視したりと、柔軟にDB操作が可能となっています。
Flutterには他にも

  • Realm
  • Drift
  • shared_preferences
  • ObjectBox
    ...etc
    など様々なDBパッケージが存在していますので、
    導入の際の参考にしていただけたら幸いです。

参考

https://isar.dev/ja/tutorials/quickstart.html
https://pub.dev/packages/isar
https://pub.dev/packages/isar_generator

Discussion
