# やりたいこと

scikit-learnのnaive_bayesにはいくつかのモデルが実装されていますが、それ以外の確率分布、特にKDEでフィットした経験分布を用いてベイズ分類機を作りたい。

# やり方

• C: class
• X: 観測値
C^* = \argmax_C P(C)P(X|C)

## 分布抽象クラスのAPI

from abc import ABC, abstractmethod
from typing import Self

from nptyping import Float, NDArray, Number, Shape

class Distribution(ABC):
@abstractmethod
def fit(self, X: NDArray[Shape["N, D"], Number]) -> Self:
pass

@abstractmethod
def pdf(self, X: NDArray[Shape["N, D"], Number]) -> NDArray[Shape["N, D"], Float]:
pass


## 分類機側の実装

from typing import Callable, Self

import numpy as np
from nptyping import Float, Int, NDArray, Number, Shape
from sklearn.base import BaseEstimator, ClassifierMixin

from .distribution import Distribution

class AnyBayesClassifier(BaseEstimator, ClassifierMixin):

def __init__(self, distribution_factory: Callable[[], Distribution]):
self.distribution_factory = distribution_factory
self.dists_: list[Distribution] = []
self.n_classes_: int = 0

def fit(
self, X: NDArray[Shape["N, D"], Number], y: NDArray[Shape["N"], Int]
) -> Self:
self.n_classes_ = max(y) + 1
self.dists_ = []
for class_ in range(self.n_classes_):
dist = self.distribution_factory().fit(x)
self.dists_.append(dist)
return self

def predict_proba(
self,
X: NDArray[Shape["N, D"], Number],
class_weight: list[float] | float = 1.0,
) -> NDArray[Shape["N, C"], Float]:
if self.n_classes_ == 0:
raise RuntimeError("You must fit the model before predicting")

if isinstance(class_weight, float):
class_weights = [class_weight] * self.n_classes_
else:
if len(class_weight) != self.n_classes_:
raise ValueError(
f"Expected {self.n_classes_} class weights, got {len(class_weight)}"
)
class_weights = class_weight
probs = []
for w, dist in zip(class_weights, self.dists_):
probs.append(dist.pdf(X) * w)
p = np.asarray(probs, dtype=np.float64).T.copy()
return p / p.sum(axis=1, keepdims=True)

def predict(
self,
X: NDArray[Shape["N, D"], Number],
class_weight: list[float] | float = 1.0,
) -> NDArray[Shape["N"], Int]:
probs = self.predict_proba(X, class_weight=class_weight)
return np.argmax(probs, axis=1)


# テスト

scikit-learnのKernel Density Estimation(KDE)を利用した経験分布で分類機を作ってみます。

from dataclasses import dataclass
from typing import Any, Literal, Self, TypeAlias

import numpy as np
from nptyping import Float, NDArray, Shape
from sklearn.neighbors import KernelDensity

from ..distribution import Distribution

BandwidthType: TypeAlias = float | Literal["scott", "silverman"]
KernelType: TypeAlias = Literal[
"gaussian", "tophat", "epanechnikov", "exponential", "linear", "cosine"
]
MetricType: TypeAlias = str
MetricParamsType: TypeAlias = dict[str, Any] | None

@dataclass
class SKLearnKDE(Distribution):
bandwidth: BandwidthType = "scott"
kernel: KernelType = "gaussian"
metric: MetricType = "euclidean"
metric_params: MetricParamsType = None

def fit(self, X: NDArray[Shape["N, D"], Float]) -> Self:
self.kde_ = KernelDensity(
bandwidth=self.bandwidth,
kernel=self.kernel,
metric=self.metric,
metric_params=self.metric_params,
).fit(X)
return self

def pdf(self, X: NDArray[Shape["N, D"], Float]) -> NDArray[Shape["N, D"], Float]:
return np.exp(self.kde_.score_samples(X))

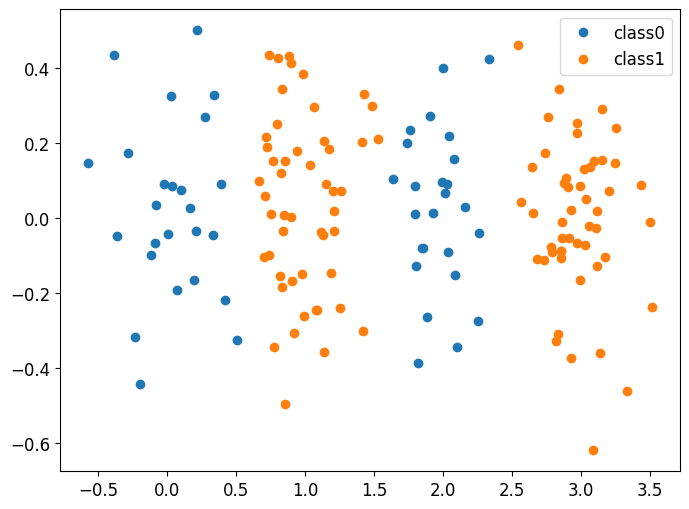

これを山が2つあるようなデータで試してみます。

import matplotlib.pyplot as plt
import numpy as np
np.random.seed(0)

m00 = np.array([0, 0])
m01 = np.array([2, 0])
m10 = np.array([1, 0])
m11 = np.array([3, 0])
s = 0.05

x00 = np.random.multivariate_normal(m00, np.eye(2)*s, 25)
x01 = np.random.multivariate_normal(m01, np.eye(2)*s, 25)
x0 = np.vstack((x00, x01))
x10 = np.random.multivariate_normal(m10, np.eye(2)*s, 50)
x11 = np.random.multivariate_normal(m11, np.eye(2)*s, 50)
x1 = np.vstack((x10, x11))

plt.plot(x0[:, 0], x0[:, 1], 'o', label='class0')
plt.plot(x1[:, 0], x1[:, 1], 'o', label='class1')
plt.legend()


まずはscikit-learnのGaussianNBを試してみます。

y0 = np.zeros(x0.shape[0])
y1 = np.ones(x1.shape[0])
X = np.vstack((x0, x1))
y = np.hstack((y0, y1)).astype(int)

from sklearn.naive_bayes import GaussianNB

model = GaussianNB().fit(X, y)
y_pred = model.predict(X)
print(classification_report(y, y_pred))

precision    recall  f1-score   support

0       0.69      0.50      0.58        50
1       0.78      0.89      0.83       100

accuracy                           0.76       150
macro avg       0.74      0.70      0.71       150
weighted avg       0.75      0.76      0.75       150


やはり複数の山があるとちょうど入れ替わっているあたりでうまく分類できず、訓練データに対してもスコアが伸びません。次にKDEでもやってみます。


from sklearn.metrics import classification_report
from anybayes import AnyBayesClassifier, IndependentSKLearnKDE

model = AnyBayesClassifier(distribution_factory=IndependentSKLearnKDE).fit(X, y)
y_pred = model.predict(X)
print(classification_report(y, y_pred))

precision    recall  f1-score   support

0       0.98      1.00      0.99        50
1       1.00      0.99      0.99       100

accuracy                           0.99       150
macro avg       0.99      0.99      0.99       150
weighted avg       0.99      0.99      0.99       150
