OPX(OpenSwitch)でS6010-onの管理ポートにSSH

2024/10/11に公開

前提

S6010-onにOpenSwitchOSを入れて使用しています。

準備

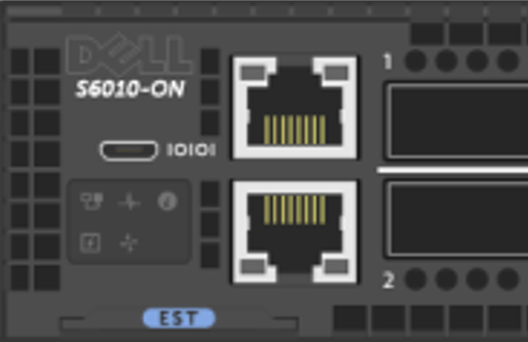

マネジメントポート(Management port)にRJ45ケーブルを接続します。
2つあるうちの下側です。

statusチェック

ポートの状態を確認します。
通常マネジメントポートはeth0になります。
sudo opx-show-interfaceですべてのポートの状態を確認できますがここでは割愛します。

admin@OPX:~$ sudo ifconfig eth0
[sudo] password for admin:
eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.5.106  netmask 255.255.255.0  broadcast 192.168.5.255
        inet6 fe80::f68e:38ff:fe2b:1769  prefixlen 64  scopeid 0x20<link>
        ether f4:8e:38:2b:17:69  txqueuelen 1000  (Ethernet)
        RX packets 1055  bytes 604720 (590.5 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 239  bytes 24480 (23.9 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

192.168.5.106にDHCPからIPが降ってきていることが確認できます。

sshdの状態チェック

OPXの中身はLinuxですのでsshdが起動してることを確認します。

admin@OPX:~$ sudo systemctl status sshd
● ssh.service - OpenBSD Secure Shell server
   Loaded: loaded (/lib/systemd/system/ssh.service; enabled; vendor preset: enab
led)
   Active: active (running) since Thu 2024-10-10 12:36:11 UTC; 3min 2
2s ago
  Process: 1862 ExecReload=/bin/kill -HUP $MAINPID (code=exited, status=0/SUCCES
S)
  Process: 1857 ExecReload=/usr/sbin/sshd -t (code=exited, status=0/SUCCESS)
  Process: 521 ExecStartPre=/usr/sbin/sshd -t (code=exited, status=0/SUCCESS)
 Main PID: 530 (sshd)
    Tasks: 1 (limit: 4915)
   CGroup: /system.slice/ssh.service
           └─530 /usr/sbin/sshd -D

Oct 10 12:36:11 OPX systemd[1]: Starting OpenBSD Secure Shell server...
Oct 10 12:36:11 OPX sshd[530]: Server listening on 0.0.0.0 port 22.
Oct 10 12:36:11 OPX sshd[530]: Server listening on :: port 22.
Oct 10 12:36:11 OPX systemd[1]: Started OpenBSD Secure Shell server.
Oct 10 12:36:33 OPX systemd[1]: Reloading OpenBSD Secure Shell server.
Oct 10 12:36:33 OPX sshd[530]: Received SIGHUP; restarting.
Oct 10 12:36:33 OPX systemd[1]: Reloaded OpenBSD Secure Shell server.
Oct 10 12:36:33 OPX sshd[530]: Server listening on 0.0.0.0 port 22.
Oct 10 12:36:33 OPX sshd[530]: Server listening on :: port 22.

有効になってない場合は以下のコマンドで有効にします。

sudo systemctl start sshd
sudo systemctl enable sshd

sshする

通常通りsshします。

> ssh admin@192.168.5.106
The authenticity of host '192.168.5.106 (192.168.5.106)' can't be established.
ED25519 key fingerprint is SHA256:nbuEN9mXCrR5OHF78jmk57A6+UqsJeUZdHxjY6O8o9M.
This key is not known by any other names
Are you sure you want to continue connecting (yes/no/[fingerprint])? yes
Warning: Permanently added '192.168.5.106' (ED25519) to the list of known hosts.
admin@192.168.5.106's password:
Linux OPX 4.9.0-8-amd64 #1 SMP Debian 4.9.110-3+deb9u4 (2018-08-21) x86_64

The programs included with the Debian GNU/Linux system are free software;
the exact distribution terms for each program are described in the
individual files in /usr/share/doc/*/copyright.

Debian GNU/Linux comes with ABSOLUTELY NO WARRANTY, to the extent
permitted by applicable law.
Last login: Thu Oct 10 12:38:00 2024
admin@OPX:~$

参考資料

ChatGPT君
Dell公式マニュアル
https://archive.openswitch.net/docs/3.0.0/openswitch_opx_300_config_guide.pdf
