FirebaseStorageの画像をシェアしたい

2023/09/24に公開

結構躓いたので記事にする

Firebase Storageに画像を保存して、Firestoreに画像のパスを保存して、パスを取得して画像を表示する方法は知っていたが、シェアする機能は作ったことがなかった!
というわけで、今回やってみました!

こちらの完成品を参考に試してみてください。
https://github.com/sakurakotubaki/FirebaseStorageShare

今回は試しにてやってみて、作った実験用アプリなので深くは追求しないです。

設定

Firebaseの環境構築をして、FirebaseStorageのセキュリティールールはif trueにしておいてください。

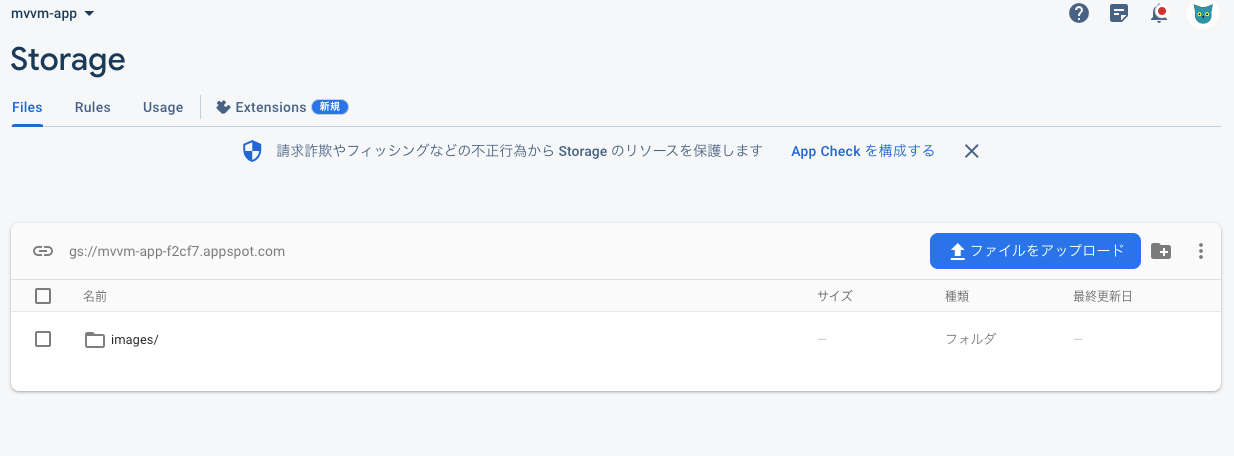

imagesフォルダを作成してこちらに画像を保存していきます。

成功すればこんな感じで画像が保存されてます。これだとまだ物足りない気がするので改良が必要と思います。

🎁パッケージを追加する

画像の保存とシェアするパッケージ、ネットワークから、画像のパスを取得するパッケージを追加します。

name: image_share
description: A new Flutter project.
# The following line prevents the package from being accidentally published to
# pub.dev using `flutter pub publish`. This is preferred for private packages.
publish_to: 'none' # Remove this line if you wish to publish to pub.dev

# The following defines the version and build number for your application.
# A version number is three numbers separated by dots, like 1.2.43
# followed by an optional build number separated by a +.
# Both the version and the builder number may be overridden in flutter
# build by specifying --build-name and --build-number, respectively.
# In Android, build-name is used as versionName while build-number used as versionCode.
# Read more about Android versioning at https://developer.android.com/studio/publish/versioning
# In iOS, build-name is used as CFBundleShortVersionString while build-number is used as CFBundleVersion.
# Read more about iOS versioning at
# https://developer.apple.com/library/archive/documentation/General/Reference/InfoPlistKeyReference/Articles/CoreFoundationKeys.html
# In Windows, build-name is used as the major, minor, and patch parts
# of the product and file versions while build-number is used as the build suffix.
version: 1.0.0+1

environment:
  sdk: '>=3.1.0 <4.0.0'

# Dependencies specify other packages that your package needs in order to work.
# To automatically upgrade your package dependencies to the latest versions
# consider running `flutter pub upgrade --major-versions`. Alternatively,
# dependencies can be manually updated by changing the version numbers below to
# the latest version available on pub.dev. To see which dependencies have newer
# versions available, run `flutter pub outdated`.
dependencies:
  cloud_firestore: ^4.9.0
  cupertino_icons: ^1.0.2
  firebase_core: ^2.15.0
  firebase_storage: ^11.2.5
  flutter:
    sdk: flutter
  http: ^1.1.0
  image_picker: ^1.0.4
  share_plus: ^7.1.0

dev_dependencies:

  # The "flutter_lints" package below contains a set of recommended lints to
  # encourage good coding practices. The lint set provided by the package is
  # activated in the `analysis_options.yaml` file located at the root of your
  # package. See that file for information about deactivating specific lint
  # rules and activating additional ones.
  flutter_lints: ^2.0.0
  flutter_test:
    sdk: flutter

# For information on the generic Dart part of this file, see the
# following page: https://dart.dev/tools/pub/pubspec
# The following section is specific to Flutter packages.
flutter:

  # The following line ensures that the Material Icons font is
  # included with your application, so that you can use the icons in
  # the material Icons class.
  uses-material-design: true
  # To add assets to your application, add an assets section, like this:
  # assets:
  #   - images/a_dot_burr.jpeg
  #   - images/a_dot_ham.jpeg
  # An image asset can refer to one or more resolution-specific "variants", see
  # https://flutter.dev/assets-and-images/#resolution-aware
  # For details regarding adding assets from package dependencies, see
  # https://flutter.dev/assets-and-images/#from-packages
  # To add custom fonts to your application, add a fonts section here,
  # in this "flutter" section. Each entry in this list should have a
  # "family" key with the font family name, and a "fonts" key with a
  # list giving the asset and other descriptors for the font. For
  # example:
  # fonts:
  #   - family: Schyler
  #     fonts:
  #       - asset: fonts/Schyler-Regular.ttf
  #       - asset: fonts/Schyler-Italic.ttf
  #         style: italic
  #   - family: Trajan Pro
  #     fonts:
  #       - asset: fonts/TrajanPro.ttf
  #       - asset: fonts/TrajanPro_Bold.ttf
  #         weight: 700
  #
  # For details regarding fonts from package dependencies,
  # see https://flutter.dev/custom-fonts/#from-packages

モデルクラスを作る。

タイトルと画像のurlだけ今回は定義します。ListViewで表示するときに使います。

model/photo.dart
class Photo {
  final String title;
  final String url;

  const Photo({required this.title, required this.url});
  // from Jsonでデータをシリアライズ(Dartのオブジェクトに変換)する
  factory Photo.fromJson(Map<String, dynamic> json) {
    return Photo(
      title: json['title'] as String,
      url: json['url'] as String,
    );
  }
  // toJsonでデータをデシリアライズ(Jsonに変換)する
  Map<String, dynamic> toJson() {
    return {
      'title': title,
      'url': url,
    };
  }
}

画像のアップロード

画像をアップロードするページを作成します。image_pickerを使用して端末の画像にアクセスして、アップロードします。
iOSは、xmlの設定が必要なので追加しておいてください。

ios/Runner/Info.plistのファイルに追加する。

ios/Runner/Info.plist
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>CFBundleDevelopmentRegion</key>
	<string>$(DEVELOPMENT_LANGUAGE)</string>
	<key>CFBundleDisplayName</key>
	<string>Image Share</string>
	<key>CFBundleExecutable</key>
	<string>$(EXECUTABLE_NAME)</string>
	<key>CFBundleIdentifier</key>
	<string>$(PRODUCT_BUNDLE_IDENTIFIER)</string>
	<key>CFBundleInfoDictionaryVersion</key>
	<string>6.0</string>
	<key>CFBundleName</key>
	<string>image_share</string>
	<key>CFBundlePackageType</key>
	<string>APPL</string>
	<key>CFBundleShortVersionString</key>
	<string>$(FLUTTER_BUILD_NAME)</string>
	<key>CFBundleSignature</key>
	<string>????</string>
	<key>CFBundleVersion</key>
	<string>$(FLUTTER_BUILD_NUMBER)</string>
	<key>LSRequiresIPhoneOS</key>
	<true/>
	<key>UILaunchStoryboardName</key>
	<string>LaunchScreen</string>
	<key>UIMainStoryboardFile</key>
	<string>Main</string>
	<key>UISupportedInterfaceOrientations</key>
	<array>
		<string>UIInterfaceOrientationPortrait</string>
		<string>UIInterfaceOrientationLandscapeLeft</string>
		<string>UIInterfaceOrientationLandscapeRight</string>
	</array>
	<key>UISupportedInterfaceOrientations~ipad</key>
	<array>
		<string>UIInterfaceOrientationPortrait</string>
		<string>UIInterfaceOrientationPortraitUpsideDown</string>
		<string>UIInterfaceOrientationLandscapeLeft</string>
		<string>UIInterfaceOrientationLandscapeRight</string>
	</array>
	<key>CADisableMinimumFrameDurationOnPhone</key>
	<true/>
	<key>UIApplicationSupportsIndirectInputEvents</key>
	<true/>
	<!-- ここから -->
	<key>NSPhotoLibraryUsageDescription</key>
	<string>This app requires to access your photo library</string>
	<key>NSCameraUsageDescription</key>
	<string>This app requires to add file to your camera</string>
	<key>NSMicrophoneUsageDescription</key>
	<string>This app requires to add file to your photo library your microphone</string>
	<!-- ここまで -->
</dict>
</plist>

画像をアップロードするページを作成。

import 'dart:io';

import 'package:cloud_firestore/cloud_firestore.dart';
import 'package:firebase_storage/firebase_storage.dart';
import 'package:flutter/material.dart';
import 'package:image_picker/image_picker.dart';
import 'package:image_share/model/photo.dart';
import 'package:image_share/photo_page.dart';

class UploadPage extends StatefulWidget {
  const UploadPage({Key? key}) : super(key: key);


  State<UploadPage> createState() => _UploadPageState();
}

class _UploadPageState extends State<UploadPage> {
  // 画像をFirebase Storageにアップロードする関数
  Future<void> fileUpload() async {
    try {
      final pickedFile =
          await ImagePicker().pickImage(source: ImageSource.gallery);

      // Null check for pickedFile
      if (pickedFile != null) {
        final File file = File(pickedFile.path);
        final String timestamp = DateTime.now().toString();

        // Create storage reference
        final storageRef =
            FirebaseStorage.instance.ref().child('images/$timestamp');

        // Upload the file
        final TaskSnapshot uploadTaskSnapshot = await storageRef.putFile(file);

        // Once the upload is complete, then get the download URL
        final String imageUrl = await uploadTaskSnapshot.ref.getDownloadURL();

        // Add to Firestore
        final store = FirebaseFirestore.instance;
        final photo = Photo(title: timestamp, url: imageUrl);
        await store.collection('photos').add(photo.toJson());
      } else {
        print("No image selected.");
      }
    } catch (e) {
      throw e;
    }
  }


  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        backgroundColor: Colors.red,
        title: const Text('Upload Page'),
      ),
      body: Center(
        child: Column(
          mainAxisAlignment: MainAxisAlignment.center,
          children: <Widget>[
            IconButton(
                onPressed: () async {
                  await fileUpload();
                },
                icon: const Icon(Icons.upload)),
            const SizedBox(height: 20),
            ElevatedButton(
                onPressed: () {
              Navigator.push(context, MaterialPageRoute(builder: (context) => PhotoPage()));
                },
                child: const Text('Photo Page')),
          ],
        ),
      ),
    );
  }
}

画像を表示する

次に画像を表示して、シェアボタンを押すと知り合いの人や自分のPCに画像を共有できる機能を作成します。

import 'package:cloud_firestore/cloud_firestore.dart';
import 'package:flutter/material.dart';
import 'package:image_share/model/photo.dart';
import 'package:share_plus/share_plus.dart';
import 'package:http/http.dart' as http;

class PhotoPage extends StatefulWidget {
  const PhotoPage({Key? key}) : super(key: key);


  State<PhotoPage> createState() => _PhotoPageState();
}

class _PhotoPageState extends State<PhotoPage> {

  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        backgroundColor: Colors.red,
        title: const Text('Photo Page'),
      ),
      // モデルクラスPhotoを使い画像を表示する
      body: StreamBuilder<QuerySnapshot>(
        stream: FirebaseFirestore.instance.collection('photos').snapshots(),
        builder: (context, snapshot) {
          if (snapshot.hasData) {
            final List<Photo> photos = snapshot.data!.docs
                .map(
                    (doc) => Photo.fromJson(doc.data() as Map<String, dynamic>))
                .toList();
            return ListView.builder(
              itemCount: photos.length,
              itemBuilder: (context, index) {
                return ListTile(
                  trailing: IconButton(
                    onPressed: () async {
                      try {
                        final response =
                            await http.get(Uri.parse(photos[index].url));
                        print('HTTP Status Code: ${response.statusCode}');

                        if (response.statusCode != 200) {
                          print('Failed to get image: ${response.statusCode}');
                          return;
                        }

                        final bytes = response.bodyBytes;
                        if (bytes.isEmpty) {
                          print('Empty response');
                          return;
                        }

                        await Share.shareXFiles(
                          [XFile.fromData(
                            bytes, name: 'image.jpeg',// 画像の名前
                             mimeType: 'image/jpeg'// 画像の形式
                             )],
                        );
                      } catch (e) {
                        print('An error occurred: $e');
                      }
                    },
                    icon: const Icon(Icons.share),
                  ),
                  title: Text(photos[index].title),
                  leading: Image.network(photos[index].url),
                );
              },
            );
          } else {
            return const Center(
              child: CircularProgressIndicator(),
            );
          }
        },
      ),
    );
  }
}

main.dartでimportして実行する。

main.dart
import 'package:firebase_core/firebase_core.dart';
import 'package:flutter/material.dart';
import 'package:image_share/firebase_options.dart';
import 'package:image_share/upload_page.dart';

Future<void> main() async {
  WidgetsFlutterBinding.ensureInitialized();
  await Firebase.initializeApp(options: DefaultFirebaseOptions.currentPlatform);
  runApp(const MyApp());
}

class MyApp extends StatelessWidget {
  const MyApp({super.key});


  Widget build(BuildContext context) {
    return MaterialApp(
        title: 'Flutter Demo',
        theme: ThemeData(
          colorScheme: ColorScheme.fromSeed(seedColor: Colors.deepPurple),
          useMaterial3: true,
        ),
        home: const UploadPage());
  }
}

上手くいけば、前回書いた記事のように画像をシェアできるはずです。
https://zenn.dev/joo_hashi/articles/b09b314cad7882

まとめ

今回躓いた点は、画像の形式の設定ができてないと、Firestoreから取得した画像のurlにアクセスしてシェアした画像が汎用的なデータとして送られることでしたね。
このように書けばよかったですが、画像はpngだったり様々形式があるので対応が必要なのが課題ですね。

await Share.shareXFiles(
  [XFile.fromData(
    bytes, name: 'image.jpeg',// 画像の名前
     mimeType: 'image/jpeg'// 画像の形式
     )],
);

Discussion
