FlutterでCloud Functions使ってみた!

2022/07/18に公開

Flutter

Cloud Functions

tech

入門レベルですが難しいです〜😇

エラーにハマったので、メモを残しておこうと思います。
Androidでのみ実行してます。

以前Node.jsで作成した、プロジェクトを使用します。

Cloud Functionsで使用するコード

今回は、必要なところだけでいいのでちょっと修正
index.js

// The Cloud Functions for Firebase SDK to create Cloud Functions and set up triggers.
const functions = require('firebase-functions');

// The Firebase Admin SDK to access Firestore.
const admin = require('firebase-admin');
admin.initializeApp();

exports.saveTimeStamp = functions.https.onRequest(async (req, res) => {
  // Grab the text parameter.
  const unixtime = req.query.unixtime; // 数字で取れる
  const unixtimeStr = new Date(unixtime * 1000); // ms秒(1000倍)

  // Push the new message into Firestore using the Firebase Admin SDK.
  const writeResult = await admin.firestore().collection('timestamp').add({unixtime: unixtime});
  // Send back a message that we've successfully written the message
  res.json({result: `Save TimeStamp with ID: ${writeResult.id} added. unixtime: ${unixtimeStr.toLocaleString('ja-JP', { timeZone: 'JST' })}`});
});

// http://localhost:5001/functions-test-f11ed/us-central1/saveTimeStamp?unixtime=1658024647

Flutterのプロジェクトを作成

flutter create http_post

HTTP通信をするのに、必要なパッケージを追加する

pubspec.yaml

name: http_post
description: A new Flutter project.

# The following line prevents the package from being accidentally published to
# pub.dev using `flutter pub publish`. This is preferred for private packages.
publish_to: 'none' # Remove this line if you wish to publish to pub.dev

# The following defines the version and build number for your application.
# A version number is three numbers separated by dots, like 1.2.43
# followed by an optional build number separated by a +.
# Both the version and the builder number may be overridden in flutter
# build by specifying --build-name and --build-number, respectively.
# In Android, build-name is used as versionName while build-number used as versionCode.
# Read more about Android versioning at https://developer.android.com/studio/publish/versioning
# In iOS, build-name is used as CFBundleShortVersionString while build-number used as CFBundleVersion.
# Read more about iOS versioning at
# https://developer.apple.com/library/archive/documentation/General/Reference/InfoPlistKeyReference/Articles/CoreFoundationKeys.html
version: 1.0.0+1

environment:
  sdk: ">=2.17.3 <3.0.0"

# Dependencies specify other packages that your package needs in order to work.
# To automatically upgrade your package dependencies to the latest versions
# consider running `flutter pub upgrade --major-versions`. Alternatively,
# dependencies can be manually updated by changing the version numbers below to
# the latest version available on pub.dev. To see which dependencies have newer
# versions available, run `flutter pub outdated`.
dependencies:
  flutter:
    sdk: flutter


  # The following adds the Cupertino Icons font to your application.
  # Use with the CupertinoIcons class for iOS style icons.
  cupertino_icons: ^1.0.2
  http: ^0.13.4

dev_dependencies:
  flutter_test:
    sdk: flutter

  # The "flutter_lints" package below contains a set of recommended lints to
  # encourage good coding practices. The lint set provided by the package is
  # activated in the `analysis_options.yaml` file located at the root of your
  # package. See that file for information about deactivating specific lint
  # rules and activating additional ones.
  flutter_lints: ^2.0.0

# For information on the generic Dart part of this file, see the
# following page: https://dart.dev/tools/pub/pubspec

# The following section is specific to Flutter packages.
flutter:

  # The following line ensures that the Material Icons font is
  # included with your application, so that you can use the icons in
  # the material Icons class.
  uses-material-design: true

  # To add assets to your application, add an assets section, like this:
  # assets:
  #   - images/a_dot_burr.jpeg
  #   - images/a_dot_ham.jpeg

  # An image asset can refer to one or more resolution-specific "variants", see
  # https://flutter.dev/assets-and-images/#resolution-aware

  # For details regarding adding assets from package dependencies, see
  # https://flutter.dev/assets-and-images/#from-packages

  # To add custom fonts to your application, add a fonts section here,
  # in this "flutter" section. Each entry in this list should have a
  # "family" key with the font family name, and a "fonts" key with a
  # list giving the asset and other descriptors for the font. For
  # example:
  # fonts:
  #   - family: Schyler
  #     fonts:
  #       - asset: fonts/Schyler-Regular.ttf
  #       - asset: fonts/Schyler-Italic.ttf
  #         style: italic
  #   - family: Trajan Pro
  #     fonts:
  #       - asset: fonts/TrajanPro.ttf
  #       - asset: fonts/TrajanPro_Bold.ttf
  #         weight: 700
  #
  # For details regarding fonts from package dependencies,
  # see https://flutter.dev/custom-fonts/#from-packages

アプリ側のコードを書く
main.dart

import 'package:flutter/material.dart';
import 'package:http/http.dart' as http;

void main() {
  runApp(const MyApp());
}

class MyApp extends StatelessWidget {
  const MyApp({Key? key}) : super(key: key);

  // This widget is the root of your application.
  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: 'Flutter Demo',
      theme: ThemeData(
        primarySwatch: Colors.blue,
      ),
      home: const MyHomePage(title: 'Flutter Demo Home Page'),
    );
  }
}

class MyHomePage extends StatefulWidget {
  const MyHomePage({Key? key, required this.title}) : super(key: key);

  final String title;

  @override
  State<MyHomePage> createState() => _MyHomePageState();
}

class _MyHomePageState extends State<MyHomePage> {
  DateTime _dateTime = DateTime.now();

  void _selectDate() async {
    var pickedDate = await showDatePicker(context: context, initialDate: _dateTime, firstDate: DateTime(2022), lastDate: DateTime.now().add(Duration(days:365)));
    if (pickedDate != null) {
      setState(() => _dateTime = DateTime(pickedDate.year, pickedDate.month, pickedDate.day, _dateTime.hour, _dateTime.minute));
    }
  }

  void _selectTime() async {
    var pickedTime = await showTimePicker(context: context, initialTime: TimeOfDay.fromDateTime(_dateTime));
    if (pickedTime != null) {
      setState(() {
        _dateTime = DateTime(_dateTime.year, _dateTime.month, _dateTime.day, pickedTime.hour, pickedTime.minute);
      },);
    }
  }

  void _sendTime(int timestamp) async {
    // https://localhost:5001/jboyexample/us-central1/saveTimeStamp?unixtime=1657986508
    var url = Uri.http('localhost:5001', '/dev-functions-679de/us-central1/saveTimeStamp', {'unixtime': '$timestamp'});
    var resp = await http.get(url);
    print('http.get($url) status code=${resp.statusCode}.');
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: Text(widget.title),
      ),
      body: Center(
        child: Column(
          mainAxisAlignment: MainAxisAlignment.center,
          children: <Widget>[
            Text(
              'DateTime:${_dateTime.toLocal().toString()}',
              style: Theme.of(context).textTheme.headline4,
            ),
            ElevatedButton(
              child: Text('set Date'),
              onPressed: _selectDate,
            ),
            ElevatedButton(
              child: Text('set Time'),
              onPressed: _selectTime,
            ),
          ],
        ),
      ),
      floatingActionButton: FloatingActionButton(
        onPressed: () {
          _sendTime(_dateTime.toUtc().millisecondsSinceEpoch ~/ 1000);
        },
        tooltip: 'send to Firestore via Cloud Functions',
        child: const Icon(Icons.add),
      ), // This trailing comma makes auto-formatting nicer for build methods.
    );
  }
}

これで、完成といいたいが罠があった!

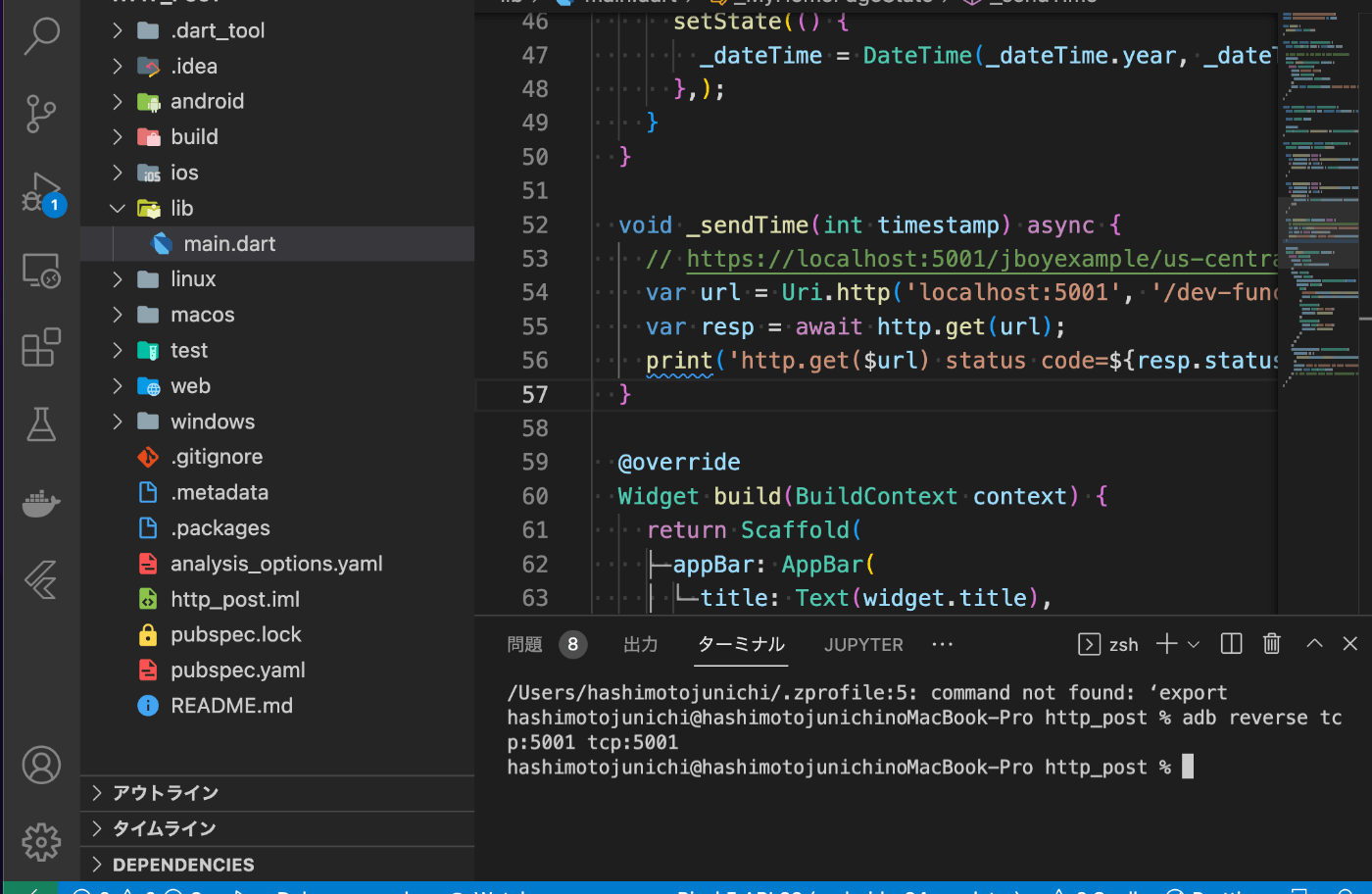

Flutterのプロジェクト内で、ターミナルでこのコマンドを入力するのですが、反応しなかった🤔

Android専用のコマンド?

adb reverse tcp:5001 tcp:5001

zsh: command not found: adb

ん、できないぞ😅
調べてみると、ミンプロの人が解説をしていた!

ああ〜そうかパスが通ってないから、このエラー出るんだよな😇
ホームディレクトリーの.zhshrcを開いて、このパスを追加しましょう!

export PATH=$PATH:/Users/自分の名前/Library/Android/sdk/platform-tools

私の場合だと

export PATH=$PATH:/Users/hashimotojunichi/Library/Android/sdk/platform-tools

準備できたので、やってみましょう!

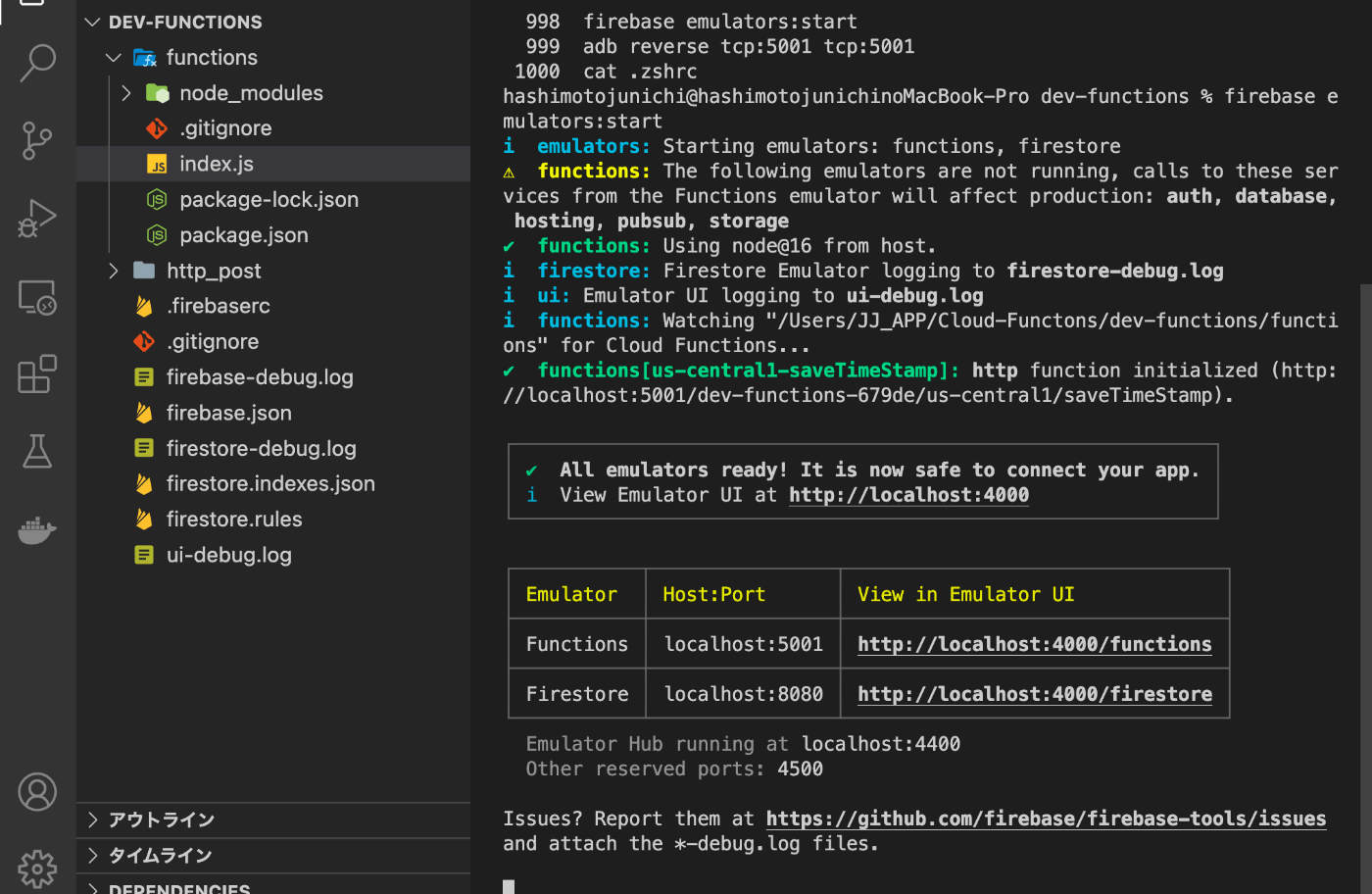

まずは、バックエンドのNode.js側のサーバーを起動する。

firebase emulators:start

で次は、Flutter側のHTTPのURLの中に、ターミナルに表示されているNode.jsのプロジェクト名だけ、貼り付けて、Androidでbuildする。
今回だと

http://localhost:5001/dev-functions-679de/us-central1/saveTimeStamp」の、dev-functions-679de

を使います。
番号なんて付けてたか?

Flutter側の関数に設定をする

void _sendTime(int timestamp) async {
    var url = Uri.http('localhost:5001', '/dev-functions-679de/us-central1/saveTimeStamp', {'unixtime': '$timestamp'});
    var resp = await http.get(url);
    print('http.get($url) status code=${resp.statusCode}.');
  }
