【Dart/Flutter】画面遷移時の簡単なアニメーション土台（go_routerサンプルに追加）

【Dart/Flutter】画面遷移時の簡単なアニメーション土台（go_routerサンプルに追加）

• 実行環境

  • DartPadやAndroid Studio等で実行
    • Based on Flutter 3.0.3 Dart SDK 2.17.5

• 参考

  • samples/game_template at master · flutter/samples
  • go_router | Flutter Package

import 'package:flutter/material.dart';
import 'package:go_router/go_router.dart';

void main() => runApp(MyApp());

class MyApp extends StatelessWidget {
  MyApp({Key? key}) : super(key: key);

  static const String title = 'GoRouter Example: Declarative Routes';

  @override
  Widget build(BuildContext context) => MaterialApp.router(
        routeInformationProvider: _router.routeInformationProvider,
        routeInformationParser: _router.routeInformationParser,
        routerDelegate: _router.routerDelegate,
        title: title,
      );

  final GoRouter _router = GoRouter(
    routes: <GoRoute>[
      GoRoute(
        path: '/',
        builder: (BuildContext context, GoRouterState state) =>
            const Page1Screen(),
      ),
      GoRoute(
        path: '/page2',
        pageBuilder: (context, state) => buildMyTransition(
          child: const Page2Screen(),
          color: Colors.red,
        ),
        routes: [
          GoRoute(
            path: 'page3',
            pageBuilder: (context, state) => buildMyTransition(
              child: const Page3Screen(),
              color: Colors.green,
            ),
          )
        ],
      ),
    ],
  );
}

class Page1Screen extends StatelessWidget {
  const Page1Screen({Key? key}) : super(key: key);

  @override
  Widget build(BuildContext context) => Scaffold(
        body: Center(
          child: Column(
            mainAxisAlignment: MainAxisAlignment.center,
            children: <Widget>[
              ElevatedButton(
                onPressed: () => context.go('/page2'),
                child: const Text('Go to page 2'),
              ),
            ],
          ),
        ),
      );
}

class Page2Screen extends StatelessWidget {
  const Page2Screen({Key? key}) : super(key: key);

  @override
  Widget build(BuildContext context) => Scaffold(
        body: Center(
          child: Column(
            mainAxisAlignment: MainAxisAlignment.center,
            children: <Widget>[
              ElevatedButton(
                onPressed: () => context.go('/'),
                child: const Text('Go to home page'),
              ),
              const SizedBox(height: 10),
              ElevatedButton(
                onPressed: () => context.go('/page2/page3'),
                child: const Text('Go to page 3'),
              ),
            ],
          ),
        ),
      );
}

class Page3Screen extends StatelessWidget {
  const Page3Screen({Key? key}) : super(key: key);

  @override
  Widget build(BuildContext context) => Scaffold(
        body: Center(
          child: Column(
            mainAxisAlignment: MainAxisAlignment.center,
            children: <Widget>[
              ElevatedButton(
                onPressed: () => context.go('/'),
                child: const Text('Go to home page'),
              ),
              const SizedBox(height: 10),
              ElevatedButton(
                onPressed: () => GoRouter.of(context).pop(),
                child: const Text('Back'),
              ),
            ],
          ),
        ),
      );
}

CustomTransitionPage<T> buildMyTransition<T>({
  required Widget child,
  required Color color,
  String? name,
  Object? arguments,
  String? restorationId,
  LocalKey? key,
}) {
  return CustomTransitionPage<T>(
    child: child,
    transitionsBuilder: (context, animation, secondaryAnimation, child) {
      return _MyReveal(
        animation: animation,
        color: color,
        child: child,
      );
    },
    key: key,
    name: name,
    arguments: arguments,
    restorationId: restorationId,
    transitionDuration: const Duration(milliseconds: 700),
  );
}

class _MyReveal extends StatefulWidget {
  final Widget child;

  final Animation<double> animation;

  final Color color;

  const _MyReveal({
    required this.child,
    required this.animation,
    required this.color,
  });

  @override
  State<_MyReveal> createState() => _MyRevealState();
}

class _MyRevealState extends State<_MyReveal> {
  bool _finished = false;

  final _tween = Tween(begin: const Offset(0, -1), end: Offset.zero);

  @override
  void initState() {
    super.initState();

    widget.animation.addStatusListener(_statusListener);
  }

  @override
  void didUpdateWidget(covariant _MyReveal oldWidget) {
    if (oldWidget.animation != widget.animation) {
      oldWidget.animation.removeStatusListener(_statusListener);
      widget.animation.addStatusListener(_statusListener);
    }
    super.didUpdateWidget(oldWidget);
  }

  @override
  void dispose() {
    widget.animation.removeStatusListener(_statusListener);
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return Stack(
      fit: StackFit.expand,
      children: [
        SlideTransition(
          position: _tween.animate(
            CurvedAnimation(
              parent: widget.animation,
              curve: Curves.easeOutCubic,
              reverseCurve: Curves.easeOutCubic,
            ),
          ),
          child: Container(
            color: widget.color,
          ),
        ),
        AnimatedOpacity(
          opacity: _finished ? 1 : 0,
          duration: const Duration(milliseconds: 300),
          child: widget.child,
        ),
      ],
    );
  }

  void _statusListener(AnimationStatus status) {
    switch (status) {
      case AnimationStatus.completed:
        setState(() {
          _finished = true;
        });
        break;
      case AnimationStatus.forward:
      case AnimationStatus.dismissed:
      case AnimationStatus.reverse:
        setState(() {
          _finished = false;
        });
        break;
    }
  }
}

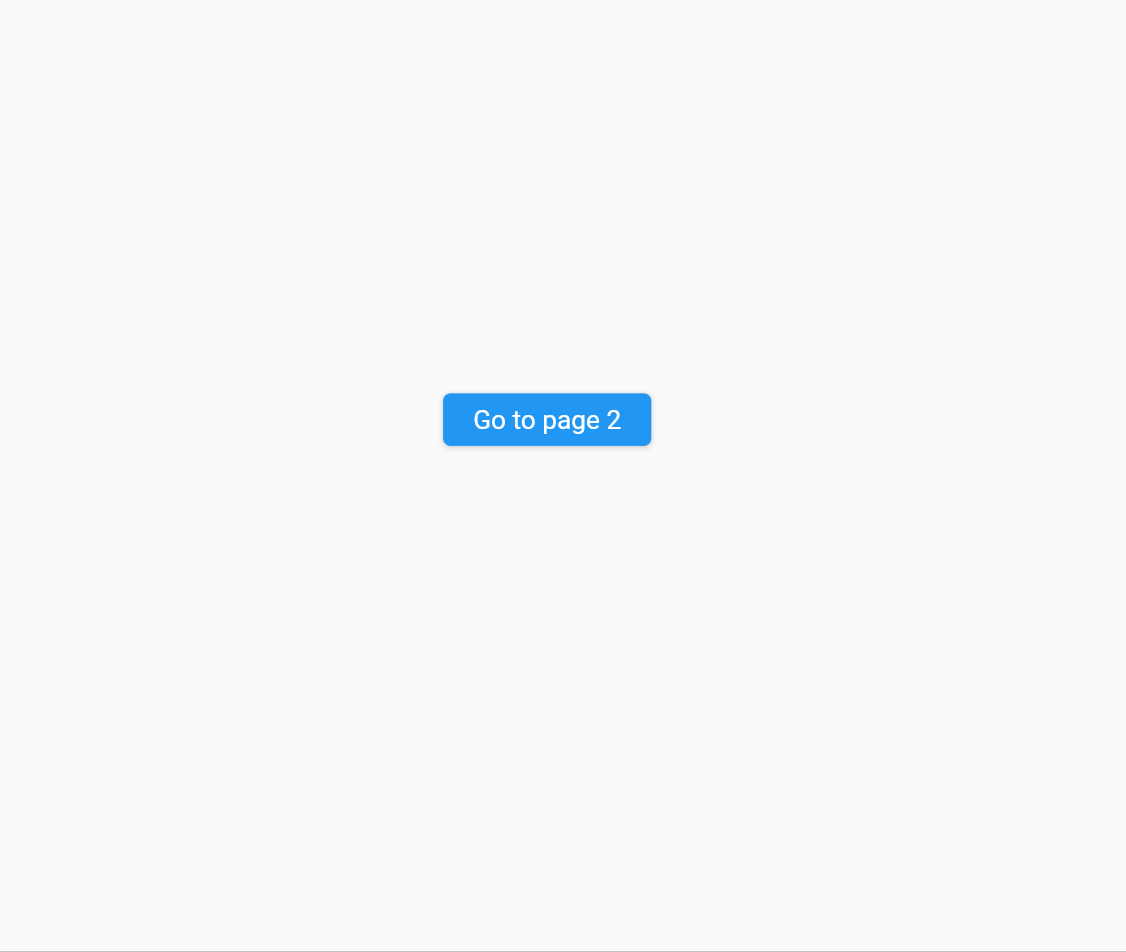

実行結果
