GlacierCTF 2023 writeup [crypto]
はじめに
GlacierCTF 2023 に出て Crypto の簡単な問題を解いたので、そのときのメモを編集して公開します。CSIDH なにもわからないし、執筆当時（2023-11-27）では多分 writeup 出てない…
intro
Welcome challenge
From Official Discord.
gctf{w3lc0m3_t0_g1ac13rctf_2023}
ARISAI
添付ファイル: chall.py output.txt
Multi Prime の問題。
from Crypto.Util.number import bytes_to_long
from Crypto.Util.number import getPrime
PRIME_LENGTH = 24
NUM_PRIMES = 256
FLAG = b"gctf{redacted}"
N = 1
e = 65537
for i in range(NUM_PRIMES):
prime = getPrime(PRIME_LENGTH)
N *= prime
ct = pow(bytes_to_long(FLAG), e, N)
print(f"{N=}")
print(f"{e=}")
print(f"{ct=}")
24 ビットの素数なので、簡単に素因数分解できる。以下は sagemath の例。
from output import N
fs = list(factor(N))
print(fs)
あとは CRT で復号するだけ。
from Crypto.Util.number import *
from functools import reduce
from output import N, e, ct
def CRT(a, m):
MM = reduce(lambda a, b: a * b, m)
x = 0
for i in range(len(a)):
Mi = MM // m[i]
ti = pow(Mi, -1, m[i])
x += (Mi * ti * a[i]) % MM
return x % MM
fs = [(8441831, 1), (8450987, 1), (8452019, 1), (8473027, 1), (8476817, 1), (8523661, 1), (8525711, 1), (8608673, 1), (8633423, 1), (8641453, 1), (8725153, 2), (8786017, 1), (8796721, 1), (8824679, 1), (8850601, 1), (8913481, 1), (8933437, 1), (9016037, 1), (9041551, 1), (9075889, 1), (9095939, 1), (9126197, 1), (9142547, 1), (9163981, 1), (9172531, 1), (9196001, 1), (9223867, 1), (9253319, 1), (9265309, 1), (9277921, 1), (9298747, 1), (9300803, 1), (9357883, 1), (9368759, 1), (9405353, 1), (9444839, 1), (9552029, 1), (9569057, 1), (9584371, 1), (9663629, 1), (9696719, 1), (9720223, 1), (9748049, 1), (9770723, 1), (9801269, 1), (9828727, 1), (9836483, 1), (9838117, 1), (9853043, 1), (9873373, 1), (9883469, 1), (9884603, 1), (9905167, 1), (9989579, 1), (10000759, 1), (10064897, 1), (10114409, 1), (10122389, 1), (10213001, 1), (10214591, 1), (10228861, 1), (10235447, 1), (10344643, 1), (10428001, 1), (10433911, 1), (10438013, 1), (10441523, 1), (10476001, 1), (10514083, 1), (10523977, 1), (10605817, 1), (10650929, 1), (10667479, 1), (10699517, 1), (10731407, 1), (10732091, 1), (10754837, 1), (10773781, 1), (10849837, 1), (10861127, 1), (10893173, 1), (10918459, 1), (10943417, 1), (10944433, 1), (11028001, 1), (11049739, 1), (11057621, 1), (11073793, 1), (11084419, 1), (11113789, 1), (11152859, 1), (11156681, 1), (11230451, 1), (11239903, 1), (11369903, 2), (11462177, 1), (11470343, 1), (11504419, 1), (11519971, 1), (11543971, 1), (11559637, 1), (11625619, 1), (11633267, 1), (11661121, 1), (11768401, 1), (11847721, 1), (11909747, 1), (11915809, 1), (11925691, 1), (11928173, 1), (11945093, 1), (11990089, 1), (12010259, 1), (12089663, 1), (12109277, 1), (12231853, 1), (12240667, 1), (12274813, 1), (12319117, 1), (12339689, 1), (12350357, 1), (12358079, 1), (12387329, 1), (12407609, 1), (12407959, 1), (12515033, 1), (12550357, 1), (12599803, 1), (12621067, 1), (12652597, 1), (12705883, 1), (12804707, 1), (12808151, 1), (12824027, 1), (12932669, 1), (12967831, 1), (13046717, 1), (13059269, 1), (13076249, 1), (13128433, 1), (13170671, 1), (13202297, 1), (13227367, 1), (13328803, 1), (13366687, 1), (13371181, 1), (13415921, 1), (13417357, 1), (13424921, 1), (13430423, 1), (13534007, 1), (13561657, 1), (13566431, 1), (13568981, 1), (13587683, 1), (13625263, 1), (13653811, 1), (13655797, 1), (13669967, 1), (13673927, 1), (13755149, 1), (13799299, 1), (13823059, 1), (13865617, 1), (13870601, 1), (13997617, 1), (14013617, 1), (14044937, 1), (14046449, 1), (14086979, 1), (14103413, 1), (14162843, 1), (14217041, 1), (14311291, 1), (14339863, 1), (14340289, 1), (14377679, 1), (14407667, 1), (14423561, 1), (14435203, 1), (14465153, 1), (14466281, 1), (14475521, 1), (14482381, 1), (14535811, 1), (14548939, 1), (14549063, 1), (14588369, 1), (14624459, 1), (14633851, 1), (14650763, 1), (14693927, 1), (14713939, 1), (14738869, 1), (14797501, 1), (14880347, 1), (14910199, 1), (14922409, 1), (14982181, 1), (15005579, 1), (15020413, 1), (15031937, 1), (15103373, 1), (15181499, 1), (15185399, 1), (15209617, 1), (15232961, 1), (15299831, 1), (15365261, 1), (15441739, 1), (15459343, 1), (15470893, 1), (15475193, 1), (15489707, 1), (15501071, 1), (15682181, 1), (15689647, 1), (15689981, 1), (15707093, 1), (15707143, 1), (15748631, 1), (15792169, 1), (15793247, 1), (15798877, 1), (15922301, 1), (15947639, 1), (16032721, 1), (16045049, 1), (16071229, 1), (16080319, 1), (16175597, 1), (16177433, 2), (16198717, 1), (16199101, 1), (16212913, 1), (16225283, 1), (16254883, 1), (16312763, 1), (16336267, 1), (16359283, 1), (16405027, 1), (16432721, 1), (16497373, 1), (16593167, 1), (16594681, 1), (16629163, 1), (16632713, 1), (16643707, 1), (16657153, 1), (16679137, 1), (16701907, 1), (16738913, 1), (16755269, 1)]
ms = []
ns = []
for p, k in fs:
n = pow(p, k)
phi = pow(p, k) - pow(p, k - 1)
d = pow(e, -1, phi)
m = pow(ct, d, n)
ms.append(m)
ns.append(n)
m = CRT(ms, ns)
print(long_to_bytes(m).decode())
gctf{maybe_I_should_have_used_bigger_primes}
crypto
Missing Bits
添付ファイル：ciphertext_message encode_file.py priv.key
普通の RSA っぽい。
from Crypto.PublicKey import RSA
from Crypto.Util.number import bytes_to_long
from Crypto.Util.number import long_to_bytes
content = open("2048_key_original.priv", "rb").read()
key = RSA.import_key(content)
filecontent = open("plaintext_message", "rb").read()
ct = pow(bytes_to_long(filecontent), key.e, key.n)
open("ciphertext_message", "wb").write(long_to_bytes(ct))
しかし、priv.key が破損している。
xwiBgUBTtaSyUvdrqfgAEduRdnzRbKcwEheMxwIDAQABAoIBAAqaJbojNCwYqykz
n0Fn2sxMsho4PhThPQcX79AGqSxVNxviWK2GXETP7SsnvWGmRXHIRnR6JGOhyHVe
dTDYZxOAOhl85FksVQYVUaygf9Epekja/vSj5OE8NIcAdEBr3aZ6gdLxi+q1a5Kh
1nEmsF6FiYGpsPkN63ovbow/CKt4N7UQJqZEQw380rNA0sOQenmzXRFOpXA8PRFb
G6itGRiP1gB9tpdQnWggQ5n+x8/2k+k3CRW6/xIP9dMAVZh2jVombenLxgnhQCJB
bYaR4I8B0zzYqXqFfeHCMNl+pJmmmFcvs2ZE71fqyjRid6ZDqS4GXtSuRQM0UL7L
UQVBaYECgYEA5BiLN7FjwgOuT4FKxFdzizdq/t5mvRksbmBP/JWk3vxQYeCmMiPQ
xrQUqdHGGxG8iMIwH7dnhNaPa81lrP9fCKyij/caEbe4lmEm+VdM/xZQF+PiCc1f
ziYXphz9wuAc8++kvKxM2EaiDe8F25nsXW+FaxNoXKbJg0zTQLyzKiECgYEA8SLi
hbAwo2l0zal8GMIemzr+APxLw+fmd4aryVAMov8ANkG8KDMwdmvvkn3rL7WaKym5
fakqvXR45/QGPe8niVzx6oaWGSSfijeVan27pG/bzVqyymFHZP9cRhEHW4HN57hO
pXy0kUFqVaxJWCs+thH0LTZoToAepg+sr82FaecCgYEAnJnpQzRsHDEwxO8sqP6t
moBS2mdRPDUDV0iSwgTvrBSpD3oQQM5sMXBD24/lpoIX4gEIz025Ke+xij77trmh
wq/b8GGjqVRsy/opqvjwKRZlqPFRKI+zXjKy+95dryT1W9lFTjAxli9wZYaci/fy
2veNL0Wk2i+8nIPraj/j9mECgYEA0ou6LC7OGTDwKs7sqxV78eBNfoDMis7GPeEZ
x9ocXom3HqjA6HzhuNS/xzIpE2xGo5939c+qoOe81hMNDDDwXZEJLdS75FJE90NX
NDd6iracvi6OZAUSeI47fHZL7UtmhQg5q2c6poXumcWn+NMxm3oLsRqLcteNa0PO
bWZPMksCgYBidblknACvEinDUQB8dvElzROql0ZUMX9hQOsSrg0ju3smun8qujcT
PJQrWctoNw0ZXnQjDkVzaJxog1F3QkKUg6B1Rn2Q0RYuCAeNDn+KqBkTT18Du7yw
+GU/4U6EMw+uL7dNjasD1jjx90ro6RmDDBmGDQuludO0G7h9XQzl+Q==
-----END RSA PRIVATE KEY-----
とりあえず、--- の行を消して Base64 デコード。
$ cp priv.key dump.key
$ vim dump.key
$ cat dump.key | base64 -d > dump.bin
この記事を参考にパースした。すると、復号に必要なパラメータが判明した。
from Crypto.Util.number import bytes_to_long, long_to_bytes
dump = open("dump.bin", "rb").read()
# https://bearmini.hatenablog.com/entry/2014/02/05/143510
data = dump[0x1c:] # start from exp
nums = []
while data:
type_sym = data[0]
size_sym = data[1]
size_msb = (size_sym & 0b10000000) >> 7
if size_msb == 0:
size_data = size_sym
data = data[2:]
elif size_msb == 1:
size_sym = size_sym & 0b01111111
size_data = bytes_to_long(data[2:2+size_sym])
data = data[2+size_sym:]
# 2: INTEGER
if type_sym == 2:
num = bytes_to_long(data[:size_data])
nums.append(num)
data = data[size_data:]
e = nums[0]
d = nums[1]
p = nums[2]
q = nums[3]
ct = open("ciphertext_message", "rb").read()
m = pow(bytes_to_long(ct), d, p*q)
print(long_to_bytes(m).decode())
Hey Bob this is Alice.
I want to let you know that the Flag is gctf{7hi5_k3y_can_b3_r3c0ns7ruc7ed}
SLCG
添付ファイル: ciphertext.txt, encrypt.py
ソースコードを見てみる。普通の線形合同法で何かしてるっぽい。
from __future__ import annotations
import os
FLAG = b"gctf{???????}"
class LCG:
def __init__(self, mod: int, mult: int, add: int, seed: int):
self.mod = mod
self.mult = mult
self.add = add
self.value = seed
def __next__(self) -> int:
self.value = (self.value * self.mult + self.add) % self.mod
return self.value
def __iter__(self) -> LCG:
return self
@classmethod
def random_values(cls):
return LCG(
int.from_bytes(os.urandom(16)),
int.from_bytes(os.urandom(16)),
int.from_bytes(os.urandom(16)),
int.from_bytes(os.urandom(16))
)
class Encryptor:
def __init__(self):
self.lcgs: tuple[LCG] = (LCG.random_values(), LCG.random_values())
def encrypt(self, message: str) -> list[int]:
result = []
for ascii_char in message:
bin_char = list(map(int, list(f"{ascii_char:07b}")))
for bit in bin_char:
result.append(next(self.lcgs[bit]))
self.lcgs = (
LCG(
next(self.lcgs[0]), next(self.lcgs[0]),
next(self.lcgs[0]), next(self.lcgs[0])
),
LCG(
next(self.lcgs[1]), next(self.lcgs[1]),
next(self.lcgs[1]), next(self.lcgs[1])
)
)
return result
def main() -> int:
encryption = Encryptor()
print(f"ct = {encryption.encrypt(FLAG)}")
return 0
if __name__ == "__main__":
raise SystemExit(main())
普通に動かすとエラーが出たので微修正。
- int.from_bytes(os.urandom(16)),
+ bytes_to_long(os.urandom(16)),
一文字ずつバイナリにして、ビットに対応する LCG の出力を暗号文にしている。
bin_char = list(map(int, list(f"{ascii_char:07b}")))
LCG は連続する乱数列 5 つ以上でパラメータを復元できるかも。
ciphertext.txt を ciphertext.py にしてソルバーを書く。色々と試したら、最初の文字 g でパラメータを復元できた。方針としては、self.lcgs[1] がわかったので、それで生成した値と一致したら 1、そうでなければ 0 として文字の各ビットを特定する。
試行錯誤しながらのプログラムだから、汚いのはご愛嬌。
from functools import reduce
from Crypto.Util.number import inverse, GCD
from ciphertext import ct
# https://tailcall.net/posts/cracking-rngs-lcgs/
def solve_unknown_increment(states, A, M):
B = (states[1] - A * states[0]) % M
return B
def solve_unknown_multiplier(states, M):
A = (states[2] - states[1]) * inverse((states[1] - states[0]), M)
return A
def solve_unknown_modulus(states):
diffs = [X_1 - X_0 for X_0, X_1 in zip(states, states[1:])]
multiples_of_M = [T_2 * T_0 - T_1 ** 2 for T_0,
T_1, T_2, in zip(diffs, diffs[1:], diffs[2:])]
M = reduce(GCD, multiples_of_M)
return M
def lcg(X_0, M, A, B):
X_1 = (A * X_0 + B) % M
return X_1
# ビット1のところだけを取り出す
ascii_char = b"g"[0]
bin_char = list(map(int, list(f"{ascii_char:07b}")))
x = []
for i in range(7):
if bin_char[i] == 1:
x.append(ct[i])
# LCGのパラメータを復元
M = solve_unknown_modulus(x)
A = solve_unknown_multiplier(x, M)
B = solve_unknown_increment(x, A, M)
# check
X = [x[0]]
X_0 = x[0]
for _ in range(len(x)-1):
X_1 = lcg(X_0, M, A, B)
X.append(X_1)
X_0 = X_1
assert X == x
# フラグの長さ
SIZE = len(ct) // 7
flag = "g"
X0_0 = x[-1]
M0 = M
A0 = A
B0 = B
for i in range(SIZE-1):
# change param
M1 = lcg(X0_0, M0, A0, B0)
X0_0 = M1
A1 = lcg(X0_0, M0, A0, B0)
X0_0 = A1
B1 = lcg(X0_0, M0, A0, B0)
X0_0 = B1
X1_0 = lcg(X0_0, M0, A0, B0)
bin_char = []
# ビットが1か0かを特定する
for j in range(7):
X1_1 = lcg(X1_0, M1, A1, B1)
if ct[7*(i+1)+j] == X1_1:
bin_char.append("1")
X1_0 = X1_1
else:
bin_char.append("0")
ascii_char = "".join(c for c in bin_char)
ascii_char = chr(int(ascii_char, 2))
flag += ascii_char
X0_0 = X1_0
M0 = M1
A0 = A1
B0 = B1
print(flag)
gctf{th15_lcg_3ncryp710n_w4sn7_s0_5s3cur3_aft3r_4ll}
Glacier Spirit
添付ファイル: challenge.py
#!/usr/bin/env python3
import ascon
import secrets
from secret import FLAG
BLOCK_SIZE = 16
def xor(a, b):
return bytes([x ^ y for x, y in zip(a, b)])
def split_blocks(message):
return [message[i:i + BLOCK_SIZE] for i in range(0, len(message), BLOCK_SIZE)]
def mac_creation(key, message):
assert len(message) % BLOCK_SIZE == 0
message_blocks = split_blocks(message)
enc_out = b"\x00" * BLOCK_SIZE
for message in message_blocks:
chaining_values = xor(message, enc_out)
enc_out = ascon.encrypt(key, chaining_values, b'', b'')
assert len(enc_out) == BLOCK_SIZE
return enc_out
def pad_message(message):
first_block_pad = len(message) % BLOCK_SIZE
first_block_pad = 16 if first_block_pad == 0 else first_block_pad
return (first_block_pad.to_bytes() * (BLOCK_SIZE - first_block_pad)) + message
def encrypt(key, message):
assert len(message) % BLOCK_SIZE == 0
message_blocks = split_blocks(message)
assert len(message_blocks) < BLOCK_SIZE
nonce = secrets.token_bytes(BLOCK_SIZE-1)
cts = []
for ctr, message in enumerate(message_blocks):
cipher_input = nonce + (ctr+1).to_bytes(1, 'little')
enc = ascon.encrypt(key, cipher_input, b'', b'')
ct = xor(message, enc)
cts.append(ct)
return nonce, b''.join(cts)
def create_message_and_mac(key, message):
padded_message = pad_message(message)
nonce, ct = encrypt(key, padded_message)
tag = mac_creation(key, padded_message)
return nonce, ct, tag
if __name__ == "__main__":
print(" Glacier Spirit\n\n")
print(" , /\.__ _.-\ ")
print(" /~\, __ /~ \ ./ \ ")
print(" ,/ /_\ _/ \ ,/~,_.~''\ /_\_ /'\ ")
print(" / \ /## \ / V#\/\ /~8# # ## V8 #\/8 8\ ")
print(" /~#'#'#''##V&#&# ##\/88#'#8# #' #\#&'##' ##\ ")
print(" j# ##### #'#\&&'####/###& #'#&## #&' #'#&#'#'\ ")
print(" /#'#'#####'###'\&##'/&#'####'### # #&#&##'#'### \ ")
print(" J#'###'#'#'#'####'\# #'##'#'##'#'#####&'## '#'&'##|\ ")
key = secrets.token_bytes(BLOCK_SIZE)
print("The spirit of the glacier gifts you a flag!\n")
nonce, ct, tag = create_message_and_mac(key, FLAG)
print(f"{nonce.hex()}, {ct.hex()}, {tag.hex()}")
print("\nNow you can bring forth your own messages to be blessed by the spirit of the glacier!\n")
for i in range(8):
print(f"Offer your message:")
user_msg = input()
try:
msg = bytes.fromhex(user_msg)
except:
print(
"The spirit of the glacier is displeased with the format of your message.")
exit(0)
nonce, ct, tag = create_message_and_mac(key, msg)
print("The spirit of the glacier has blessed your message!\n")
print(f"{nonce.hex()}, {ct.hex()}, {tag.hex()}")
print("The spirit of the glacier has left you. You are alone once more.")
ASCON という軽量の暗号があるらしい。しかも新しい。これ自体は破れなさそう。
接続すると、まず key が生成される。もちろん、予測不可である。
key = secrets.token_bytes(BLOCK_SIZE)
この key を使ってフラグが暗号化される。
nonce, ct, tag = create_message_and_mac(key, FLAG)
print(f"{nonce.hex()}, {ct.hex()}, {tag.hex()}")
その後、任意の平文で 8 回同じ処理ができる。key は同じである。
for i in range(8):
print(f"Offer your message:")
user_msg = input()
try:
msg = bytes.fromhex(user_msg)
except:
print(
"The spirit of the glacier is displeased with the format of your message.")
exit(0)
nonce, ct, tag = create_message_and_mac(key, msg)
print("The spirit of the glacier has blessed your message!\n")
print(f"{nonce.hex()}, {ct.hex()}, {tag.hex()}")
create_message_and_mac はパディングと暗号化と MAC 生成の 3 ステップである。
def create_message_and_mac(key, message):
padded_message = pad_message(message)
nonce, ct = encrypt(key, padded_message)
tag = mac_creation(key, padded_message)
return nonce, ct, tag
pad_message は 16 の倍数になるように調節される。もし 16 の倍数ちょうどであれば、何も追加されないという特徴がある。
def pad_message(message):
first_block_pad = len(message) % BLOCK_SIZE
first_block_pad = 16 if first_block_pad == 0 else first_block_pad
return (first_block_pad.to_bytes() * (BLOCK_SIZE - first_block_pad)) + message
encrypt は、key と nonce + (ctr+1) で暗号化したものを平文ブロックと XOR したものを暗号文ブロックとしている。ECB モードだ。
def encrypt(key, message):
assert len(message) % BLOCK_SIZE == 0
message_blocks = split_blocks(message)
assert len(message_blocks) < BLOCK_SIZE
nonce = secrets.token_bytes(BLOCK_SIZE-1)
cts = []
for ctr, message in enumerate(message_blocks):
cipher_input = nonce + (ctr+1).to_bytes(1, 'little')
enc = ascon.encrypt(key, cipher_input, b'', b'')
ct = xor(message, enc)
cts.append(ct)
return nonce, b''.join(cts)
mac_creation は、平文と前結果の XOR を暗号化するという処理を繰り返している。
def mac_creation(key, message):
assert len(message) % BLOCK_SIZE == 0
message_blocks = split_blocks(message)
enc_out = b"\x00" * BLOCK_SIZE
for message in message_blocks:
chaining_values = xor(message, enc_out)
enc_out = ascon.encrypt(key, chaining_values, b'', b'')
assert len(enc_out) == BLOCK_SIZE
return enc_out

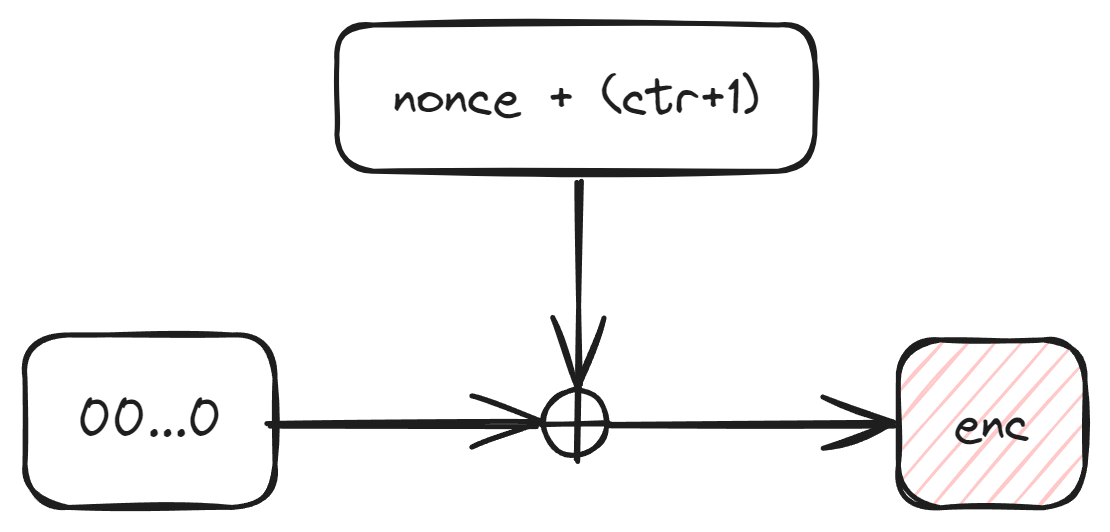

解法としては、パディングの脆弱性を利用すると、1 ブロックだけを送って mac_creation で任意の暗号文ブロックを生成することができる。あとは、それを XOR すれば OK。
from pwn import remote
BLOCK_SIZE = 16
HOST = "chall.glacierctf.com"
PORT = 13379
def xor(a, b):
return bytes([x ^ y for x, y in zip(a, b)])
def split_blocks(message):
return [message[i:i + BLOCK_SIZE] for i in range(0, len(message), BLOCK_SIZE)]
def get_params(conn):
data = conn.recvline().strip().decode()
nonce, ct, tag = map(bytes.fromhex, data.replace(",", "").split())
return nonce, ct, tag
conn = remote(HOST, PORT)
conn.recvuntil(b"The spirit of the glacier gifts you a flag!\n\n")
nonce, ct, _ = get_params(conn)
MSG_BLOCK_SIZE = len(ct) // BLOCK_SIZE
encs = []
for i in range(MSG_BLOCK_SIZE):
m = nonce + (i+1).to_bytes(1, "little")
conn.recvuntil(b"Offer your message:")
conn.sendline(m.hex().encode())
conn.recvuntil(b"The spirit of the glacier has blessed your message!\n\n")
_, _, tag = get_params(conn)
encs.append(tag)
ct_blocks = split_blocks(ct)
flag = []
for ct_block, enc in zip(ct_blocks, encs):
flag.append(xor(ct_block, enc))
flag = b"".join(flag)
print(flag)
[+] Opening connection to chall.glacierctf.com on port 13379: Done
b'\x0fgctf{CTr_M0d3_cbc_M4C_ASCON_DeF3AT$_TH3_$p1rIT}'
[*] Closed connection to chall.glacierctf.com port 13379
Discussion
