さくらVPS / Ubuntu / Docker / SSL化 / サブドメイン割り当てまで

plaincode_jpplaincode_jp

初期設定

ubuntu 20.04 をインストール

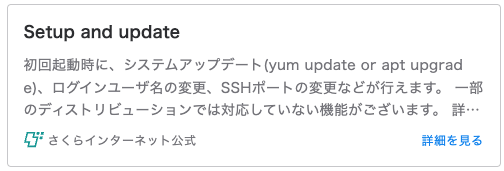

スタートアップスクリプトを一緒に入れる。

開放ポート指定やパスワードログイン禁止、ssh key登録など、一括でやる。

docker / docker compose

複数のスクリプトを管理画面で実行はできないので、
さくら公式 docker / docker compose インストールスクリプト をコピペ

!/bin/bash

set -x

. /etc/os-release

if [ "$NAME" == "Ubuntu" ]; then
    # enable alias
    shopt -s expand_aliases
    alias apt-get="apt-get -o 'Acquire::Retries=3' -o 'Acquire::https::Timeout=60' -o 'Acquire::http::Timeout=60' -o 'Acquire::ftp::Timeout=60'"

    # package update
    apt-get -y update || exit 1

    # set up the repository
    apt-get -y install apt-transport-https ca-certificates curl software-properties-common || exit 1
    curl -fsSL https://download.docker.com/linux/ubuntu/gpg | apt-key add - || exit 1
    add-apt-repository "deb [arch=amd64] https://download.docker.com/linux/ubuntu $(lsb_release -cs) stable" || exit 1

    # disable install packages autostart
    cat <<EOF >/usr/sbin/policy-rc.d
#!/bin/sh
exit 101
EOF
    chmod 755 /usr/sbin/policy-rc.d

    # install docker ce
    apt-get clean
    apt-get -y update || exit 1
    apt-get -y install docker-ce docker-ce-cli containerd.io || dpkg --configure -a

    usermod -a -G docker ubuntu || exit 1

    # install latest Docker Compose
    mkdir -p /home/ubuntu/.docker/cli-plugins
    curl -L https://github.com/docker/compose/releases/latest/download/docker-compose-linux-$(uname -m) >/home/ubuntu/.docker/cli-plugins/docker-compose || exit 1
    chmod +x /home/ubuntu/.docker/cli-plugins/docker-compose
    chown -R ubuntu:ubuntu /home/ubuntu/.docker

    rm /usr/sbin/policy-rc.d
    reboot
fi

function el7() {
    check_first
    echo_start

    yum update -y || echo_finish "1"

    # set up the repository
    yum install -y yum-utils device-mapper-persistent-data lvm2 jq || echo_finish "1"
    yum-config-manager --add-repo https://download.docker.com/linux/centos/docker-ce.repo || V

    # install docker ce
    yum install -y docker-ce || echo_finish "1"

    service_check "docker"

    # install latest Docker Compose
    mkdir -p /root/.docker/cli-plugins
    curl -L https://github.com/docker/compose/releases/latest/download/docker-compose-linux-$(uname -m) >/root/.docker/cli-plugins/docker-compose || exit 1
    chmod +x /root/.docker/cli-plugins/docker-compose

    echo_finish

    reboot
}

function check_first() {
    LOGFILE="/root/.sakuravps/startup.log"
    CRONFILE="/etc/cron.d/dockercompose-install"
    if [ ! -f ${CRONFILE} ]; then
        CRON_PATH='/usr/local/sbin:/usr/local/bin:/sbin:/bin:/usr/sbin:/usr/bin'
        echo -e "PATH=${CRON_PATH}\n* * * * * root rm -f ${LOGFILE}; /bin/bash $0 2>&1 | tee -a ${LOGFILE}" >${CRONFILE}
        exit 0
    else
        rm -f ${CRONFILE}
    fi
}

function echo_start() {
    set +x
    echo "======================================================================"
    echo "                        STARTUP SCRIPTS START                         "
    echo "======================================================================"
    set -x
}

function echo_finish() {
    EXITCODE=$1
    set +x
    echo "======================================================================"
    echo "                        STARTUP SCRIPTS END                           "
    echo "======================================================================"
    set -x
    if [ "${EXITCODE}" = "" ]; then
        return
    else
        exit ${EXITCODE}
    fi
}

function retry_command() {
    COMMAND=$1

    sleep 3
    FAIL_COUNT=0
    while [ ${FAIL_COUNT} -lt 5 ]; do
        dnf clean all
        rm -rf /var/cache/dnf/*
        ${COMMAND}
        if [ "$?" = "0" ]; then
            break
        else
            FAIL_COUNT=$((FAIL_COUNT + 1))
            sleep 3
        fi
    done
    if [ ${FAIL_COUNT} -eq 5 ]; then
        echo "Command failed five times. So exit."
        echo_finish "1"
    fi
}

function service_check() {
    SERVICE=$1

    systemctl status ${SERVICE}.service | grep -q running >/dev/null 2>&1 || systemctl start ${SERVICE}
    for i in {1..5}; do
        sleep 1
        systemctl status ${SERVICE}.service | grep -q running && break
        [ "$i" -lt 5 ] || exit 1
    done
    systemctl enable ${SERVICE}.service || echo_finish "1"
}

### main ###
. /etc/os-release
if [[ "$ID_LIKE" =~ "rhel" ]]; then
    test ${VERSION_ID%.*} -eq 7 && el7
    test ${VERSION_ID%.*} -eq 8 && el7
    test ${VERSION_ID%.*} -eq 9 && el7
fi

↑を任意ファイル名で保存して、sudo で実行

sudo bash install.sh

サーバ再起動かかり、ログアウトさせられる

再ログインして、それぞれインストールされたことを確認

$ docker version
Client: Docker Engine - Community
 Version:           20.10.18

$ docker compose version
Docker Compose version v2.11.2
plaincode_jpplaincode_jp
  • サーバからgithubにssh接続できるようにkey登録
  • リポジトリclone
plaincode_jpplaincode_jp

node npm インストール

sudo apt update
sudo apt install nodejs
node -v
sudo apt install npm
npm -v
plaincode_jpplaincode_jp

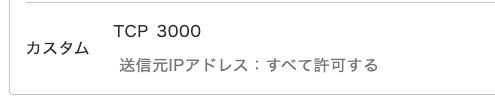

さくらコンソール - パケットフィルタ設定で、ポート3000を許可

サーバにcloneしてきた、node + docker アプリを起動して、http://[ip]:3000  で接続を確認

plaincode_jpplaincode_jp

サーバにあてたいサブドメインをDNS設定しておく。

ムームードメイン - ムームーDNSの場合

任意ディレクトリに、nginxリバースプロキシ+ssl 用のdocker-compose.ymlを配置。
docker compose up で起動

docker-compose.yml
version: '3'

services:
  nginx-proxy:
    image: jwilder/nginx-proxy
    restart: on-failure
    labels:
      - com.github.jrcs.letsencrypt_nginx_proxy_companion.nginx_proxy=jwilder/nginx-proxy
    ports:
      - 80:80
      - 443:443
    volumes:
      - proxy:/etc/nginx/vhost.d
      - proxy:/usr/share/nginx/html
      - /var/run/docker.sock:/tmp/docker.sock:ro
      - ./certs:/etc/nginx/certs:ro
    network_mode: bridge

  letsencrypt:
    image: jrcs/letsencrypt-nginx-proxy-companion
    restart: on-failure
    depends_on:
      - nginx-proxy
    volumes:
      - proxy:/etc/nginx/vhost.d
      - proxy:/usr/share/nginx/html
      - /var/run/docker.sock:/var/run/docker.sock:ro
      - ./certs:/etc/nginx/certs:rw
    network_mode: bridge

volumes:
  proxy:

plaincode_jpplaincode_jp

アプリのコンテナの docker-composeファイルに追記し、up で起動。

docker-compose.yml
version: "3.7"

services:
  app:
・・・
    environment:
      VIRTUAL_HOST: xxx.example.com
      LETSENCRYPT_HOST: xxx.example.com
      LETSENCRYPT_EMAIL: mail@example.com
    network_mode: bridge
・・・

https://サブドメイン でアクセスを確認
