Chainlink Functions
Chainlink Functionsを試してみた際のメモ。
Call an API with HTTP Query Parameters
Call an API with HTTP Query Parametersに従う。
Prerequisites
Set up your environment
$ node -v
v20.12.1
$ npm -v
10.5.0
Configure your onchain resources

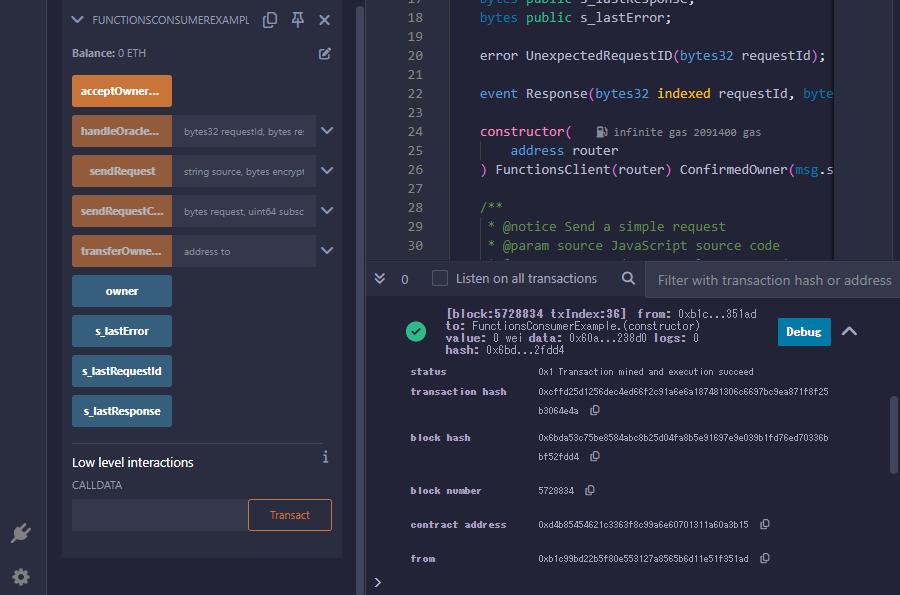

Deploy a Functions consumer contract on Sepolia
0xD4b85454621C3363f8C99a6E60701311a60A3B15
Create a subscription
各Stepでトランザクションが発生するのでガス代が必要。
Subscription created
0xa708485b0868f6aef374fc8a515d68738bfa02c85b4c482c5bc6e0e90a68aa5b

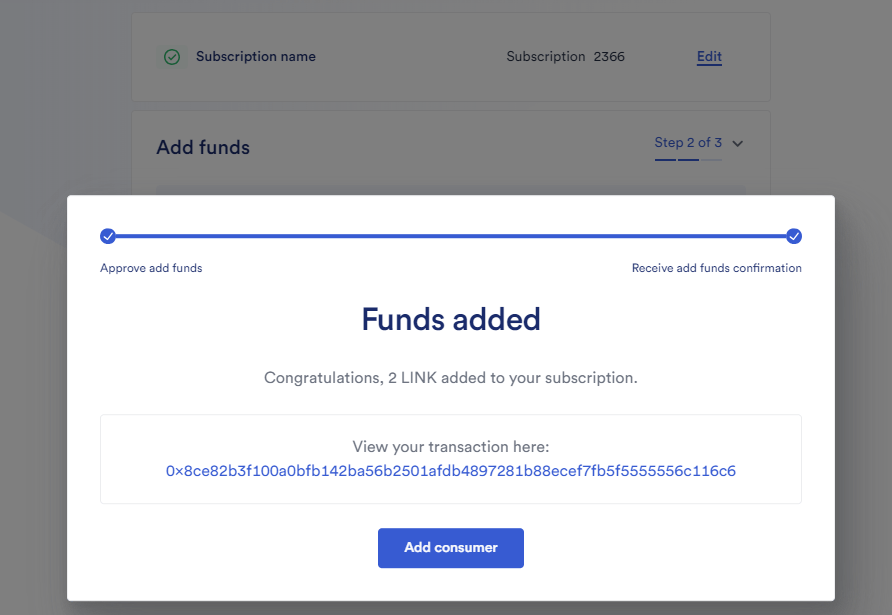

Add funds
0x8ce82b3f100a0bfb142ba56b2501afdb4897281b88ecef7fb5f5555556c116c6

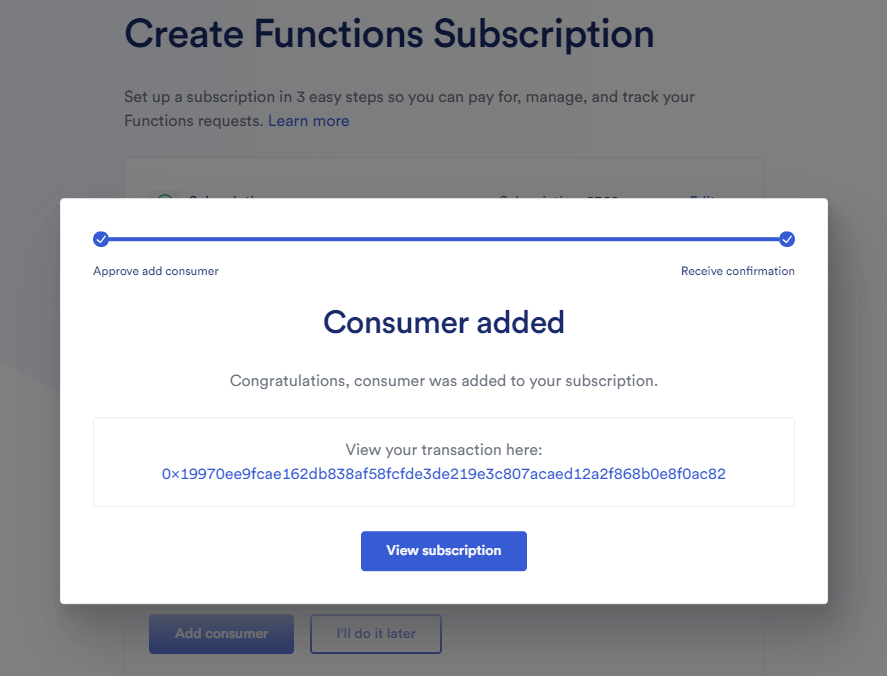

Add consumer
0x19970ee9fcae162db838af58fcfde3de219e3c807acaed12a2f868b0e8f0ac82

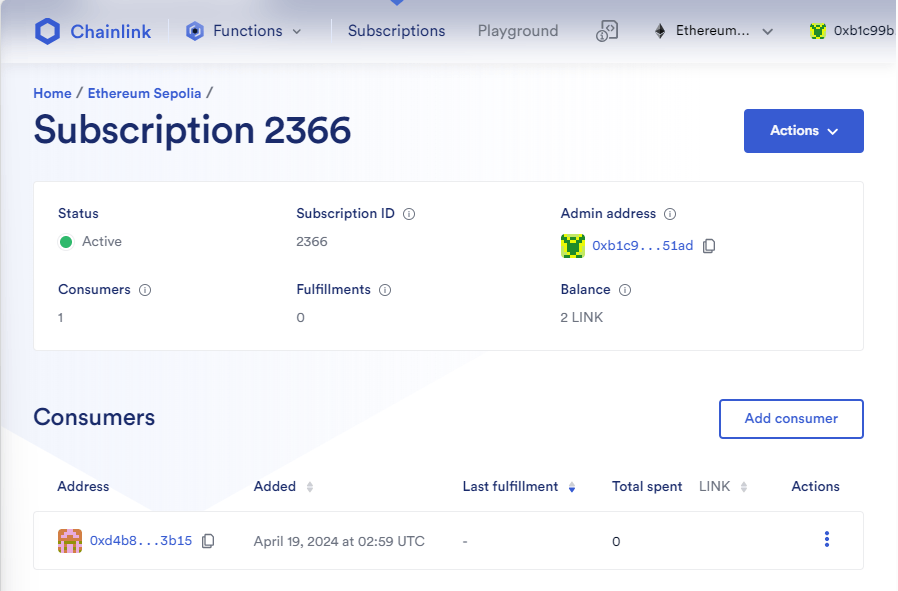

After creation, you can fetch the details of your subscription:

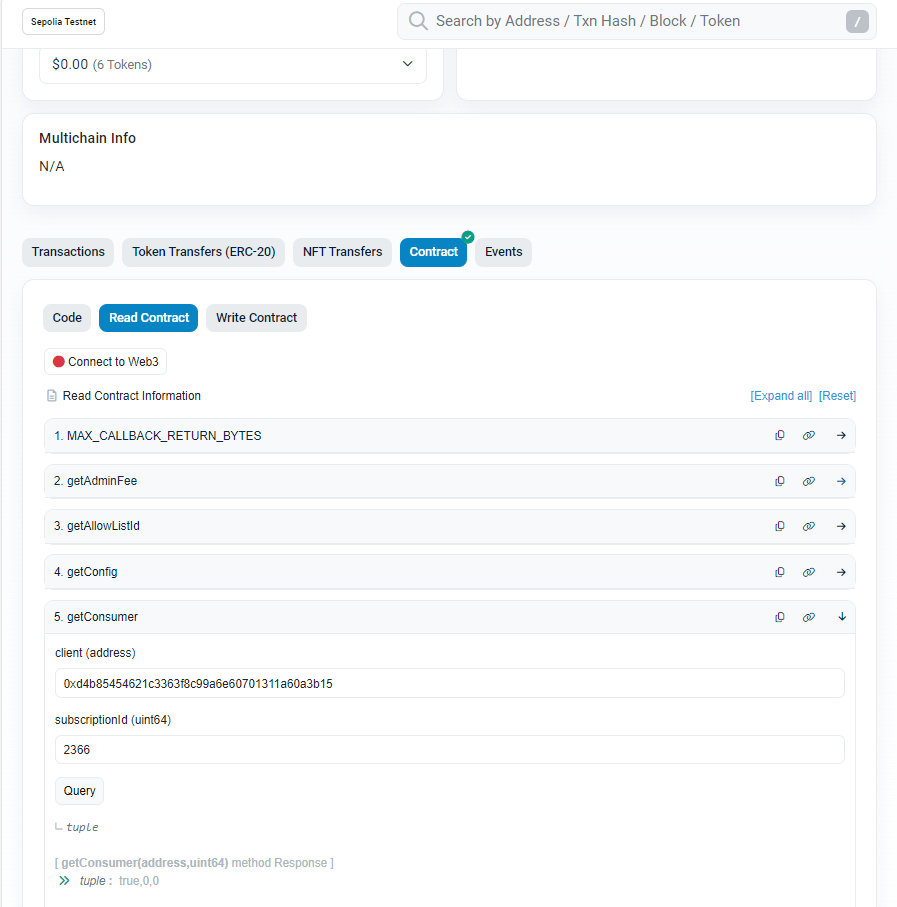

etherscanでもContractから確認可能。
Tutorial
Replace the consumer contract address and the subscription ID with your own values.
const consumerAddress = "0xd4b85454621c3363f8c99a6e60701311a60a3b15";
const subscriptionId = 2366;
Make a request:
$ node examples/2-call-api/request.js
secp256k1 unavailable, reverting to browser version
Start simulation...
Simulation result {
capturedTerminalOutput: 'HTTP GET Request to https://min-api.cryptocompare.com/data/pricemultifull?fsyms=ETH&tsyms=USD\n' +
'ETH price is: 2999.57 USD\n',
responseBytesHexstring: '0x00000000000000000000000000000000000000000000000000000000000493b5'
}
✅ Decoded response to uint256: 299957n
Estimate request costs...
Fulfillment cost estimated to 1.097842819195555 LINK
Make request...
✅ Functions request sent! Transaction hash 0x2368e0c63329ebe4873b21601047417697ce4df7aabb5379f0d4aaa736494fff. Waiting for a response...
See your request in the explorer https://sepolia.etherscan.io/tx/0x2368e0c63329ebe4873b21601047417697ce4df7aabb5379f0d4aaa736494fff
✅ Request 0x98ec5b605c70ed4a09050d27a92d0cd74deaeed1a999931a828c9b3a19b0ceb0 successfully fulfilled. Cost is 0.26784723648294764 LINK.Complete reponse: {
requestId: '0x98ec5b605c70ed4a09050d27a92d0cd74deaeed1a999931a828c9b3a19b0ceb0',
subscriptionId: 2366,
totalCostInJuels: 267847236482947640n,
responseBytesHexstring: '0x00000000000000000000000000000000000000000000000000000000000493ec',
errorString: '',
returnDataBytesHexstring: '0x',
fulfillmentCode: 0
}
✅ Decoded response to uint256: 300012n

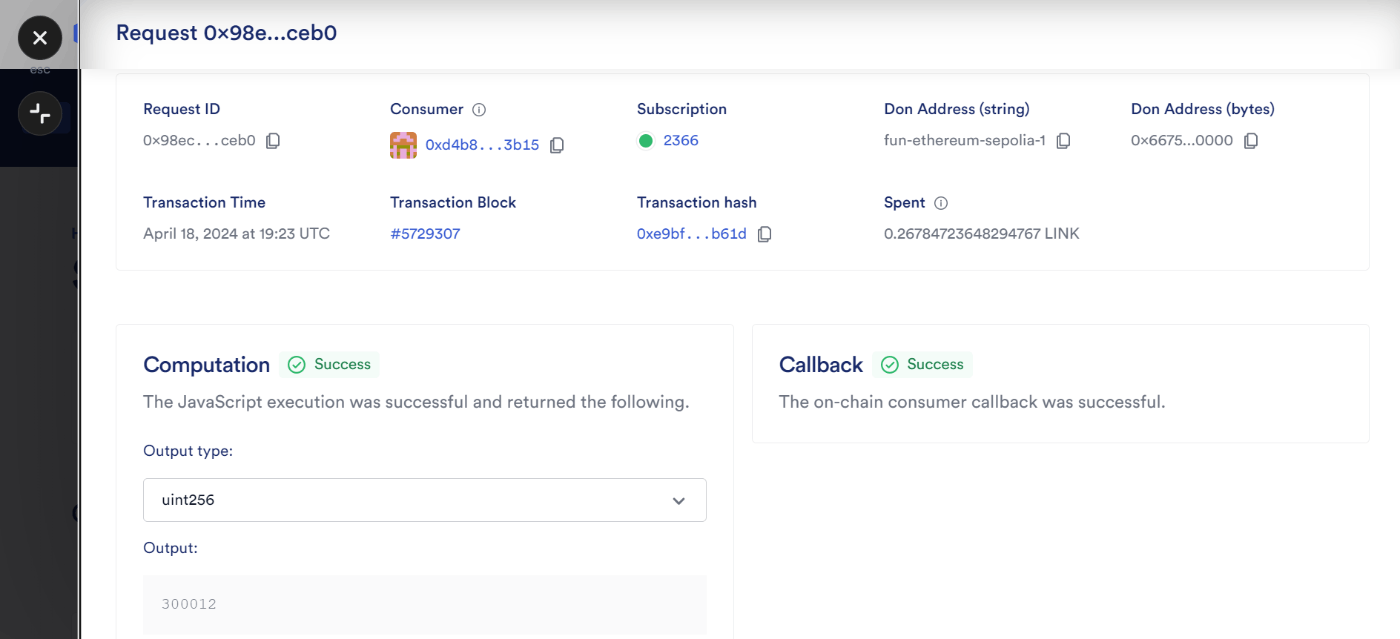

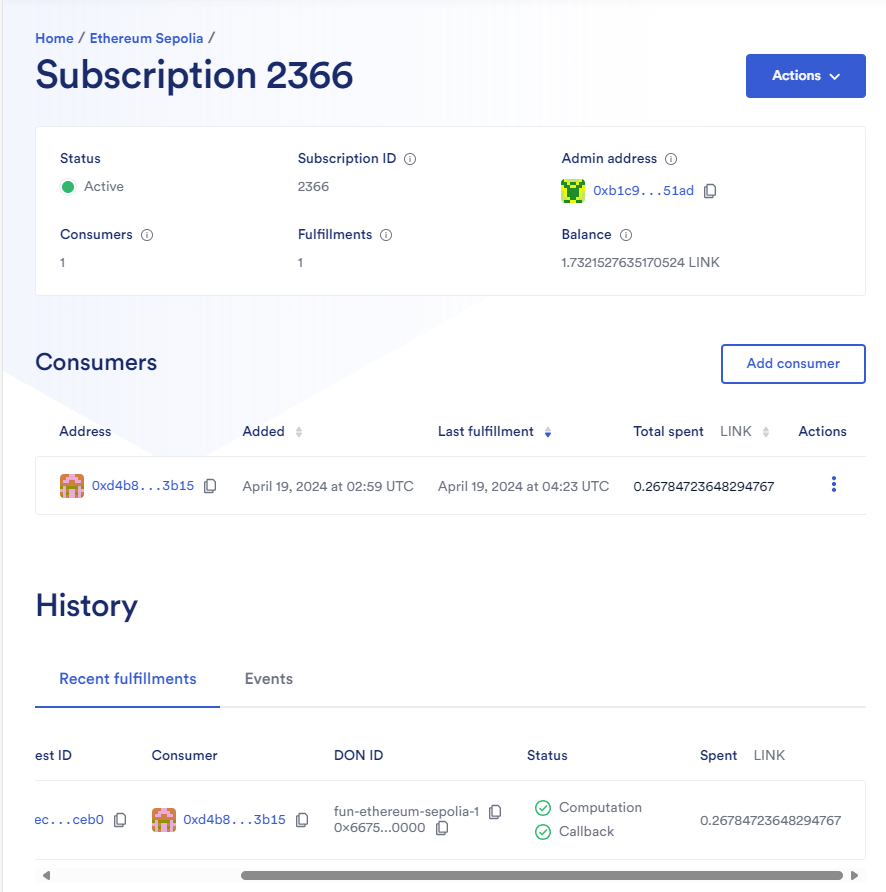

Chainlinkサービスでもfullfillment
を確認できる。

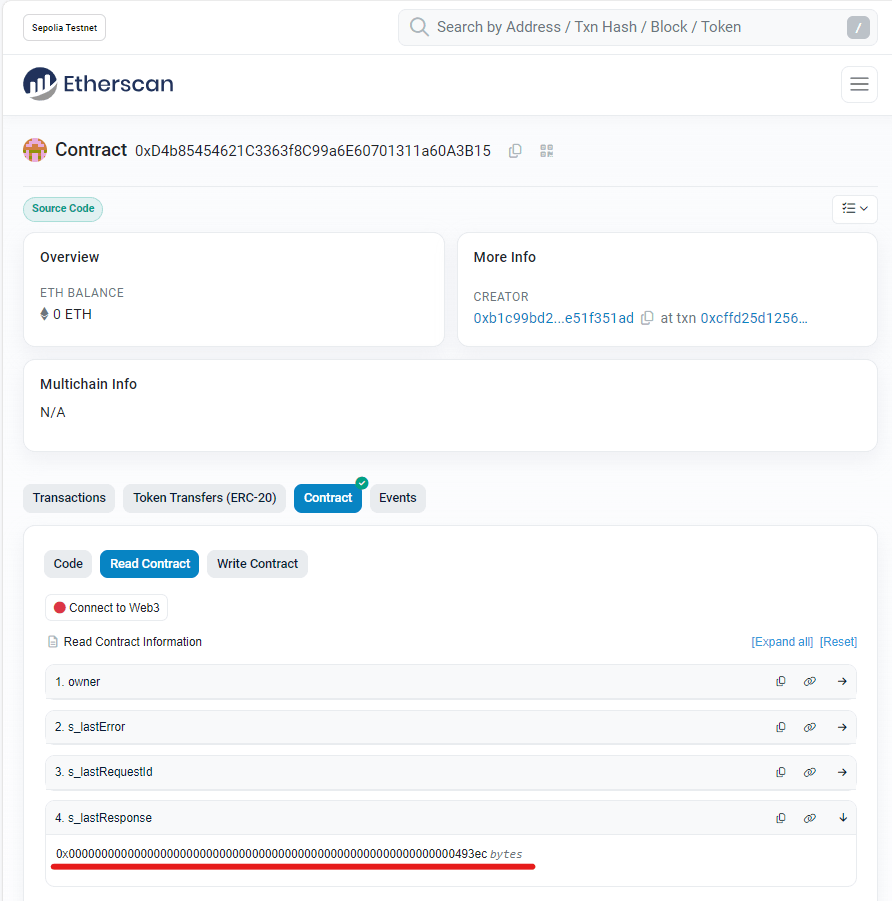

Consumerで直接確認することもできる。
0xD4b85454621C3363f8C99a6E60701311a60A3B15
Summary
- 必要なコスト
-
functions.chain.link
へのLINKトークンのデポジット - フロントエンドなどからConsumerへトランザクションを発行する際のガス代
-
