mysqldumpするだけのfargetタスクを作ってるめり

lib/fargate-cluster-stack.ts

// lib/fargate-cluster-stack.ts
import * as cdk from 'aws-cdk-lib';
import { Construct } from 'constructs';
import * as ec2 from 'aws-cdk-lib/aws-ec2';
import * as ecs from 'aws-cdk-lib/aws-ecs';

interface FargateClusterStackProps extends cdk.StackProps {
  vpc: ec2.IVpc;
}

export class FargateClusterStack extends cdk.Stack {
  public readonly cluster: ecs.Cluster;

  constructor(scope: Construct, id: string, props: FargateClusterStackProps) {
    super(scope, id, props);

    this.cluster = new ecs.Cluster(this, 'FargateCluster', {
      vpc: props.vpc,
      // Optional: CloudWatch Container Insights を有効にする
      containerInsights: true,
    });
  }
}

bin/app.ts

@@ -1,9 +1,9 @@
+import { FargateClusterStack } from '../lib/fargate-cluster-stack';
+new FargateClusterStack(app, `${namePrefix}-fargate-cluster`, {
+  vpc: vpc.vpc,
+  env: commonEnv,
 });

これでまずecsクラスターができる

 タスク定義付けるimport * as logs from 'aws-cdk-lib/aws-logs';

export class FargateClusterStack extends cdk.Stack {
  public readonly cluster: ecs.Cluster;

  constructor(scope: Construct, id: string, props: FargateClusterStackProps) {
    super(scope, id, props);

    this.cluster = new ecs.Cluster(this, 'FargateCluster', {
      vpc: props.vpc,
      containerInsights: true,
    });

    const taskDef = new ecs.FargateTaskDefinition(this, 'DumpTaskDef', {
      cpu: 512,
      memoryLimitMiB: 1024,
    });

    taskDef.addContainer('DummyContainer', {
      image: ecs.ContainerImage.fromRegistry('amazonlinux'),
      command: ['echo', 'Hello from dummy task'],
      essential: true,
      logging: ecs.LogDrivers.awsLogs({
        streamPrefix: 'dummy',
        logRetention: logs.RetentionDays.THREE_DAYS,
      }),
    });
  }
}

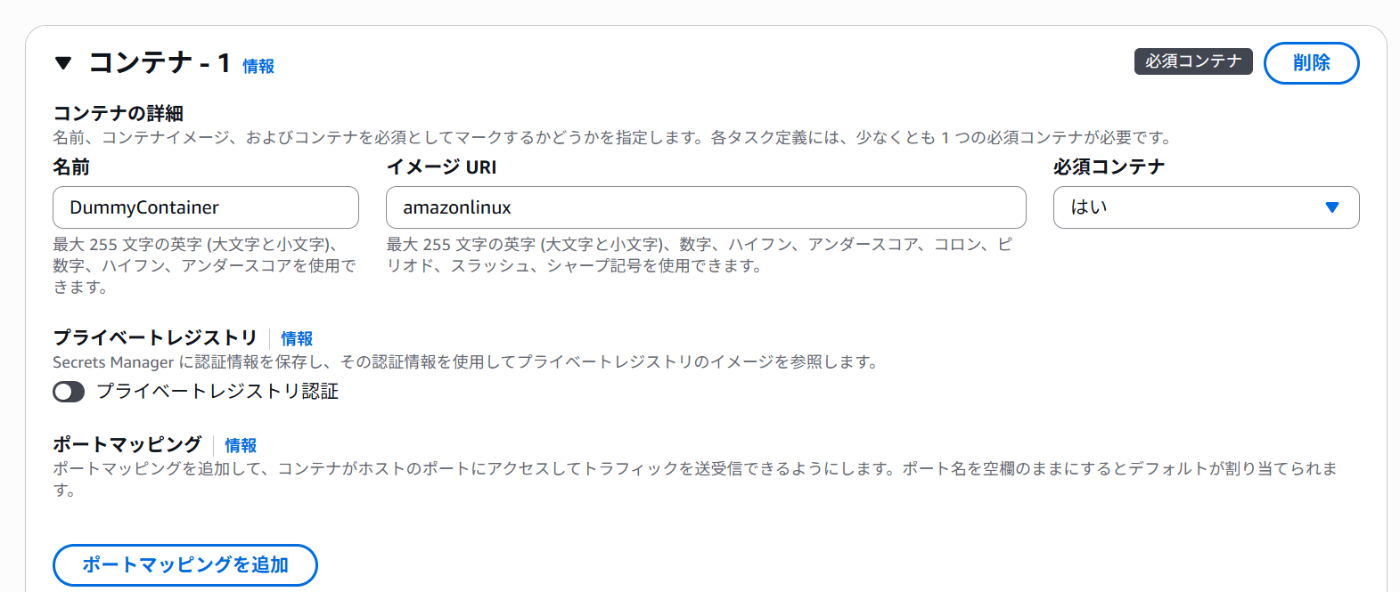

こんな感じでAmazonLinuxを使ったコンテナーができる

 当該クラスターからタスクを引く
こんな感じにログに出てくればよいだろう

イメージをカスタムする

lib/fargate-cluster-stack.ts

@@ -4,6 +4,7 @@ import { Construct } from 'constructs';
 import * as ec2 from 'aws-cdk-lib/aws-ec2';
 import * as ecs from 'aws-cdk-lib/aws-ecs';
 import * as logs from 'aws-cdk-lib/aws-logs';
+import * as path from 'path';

 interface FargateClusterStackProps extends cdk.StackProps {
   vpc: ec2.IVpc;
@@ -26,7 +27,7 @@ export class FargateClusterStack extends cdk.Stack {
     });

     taskDef.addContainer('DummyContainer', {
-      image: ecs.ContainerImage.fromRegistry('amazonlinux'),
+      image: ecs.ContainerImage.fromAsset(path.join(__dirname, '../docker/mysqldump')),
       command: ['echo', 'Hello from dummy task'],
       essential: true,
       logging: ecs.LogDrivers.awsLogs({

関連ファイルを作成する

docker/mysqldump/Dockerfile

FROM amazonlinux:2

RUN yum install -y \
      mysql \
      gzip \
      curl \
      unzip \
      jq && \
    curl "https://awscli.amazonaws.com/awscli-exe-linux-x86_64.zip" -o "awscliv2.zip" && \
    unzip awscliv2.zip && \
    ./aws/install && \
    rm -rf awscliv2.zip aws

COPY entrypoint.sh /entrypoint.sh
RUN chmod +x /entrypoint.sh

ENTRYPOINT ["/entrypoint.sh"]

docker/mysqldump/entrypoint.sh

#!/bin/bash
set -euo pipefail

echo "=== Starting mysqldump container ==="
mysqldump --version

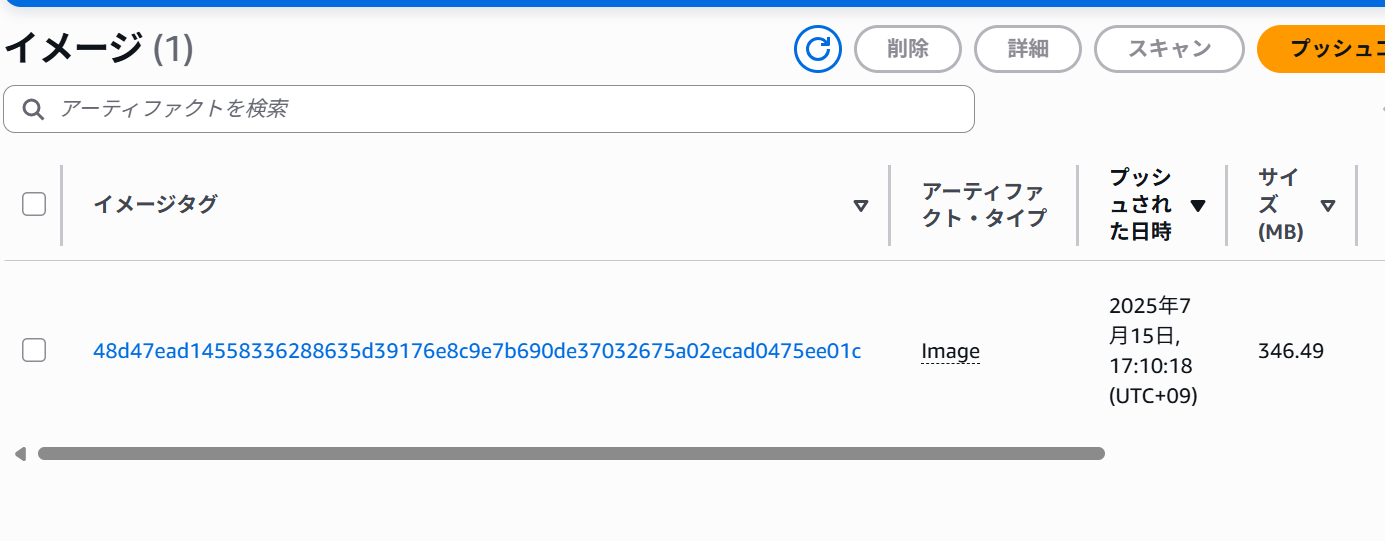

実行するとECRにイメージがpushされ、それを使うようになっちょる

タスクを実行するとログに出てくる

rdsの情報をecsに引き渡すように

bin/app.ts

@@ -23,7 +23,7 @@ const monitoringStack = new MonitoringStack(app, `${namePrefix}-monitoring`, {
   webhookUrl: 'https://hooks.slack.com/services/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',
 });

-new RdsStack(app, `${namePrefix}-rds`, {
+const rdsStack = new RdsStack(app, `${namePrefix}-rds`, {
   vpc: vpc.vpc,
   namePrefix,
   env: commonEnv,
@@ -39,4 +39,6 @@ new Ec2Stack(app, `${namePrefix}-ec2`, {
 new FargateClusterStack(app, `${namePrefix}-fargate-cluster`, {
   vpc: vpc.vpc,
   env: commonEnv,
+  dbInstance: rdsStack.dbInstance,
+  dbName: rdsStack.dbName,
 });

lib/rds-stack.ts

@@ -13,6 +13,9 @@ interface RdsStackProps extends cdk.StackProps {
 }

 export class RdsStack extends cdk.Stack {
+  public readonly dbInstance: rds.DatabaseInstance;
+  public readonly dbName: string = 'defaultDB';
+
   constructor(scope: Construct, id: string, props: RdsStackProps) {
     super(scope, id, props);

@@ -68,10 +71,11 @@ export class RdsStack extends cdk.Stack {
       // バックアップ7days
       backupRetention: cdk.Duration.days(7),
       // Default Database
-      databaseName: 'defaultDB',
+      databaseName: this.dbName,
       parameterGroup,
       cloudwatchLogsExports: ['slowquery'],
     });
+    this.dbInstance = rdsInstance;

     const alarmTopic = new sns.Topic(this, 'AlarmTopic', {
       displayName: 'RDS CPU Alarm Topic',

lib/fargate-cluster-stack.ts

@@ -3,11 +3,14 @@ import * as cdk from 'aws-cdk-lib';
 import { Construct } from 'constructs';
 import * as ec2 from 'aws-cdk-lib/aws-ec2';
 import * as ecs from 'aws-cdk-lib/aws-ecs';
+import * as rds from 'aws-cdk-lib/aws-rds';
 import * as logs from 'aws-cdk-lib/aws-logs';
 import * as path from 'path';

 interface FargateClusterStackProps extends cdk.StackProps {
   vpc: ec2.IVpc;
+  dbInstance: rds.IDatabaseInstance;
+  dbName: string;
 }

 export class FargateClusterStack extends cdk.Stack {
@@ -30,6 +33,12 @@ export class FargateClusterStack extends cdk.Stack {
       image: ecs.ContainerImage.fromAsset(path.join(__dirname, '../docker/mysqldump')),
       command: ['echo', 'Hello from dummy task'],
       essential: true,
+      environment: {
+        DB_HOST: props.dbInstance.dbInstanceEndpointAddress,
+        DB_PORT: props.dbInstance.dbInstanceEndpointPort,
+        DB_NAME: props.dbName,
+        DB_USER: 'admin', // SecretsManagerに保存されてるが今回は暫定で直書き
+      },
       logging: ecs.LogDrivers.awsLogs({
         streamPrefix: 'dummy',
         logRetention: logs.RetentionDays.THREE_DAYS,

docker/mysqldump/entrypoint.sh

@@ -3,3 +3,4 @@ set -euo pipefail

 echo "=== Starting mysqldump container ==="
 mysqldump --version
+env

これで一応環境変数にある程度渡ってくる

secret managerから情報を引き出す

lib/fargate-cluster-stack.ts

@@ -9,7 +9,7 @@ import * as path from 'path';

 interface FargateClusterStackProps extends cdk.StackProps {
   vpc: ec2.IVpc;
-  dbInstance: rds.IDatabaseInstance;
+  dbInstance: rds.DatabaseInstance;
   dbName: string;
 }

@@ -37,12 +37,15 @@ export class FargateClusterStack extends cdk.Stack {
         DB_HOST: props.dbInstance.dbInstanceEndpointAddress,
         DB_PORT: props.dbInstance.dbInstanceEndpointPort,
         DB_NAME: props.dbName,
-        DB_USER: 'admin', // SecretsManagerに保存されてるが今回は暫定で直書き
+        DB_SECRET_NAME: props.dbInstance.secret?.secretName || '',
       },
       logging: ecs.LogDrivers.awsLogs({
         streamPrefix: 'dummy',
         logRetention: logs.RetentionDays.THREE_DAYS,
       }),
     });
+    if (props.dbInstance.secret) {
+      props.dbInstance.secret.grantRead(taskDef.taskRole);
+    }
   }
 }

docker/mysqldump/entrypoint.sh

@@ -3,3 +3,18 @@ set -euo pipefail

 echo "=== Starting mysqldump container ==="
 mysqldump --version
+env
+
+if [[ -z "${DB_SECRET_NAME:-}" ]]; then
+  echo "[ERROR] DB_SECRET_NAME is not set"
+  exit 1
+fi
+
+SECRET_JSON=$(aws secretsmanager get-secret-value --secret-id "$DB_SECRET_NAME" --query SecretString --output text)
+DB_USER=$(echo "$SECRET_JSON" | jq -r '.username')
+DB_PASS=$(echo "$SECRET_JSON" | jq -r '.password')
+
+echo "[INFO] Dumping DB: $DB_NAME at $DB_HOST:$DB_PORT with user $DB_USER / passwd $DB_PASS"
+
+mysqldump -h "$DB_HOST" -P "$DB_PORT" -u "$DB_USER" -p"$DB_PASS" "$DB_NAME" | gzip > /dump.sql.gz \
+         && echo "✅ mysqldump completed successfully: /dump.sql.gz created."

これで完全にDBにアクセス可能となり、dumpが成功したはず

S3に転送

書く気力がおれそうw
ここでは事前にバケットを取得している

lib/fargate-cluster-stack.ts

@@ -6,6 +6,7 @@ import * as ecs from 'aws-cdk-lib/aws-ecs';
 import * as rds from 'aws-cdk-lib/aws-rds';
 import * as logs from 'aws-cdk-lib/aws-logs';
 import * as path from 'path';
+import * as iam from 'aws-cdk-lib/aws-iam';

 interface FargateClusterStackProps extends cdk.StackProps {
   vpc: ec2.IVpc;
@@ -38,12 +39,18 @@ export class FargateClusterStack extends cdk.Stack {
         DB_PORT: props.dbInstance.dbInstanceEndpointPort,
         DB_NAME: props.dbName,
         DB_SECRET_NAME: props.dbInstance.secret?.secretName || '',
+        S3_BUCKET: '<バケット>',
+        S3_PREFIX: 'dbdump',
       },
       logging: ecs.LogDrivers.awsLogs({
         streamPrefix: 'dummy',
         logRetention: logs.RetentionDays.THREE_DAYS,
       }),
     });
+    taskDef.taskRole.addToPrincipalPolicy(new iam.PolicyStatement({
+      actions: ['s3:PutObject'],
+      resources: ['arn:aws:s3:::<バケット>/dbdump/*'],
+    }));
     if (props.dbInstance.secret) {
       props.dbInstance.secret.grantRead(taskDef.taskRole);
     }

docker/mysqldump/entrypoint.sh

@@ -2,4 +2,20 @@
 set -euo pipefail

 echo "=== Starting mysqldump container ==="
+
 mysqldump --version
+
+# Secrets Manager から取得
+echo "=== Fetching credentials from Secrets Manager ==="
+secret=$(aws secretsmanager get-secret-value --secret-id "$DB_SECRET_NAME" --query SecretString --output text)
+DB_USER=$(echo "$secret" | jq -r '.username')
+DB_PASS=$(echo "$secret" | jq -r '.password')
+
+# ダンプファイル生成
+echo "=== Dumping database ==="
+mysqldump -h "$DB_HOST" -P "$DB_PORT" -u "$DB_USER" -p"$DB_PASS" "$DB_NAME" | gzip > /dump.sql.gz
+
+echo "=== Uploading to S3 ==="
+aws s3 cp /dump.sql.gz "s3://$S3_BUCKET/$S3_PREFIX/dump.sql.gz"
+
+echo "=== All done ==="
