よくブルスクになる場合の解析方法

2024/10/29に公開
 参考https://webnation.co.jp/kp41病ブルースクリーンを解決するまでにやったこ/#kp41

https://jp.easeus.com/data-recovery-solution/fix-bsod-error-0x00000133-in-windows-10.html

 使用したツールWinDbg

 手順WinDbgを管理者権限で開く
WinDbgの左上の「ファイル」をクリックする

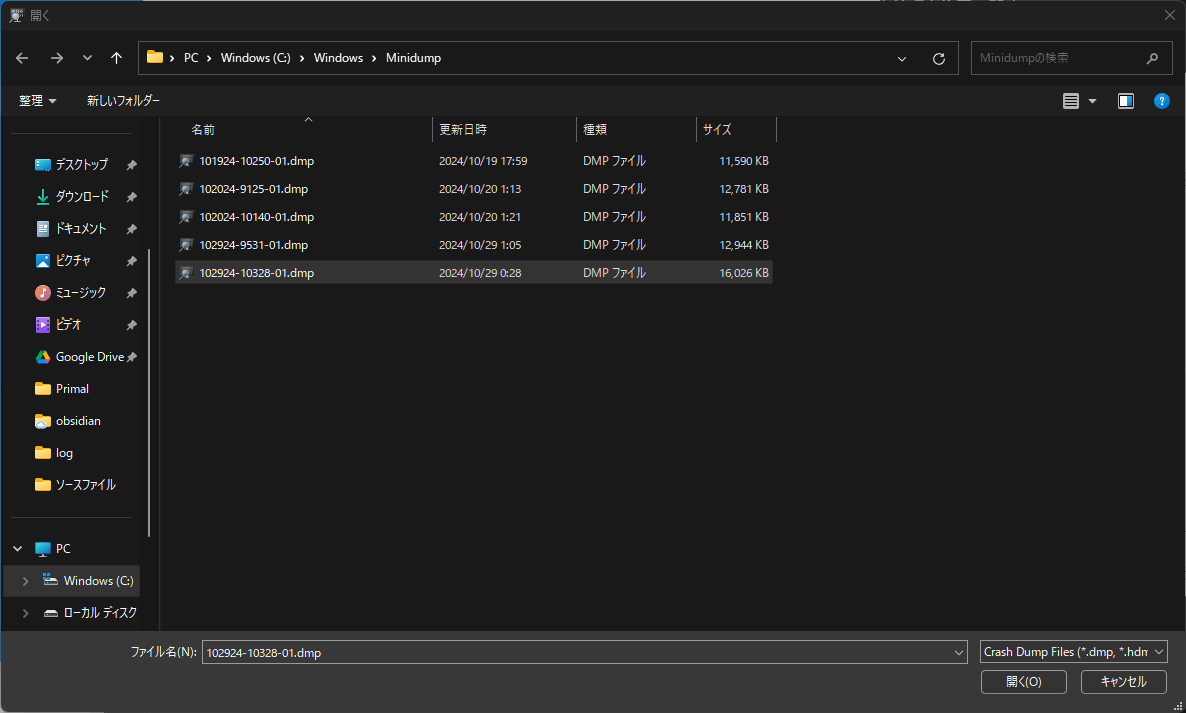

右側パネルにある、DumpFileのBrowserをクリックして、DumpFileを選択する

※C:\Windows\Minidumpに格納されている

Openをクリックする

!analyze -vをくりっく※青く表示されているのでわかりやすい
しばらく待つと、以下の様な内容が**!analyze -v**の下に出力される
*******************************************************************************
*                                                                             *
*                        Bugcheck Analysis                                    *
*                                                                             *
*******************************************************************************

DPC_WATCHDOG_VIOLATION (133)
The DPC watchdog detected a prolonged run time at an IRQL of DISPATCH_LEVEL
or above.
Arguments:
Arg1: 0000000000000001, The system cumulatively spent an extended period of time at
	DISPATCH_LEVEL or above.
Arg2: 0000000000001e00, The watchdog period (in ticks).
Arg3: fffff8021d71d340, cast to nt!DPC_WATCHDOG_GLOBAL_TRIAGE_BLOCK, which contains
	additional information regarding the cumulative timeout
Arg4: 0000000000000000

Debugging Details:
------------------

*************************************************************************
***                                                                   ***
***                                                                   ***
***    Either you specified an unqualified symbol, or your debugger   ***
***    doesn't have full symbol information.  Unqualified symbol      ***
***    resolution is turned off by default. Please either specify a   ***
***    fully qualified symbol module!symbolname, or enable resolution ***
***    of unqualified symbols by typing ".symopt- 100". Note that     ***
***    enabling unqualified symbol resolution with network symbol     ***
***    server shares in the symbol path may cause the debugger to     ***
***    appear to hang for long periods of time when an incorrect      ***
***    symbol name is typed or the network symbol server is down.     ***
***                                                                   ***
***    For some commands to work properly, your symbol path           ***
***    must point to .pdb files that have full type information.      ***
***                                                                   ***
***    Certain .pdb files (such as the public OS symbols) do not      ***
***    contain the required information.  Contact the group that      ***
***    provided you with these symbols if you need this command to    ***
***    work.                                                          ***
***                                                                   ***
***    Type referenced: TickPeriods                                   ***
***                                                                   ***
*************************************************************************

KEY_VALUES_STRING: 1

    Key  : Analysis.CPU.mSec
    Value: 312

    Key  : Analysis.Elapsed.mSec
    Value: 2933

    Key  : Analysis.IO.Other.Mb
    Value: 14

    Key  : Analysis.IO.Read.Mb
    Value: 1

    Key  : Analysis.IO.Write.Mb
    Value: 30

    Key  : Analysis.Init.CPU.mSec
    Value: 156

    Key  : Analysis.Init.Elapsed.mSec
    Value: 17086

    Key  : Analysis.Memory.CommitPeak.Mb
    Value: 99

    Key  : Analysis.Version.DbgEng
    Value: 10.0.27725.1000

    Key  : Analysis.Version.Description
    Value: 10.2408.27.01 amd64fre

    Key  : Analysis.Version.Ext
    Value: 1.2408.27.1

    Key  : Bugcheck.Code.LegacyAPI
    Value: 0x133

    Key  : Bugcheck.Code.TargetModel
    Value: 0x133

    Key  : Failure.Bucket
    Value: 0x133_ISR_nvlddmkm!unknown_function

    Key  : Failure.Hash
    Value: {f97493a5-ea2b-23ca-a808-8602773c2a86}

    Key  : Hypervisor.Enlightenments.ValueHex
    Value: 1417df84

    Key  : Hypervisor.Flags.AnyHypervisorPresent
    Value: 1

    Key  : Hypervisor.Flags.ApicEnlightened
    Value: 0

    Key  : Hypervisor.Flags.ApicVirtualizationAvailable
    Value: 1

    Key  : Hypervisor.Flags.AsyncMemoryHint
    Value: 0

    Key  : Hypervisor.Flags.CoreSchedulerRequested
    Value: 0

    Key  : Hypervisor.Flags.CpuManager
    Value: 1

    Key  : Hypervisor.Flags.DeprecateAutoEoi
    Value: 1

    Key  : Hypervisor.Flags.DynamicCpuDisabled
    Value: 1

    Key  : Hypervisor.Flags.Epf
    Value: 0

    Key  : Hypervisor.Flags.ExtendedProcessorMasks
    Value: 1

    Key  : Hypervisor.Flags.HardwareMbecAvailable
    Value: 1

    Key  : Hypervisor.Flags.MaxBankNumber
    Value: 0

    Key  : Hypervisor.Flags.MemoryZeroingControl
    Value: 0

    Key  : Hypervisor.Flags.NoExtendedRangeFlush
    Value: 0

    Key  : Hypervisor.Flags.NoNonArchCoreSharing
    Value: 1

    Key  : Hypervisor.Flags.Phase0InitDone
    Value: 1

    Key  : Hypervisor.Flags.PowerSchedulerQos
    Value: 0

    Key  : Hypervisor.Flags.RootScheduler
    Value: 0

    Key  : Hypervisor.Flags.SynicAvailable
    Value: 1

    Key  : Hypervisor.Flags.UseQpcBias
    Value: 0

    Key  : Hypervisor.Flags.Value
    Value: 21631230

    Key  : Hypervisor.Flags.ValueHex
    Value: 14a10fe

    Key  : Hypervisor.Flags.VpAssistPage
    Value: 1

    Key  : Hypervisor.Flags.VsmAvailable
    Value: 1

    Key  : Hypervisor.RootFlags.AccessStats
    Value: 1

    Key  : Hypervisor.RootFlags.CrashdumpEnlightened
    Value: 1

    Key  : Hypervisor.RootFlags.CreateVirtualProcessor
    Value: 1

    Key  : Hypervisor.RootFlags.DisableHyperthreading
    Value: 0

    Key  : Hypervisor.RootFlags.HostTimelineSync
    Value: 1

    Key  : Hypervisor.RootFlags.HypervisorDebuggingEnabled
    Value: 0

    Key  : Hypervisor.RootFlags.IsHyperV
    Value: 1

    Key  : Hypervisor.RootFlags.LivedumpEnlightened
    Value: 1

    Key  : Hypervisor.RootFlags.MapDeviceInterrupt
    Value: 1

    Key  : Hypervisor.RootFlags.MceEnlightened
    Value: 1

    Key  : Hypervisor.RootFlags.Nested
    Value: 0

    Key  : Hypervisor.RootFlags.StartLogicalProcessor
    Value: 1

    Key  : Hypervisor.RootFlags.Value
    Value: 1015

    Key  : Hypervisor.RootFlags.ValueHex
    Value: 3f7

    Key  : Stack.Pointer
    Value: ISR

    Key  : WER.OS.Branch
    Value: ni_release

    Key  : WER.OS.Version
    Value: 10.0.22621.1


BUGCHECK_CODE:  133

BUGCHECK_P1: 1

BUGCHECK_P2: 1e00

BUGCHECK_P3: fffff8021d71d340

BUGCHECK_P4: 0

FILE_IN_CAB:  102924-9531-01.dmp

TAG_NOT_DEFINED_202b:  *** Unknown TAG in analysis list 202b


FAULTING_THREAD:  ffff838bb9f3b080

DPC_TIMEOUT_TYPE:  DPC_QUEUE_EXECUTION_TIMEOUT_EXCEEDED

TRAP_FRAME:  ffff800ab1655880 -- (.trap 0xffff800ab1655880)
NOTE: The trap frame does not contain all registers.
Some register values may be zeroed or incorrect.
rax=0000000000000001 rbx=0000000000000000 rcx=0000344853c592de
rdx=0000000000000000 rsi=0000000000000000 rdi=0000000000000000
rip=fffff802537eb6e0 rsp=ffff800ab1655a18 rbp=0000000000000000
 r8=0000000000000000  r9=0000000000900401 r10=fffff8025354fa40
r11=0000000000000000 r12=0000000000000000 r13=0000000000000000
r14=0000000000000000 r15=0000000000000000
iopl=0         nv up ei pl nz na po nc
nvlddmkm+0xc1b6e0:
fffff802`537eb6e0 483b0d99603600  cmp     rcx,qword ptr [nvlddmkm+0xf81780 (fffff802`53b51780)] ds:fffff802`53b51780=????????????????
Resetting default scope

BLACKBOXBSD: 1 (!blackboxbsd)


BLACKBOXNTFS: 1 (!blackboxntfs)


BLACKBOXPNP: 1 (!blackboxpnp)


BLACKBOXWINLOGON: 1

CUSTOMER_CRASH_COUNT:  1

PROCESS_NAME:  EscapeFromTarkov.exe

STACK_TEXT:
ffffe401`00378c88 fffff802`1cc39779     : 00000000`00000133 00000000`00000001 00000000`00001e00 fffff802`1d71d340 : nt!KeBugCheckEx
ffffe401`00378c90 fffff802`1cc38fe1     : 000005f5`04714521 00000000`00021f27 00000000`00021f26 00000000`00000000 : nt!KeAccumulateTicks+0x239
ffffe401`00378cf0 fffff802`1cc37071     : 00000000`00000000 ffffe401`02762300 ffffe401`00451180 00000000`00000000 : nt!KiUpdateRunTime+0xd1
ffffe401`00378ea0 fffff802`1cc36b6a     : fffff802`1d65ff60 ffffe401`02762330 ffffe401`02762330 00000000`00000002 : nt!KeClockInterruptNotify+0xc1
ffffe401`00378f40 fffff802`1cd15f4c     : 00000005`0efd3cb1 ffff838b`a4765ea0 ffff838b`a4765f50 00000000`ffffffff : nt!HalpTimerClockInterrupt+0x10a
ffffe401`00378f70 fffff802`1ce16ffa     : ffff800a`b1655900 ffff838b`a4765ea0 00000000`00000000 00000000`00000000 : nt!KiCallInterruptServiceRoutine+0x9c
ffffe401`00378fb0 fffff802`1ce178c7     : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : nt!KiInterruptSubDispatchNoLockNoEtw+0xfa
ffff800a`b1655880 fffff802`537eb6e0     : fffff802`52cf4dd5 00000000`00000000 fffff802`52cfac7f 00000000`00000000 : nt!KiInterruptDispatchNoLockNoEtw+0x37
ffff800a`b1655a18 fffff802`52cf4dd5     : 00000000`00000000 fffff802`52cfac7f 00000000`00000000 ffffb442`e2a0cb2e : nvlddmkm+0xc1b6e0
ffff800a`b1655a20 00000000`00000000     : fffff802`52cfac7f 00000000`00000000 ffffb442`e2a0cb2e 00000000`00000000 : nvlddmkm+0x124dd5


SYMBOL_NAME:  nvlddmkm+c1b6e0

MODULE_NAME: nvlddmkm

IMAGE_NAME:  nvlddmkm.sys

STACK_COMMAND:  .process /r /p 0xffff838bbbf09080; .thread 0xffff838bb9f3b080 ; kb

BUCKET_ID_FUNC_OFFSET:  c1b6e0

FAILURE_BUCKET_ID:  0x133_ISR_nvlddmkm!unknown_function

OS_VERSION:  10.0.22621.1

BUILDLAB_STR:  ni_release

OSPLATFORM_TYPE:  x64

OSNAME:  Windows 10

FAILURE_ID_HASH:  {f97493a5-ea2b-23ca-a808-8602773c2a86}

Followup:     MachineOwner
---------```

 出力の解析モジュール名: nvlddmkm.sysというファイル名がIMAGE_NAMEフィールドに記載されています。このファイルはNVIDIAのディスプレイドライバ関連であるため、グラフィックドライバに問題がある可能性を示唆
エラー内容: DPC_TIMEOUT_TYPEの項目でDPC_QUEUE_EXECUTION_TIMEOUT_EXCEEDEDと指定されていることから、DPC（Deferred Procedure Call）の実行に長時間かかっていることが原因
プロセス名: PROCESS_NAMEでEscapeFromTarkov.exeがアクティブだったことが記録されています。このため、このプロセスが高負荷をかけた際にエラーが発生した可能性

 結論nvlddmkm.sysつまり、グラフィックドライバに原因がありそう

って感じで調査ができる
