Babylon.js に入門する

Babylon.js
薄田達哉 / tatsuyasusukida薄田達哉 / tatsuyasusukida

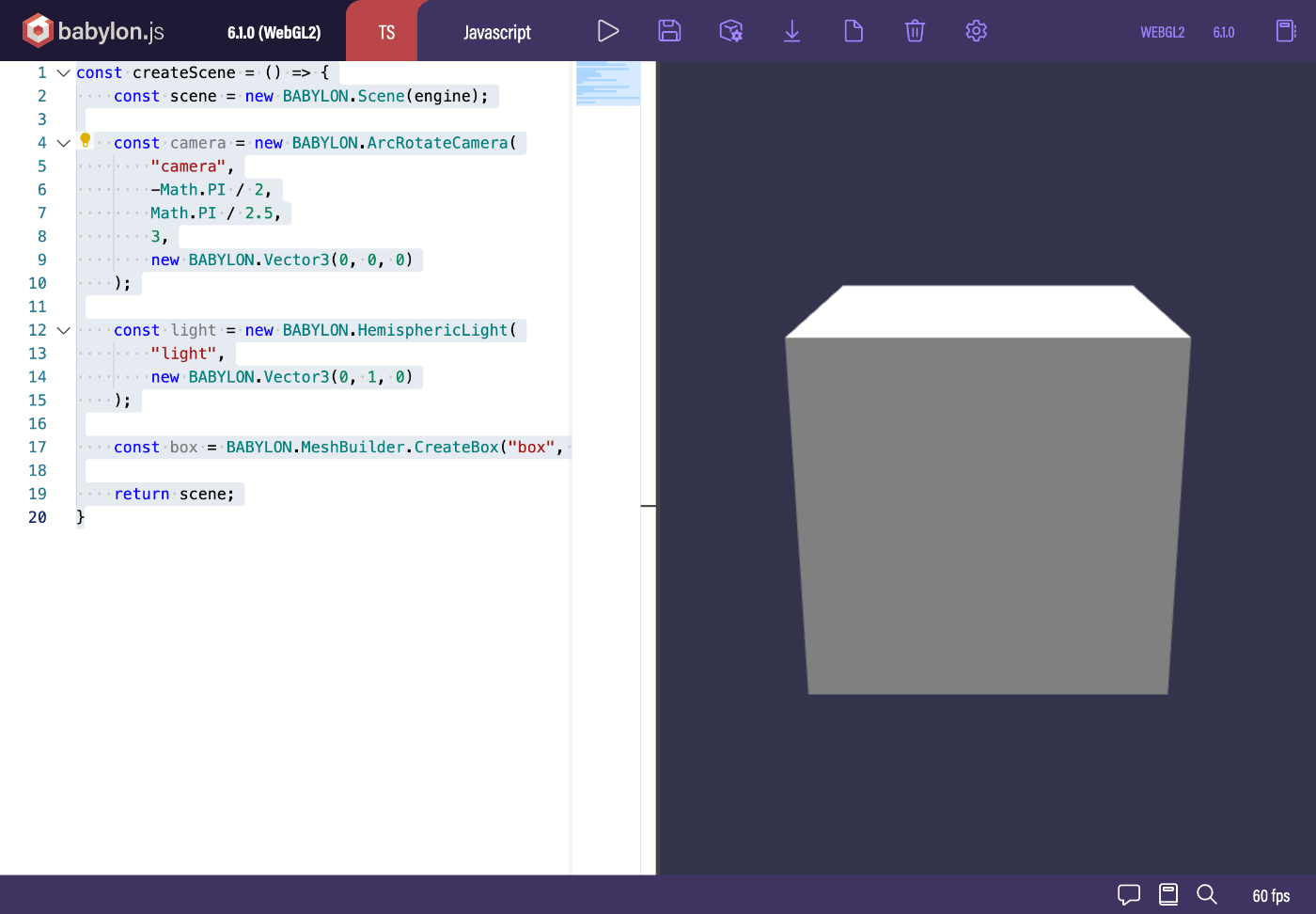

豆腐の表示

Playground にアクセスして下記のコードを表示する。

const createScene = () => {
    const scene = new BABYLON.Scene(engine);

    const camera = new BABYLON.ArcRotateCamera(
        "camera",
        -Math.PI / 2,
        Math.PI / 2.5,
        3,
        new BABYLON.Vector3(0, 0, 0)
    );

    const light = new BABYLON.HemisphericLight(
        "light",
        new BABYLON.Vector3(0, 1, 0)
    );

    const box = BABYLON.MeshBuilder.CreateBox("box", {});

    return scene;
}

Math が Path になっていて 10 分ほど無駄にしてしまった。

薄田達哉 / tatsuyasusukida薄田達哉 / tatsuyasusukida

Scene が省略されている

Since at this point there is only one scene you may notice that this parameter can be dropped from the camera, light and box as the default is for them to be placed in the current scene.

Scene が 1 つしか無い場合は指定しなくても良いようだ。

薄田達哉 / tatsuyasusukida薄田達哉 / tatsuyasusukida

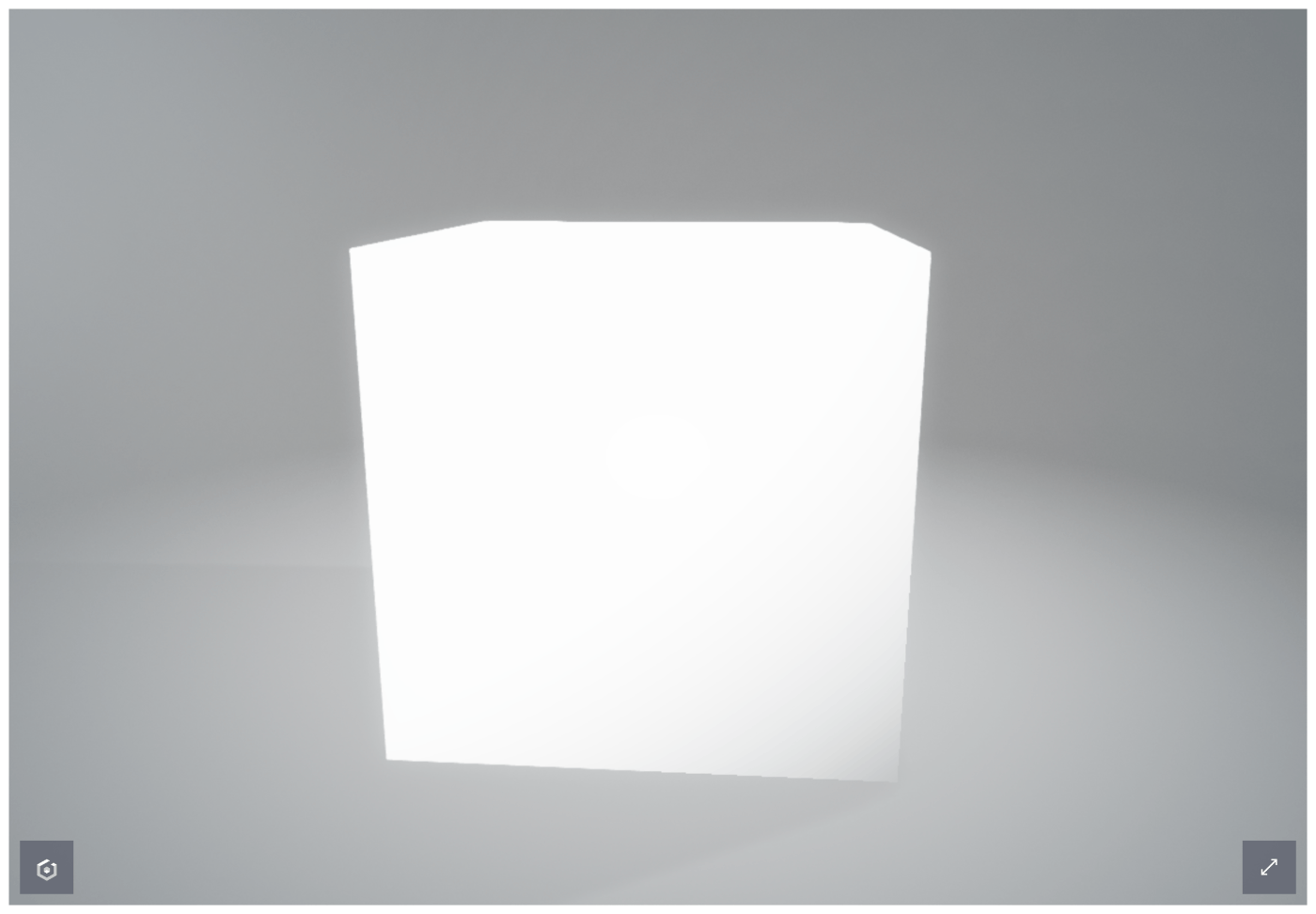

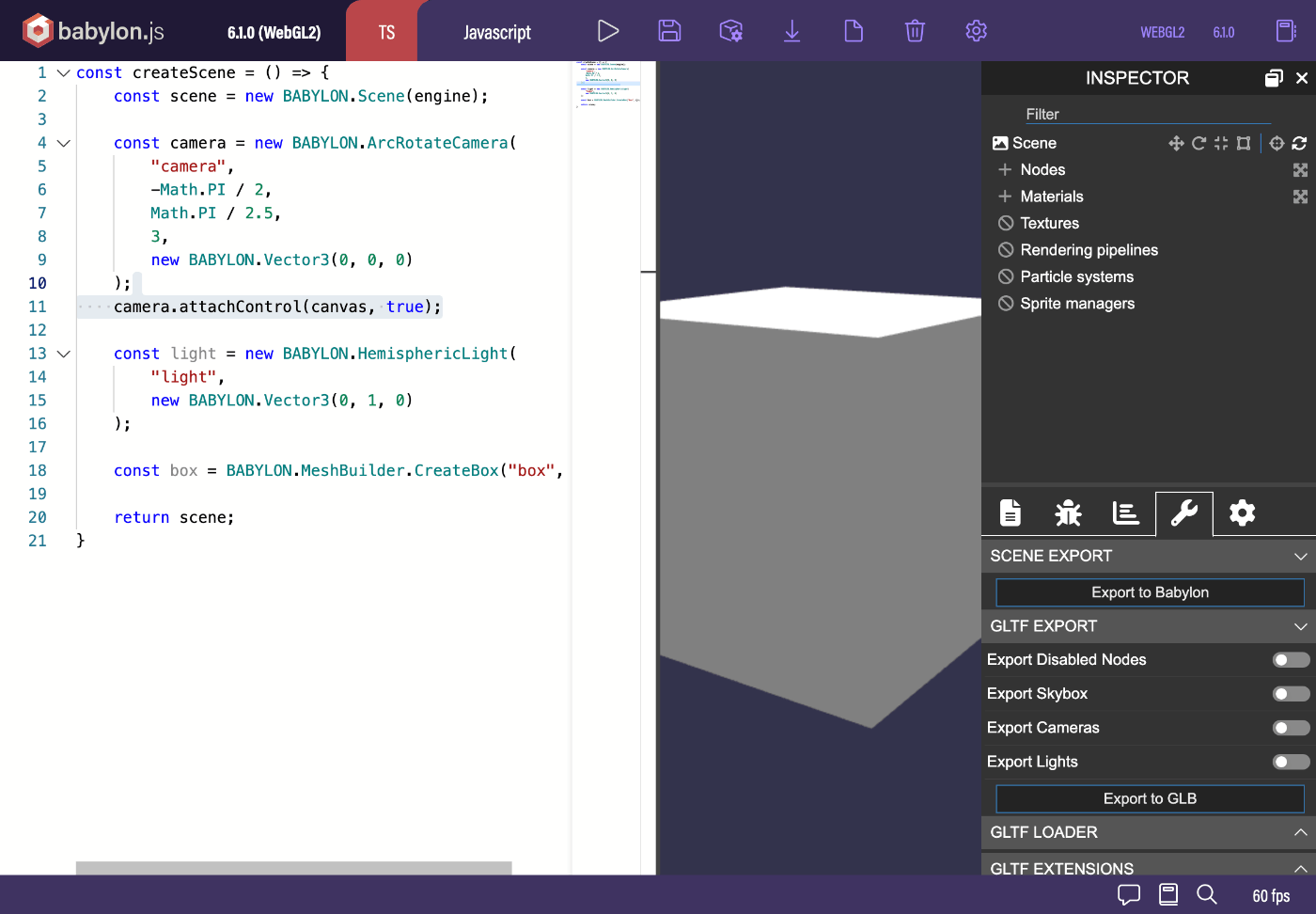

Web ページで表示

コマンド
touch ~/Downloads/babylon.html
npx http-server -c-1
~/Downloads/babylon.html
<script src="https://cdn.babylonjs.com/viewer/babylon.viewer.js"></script>
<babylon model="/scene.babylon"></babylon>

http://localhost:8080/babylon.html にアクセスする。

scene.babylon を scene.glb に変えても動くことを確認する。

薄田達哉 / tatsuyasusukida薄田達哉 / tatsuyasusukida

シーンやモデルの読み込み

BABYLON.SceneLoader.ImportMeshAsync(model_name, folder_path, file_name, scene);

scene は 1 つしか無い場合は省略できるようだ。

フォルダーとファイル名が別れているのは何故だろう？

Three.js でもそうだったような気がする。

model_name には文字列の配列も指定できる。

1 つのシーンには複数のモデルが含まれているということなのかもしれない。

薄田達哉 / tatsuyasusukida薄田達哉 / tatsuyasusukida

実際に読み込んでみる

const createScene = () => {
    const scene = new BABYLON.Scene(engine);

    const camera = new BABYLON.ArcRotateCamera(
        "camera",
        -Math.PI / 2,
        Math.PI / 2.5,
        15,
        new BABYLON.Vector3(0, 0, 0)
    );
    camera.attachControl(canvas, true);

    const light = new BABYLON.HemisphericLight(
        "light",
        new BABYLON.Vector3(1, 1, 0)
    );

    BABYLON.SceneLoader.ImportMeshAsync(
        "semi_house",
        "https://assets.babylonjs.com/meshes/",
        "both_houses_scene.babylon"
    );

    return scene;
}

家が表示された。

薄田達哉 / tatsuyasusukida薄田達哉 / tatsuyasusukida

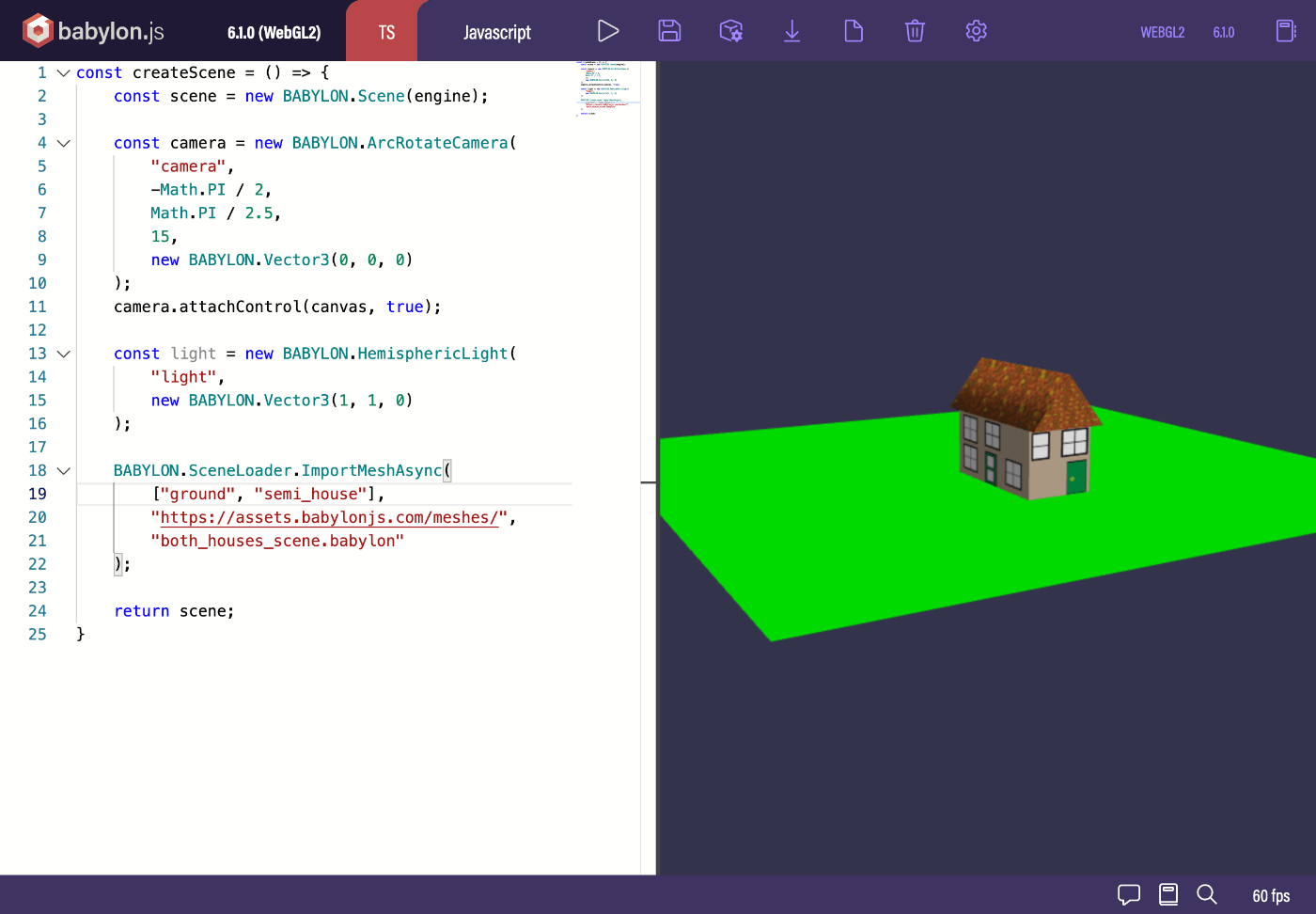

複数モデルを読み込んでみる

const createScene = () => {
    const scene = new BABYLON.Scene(engine);

    const camera = new BABYLON.ArcRotateCamera(
        "camera",
        -Math.PI / 2,
        Math.PI / 2.5,
        15,
        new BABYLON.Vector3(0, 0, 0)
    );
    camera.attachControl(canvas, true);

    const light = new BABYLON.HemisphericLight(
        "light",
        new BABYLON.Vector3(1, 1, 0)
    );

    BABYLON.SceneLoader.ImportMeshAsync(
        ["ground", "semi_house"],
        "https://assets.babylonjs.com/meshes/",
        "both_houses_scene.babylon"
    );

    return scene;
}

薄田達哉 / tatsuyasusukida薄田達哉 / tatsuyasusukida

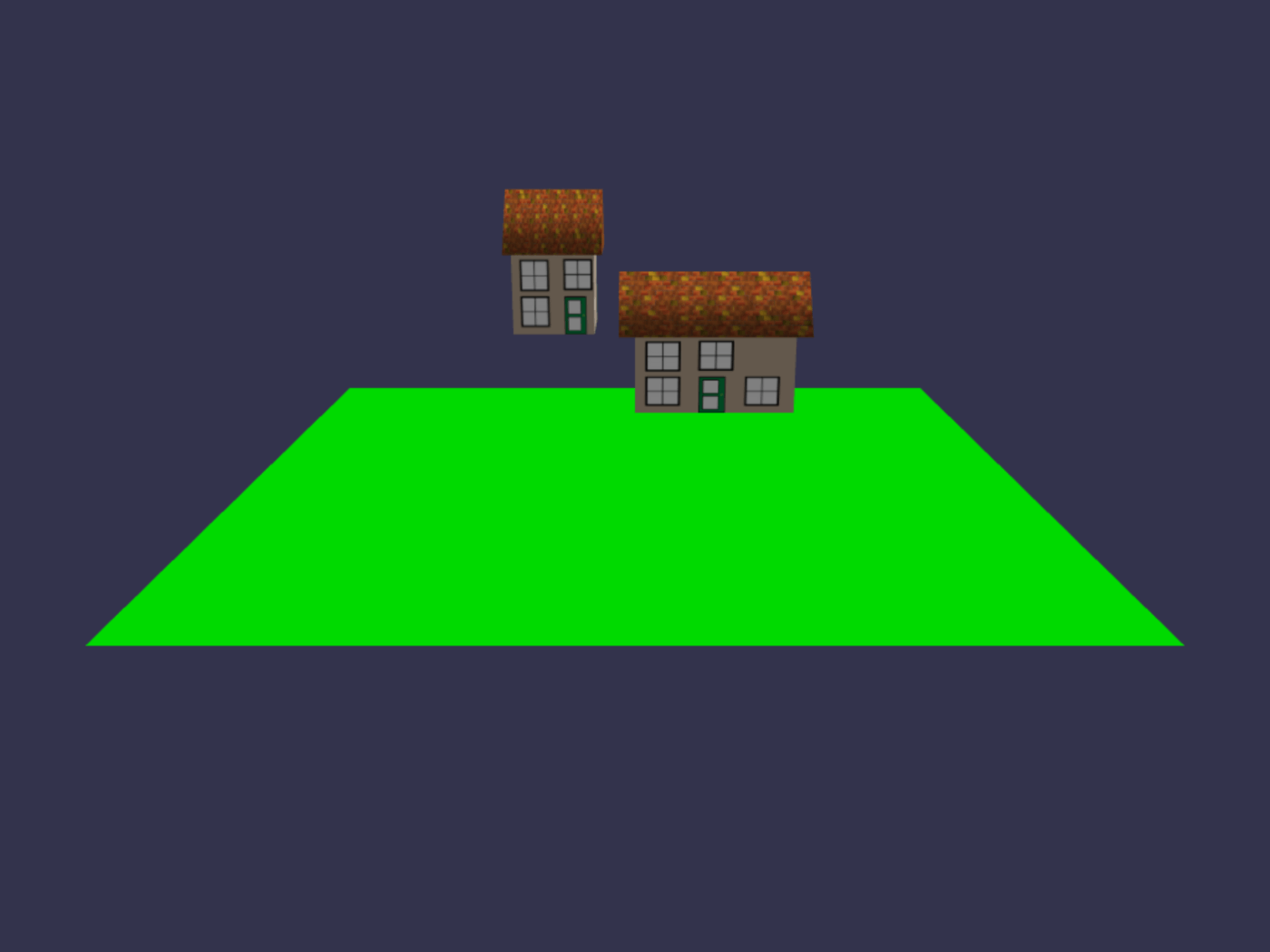

モデル読み込み後の操作

const createScene = () => {
    const scene = new BABYLON.Scene(engine);

    const camera = new BABYLON.ArcRotateCamera(
        "camera",
        -Math.PI / 2,
        Math.PI / 2.5,
        15,
        new BABYLON.Vector3(0, 0, 0)
    );
    camera.attachControl(canvas, true);

    const light = new BABYLON.HemisphericLight(
        "light",
        new BABYLON.Vector3(1, 1, 0)
    );

    BABYLON.SceneLoader.ImportMeshAsync(
        "",
        "https://assets.babylonjs.com/meshes/",
        "both_houses_scene.babylon"
    ).then((result) => {
        const house1 = scene.getMeshByName("detached_house");
        house1.position.y = 2;

        const house2 = result.meshes[2];
        house2.position.y = 1;
    })

    return scene;
}

薄田達哉 / tatsuyasusukida薄田達哉 / tatsuyasusukida

HTML テンプレート

<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml">
  <head>
    <meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
    <title>Babylon Template</title>

    <style>
      html,
      body {
        overflow: hidden;
        width: 100%;
        height: 100%;
        margin: 0;
        padding: 0;
      }

      #renderCanvas {
        width: 100%;
        height: 100%;
        touch-action: none;
      }
    </style>

    <script src="https://cdn.babylonjs.com/babylon.js"></script>
    <script src="https://cdn.babylonjs.com/loaders/babylonjs.loaders.min.js"></script>
    <script src="https://code.jquery.com/pep/0.4.3/pep.js"></script>
  </head>

  <body>
    <canvas id="renderCanvas" touch-action="none"></canvas>
    <!-- touch-action="none" for best results from PEP -->

    <script>
      const canvas = document.getElementById("renderCanvas"); // Get the canvas element
      const engine = new BABYLON.Engine(canvas, true); // Generate the BABYLON 3D engine

      // Add your code here matching the playground format

      const scene = createScene(); //Call the createScene function

      // Register a render loop to repeatedly render the scene
      engine.runRenderLoop(function () {
        scene.render();
      });

      // Watch for browser/canvas resize events
      window.addEventListener("resize", function () {
        engine.resize();
      });
    </script>
  </body>
</html>

Add your code here matching the playground format の所に Playground のソースコードを入れれば良いようだ。

薄田達哉 / tatsuyasusukida薄田達哉 / tatsuyasusukida

コーディング

コマンド
touch ~/Desktop/first-babylon-app.html
~/Desktop/first-babylon-app.html
<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml">
  <head>
    <meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
    <title>Babylon Template</title>

    <style>
      html,
      body {
        overflow: hidden;
        width: 100%;
        height: 100%;
        margin: 0;
        padding: 0;
      }

      #renderCanvas {
        width: 100%;
        height: 100%;
        touch-action: none;
      }
    </style>

    <script src="https://cdn.babylonjs.com/babylon.js"></script>
    <script src="https://cdn.babylonjs.com/loaders/babylonjs.loaders.min.js"></script>
    <script src="https://code.jquery.com/pep/0.4.3/pep.js"></script>
  </head>

  <body>
    <canvas id="renderCanvas" touch-action="none"></canvas>
    <!-- touch-action="none" for best results from PEP -->

    <script>
      const canvas = document.getElementById("renderCanvas"); // Get the canvas element
      const engine = new BABYLON.Engine(canvas, true); // Generate the BABYLON 3D engine

      const createScene = () => {
        const scene = new BABYLON.Scene(engine);

        const camera = new BABYLON.ArcRotateCamera(
          "camera",
          -Math.PI / 2,
          Math.PI / 2.5,
          15,
          new BABYLON.Vector3(0, 0, 0)
        );
        camera.attachControl(canvas, true);

        const light = new BABYLON.HemisphericLight(
          "light",
          new BABYLON.Vector3(1, 1, 0)
        );

        BABYLON.SceneLoader.ImportMeshAsync(
          "",
          "https://assets.babylonjs.com/meshes/",
          "both_houses_scene.babylon"
        ).then((result) => {
          const house1 = scene.getMeshByName("detached_house");
          house1.position.y = 2;

          const house2 = result.meshes[2];
          house2.position.y = 1;
        });

        return scene;
      };

      const scene = createScene(); //Call the createScene function

      // Register a render loop to repeatedly render the scene
      engine.runRenderLoop(function () {
        scene.render();
      });

      // Watch for browser/canvas resize events
      window.addEventListener("resize", function () {
        engine.resize();
      });
    </script>
  </body>
</html>
このスクラップは2023/05/08にクローズされました
