Upgrade Ubuntu 18.04 to 20.04
- 自宅k8sのOSをアップグレードしようと思ったら、OSのバージョンが違った・・・
- 以前ネットワークをいじった際に壊れて、ControlPlaneだけバージョンを上げたVMを別で起動して好感した記憶がおぼろげに・・・
- 折角なのでWorkerのOSのアップグレードを行う
現状
- 環境はローカルPCにVagrant/Virtualboxで構築したVM
- 一台だけお試しに上げてみて正常に動いていることを確認
- OSやKernel、containerdのマイナーバージョンが揃って無いのはご愛嬌ってことで・・・
$ kc get no -owide
NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME
cp11 Ready control-plane 340d v1.24.5 192.168.10.81 <none> Ubuntu 20.04.5 LTS 5.4.0-162-generic containerd://1.6.15
cp12 Ready control-plane 339d v1.24.5 192.168.10.82 <none> Ubuntu 20.04.5 LTS 5.4.0-139-generic containerd://1.6.15
cp13 Ready control-plane 339d v1.24.5 192.168.10.83 <none> Ubuntu 20.04.5 LTS 5.4.0-163-generic containerd://1.6.15
nd01 Ready <none> 2y228d v1.24.5 192.168.10.71 <none> Ubuntu 20.04.6 LTS 5.4.0-169-generic containerd://1.6.21
nd02 Ready <none> 2y228d v1.24.5 192.168.10.72 <none> Ubuntu 18.04.5 LTS 4.15.0-213-generic containerd://1.4.4
nd03 Ready <none> 341d v1.24.5 192.168.10.73 <none> Ubuntu 18.04.5 LTS 4.15.0-213-generic containerd://1.4.4
- nd02(Worker)のOSをアップグレードする
- 以下を参考にさせて頂いた。
- とりあえず現状は以下の通り
$ cat /etc/os-release
NAME="Ubuntu"
VERSION="18.04.5 LTS (Bionic Beaver)"
ID=ubuntu
ID_LIKE=debian
PRETTY_NAME="Ubuntu 18.04.5 LTS"
VERSION_ID="18.04"
HOME_URL="https://www.ubuntu.com/"
SUPPORT_URL="https://help.ubuntu.com/"
BUG_REPORT_URL="https://bugs.launchpad.net/ubuntu/"
PRIVACY_POLICY_URL="https://www.ubuntu.com/legal/terms-and-policies/privacy-policy"
VERSION_CODENAME=bionic
UBUNTU_CODENAME=bionic
$ uname -a
Linux nd02 4.15.0-213-generic #224-Ubuntu SMP Mon Jun 19 13:30:12 UTC 2023 x86_64 x86_64 x86_64 GNU/Linux
- アップグレード対象を確認
- 想定通り、20.04が対象
- 最新のLTSは22だが一足飛びにアップグレードは出来ない
$ sudo do-release-upgrade -c
Checking for a new Ubuntu release
New release '20.04.6 LTS' available.
Run 'do-release-upgrade' to upgrade to it.
- パッケージを最新化する
$ sudo apt update
Get:1 https://download.docker.com/linux/ubuntu bionic InRelease [64.4 kB]
Hit:3 http://archive.ubuntu.com/ubuntu bionic InRelease
Hit:4 http://security.ubuntu.com/ubuntu bionic-security InRelease
Hit:2 https://packages.cloud.google.com/apt kubernetes-xenial InRelease
Hit:5 http://archive.ubuntu.com/ubuntu bionic-updates InRelease
Hit:6 http://archive.ubuntu.com/ubuntu bionic-backports InRelease
Fetched 64.4 kB in 1s (63.2 kB/s)
Reading package lists... Done
Building dependency tree
Reading state information... Done
71 packages can be upgraded. Run 'apt list --upgradable' to see them.
- 念のためパッケージを確認してみる
$ apt list --upgradable
...
kubeadm/kubernetes-xenial 1.28.2-00 amd64 [upgradable from: 1.24.5-00]
kubectl/kubernetes-xenial 1.28.2-00 amd64 [upgradable from: 1.24.5-00]
kubelet/kubernetes-xenial 1.28.2-00 amd64 [upgradable from: 1.24.5-00]
...
- k8sのパッケージをアップグレードされそうだった・・・
- k8sのアップグレードは別途行いたいので、aptのレポファイルを編集する
$ cat /etc/apt/sources.list.d/apt_kubernetes_io.list
deb [signed-by=/etc/apt/keyrings/kubernetes-archive-keyring.gpg] https://apt.kubernetes.io/ kubernetes-xenial main
# 編集して、コメントアウトしておく
$ cat /etc/apt/sources.list.d/apt_kubernetes_io.list
#deb [signed-by=/etc/apt/keyrings/kubernetes-archive-keyring.gpg] https://apt.kubernetes.io/ kubernetes-xenial main
- aptで再確認
$ sudo apt update
Get:1 https://download.docker.com/linux/ubuntu bionic InRelease [64.4 kB]
Hit:2 http://security.ubuntu.com/ubuntu bionic-security InRelease
Hit:3 http://archive.ubuntu.com/ubuntu bionic InRelease
Hit:4 http://archive.ubuntu.com/ubuntu bionic-updates InRelease
Hit:5 http://archive.ubuntu.com/ubuntu bionic-backports InRelease
Fetched 64.4 kB in 1s (63.3 kB/s)
Reading package lists... Done
Building dependency tree
Reading state information... Done
66 packages can be upgraded. Run 'apt list --upgradable' to see them.
# kube~は無くなっていた
$ sudo apt list --upgradable
...
klibc-utils/bionic-updates 2.0.4-9ubuntu2.2 amd64 [upgradable from: 2.0.4-9ubuntu2.1]
landscape-common/bionic-updates 18.01-0ubuntu3.6 amd64 [upgradable from: 18.01-0ubuntu3.5]
...
- パッケージをアップグレードする
$ sudo apt upgrade
...
66 upgraded, 5 newly installed, 0 to remove and 0 not upgraded.
Need to get 56.4 MB of archives.
After this operation, 12.8 MB disk space will be freed.
Do you want to continue? [Y/n] Y
- containerdで設定ファイルの差分が出るようだったが、既存を維持のため
N
を選択
Configuration file '/etc/containerd/config.toml'
==> Modified (by you or by a script) since installation.
==> Package distributor has shipped an updated version.
What would you like to do about it ? Your options are:
Y or I : install the package maintainer's version
N or O : keep your currently-installed version
D : show the differences between the versions
Z : start a shell to examine the situation
The default action is to keep your current version.
*** config.toml (Y/I/N/O/D/Z) [default=N] ? N ★Nを入力して、Enter
- 以降は何も聞かれずに正常にアップグレードできた
- k8sクラスタも正常稼働、containerdはこの時点でアップグレード
kc get no -owide
NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME
cp11 Ready control-plane 340d v1.24.5 192.168.10.81 <none> Ubuntu 20.04.5 LTS 5.4.0-162-generic containerd://1.6.15
cp12 Ready control-plane 339d v1.24.5 192.168.10.82 <none> Ubuntu 20.04.5 LTS 5.4.0-139-generic containerd://1.6.15
cp13 Ready control-plane 339d v1.24.5 192.168.10.83 <none> Ubuntu 20.04.5 LTS 5.4.0-163-generic containerd://1.6.15
nd01 Ready <none> 2y228d v1.24.5 192.168.10.71 <none> Ubuntu 20.04.6 LTS 5.4.0-169-generic containerd://1.6.21
nd02 Ready <none> 2y228d v1.24.5 192.168.10.72 <none> Ubuntu 18.04.6 LTS 4.15.0-213-generic containerd://1.6.21
nd03 Ready <none> 341d v1.24.5 192.168.10.73 <none> Ubuntu 18.04.5 LTS 4.15.0-213-generic containerd://1.4.4
- アップグレード前の準備
- 不要なパッケージ、キャッシュの削除を試してみたが特に削除するものは無かった?
$ sudo apt autoremove
Reading package lists... Done
Building dependency tree
Reading state information... Done
0 upgraded, 0 newly installed, 0 to remove and 0 not upgraded.
$ sudo apt autoclean
Reading package lists... Done
Building dependency tree
Reading state information... Done
- 準備できたのでアップグレード
- 今回はVirtualboxで起動しているので、コンソールから実施
- パッケージアップデートしたら
reboot
しろと・・・ -
reboot
してから再実行
$ sudo do-release-upgrade
...
- 以下はそのまま
Enter

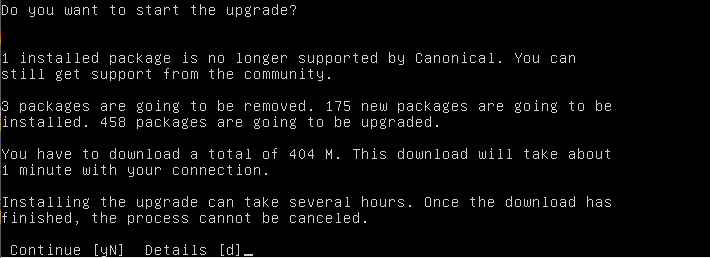

- パッケージのアップデート情報
- 気になる場合は
d
で確認 - 半強制なので
y
を入力

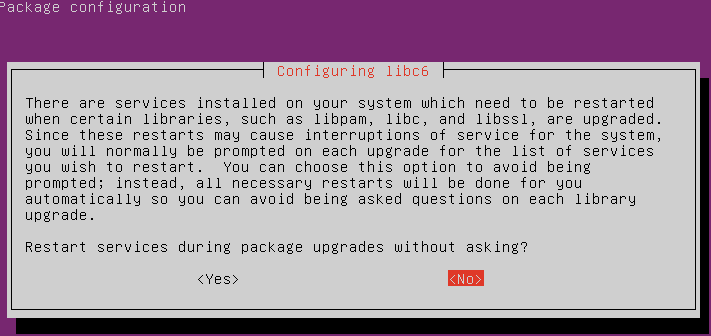

- 以下はサービス再起動の確認についてなので
No
を選択
- もう一つ入力する画面があったが、スクリーンショット取る際に次にいってしまった・・・
- 以下は推奨が4.0だったので、推奨の4.0を選択
- GRUBの設定ファイルの書き込みエラー・・・
- nd01ではでなかったのに・・・
- /dev/sddは外付けなので、いったん
yes
で続行
- パッケージの削除情報
- こちらも半強制なので
y
で続行
- 無事?にアップグレード完了
-
y
で再起動 - ここまでで作業時間20分程
- 再起動後の確認
$ cat /etc/os-release
NAME="Ubuntu"
VERSION="20.04.6 LTS (Focal Fossa)"
ID=ubuntu
ID_LIKE=debian
PRETTY_NAME="Ubuntu 20.04.6 LTS"
VERSION_ID="20.04"
HOME_URL="https://www.ubuntu.com/"
SUPPORT_URL="https://help.ubuntu.com/"
BUG_REPORT_URL="https://bugs.launchpad.net/ubuntu/"
PRIVACY_POLICY_URL="https://www.ubuntu.com/legal/terms-and-policies/privacy-policy"
VERSION_CODENAME=focal
UBUNTU_CODENAME=focal
$ uname -a
Linux nd02 5.4.0-169-generic #187-Ubuntu SMP Thu Nov 23 14:52:28 UTC 2023 x86_64 x86_64 x86_64 GNU/Linux
- k8s上でも更新されていることを確認
- コンテナも正常に稼働していた
$ kc get no -owide
NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME
cp11 Ready control-plane 340d v1.24.5 192.168.10.81 <none> Ubuntu 20.04.5 LTS 5.4.0-162-generic containerd://1.6.15
cp12 Ready control-plane 340d v1.24.5 192.168.10.82 <none> Ubuntu 20.04.5 LTS 5.4.0-139-generic containerd://1.6.15
cp13 Ready control-plane 340d v1.24.5 192.168.10.83 <none> Ubuntu 20.04.5 LTS 5.4.0-163-generic containerd://1.6.15
nd01 Ready <none> 2y228d v1.24.5 192.168.10.71 <none> Ubuntu 20.04.6 LTS 5.4.0-169-generic containerd://1.6.21
nd02 Ready <none> 2y228d v1.24.5 192.168.10.72 <none> Ubuntu 20.04.6 LTS 5.4.0-169-generic containerd://1.6.21
nd03 Ready <none> 341d v1.24.5 192.168.10.73 <none> Ubuntu 18.04.5 LTS 4.15.0-213-generic containerd://1.4.4
- 最後にディスクサイズの増減確認
- 1.5~2G程増えていた
# アップグレード前
$ df -hT /
Filesystem Type Size Used Avail Use% Mounted on
/dev/sda1 ext4 49G 30G 19G 62% /
# アップグレード後
$ df -hT /
Filesystem Type Size Used Avail Use% Mounted on
/dev/sda1 ext4 49G 32G 18G 65% /
【追記】
- 撮れていなかったスクリーンショットがnd03で撮れたので
- NSSに関連したサービスの再起動するリストを求められていたみたいです
【追記】
- nd03で別の画面が出た
- GRUBのインストールみたいだったので、最初のパーティんしょんを指定して事なきを得た
