Flutterの環境構築

kwstkwst

これからFlutterの環境構築を行っていきます。やったことやつまづいた点をつぶやいていきます。

kwstkwst

zshを使っているので.zhrcに以下を追記します。

export PATH="$PATH:{YOUR HOME PATH}/development/flutter/bin"
kwstkwst

flutter doctorで足りないモジュールなどを確認します。自分の環境では以下のように出ました。

$ flutter doctor
Running "flutter pub get" in flutter_tools...                      10.1s
Doctor summary (to see all details, run flutter doctor -v):
[✓] Flutter (Channel stable, 3.3.10, on Mac OS X 10.15.7 19H2026 darwin-x64, locale ja-JP)
[!] Android toolchain - develop for Android devices (Android SDK version 33.0.0)
    ✗ cmdline-tools component is missing
      Run `path/to/sdkmanager --install "cmdline-tools;latest"`
      See https://developer.android.com/studio/command-line for more details.
    ✗ Android license status unknown.
      Run `flutter doctor --android-licenses` to accept the SDK licenses.
      See https://flutter.dev/docs/get-started/install/macos#android-setup for more details.
[!] Xcode - develop for iOS and macOS (Xcode 12.4)
    ✗ Flutter requires Xcode 13 or higher.
      Download the latest version or update via the Mac App Store.
    ✗ CocoaPods not installed.
        CocoaPods is used to retrieve the iOS and macOS platform side's plugin code that responds to your plugin usage on the Dart side.
        Without CocoaPods, plugins will not work on iOS or macOS.
        For more info, see https://flutter.dev/platform-plugins
      To install see https://guides.cocoapods.org/using/getting-started.html#installation for instructions.
[✓] Chrome - develop for the web
[✓] Android Studio (version 2021.2)
[✓] VS Code (version 1.73.1)
[✓] Connected device (2 available)
[✓] HTTP Host Availability

! Doctor found issues in 2 categories.
kwstkwst

AndroidのSDKを追加

[!] Android toolchain - develop for Android devices (Android SDK version 33.0.0)
    ✗ cmdline-tools component is missing
      Run `path/to/sdkmanager --install "cmdline-tools;latest"`
      See https://developer.android.com/studio/command-line for more details.

上記のツールを入れます。

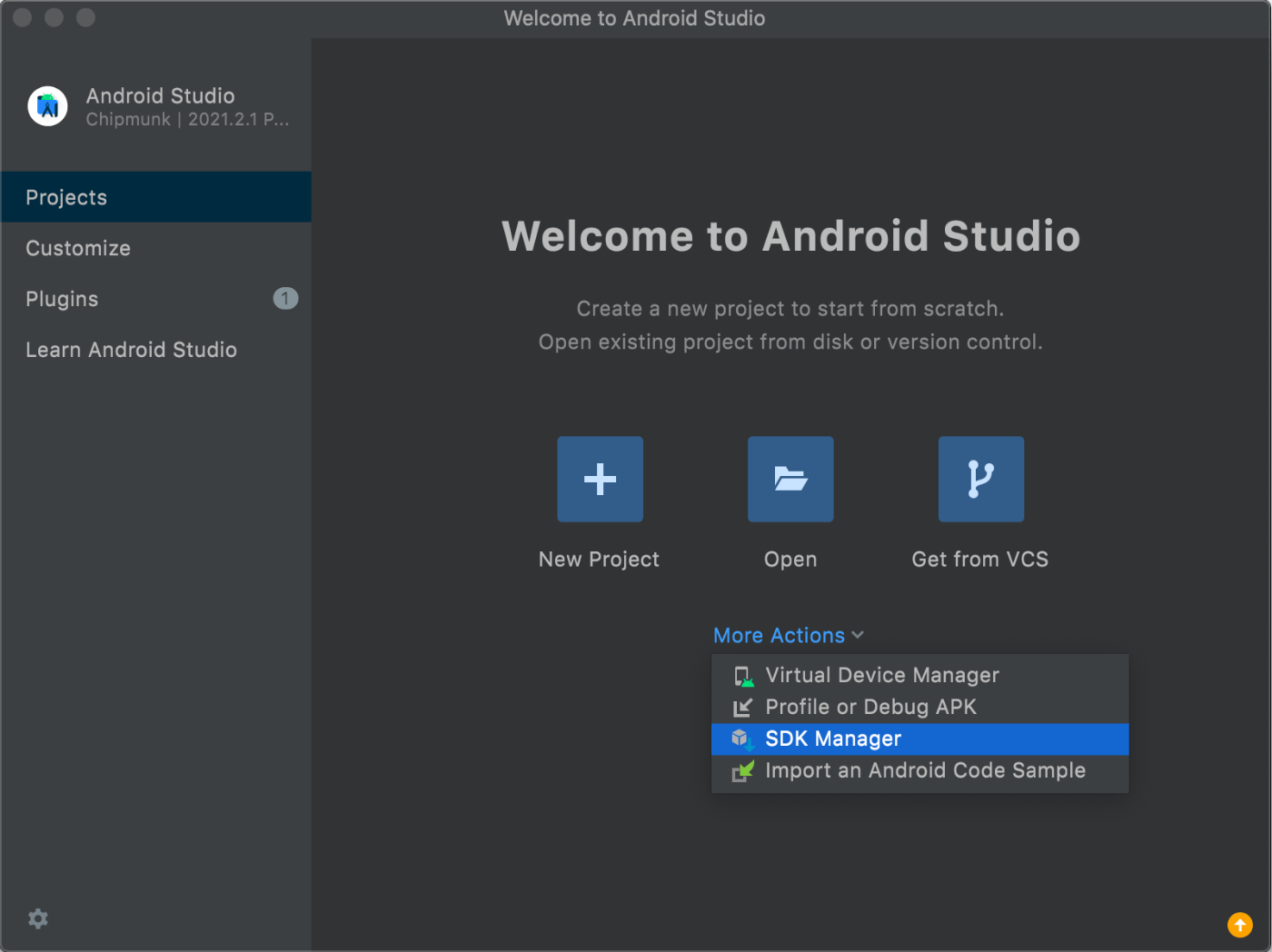

Android Studioを起動してSDK Managerを開きます。

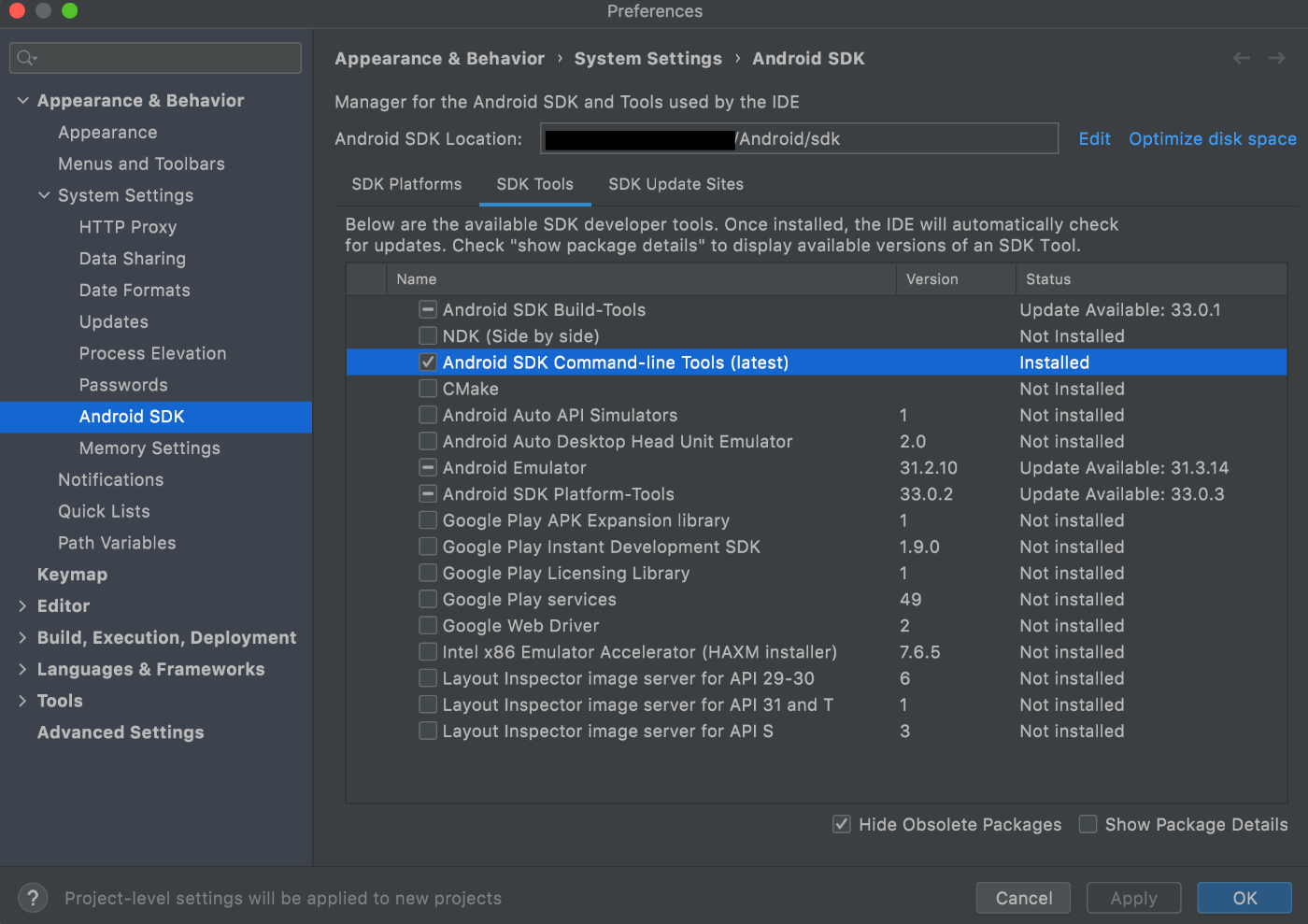

Android SDK Command-line Tools (latest) (cmdline-tools;latest)をインストールします。

参考にしたのはこちらの記事。
https://www.fluttercampus.com/guide/202/cmdline-tools-component-is-missing-error-flutter/

kwstkwst

再度flutter docotorを実行するとまだ下記が出ています。

[!] Android toolchain - develop for Android devices (Android SDK version 33.0.0)
    ! Some Android licenses not accepted.  To resolve this, run: flutter doctor --android-licenses

flutter doctor --android-licensesを実行してライセンスをacceptしていきました。
再度flutter doctorでみてみるとチェックがつきました。

[✓] Android toolchain - develop for Android devices (Android SDK version 33.0.0)
kwstkwst

Xcodeのモジュールを追加

残るは下記のXcode関連のモジュールです。私のmacOSは10.15.7 Catalinaでしたのでアップグレードしないといけませんでした。

[!] Xcode - develop for iOS and macOS (Xcode 12.4)
    ✗ Flutter requires Xcode 13 or higher.
      Download the latest version or update via the Mac App Store.
    ✗ CocoaPods not installed.
        CocoaPods is used to retrieve the iOS and macOS platform side's plugin code that responds to your plugin usage on the Dart side.
        Without CocoaPods, plugins will not work on iOS or macOS.
        For more info, see https://flutter.dev/platform-plugins
      To install see https://guides.cocoapods.org/using/getting-started.html#installation for instructions.
kwstkwst

iOS開発のモジュールが必要そうです。

    ✗ Xcode installation is incomplete; a full installation is necessary for iOS development.
      Download at: https://developer.apple.com/xcode/download/
      Or install Xcode via the App Store.
      Once installed, run:
        sudo xcode-select --switch /Applications/Xcode.app/Contents/Developer
        sudo xcodebuild -runFirstLaunch

下記の2つのコマンドを実行すると解消されました。

sudo xcode-select --switch /Applications/Xcode.app/Contents/Developer
sudo xcodebuild -runFirstLaunch
kwstkwst

あとはCocoaPodsをインストールすればよさそうです。

    ✗ CocoaPods not installed.
        CocoaPods is used to retrieve the iOS and macOS platform side's plugin code that responds to your plugin usage
        on the Dart side.
        Without CocoaPods, plugins will not work on iOS or macOS.
        For more info, see https://flutter.dev/platform-plugins
      To install see https://guides.cocoapods.org/using/getting-started.html#installation for instructions.

CocoaPods Getting Startedで言われたとおりにsudo gem install cocoapodsを実行します。
しかしエラーが出ました。

sudo gem install cocoapods
Fetching i18n-1.12.0.gem
Fetching zeitwerk-2.6.6.gem
Fetching nap-1.1.0.gem
Fetching fuzzy_match-2.0.4.gem
Fetching concurrent-ruby-1.1.10.gem
Fetching tzinfo-2.0.5.gem
Fetching activesupport-6.1.7.gem
Fetching httpclient-2.8.3.gem
Fetching algoliasearch-1.27.5.gem
Fetching ffi-1.15.5.gem
Fetching ethon-0.16.0.gem
Fetching typhoeus-1.4.0.gem
Fetching netrc-0.11.0.gem
Fetching public_suffix-4.0.7.gem
Fetching addressable-2.8.1.gem
Fetching cocoapods-core-1.11.3.gem
Fetching claide-1.1.0.gem
Fetching cocoapods-deintegrate-1.0.5.gem
Fetching cocoapods-downloader-1.6.3.gem
Fetching cocoapods-plugins-1.0.0.gem
Fetching cocoapods-search-1.0.1.gem
Fetching cocoapods-trunk-1.6.0.gem
Fetching cocoapods-try-1.2.0.gem
Fetching molinillo-0.8.0.gem
Fetching atomos-0.1.3.gem
Fetching colored2-3.1.2.gem
Fetching nanaimo-0.3.0.gem
Fetching rexml-3.2.5.gem
Fetching xcodeproj-1.22.0.gem
Fetching escape-0.0.4.gem
Fetching fourflusher-2.3.1.gem
Fetching gh_inspector-1.1.3.gem
Fetching ruby-macho-2.5.1.gem
Fetching cocoapods-1.11.3.gem
Successfully installed concurrent-ruby-1.1.10
Successfully installed i18n-1.12.0
Successfully installed tzinfo-2.0.5
Successfully installed zeitwerk-2.6.6
Successfully installed activesupport-6.1.7
Successfully installed nap-1.1.0
Successfully installed fuzzy_match-2.0.4
Successfully installed httpclient-2.8.3
A new major version is available for Algolia! Please now use the https://rubygems.org/gems/algolia gem to get the latest features.
Successfully installed algoliasearch-1.27.5
Building native extensions. This could take a while...
ERROR:  Error installing cocoapods:
	ERROR: Failed to build gem native extension.

    current directory: /Library/Ruby/Gems/2.6.0/gems/ffi-1.15.5/ext/ffi_c
/System/Library/Frameworks/Ruby.framework/Versions/2.6/usr/bin/ruby -I /System/Library/Frameworks/Ruby.framework/Versions/2.6/usr/lib/ruby/2.6.0 -r ./siteconf20230101-4618-mlxfy2.rb extconf.rb
*** extconf.rb failed ***
Could not create Makefile due to some reason, probably lack of necessary
libraries and/or headers.  Check the mkmf.log file for more details.  You may
need configuration options.

Provided configuration options:
	--with-opt-dir
	--without-opt-dir
	--with-opt-include
	--without-opt-include=${opt-dir}/include
	--with-opt-lib
	--without-opt-lib=${opt-dir}/lib
	--with-make-prog
	--without-make-prog
	--srcdir=.
	--curdir
	--ruby=/System/Library/Frameworks/Ruby.framework/Versions/2.6/usr/bin/$(RUBY_BASE_NAME)
	--with-ffi_c-dir
	--without-ffi_c-dir
	--with-ffi_c-include
	--without-ffi_c-include=${ffi_c-dir}/include
	--with-ffi_c-lib
	--without-ffi_c-lib=${ffi_c-dir}/lib
	--enable-system-libffi
	--disable-system-libffi
	--with-libffi-config
	--without-libffi-config
	--with-pkg-config
	--without-pkg-config
/System/Library/Frameworks/Ruby.framework/Versions/2.6/usr/lib/ruby/2.6.0/mkmf.rb:467:in `try_do': The compiler failed to generate an executable file. (RuntimeError)
You have to install development tools first.
	from /System/Library/Frameworks/Ruby.framework/Versions/2.6/usr/lib/ruby/2.6.0/mkmf.rb:546:in `block in try_link0'
	from /System/Library/Frameworks/Ruby.framework/Versions/2.6/usr/lib/ruby/2.6.0/tmpdir.rb:93:in `mktmpdir'
	from /System/Library/Frameworks/Ruby.framework/Versions/2.6/usr/lib/ruby/2.6.0/mkmf.rb:543:in `try_link0'
	from /System/Library/Frameworks/Ruby.framework/Versions/2.6/usr/lib/ruby/2.6.0/mkmf.rb:570:in `try_link'
	from /System/Library/Frameworks/Ruby.framework/Versions/2.6/usr/lib/ruby/2.6.0/mkmf.rb:672:in `try_ldflags'
	from /System/Library/Frameworks/Ruby.framework/Versions/2.6/usr/lib/ruby/2.6.0/mkmf.rb:1832:in `pkg_config'
	from extconf.rb:9:in `system_libffi_usable?'
	from extconf.rb:42:in `<main>'

To see why this extension failed to compile, please check the mkmf.log which can be found here:

  /Library/Ruby/Gems/2.6.0/extensions/universal-darwin-20/2.6.0/ffi-1.15.5/mkmf.log

extconf failed, exit code 1

Gem files will remain installed in /Library/Ruby/Gems/2.6.0/gems/ffi-1.15.5 for inspection.
Results logged to /Library/Ruby/Gems/2.6.0/extensions/universal-darwin-20/2.6.0/ffi-1.15.5/gem_make.out
kwstkwst

HomebrewでCocoaPodsをインストールしてみます。(参考 https://qiita.com/yoshinyan/items/2c9a59e5a3bd80b9bdbd )
しかしエラーが出ました。。

$ brew install cocoapods
...
Error: Cannot install under Rosetta 2 in ARM default prefix (/opt/homebrew)!
To rerun under ARM use:
    arch -arm64 brew install ...
To install under x86_64, install Homebrew into /usr/local.

先頭にarch -arm64をつければいけるとのことらしいのでarch -arm64 brew install cocoapodsを実行してみたらインストールできました。(参考 https://webrandum.net/cannot-install-under-rosetta2-in-arm-default-prefix/ )

kwstkwst

ということでやっと全てチェックがつきました。元旦からFlutterの環境構築をしてるなんて2023年は忙しくなりそうだ。

$ flutter doctor
Doctor summary (to see all details, run flutter doctor -v):
[✓] Flutter (Channel stable, 3.3.10, on macOS 11.6.2 20G314 darwin-arm (Rosetta), locale en-JP)
[✓] Android toolchain - develop for Android devices (Android SDK version 33.0.0)
[✓] Xcode - develop for iOS and macOS (Xcode 13.2.1)
[✓] Chrome - develop for the web
[✓] Android Studio (version 2021.2)
[✓] VS Code (version 1.70.1)
[✓] Connected device (2 available)
[✓] HTTP Host Availability

• No issues found!
kwstkwst

HelloWorldしてみる

下記でサンプルプロジェクトを作成して起動してみます。

$ flutter create my_app
$ cd my_app
$ flutter run

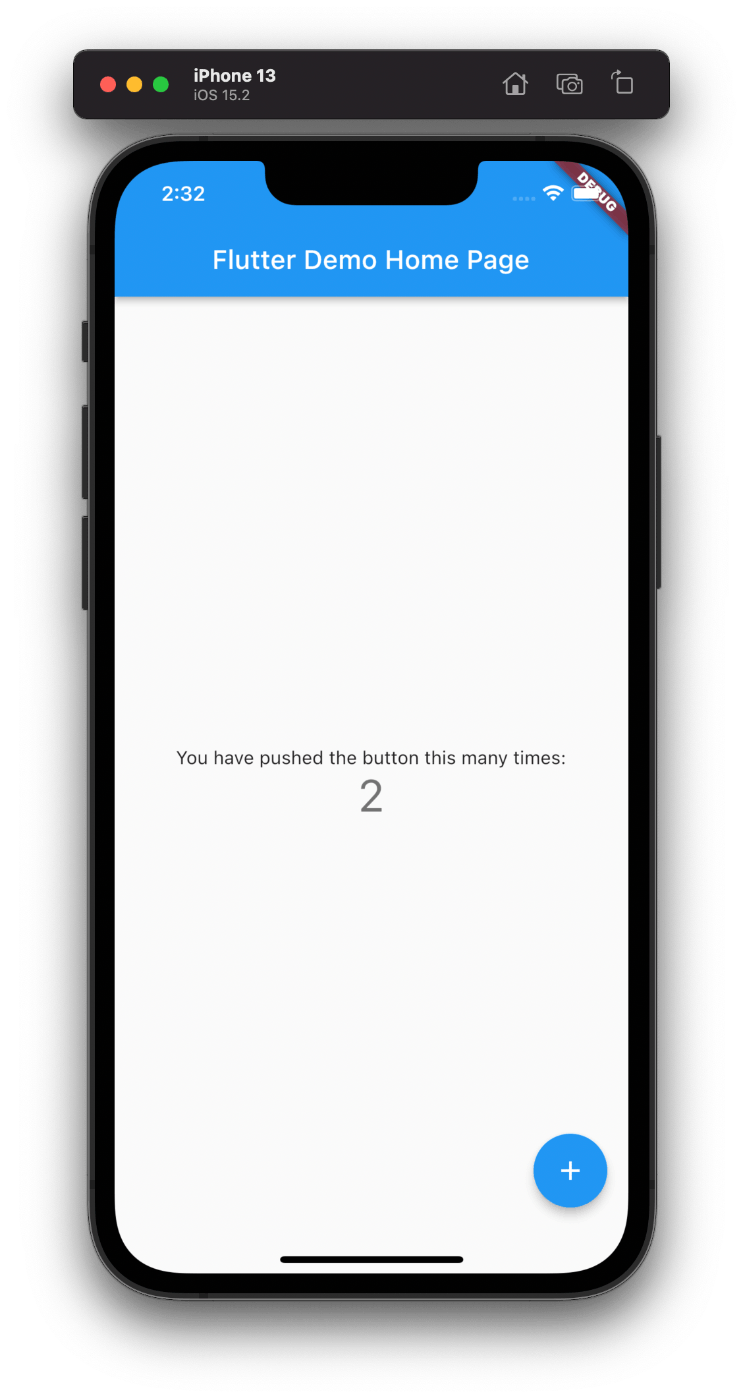

無事シミュレータで起動できました🎉

kwstkwst

デバッグツールを起動してみる

flutter runでデバッグモードで起動できました。下記のログが出てるかと思うのでここでvキーを押す又は末尾のURLにアクセスするとデバッグツールがブラウザで起動します。

Launching lib/main.dart on iPhone 13 in debug mode...
Running Xcode build...
 └─Compiling, linking and signing...                      2,308ms
Xcode build done.                                            8.9s
flutter: saved
Syncing files to device iPhone 13...                                90ms

Flutter run key commands.
r Hot reload. 🔥🔥🔥
R Hot restart.
h List all available interactive commands.
d Detach (terminate "flutter run" but leave application running).
c Clear the screen
q Quit (terminate the application on the device).

💪 Running with sound null safety 💪

An Observatory debugger and profiler on iPhone 13 is available at: http://127.0.0.1:51408/16bOarMX7gY=/
The Flutter DevTools debugger and profiler on iPhone 13 is available at: http://127.0.0.1:9100?uri=http://127.0.0.1:51408/16bOarMX7gY=/

ブラウザでデバッグツールが開けるってすごいですね。
