Device Tree in Android SBC Projects: What Actually Matters in Real Pro
When Android runs on an ARM-based single-board computer, the kernel does not automatically know what hardware it is dealing with. Unlike desktop PCs, embedded boards have no universal discovery layer. Every display, regulator, GPIO, and peripheral is defined by the board designer. The mechanism that bridges this gap is the Device Tree.
In Android SBC projects, the quality of the Device Tree often determines whether a system behaves reliably in the field or slowly degrades into hard-to-reproduce failures. This article focuses on how Device Tree is used in real Android products, rather than explaining it only from a conceptual or academic angle.
Why Android on SBCs Relies So Heavily on Device Tree
The Linux kernel used by Android is designed to be portable. It avoids hardcoding board-specific assumptions and instead expects a hardware description to be provided at boot.
That description is the Device Tree.
For Android-based SBCs, this is critical because:
- Multiple boards may share the same SoC but differ in layout
- Displays, touch controllers, and cameras are frequently customized
- Power sequencing is board-specific and timing-sensitive
- Android products are expected to run unattended for long periods
A system can often boot with an incomplete or incorrect Device Tree, but long-term stability usually suffers. Problems tend to appear only after hours, days, or under specific environmental conditions.
What the Device Tree Describes (and What It Does Not)
The Device Tree does not contain driver logic. It does not define behavior or algorithms. Instead, it provides structured data that kernel drivers depend on to operate correctly.
Common elements described in a Device Tree include:
- CPU topology and memory regions
- Internal buses (I2C, SPI, UART, PCIe)
- GPIO assignments and pin multiplexing
- Interrupt mappings
- Clock sources and clock rates
- Voltage regulators and power dependencies
- Display panels and interface timing
- Reset and enable signals for peripherals
In practice, a DTS file closely mirrors the board schematic. If the schematic is wrong or misunderstood, the Device Tree will be wrong as well.
DTS, DTSI, and DTB: A Practical View
Engineers typically work with two text-based source formats:
DTS (Device Tree Source)
These files describe a specific board. One DTS usually maps to one physical product.
DTSI (Device Tree Source Include)
These are shared fragments. They often describe the SoC, common power blocks, or reusable subsystems.

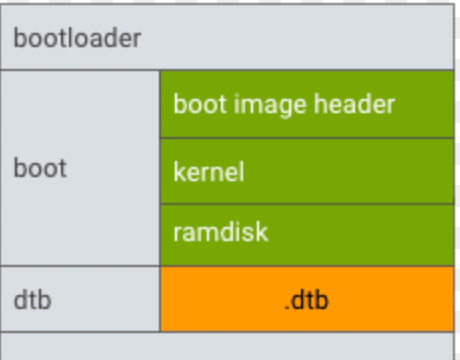

During the build process, these files are compiled into a binary DTB (Device Tree Blob). The DTB is what the bootloader actually passes to the kernel.
In Android projects, it is common for a single kernel image to support multiple boards, each selected by a different DTB.
Where Device Tree Fits in the Android Boot Process
A simplified Android boot sequence on an SBC looks like this:
- Boot ROM performs minimal initialization
- Bootloader sets up memory and loads images
- Kernel and DTB are loaded together
- Kernel initializes drivers using the DTB
- Android userspace starts after kernel initialization
If the DTB does not match the hardware, drivers may partially initialize or fail silently. The system might still reach the Android UI, but underlying instability is already present.
How Drivers Use the Device Tree
Kernel drivers do not scan hardware blindly. They wait for matching Device Tree nodes. Each node contains a compatible string that links it to a driver.
Once matched, the driver reads configuration data such as:
- Register base addresses
- Interrupt numbers
- GPIO polarity and direction
- Power supply references
- Timing and voltage parameters
If any of these values are incorrect, the driver may load but behave unpredictably. These cases are often harder to debug than complete driver failure.
Common Failure Areas Caused by DT Errors
Display and Touch Subsystems
Displays are among the most sensitive components in Android SBC designs. A typical setup involves:
- Display controller configuration
- Panel timing parameters
- Backlight control
- Touch controller power and interrupts
Small timing or power mistakes can result in flickering, delayed initialization, or panels that only work after a reboot.
Power Management
Power regulators must be defined accurately, including voltage levels and enable timing. Many peripherals depend on strict sequencing.
Typical issues include:
- Missing regulator references
- Incorrect voltage ranges
- Insufficient startup or shutdown delays
Pin Multiplexing
SoC pins often serve multiple functions. The Device Tree selects which function is active. One incorrect pinmux setting can disable an entire interface without obvious error messages.
Managing DTB in Production Systems
In production environments, Device Tree consistency matters as much as kernel stability.
Recommended practices include:
- Version-controlling DTS files alongside kernel sources
- Rebuilding DTBs whenever kernel drivers change
- Avoiding manual DTB edits on deployed devices
- Testing DTB changes under real operating conditions
Updating Android or kernel components without updating the corresponding DTB is a frequent cause of regressions.
Debugging Device Tree Problems Effectively
Experienced teams rely on structured debugging rather than trial and error. Common techniques include:
- Inspecting
/proc/device-treeon a running system - Reviewing kernel boot logs for probe failures
- Comparing known-good and failing DTBs
- Enabling verbose driver logging during bring-up
These steps usually expose misconfigured nodes quickly.
Device Tree and Android HAL Reliability
Android HAL layers assume that kernel drivers are present and functioning correctly. If a device fails to initialize at the kernel level, Android services may crash or misbehave in ways that appear unrelated.
A reliable workflow is:
- Validate hardware functionality at the Linux kernel level
- Stress-test drivers under realistic conditions
- Integrate Android HAL and framework layers afterward
This separation prevents Android-side debugging from masking Device Tree issues.
Conclusion
In Android SBC development, the Device Tree is not a secondary configuration file. It is the foundation that defines how hardware and software interact. A clean, accurate Device Tree enables stable drivers, predictable behavior, and long-term reliability.
Teams that treat the DTB as a first-class artifact—reviewed, tested, and maintained alongside code—tend to ship products that survive real-world deployments. Teams that do not often spend months chasing problems caused by a handful of incorrect lines in a DTS file.
