Visualizing Claude Code Status with a Custom Keyboard (TinyGo + RP2040 + Gopher)

Introduction

When running Claude Code in the background, it’s often hard to tell if it’s currently responding or finished. Notification banners are easily overlooked, and terminal tabs tend to get buried in the background.

To solve this, I used my DIY keyboard zero-kb02 (based on the Waveshare RP2040-Zero) and wrote firmware in TinyGo to create a "physical device to display the status of Claude Code."

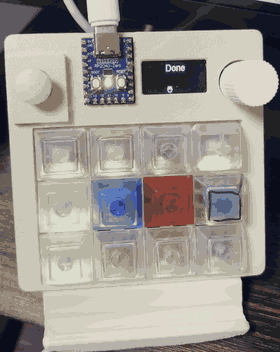

Here is the final result:

Claude Code Status	LED	OLED
Sending Prompt	🔵 Spinning perimeter	Gopher animation for each letter
Question UI Displayed	🔴 Red	Gopher C "Choose"
Response Completed	🟢 Green	Gopher D "Done"

I built this incrementally through trial and error, so this article covers the journey of creating it.

Environment

• Microcontroller: Waveshare RP2040-Zero
• Keyboard: zero-kb02 distributed at tinygo-keeb/workshop
  • 12 WS2812 LEDs + SSD1306 OLED + 4x3 Key Matrix
• Language: TinyGo 0.40.1
• Mac: macOS (Apple Silicon)

Hardware Pin Configuration

Key Matrix Cols : GPIO5, 6, 7, 8 (Output)
Key Matrix Rows : GPIO9, 10, 11 (InputPulldown)
Keyboard WS2812 x12: GPIO1
Onboard WS2812 x1 : GPIO16
SSD1306 OLED         : I2C0 (SDA=GPIO12, SCL=GPIO13, 0x3C)

Step 1: Triggering Notifications via Claude Code Hooks

I started by "making something happen the moment Claude finishes responding." Claude Code has a Stop event that allows running commands upon completion.

~/.claude/settings.json:

{
  "hooks": {
    "Stop": [
      {
        "hooks": [
          {
            "type": "command",
            "command": "osascript -e 'display notification \"Response completed\" with title \"Claude Code\"'"
          }
        ]
      }
    ]
  }
}

Now, a macOS notification banner appears when a response is finished. After changing settings, you can reload them by simply opening and closing the /hooks directory.

Finding this useful, I wanted to create even flashier notifications next.

Step 2: Lighting up the Onboard LED with TinyGo

The RP2040-Zero has an onboard WS2812 LED connected to GPIO16. I started by lighting that up.

package main

import (
    "image/color"
    "machine"
    "time"

    "tinygo.org/x/drivers/ws2812"
)

func main() {
    pin := machine.GPIO16
    pin.Configure(machine.PinConfig{Mode: machine.PinOutput})
    ws := ws2812.New(pin)

    leds := []color.RGBA{{}}
    colors := []color.RGBA{
        {R: 30}, {G: 30}, {B: 30},
    }
    for i := 0; ; i++ {
        leds[0] = colors[i%len(colors)]
        ws.WriteColors(leds)
        time.Sleep(500 * time.Millisecond)
    }
}

Build and write to the board:

tinygo build -target=waveshare-rp2040-zero -o /tmp/main.uf2 main.go
# Hold the BOOTSEL button while plugging in USB
cp /tmp/main.uf2 /Volumes/RPI-RP2/

It blinked in red, green, and blue every 0.5 seconds. It worked easily.

Troubleshooting: TinyGo 0.40.1 only supports Go 1.19 through 1.25. If your system Go is 1.26, you will get a requires go version 1.19 through 1.25 error. I avoided this by running brew install go@1.25 and then PATH="/opt/homebrew/opt/go@1.25/bin:$PATH" tinygo build ....

Step 3: Controlling Colors via USB Serial

Next, I wanted to change colors dynamically from my Mac, so I set it up to receive commands via USB CDC (Serial). It reads line-by-line from machine.Serial and parses strings like red, green, or blue.

var buf []byte
for {
    if machine.Serial.Buffered() > 0 {
        b, _ := machine.Serial.ReadByte()
        if b == '\n' || b == '\r' {
            handleCommand(string(buf))
            buf = buf[:0]
        } else {
            buf = append(buf, b)
        }
    }
    time.Sleep(5 * time.Millisecond)
}

Send from the Mac like this:

stty -f /dev/cu.usbmodem2101 115200 raw -echo
printf 'red\n' >| /dev/cu.usbmodem2101

Now I can change the LED color via serial commands from my Mac.

Step 4: Lighting the LED from the Stop Hook

In addition to the notification banner in Step 1, I call a script from the Stop hook to make the LED green.

~/.claude/hooks/keyboard-led.sh:

#!/bin/bash
PORT=$(ls /dev/cu.usbmodem* 2>/dev/null | head -1)
[ -z "$PORT" ] && exit 0
stty -f "$PORT" 115200 raw -echo 2>/dev/null
for line in "$@"; do
    printf '%s\n' "$line" >| "$PORT" 2>/dev/null
done

Add this to settings.json:

"Stop": [
  {
    "hooks": [
      {
        "type": "command",
        "command": "$HOME/.claude/hooks/keyboard-led.sh green"
      }
    ]
  }
]

Every time Claude completes a response, the onboard LED turns green 🟢

Step 5: Spinning Outer LED Animation with 12 LEDs

A single onboard LED feels a bit lonely, so I also used the 12 LEDs on the keyboard. When I first wrote to the same GPIO16, only the onboard one lit up.

Checking 02_blinky2 in the workshop repository, I found they were connected to GPIO1 (a separate pin from the onboard one). I modified the code to hold two ws2812.Device instances:

pinBoard := machine.GPIO16
pinBoard.Configure(machine.PinConfig{Mode: machine.PinOutput})
wsBoard := ws2812.New(pinBoard)

pinKeys := machine.GPIO1
pinKeys.Configure(machine.PinConfig{Mode: machine.PinOutput})
wsKeys := ws2812.New(pinKeys)

I wanted a spinning animation for the "Thinking" (prompt sending) state, so I defined the outer perimeter sequence for the 3x4 grid:

// 3x4 grid:
//   0  3  6  9
//   1  4  7 10
//   2  5  8 11
var perimeter = []int{0, 3, 6, 9, 10, 11, 8, 5, 2, 1}

func tickSpin() {
    // Turn off all
    for i := range keys {
        keys[i] = color.RGBA{}
    }
    head := perimeter[spinIdx%len(perimeter)]
    tail := perimeter[(spinIdx-1+len(perimeter))%len(perimeter)]
    keys[head] = color.RGBA{B: 60}
    keys[tail] = color.RGBA{B: 15} // Tail fade
    wsKeys.WriteColors(keys)
    spinIdx++
}

I call tickSpin() every 70ms in the main loop, using a non-blocking tick approach so it runs in parallel with serial reading.

Add the UserPromptSubmit hook to settings.json:

"UserPromptSubmit": [
  {
    "hooks": [
      { "type": "command", "command": "$HOME/.claude/hooks/keyboard-led.sh spin" }
    ]
  }
]

Now, "prompt sending = blue spin" and "response complete = green" are achieved. It allows me to notice the status from the corner of my eye.

Step 6: Displaying Text on the SSD1306 OLED

Since colors alone don't tell the whole story, I also display status text on the OLED. The zero-kb02 has an SSD1306 128x64 OLED connected to I2C0.

machine.I2C0.Configure(machine.I2CConfig{
    Frequency: 400000,
    SDA:       machine.GPIO12,
    SCL:       machine.GPIO13,
})
display := ssd1306.NewI2C(machine.I2C0)
display.Configure(ssd1306.Config{
    Address: 0x3C,
    Width:   128,
    Height:  64,
})

The OLED is oriented upside down, so I handled it with display.SetRotation(drivers.Rotation180).

I draw text using freesans.Regular12pt7b from tinygo.org/x/tinyfont:

import "tinygo.org/x/tinyfont/freesans"

func showText(s string) {
    display.ClearBuffer()
    tinyfont.WriteLine(display, &freesans.Regular12pt7b, 0, 22, s, white)
    display.Display()
}

I added a command like text Thinking... to send it along with the hook:

$HOME/.claude/hooks/keyboard-led.sh spin "text Thinking..."

Step 7: Status Icons with Gopher Font

I then got the urge to display Gophers on the OLED, so I used the tinygo.org/x/tinyfont/gophers package. It is a special font where each letter from A to Z is assigned a Gopher illustration in a different pose.

import "tinygo.org/x/tinyfont/gophers"

func showGopher(letter, label string) {
    display.ClearBuffer()
    if label != "" {
        tinyfont.WriteLine(display, &freesans.Regular9pt7b, 30, 14, label, white)
    }
    tinyfont.WriteLine(display, &gophers.Regular32pt, 50, 60, letter, white)
    display.Display()
}

Assigning letters to states:

• Thinking → Gopher T
• Choose → Gopher C
• Waiting → Gopher W
• Done → Gopher D

It's truly a Gopher extravaganza seeing 26 types of Gophers. So cute ❤️

Step 8: Animation Cycling Through Gophers

I thought it would be fun if the Gopher changed while in the Thinking state, so I added a seq <word> command.

func tickSeq() {
    letter := strings.ToUpper(string(seqWord[seqIdx%len(seqWord)]))
    renderGopher(letter, seqWord) // Large Gopher + Label
    seqIdx++
}

I call tickSeq() every 400ms in the main loop. Sending seq THINKING results in an animation where the pose changes as T → H → I → N → K → I → N → G.

$HOME/.claude/hooks/keyboard-led.sh spin "seq THINKING"

This is incredibly cute.

Step 9: Detecting When Options Appear

I also wanted to react when Claude Code brings up the question UI via AskUserQuestion. I first tried using the Notification event, but it turns out it doesn't trigger for AskUserQuestion.

So, I changed it to use the matcher in PreToolUse to trigger the hook right before a tool call:

"PreToolUse": [
  {
    "matcher": "AskUserQuestion",
    "hooks": [
      {
        "type": "command",
        "command": "$HOME/.claude/hooks/keyboard-led.sh red 'gopher C Choose'"
      }
    ]
  }
]

Now, the moment the question UI appears, it switches to Red + Gopher C 🔴

Step 10: Adding HID Keyboard Functionality

Once I got this far, I wanted to operate the question UI with physical keys. TinyGo provides a USB HID keyboard via the machine/usb/hid/keyboard package. USB CDC and HID can coexist as a composite device.

import "machine/usb/hid/keyboard"

var kb = keyboard.New()

// Matrix index → HID keycode
var keymap = [12]keyboard.Keycode{
    keyboard.KeyUpArrow, keyboard.KeyDownArrow, keyboard.KeyEsc, keyboard.KeyReturn,
    0, 0, 0, 0,
    0, 0, 0, 0,
}

func scanMatrix() {
    for c, colPin := range colPins {
        colPin.High()
        time.Sleep(1 * time.Millisecond) // ★ Wait for pulldown stabilization
        for r, rowPin := range rowPins {
            pressed := rowPin.Get()
            idx := r*4 + c
            if pressed != keyState[idx] {
                keyState[idx] = pressed
                if k := keymap[idx]; k != 0 {
                    if pressed {
                        kb.Down(k)
                    } else {
                        kb.Up(k)
                    }
                }
            }
        }
        colPin.Low()
    }
}

Now I can select and confirm Claude Code's question UI using the physical ↑↓ + Enter keys.

Completion

https://youtube.com/shorts/tH7Jl2R-sr0

Status	LED	OLED
Prompt Sending	🔵 spin	seq THINKING (animation)
Question UI Displayed	🔴 red	gopher C "Choose"
Notification (Auth/Idle)	🔴 red	gopher W "Waiting"
Response Completed	🟢 green + macOS Notif	gopher D "Done"

Since the status of Claude Code is physically visible on the keyboard, I can notice it from the corner of my eye even while working in other windows. Being able to operate the question UI with physical keys also avoids reaching for my laptop keyboard, which is very comfortable.

Takeaways

Claude Code Hooks are surprisingly useful

Since you can associate arbitrary shell commands with events like Stop, UserPromptSubmit, PreToolUse, or Notification, integration with external hardware is surprisingly simple. A few lines in a configuration file are enough to make a physical device reflect Claude's status.

TinyGo + RP2040 is quite standard now

Almost everything you need is available, from ws2812 / ssd1306 / tinyfont to HID keyboard support. It's convenient to write microcontroller code while keeping the Go syntax.

The Gopher Font is a hidden gem

I feel like Regular32pt in tinygo.org/x/tinyfont/gophers is not well-known, but it's a completely playful font where each of the 26 characters is a different Gopher pose. If you have an OLED-equipped microcontroller, you should definitely use it.

About the TinyGo Keeb Tour

The zero-kb02 I used is a DIY keyboard featured in the TinyGo Keeb Tour. It is a study group where you can learn microcontroller programming and DIY keyboards using TinyGo, and it's easy for beginners to join.

The next event will be held at GopherCon SG in Singapore on May 20, 2026!

🔗 GopherCon SG 2026 - TinyGo Keeb Workshop

Opportunities to write firmware in Go while handling hardware are surprisingly rare, so please check it out if you are interested. It's the perfect material to experience the way of playing by "adding functions on the fly" like in this article.

Source Code

The repository is at:
https://github.com/Senoue/claude-status-kb

References

• tinygo-keeb/workshop — Various samples for zero-kb02
• sago35/keyboards — Reference for more serious firmware implementations
• TinyGo Keeb Site
• Claude Code Hooks Documentation
