ZMK Studioのキーコード を一覧にまとめてみた
はじめに
ZMKのキーボードでキーマップを設定するには、A. コード直接編集, B. KeymapEditor, C. ZMK Studio 等の方法があります。[1]
A, Bは自由度がありますがファームウェアを作成して入れ直す必要があり、初心者には敷居が高いです。
Cは細かい設定はできませんが、Webまたはアプリから設定でき、特にアプリはUSBを接続せずにBluetooth経由で設定できる利点があります。

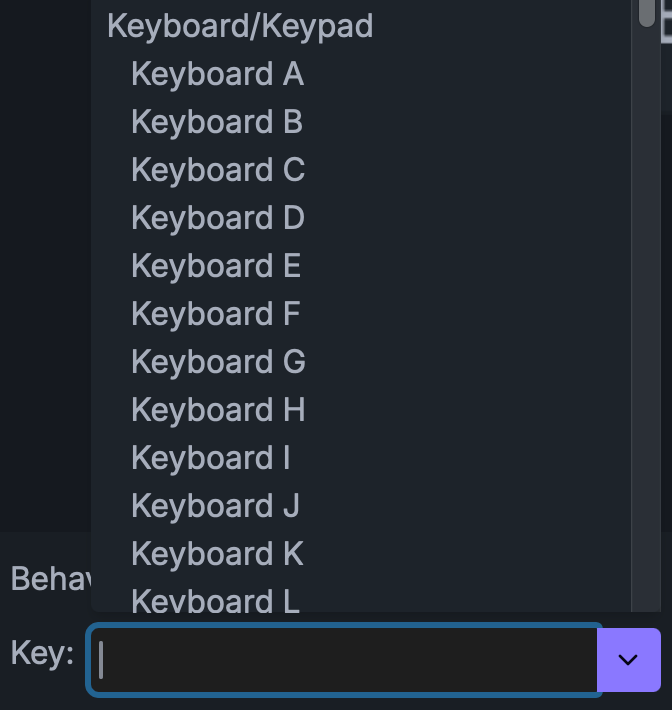

しかしながら、プルダウンメニューからキー(の説明文)を選択するという、とても使い難いGUIとなっており、どのキーがリストのどこにあるか分かりにくいです。

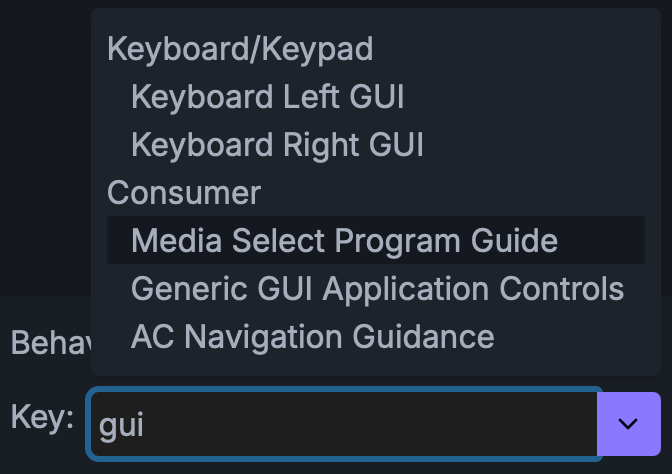

また、Edit Boxに入力すれば絞り込み検索できるのですが[2]、キーワードを知らないと検索できないし、!などの記号での検索もできません。キーマップを設定している最中だから入力できない場合もあると思います。
というわけで、ZMK Studioでのキーマップ設定の手助けに少しでもなるように、ZMK Studioのキーコードを一覧にまとめたいと思います。
キーコードの定義
まずはリスト化の元となる情報を整理します。
ZMKのキーコードの定義
ZMKのキーコードの定義はいくつかのファイルに分かれています。
まず、dt-bindings/zmk/hid_usage_pages.hでpagesと合成用のmacroが定義されています。
各pagesのkeycodeはdt-bindings/zmk/hid_usage.hで定義されていて、
dt-bindings/zmk/keys.hで、pagesとkeycodeを合成したものを、コード直接編集で指定するキーコードとして定義されています。
hid_usage.hで定義されたkeycodeは、keys.hで全ては定義されていないようです。
余談ですが、ZMKでは!などの記号のキーコードを直接設定できるのですが、LS(kc)のマクロとなっているようですね。
ZMK Studioのキーコードの定義
ZMK Studioの各Keyはkeyboard-and-consumer-usage-tables.jsonで定義されています。
pageのIdとkeyのIdがZMKのキーコードと対になっています。NameがZMK Studioのプルダウンで表示されているもので、プルダウンの順序はこの定義の順序になっています。
hid_usage.hの定義を元に作成されているようで、keys.hで定義されていないキーも含まれています。
ZMK Documentのキーコードの定義
ZMKのキーコードはZMK Documentでも定義されています。Namesがkeys.hで定義されているものとなります。
ZMK Studio キーコード一覧
上記の情報を元にZMK Studioのキーコード一覧を表にまとめました。表の項目は以下となります。
| 項目名 | 概要 |
|---|---|
| Id |
hid_usage.hのId (16進数化) |
| ZMK Studio | ZMK Studioの表記 |
| Contents | ZMK Document のcontents |
| Names | ZMK Document のName (keys.hの定義) |
| Description | ZMK Document のDescription |
Id順になっているので、ZMK Studioのプルダウン順序通りになっています。
設定したいキーをNameやDescriptionから探して、そのキーがZMK Studioのプルダウンのどのあたりにあるか把握して探して設定するか、Edit Boxにキーワードを入力して絞り込んで設定するという使い方を想定しています。
Keyboard/Keypad
| Id | ZMK Studio | Contents | Names | Description |
|---|---|---|---|---|
| 0x04 | Keyboard A | Letters | A |
a and A |
| 0x05 | Keyboard B | Letters | B |
b and B |
| 0x06 | Keyboard C | Letters | C |
c and C |
| 0x07 | Keyboard D | Letters | D |
d and D |
| 0x08 | Keyboard E | Letters | E |
e and E |
| 0x09 | Keyboard F | Letters | F |
f and F |
| 0x0A | Keyboard G | Letters | G |
g and G |
| 0x0B | Keyboard H | Letters | H |
h and H |
| 0x0C | Keyboard I | Letters | I |
i and I |
| 0x0D | Keyboard J | Letters | J |
j and J |
| 0x0E | Keyboard K | Letters | K |
k and K |
| 0x0F | Keyboard L | Letters | L |
l and L |
| 0x10 | Keyboard M | Letters | M |
m and M |
| 0x11 | Keyboard N | Letters | N |
n and N |
| 0x12 | Keyboard O | Letters | O |
o and O |
| 0x13 | Keyboard P | Letters | P |
p and P |
| 0x14 | Keyboard Q | Letters | Q |
q and Q |
| 0x15 | Keyboard R | Letters | R |
r and R |
| 0x16 | Keyboard S | Letters | S |
s and S |
| 0x17 | Keyboard T | Letters | T |
t and T |
| 0x18 | Keyboard U | Letters | U |
u and U |
| 0x19 | Keyboard V | Letters | V |
v and V |
| 0x1A | Keyboard W | Letters | W |
w and W |
| 0x1B | Keyboard X | Letters | X |
x and X |
| 0x1C | Keyboard Y | Letters | Y |
y and Y |
| 0x1D | Keyboard Z | Letters | Z |
z and Z |
| 0x1E | Keyboard 1 and Bang | Numbers |
NUMBER_1 N1
|
1 and ! (EXCLAMATION) |
| 0x1F | Keyboard 2 and At | Numbers |
NUMBER_2 N2
|
2 and @ (AT SIGN) |
| 0x20 | Keyboard 3 and Hash | Numbers |
NUMBER_3 N3
|
3 and # (HASH / POUND) |
| 0x21 | Keyboard 4 and Dollar | Numbers |
NUMBER_4 N4
|
4 and $ (DOLLAR) |
| 0x22 | Keyboard 5 and Percent | Numbers |
NUMBER_5 N5
|
5 and % (PERCENT) |
| 0x23 | Keyboard 6 and Caret | Numbers |
NUMBER_6 N6
|
6 and ^ (CARET) |
| 0x24 | Keyboard 7 and Ampersand | Numbers |
NUMBER_7 N7
|
7 and & (AMPERSAND) |
| 0x25 | Keyboard 8 and Star | Numbers |
NUMBER_8 N8
|
8 and * (ASTERISK / STAR) |
| 0x26 | Keyboard 9 and Left Bracket | Numbers |
NUMBER_9 N9
|
9 and ( (LEFT PARENTHESIS) |
| 0x27 | Keyboard 0 and Right Bracket | Numbers |
NUMBER_0 N0
|
0 and ) (RIGHT PARENTHESIS) |
| 0x28 | Keyboard Return Enter | Control |
RETURN ENTER RET
|
Return (Enter) |
| 0x29 | Keyboard Escape | Control |
ESCAPE ESC
|
Escape |
| 0x2A | Keyboard Delete | Control |
BACKSPACE BSPC
|
Backspace |
| 0x2B | Keyboard Tab | Control | TAB |
Tab |
| 0x2C | Keyboard Spacebar | Control | SPACE |
Space |
| 0x2D | Keyboard Dash and Underscore | Symbols | MINUS |
- (MINUS) and _ (UNDERSCORE) |
| 0x2E | Keyboard Equals and Plus | Symbols | EQUAL |
= (EQUAL) and + (PLUS) |
| 0x2F | Keyboard Left Brace | Symbols |
LEFT_BRACKET LBKT
|
[ (LEFT BRACKET) and { (LEFT BRACE) |
| 0x30 | Keyboard Right Brace | Symbols |
RIGHT_BRACKET RBKT
|
] (RIGHT BRACKET) and } (RIGHT BRACE) |
| 0x31 | Keyboard Backslash and Pipe | Symbols |
BACKSLASH BSLH
|
\ (BACKSLASH) and | (PIPE) |
| 0x32 | Keyboard Non-US Hash and Tilde | Symbols |
NON_US_BACKSLASH NON_US_BSLH NUBS
|
Non-US \ (BACKSLASH) and | (PIPE) |
| 0x33 | Keyboard SemiColon and Colon | Symbols |
SEMICOLON SEMI
|
; (SEMICOLON) and : (COLON) |
| 0x34 | Keyboard Left Apos and Double | Symbols |
SINGLE_QUOTE SQT APOSTROPHE APOS
|
' (APOSTROPHE) and " (QUOTE DOUBLE) |
| 0x35 | Keyboard Grave Accent and Tilde | Symbols | GRAVE |
` (GRAVE ACCENT) and ~ (TILDE) |
| 0x36 | Keyboard Comma and LessThan | Symbols | COMMA |
, (COMMA) and < (LESS THAN) |
| 0x37 | Keyboard Period and GreaterThan | Symbols |
PERIOD DOT
|
. (PERIOD) and > (GREATER THAN) |
| 0x38 | Keyboard ForwardSlash and QuestionMark | Symbols |
SLASH FSLH
|
/ (FORWARD SLASH) and ? (QUESTION MARK) |
| 0x39 | Keyboard Caps Lock | Locks |
CAPSLOCK CAPS CLCK
|
Caps Lock |
| 0x3A | Keyboard F1 | F Keys | F1 |
F1 |
| 0x3B | Keyboard F2 | F Keys | F2 |
F2 |
| 0x3C | Keyboard F3 | F Keys | F3 |
F3 |
| 0x3D | Keyboard F4 | F Keys | F4 |
F4 |
| 0x3E | Keyboard F5 | F Keys | F5 |
F5 |
| 0x3F | Keyboard F6 | F Keys | F6 |
F6 |
| 0x40 | Keyboard F7 | F Keys | F7 |
F7 |
| 0x41 | Keyboard F8 | F Keys | F8 |
F8 |
| 0x42 | Keyboard F9 | F Keys | F9 |
F9 |
| 0x43 | Keyboard F10 | F Keys | F10 |
F10 |
| 0x44 | Keyboard F11 | F Keys | F11 |
F11 |
| 0x45 | Keyboard F12 | F Keys | F12 |
F12 |
| 0x46 | Keyboard PrintScreen | Miscellaneous |
PRINTSCREEN PSCRN
|
Print Screen |
| 0x47 | Keyboard Scroll Lock | Locks |
SCROLLLOCK SLCK
|
Scroll Lock |
| 0x48 | Keyboard Pause | Miscellaneous | PAUSE_BREAK |
Pause / Break |
| 0x49 | Keyboard Insert | Control |
INSERT INS
|
Insert |
| 0x4A | Keyboard Home | Navigation | HOME |
Home |
| 0x4B | Keyboard PageUp | Navigation |
PAGE_UP PG_UP
|
Page Up |
| 0x4C | Keyboard Delete Forward | Control |
DELETE DEL
|
Delete |
| 0x4D | Keyboard End | Navigation | END |
End |
| 0x4E | Keyboard PageDown | Navigation |
PAGE_DOWN PG_DN
|
Page Down |
| 0x4F | Keyboard RightArrow | Navigation |
RIGHT_ARROW RIGHT
|
⮕ (RIGHT ARROW) |
| 0x50 | Keyboard LeftArrow | Navigation |
LEFT_ARROW LEFT
|
⬅ (LEFT ARROW) |
| 0x51 | Keyboard DownArrow | Navigation |
DOWN_ARROW DOWN
|
⬇ (DOWN ARROW) |
| 0x52 | Keyboard UpArrow | Navigation |
UP_ARROW UP
|
⬆ (UP ARROW) |
| 0x53 | Keypad Num Lock and Clear | Keypad |
KP_NUMLOCK KP_NUM KP_NLCK
|
Numlock and Clear |
| 0x54 | Keypad ForwardSlash | Keypad Symbols |
KP_DIVIDE KP_SLASH
|
/ (DIVIDE) |
| 0x55 | Keypad Star | Keypad Symbols |
KP_MULTIPLY KP_ASTERISK
|
* (MULTIPLY) |
| 0x56 | Keypad Dash | Keypad Symbols |
KP_MINUS KP_SUBTRACT
|
- (MINUS) |
| 0x57 | Keypad Plus | Keypad Symbols | KP_PLUS |
+ (PLUS) |
| 0x58 | Keypad ENTER | Keypad | KP_ENTER |
Enter |
| 0x59 | Keypad 1 and End | Keypad Numbers |
KP_NUMBER_1 KP_N1
|
Keypad 1 and End |
| 0x5A | Keypad 2 and Down Arrow | Keypad Numbers |
KP_NUMBER_2 KP_N2
|
Keypad 2 and Down Arrow |
| 0x5B | Keypad 3 and PageDn | Keypad Numbers |
KP_NUMBER_3 KP_N3
|
Keypad 3 and Page Down |
| 0x5C | Keypad 4 and Left Arrow | Keypad Numbers |
KP_NUMBER_4 KP_N4
|
Keypad 4 and Left Arrow |
| 0x5D | Keypad 5 | Keypad Numbers |
KP_NUMBER_5 KP_N5
|
Keypad 5 |
| 0x5E | Keypad 6 and Right Arrow | Keypad Numbers |
KP_NUMBER_6 KP_N6
|
Keypad 6 and Right Arrow |
| 0x5F | Keypad 7 and Home | Keypad Numbers |
KP_NUMBER_7 KP_N7
|
Keypad 7 and Home |
| 0x60 | Keypad 8 and Up Arrow | Keypad Numbers |
KP_NUMBER_8 KP_N8
|
Keypad 8 and Up Arrow |
| 0x61 | Keypad 9 and PageUp | Keypad Numbers |
KP_NUMBER_9 KP_N9
|
Keypad 9 and Page Up |
| 0x62 | Keypad 0 and Insert | Keypad Numbers |
KP_NUMBER_0 KP_N0
|
Keypad 0 and Insert |
| 0x63 | Keypad Period and Delete | Keypad Symbols | KP_DOT |
. (DOT) and Delete |
| 0x64 | Keyboard Non-US Backslash and Pipe | Symbols |
NON_US_BACKSLASH NON_US_BSLH NUBS
|
Non-US \ (BACKSLASH) and | (PIPE) |
| 0x65 | Keyboard Application | Navigation |
K_APPLICATION K_APP K_CONTEXT_MENU K_CMENU
|
Application (Context Menu) |
| 0x66 | Keyboard Power | Power |
K_POWER K_PWR
|
Power (Keyboard) |
| 0x67 | Keypad Equals | Keypad Symbols | KP_EQUAL |
= EQUAL |
| 0x68 | Keyboard F13 | F Keys | F13 |
F13 |
| 0x69 | Keyboard F14 | F Keys | F14 |
F14 |
| 0x6A | Keyboard F15 | F Keys | F15 |
F15 |
| 0x6B | Keyboard F16 | F Keys | F16 |
F16 |
| 0x6C | Keyboard F17 | F Keys | F17 |
F17 |
| 0x6D | Keyboard F18 | F Keys | F18 |
F18 |
| 0x6E | Keyboard F19 | F Keys | F19 |
F19 |
| 0x6F | Keyboard F20 | F Keys | F20 |
F20 |
| 0x70 | Keyboard F21 | F Keys | F21 |
F21 |
| 0x71 | Keyboard F22 | F Keys | F22 |
F22 |
| 0x72 | Keyboard F23 | F Keys | F23 |
F23 |
| 0x73 | Keyboard F24 | F Keys | F24 |
F24 |
| 0x74 | Keyboard Execute | Application Controls |
K_EXECUTE K_EXEC
|
Execute (Keyboard) |
| 0x75 | Keyboard Help | Applications | K_HELP |
Help (Keyboard) |
| 0x76 | Keyboard Menu | Application Controls | K_MENU |
Menu (Keyboard) |
| 0x77 | Keyboard Select | Application Controls | K_SELECT |
Select (Keyboard) |
| 0x78 | Keyboard Stop | Application Controls | K_STOP |
Stop (Keyboard) |
| 0x79 | Keyboard Again | Editing Undo, Redo |
K_AGAIN K_REDO
|
Again (Keyboard) |
| 0x7A | Keyboard Undo | Editing Undo, Redo | K_UNDO |
Undo (Keyboard) |
| 0x7B | Keyboard Cut | Editing Cut, Copy, Paste | K_CUT |
Cut (Keyboard) |
| 0x7C | Keyboard Copy | Editing Cut, Copy, Paste | K_COPY |
Copy (Keyboard) |
| 0x7D | Keyboard Paste | Editing Cut, Copy, Paste | K_PASTE |
Paste (Keyboard) |
| 0x7E | Keyboard Find | Application Controls | K_FIND |
Find (Keyboard) |
| 0x7F | Keyboard Mute | Media Sound/Volume | K_MUTE |
Mute (Keyboard) |
| 0x80 | Keyboard Volume Up | Media Sound/Volume |
K_VOLUME_UP K_VOL_UP
|
Volume Up (Keyboard) |
| 0x81 | Keyboard Volume Down | Media Sound/Volume |
K_VOLUME_DOWN K_VOL_DN
|
Volume Down (Keyboard) |
| 0x82 | Keyboard Locking Caps Lock | Locks |
LOCKING_CAPS LCAPS
|
Locking Caps Lock |
| 0x83 | Keyboard Locking Num Lock | Locks |
LOCKING_NUM LNLCK
|
Locking Num Lock |
| 0x84 | Keyboard Locking Scroll Lock | Locks |
LOCKING_SCROLL LSLCK
|
Locking Scroll Lock |
| 0x85 | Keypad Comma | Keypad Symbols | KP_COMMA |
, (COMMA) |
| 0x86 | Keypad Equal Sign | Keypad Symbols | KP_EQUAL_AS400 |
= (EQUAL (AS/400 keyboads)) |
| 0x87 | Keyboard International1 | International |
INTERNATIONAL_1 INT1 INT_RO
|
ろ (International 1) |
| 0x88 | Keyboard International2 | International |
INTERNATIONAL_2 INT2 INT_KATAKANAHIRAGANA INT_KANA
|
かな (International 2) |
| 0x89 | Keyboard International3 | International |
INTERNATIONAL_3 INT3 INT_YEN
|
¥ (International 3) |
| 0x8A | Keyboard International4 | International |
INTERNATIONAL_4 INT4 INT_HENKAN
|
変換 (International 4) |
| 0x8B | Keyboard International5 | International |
INTERNATIONAL_5 INT5 INT_MUHENKAN
|
無変換 (International 5) |
| 0x8C | Keyboard International6 | International |
INTERNATIONAL_6 INT6 INT_KPJPCOMMA
|
, (カンマ) (International 6) |
| 0x8D | Keyboard International7 | International |
INTERNATIONAL_7 INT7
|
International 7 |
| 0x8E | Keyboard International8 | International |
INTERNATIONAL_8 INT8
|
International 8 |
| 0x8F | Keyboard International9 | International |
INTERNATIONAL_9 INT9
|
International 9 |
| 0x90 | Keyboard LANG1 | Language |
LANGUAGE_1 LANG1 LANG_HANGEUL
|
한/영 (Language 1) |
| 0x91 | Keyboard LANG2 | Language |
LANGUAGE_2 LANG2 LANG_HANJA
|
한자 (Language 2) |
| 0x92 | Keyboard LANG3 | Language |
LANGUAGE_3 LANG3 LANG_KATAKANA
|
カタカナ (Language 3) |
| 0x93 | Keyboard LANG4 | Language |
LANGUAGE_4 LANG4 LANG_HIRAGANA
|
ひらがな (Language 4) |
| 0x94 | Keyboard LANG5 | Language |
LANGUAGE_5 LANG5 LANG_ZENKAKUHANKAKU
|
半角/全角 (Language 5) |
| 0x95 | Keyboard LANG6 | Language |
LANGUAGE_6 LANG6
|
Language 6 |
| 0x96 | Keyboard LANG7 | Language |
LANGUAGE_7 LANG7
|
Language 7 |
| 0x97 | Keyboard LANG8 | Language |
LANGUAGE_8 LANG8
|
Language 8 |
| 0x98 | Keyboard LANG9 | Language |
LANGUAGE_9 LANG9
|
Language 9 |
| 0x99 | Keyboard Alternate Erase | Miscellaneous | ALT_ERASE |
Alternate Erase |
| 0x9A | Keyboard SysReq Attention | Miscellaneous |
SYSREQ ATTENTION
|
SysReq / Attention |
| 0x9B | Keyboard Cancel | Miscellaneous | K_CANCEL |
Cancel (Keyboard) |
| 0x9C | Keyboard Clear | Miscellaneous | CLEAR |
Clear |
| 0x9D | Keyboard Prior | Miscellaneous | PRIOR |
Prior |
| 0x9E | Keyboard Return | Control |
RETURN2 RET2
|
Return |
| 0x9F | Keyboard Separator | Miscellaneous | SEPARATOR |
Separator |
| 0xA0 | Keyboard Out | Miscellaneous | OUT |
Out |
| 0xA1 | Keyboard Oper | Miscellaneous | OPER |
Oper |
| 0xA2 | Keyboard Clear Again | Miscellaneous | CLEAR_AGAIN |
Clear / Again |
| 0xA3 | Keyboard CrSel Props | Miscellaneous | CRSEL |
CrSel / Props |
| 0xA4 | Keyboard ExSel | Miscellaneous | EXSEL |
ExSel |
| 0xB0 | Keypad Double 0 | |||
| 0xB1 | Keypad Triple 0 | |||
| 0xB2 | Thousands Separator | |||
| 0xB3 | Decimal Separator | |||
| 0xB4 | Currency Unit | |||
| 0xB5 | Currency Sub-unit | |||
| 0xB6 | Keypad Left Bracket | Keypad Symbols |
KP_LEFT_PARENTHESIS KP_LPAR
|
( (LEFT PARENTHESIS) |
| 0xB7 | Keypad Right Bracket | Keypad Symbols |
KP_RIGHT_PARENTHESIS KP_RPAR
|
) (RIGHT PARENTHESIS) |
| 0xB8 | Keypad Left Brace | |||
| 0xB9 | Keypad Right Brace | |||
| 0xBA | Keypad Tab | |||
| 0xBB | Keypad Backspace | |||
| 0xBC | Keypad A | |||
| 0xBD | Keypad B | |||
| 0xBE | Keypad C | |||
| 0xBF | Keypad D | |||
| 0xC0 | Keypad E | |||
| 0xC1 | Keypad F | |||
| 0xC2 | Keypad XOR | |||
| 0xC3 | Keypad Caret | |||
| 0xC4 | Keypad Percentage | |||
| 0xC5 | Keypad Less | |||
| 0xC6 | Keypad Greater | |||
| 0xC7 | Keypad Ampersand | |||
| 0xC8 | Keypad Double Ampersand | |||
| 0xC9 | Keypad Bar | |||
| 0xCA | Keypad Double Bar | |||
| 0xCB | Keypad Colon | |||
| 0xCC | Keypad Hash | |||
| 0xCD | Keypad Space | |||
| 0xCE | Keypad At | |||
| 0xCF | Keypad Bang | |||
| 0xD0 | Keypad Memory Store | |||
| 0xD1 | Keypad Memory Recall | |||
| 0xD2 | Keypad Memory Clear | |||
| 0xD3 | Keypad Memory Add | |||
| 0xD4 | Keypad Memory Subtract | |||
| 0xD5 | Keypad Memory Multiply | |||
| 0xD6 | Keypad Memory Divide | |||
| 0xD7 | Keypad Plus Minus | |||
| 0xD8 | Keypad Clear | Keypad | KP_CLEAR | Clear |
| 0xD9 | Keypad Clear Entry | |||
| 0xDA | Keypad Binary | |||
| 0xDB | Keypad Octal | |||
| 0xDC | Keypad Decimal | |||
| 0xDD | Keypad Hexadecimal | |||
| 0xE0 | Keyboard LeftControl | Modifiers |
LEFT_CONTROL LCTRL LC(code)
|
Left Control |
| 0xE1 | Keyboard LeftShift | Modifiers |
LEFT_SHIFT LSHIFT LSHFT LS(code)
|
Left Shift ⇧ |
| 0xE2 | Keyboard LeftAlt | Modifiers |
LEFT_ALT LALT LA(code)
|
Left Alt |
| 0xE3 | Keyboard Left GUI | Modifiers |
LEFT_GUI LGUI LG(code) LEFT_WIN LWIN LEFT_COMMAND LCMD LEFT_META LMETA
|
Left GUI (Windows / Command / Meta) |
| 0xE4 | Keyboard RightControl | Modifiers |
RIGHT_CONTROL RCTRL RC(code)
|
Right Control |
| 0xE5 | Keyboard RightShift | Modifiers |
RIGHT_SHIFT RSHIFT RSHFT RS(code)
|
Right Shift ⇧ |
| 0xE6 | Keyboard RightAlt | Modifiers |
RIGHT_ALT RALT RA(code)
|
Right Alt |
| 0xE7 | Keyboard Right GUI | Modifiers |
RIGHT_GUI RGUI RG(code) RIGHT_WIN RWIN RIGHT_COMMAND RCMD RIGHT_META RMETA
|
Right GUI (Windows / Command / Meta) |
Consumer
| Id | ZMK Studio | Contents | Names | Description |
|---|---|---|---|---|
| 0x01 | Consumer Control | |||
| 0x02 | Numeric Key Pad | |||
| 0x03 | Programmable Buttons | |||
| 0x04 | Microphone | |||
| 0x05 | Headphone | |||
| 0x06 | Graphic Equalizer | |||
| 0x20 | +10 | |||
| 0x21 | +100 | |||
| 0x22 | AM/PM | |||
| 0x30 | Power | Power |
C_POWER C_PWR
|
Power (Consumer) |
| 0x31 | Reset | Power | C_RESET |
Reset (Consumer) |
| 0x32 | Sleep | Power | C_SLEEP |
Sleep (Consumer) |
| 0x33 | Sleep After | |||
| 0x34 | Sleep Mode | Power | C_SLEEP_MODE |
Sleep Mode (Consumer) |
| 0x35 | Illumination | |||
| 0x36 | Function Buttons | |||
| 0x40 | Menu | Consumer Menus | C_MENU |
Menu (Consumer Menu) |
| 0x41 | Menu Pick | Consumer Menus |
C_MENU_PICK C_MENU_SELECT
|
Pick (Consumer Menu) |
| 0x42 | Menu Up | Consumer Menus | C_MENU_UP |
Up (Consumer Menu) |
| 0x43 | Menu Down | Consumer Menus | C_MENU_DOWN |
Down (Consumer Menu) |
| 0x44 | Menu Left | Consumer Menus | C_MENU_LEFT |
Left (Consumer Menu) |
| 0x45 | Menu Right | Consumer Menus | C_MENU_RIGHT |
Right (Consumer Menu) |
| 0x46 | Menu Escape | Consumer Menus |
C_MENU_ESCAPE C_MENU_ESC
|
Escape (Consumer Menu) |
| 0x47 | Menu Value Increase | Consumer Menus |
C_MENU_INCREASE C_MENU_INC
|
Value Increase (Consumer Menu) |
| 0x48 | Menu Value Decrease | Consumer Menus |
C_MENU_DECREASE C_MENU_DEC
|
Value Decrease (Consumer Menu) |
| 0x60 | Data On Screen | Media Controls | C_DATA_ON_SCREEN |
Data On Screen (Consumer) |
| 0x61 | Closed Caption | Media Controls |
C_CAPTIONS C_SUBTITLES
|
Closed Caption (Consumer) |
| 0x62 | Closed Caption Select | |||
| 0x63 | VCR/TV | |||
| 0x64 | Broadcast Mode | |||
| 0x65 | Snapshot | Media Controls | C_SNAPSHOT |
Snapshot (Consumer) |
| 0x66 | Still | |||
| 0x67 | Picture-in-Picture Toggle | Media Display | C_PIP |
Picture-in-Picture Toggle (Consumer) |
| 0x68 | Picture-in-Picture Swap | |||
| 0x69 | Red Menu Button | Consumer Menus |
C_RED_BUTTON C_RED
|
Red Button (Consumer Menu) |
| 0x6A | Green Menu Button | Consumer Menus |
C_GREEN_BUTTON C_GREEN
|
Green Button (Consumer Menu) |
| 0x6B | Blue Menu Button | Consumer Menus |
C_BLUE_BUTTON C_BLUE
|
Blue Button (Consumer Menu) |
| 0x6C | Yellow Menu Button | Consumer Menus |
C_YELLOW_BUTTON C_YELLOW
|
Yellow Button (Consumer Menu) |
| 0x6D | Aspect | Media Display | C_ASPECT | Aspect (Consumer) |
| 0x6E | 3D Mode Select | |||
| 0x6F | Display Brightness Increment | Media Display |
C_BRIGHTNESS_INC C_BRI_INC C_BRI_UP
|
Increase Brightness (Consumer) |
| 0x70 | Display Brightness Decrement | Media Display |
C_BRIGHTNESS_DEC C_BRI_DEC C_BRI_DN
|
Decrease Brightness (Consumer) |
| 0x71 | Display Brightness | |||
| 0x72 | Display Backlight Toggle | Media Display |
C_BACKLIGHT_TOGGLE C_BKLT_TOG
|
Backlight Toggle (Consumer) |
| 0x73 | Display Set Brightness to Minimum | Media Display |
C_BRIGHTNESS_MINIMUM C_BRI_MIN
|
Minimum Brightness (Consumer) |
| 0x74 | Display Set Brightness to Maximum | Media Display |
C_BRIGHTNESS_MAXIMUM C_BRI_MAX
|
Maximum Brightness (Consumer) |
| 0x75 | Display Set Auto Brightness | Media Display |
C_BRIGHTNESS_AUTO C_BRI_AUTO
|
Auto Brightness (Consumer) |
| 0x76 | Camera Access Enabled | |||
| 0x77 | Camera Access Disabled | |||
| 0x78 | Camera Access Toggle | |||
| 0x79 | Keyboard Brightness Increment | |||
| 0x7A | Keyboard Brightness Decrement | |||
| 0x7B | Keyboard Backlight Set Level | |||
| 0x7C | Keyboard Backlight OOC | |||
| 0x7D | Keyboard Backlight Set Minimum | |||
| 0x7E | Keyboard Backlight Set Maximum | |||
| 0x7F | Keyboard Backlight Auto | |||
| 0x80 | Selection | |||
| 0x81 | Assign Selection | |||
| 0x82 | Mode Step | Consumer Controls |
C_MEDIA_STEP C_MODE_STEP
|
Mode Step (Consumer Media) |
| 0x83 | Recall Last | Consumer Controls |
C_RECALL_LAST C_CHAN_LAST
|
Recall Last (Consumer) |
| 0x84 | Enter Channel | |||
| 0x85 | Order Movie | |||
| 0x86 | Channel | |||
| 0x87 | Media Selection | |||
| 0x88 | Media Select Computer | Consumer Controls | C_MEDIA_COMPUTER |
Computer (Consumer Media) |
| 0x89 | Media Select TV | Consumer Controls | C_MEDIA_TV |
TV (Consumer Media) |
| 0x8A | Media Select WWW | Consumer Controls | C_MEDIA_WWW |
WWW (Consumer Media) |
| 0x8B | Media Select DVD | Consumer Controls | C_MEDIA_DVD |
DVD (Consumer Media) |
| 0x8C | Media Select Telephone | Consumer Controls | C_MEDIA_PHONE |
Telephone (Consumer Media) |
| 0x8D | Media Select Program Guide | Consumer Controls | C_MEDIA_GUIDE |
Program Guide (Consumer Media) |
| 0x8E | Media Select Video Phone | Consumer Controls | C_MEDIA_VIDEOPHONE |
Video Phone (Consumer Media) |
| 0x8F | Media Select Games | Consumer Controls | C_MEDIA_GAMES |
Games (Consumer Media) |
| 0x90 | Media Select Messages | Consumer Controls | C_MEDIA_MESSAGES |
Messages (Consumer Media) |
| 0x91 | Media Select CD | Consumer Controls | C_MEDIA_CD |
CD (Consumer Media) |
| 0x92 | Media Select VCR | Consumer Controls | C_MEDIA_VCR |
VCR (Consumer Media) |
| 0x93 | Media Select Tuner | Consumer Controls | C_MEDIA_TUNER |
Tuner (Consumer Media) |
| 0x94 | Quit | Consumer Controls | C_QUIT |
Quit (Consumer) |
| 0x95 | Help | Consumer Controls | C_HELP |
Help (Consumer) |
| 0x96 | Media Select Tape | Consumer Controls | C_MEDIA_TAPE |
Tape (Consumer Media) |
| 0x97 | Media Select Cable | Consumer Controls | C_MEDIA_CABLE |
Cable (Consumer Media) |
| 0x98 | Media Select Satellite | Consumer Controls | C_MEDIA_SATELLITE |
Satellite (Consumer Media) |
| 0x99 | Media Select Security | |||
| 0x9A | Media Select Home | Consumer Controls | C_MEDIA_HOME |
Home (Consumer Media) |
| 0x9B | Media Select Call | |||
| 0x9C | Channel Increment | Consumer Controls |
C_CHANNEL_INC C_CHAN_INC
|
Channel Increment (Consumer) |
| 0x9D | Channel Decrement | Consumer Controls |
C_CHANNEL_DEC C_CHAN_DEC
|
Channel Decrement (Consumer) |
| 0x9E | Media Select SAP | |||
| 0xA0 | VCR Plus | Consumer Controls | C_MEDIA_VCR_PLUS |
VCR Plus (Consumer Media) |
| 0xA1 | Once | |||
| 0xA2 | Daily | |||
| 0xA3 | Weekly | |||
| 0xA4 | Monthly | |||
| 0xB0 | Play | Media Controls | C_PLAY |
Play (Consumer) |
| 0xB1 | Pause | Media Controls | C_PAUSE |
Pause (Consumer) |
| 0xB2 | Record | Media Controls |
C_RECORD C_REC
|
Record (Consumer) |
| 0xB3 | Fast Forward | Media Controls |
C_FAST_FORWARD C_FF
|
Fast Forward (Consumer) |
| 0xB4 | Rewind | Media Controls |
C_REWIND C_RW
|
Rewind (Consumer) |
| 0xB5 | Scan Next Track | Media Controls | C_NEXT |
Next (Consumer) |
| 0xB6 | Scan Previous Track | Media Controls |
C_PREVIOUS C_PREV
|
Previous (Consumer) |
| 0xB7 | Stop | Media Controls | C_STOP |
Stop (Consumer) |
| 0xB8 | Eject | Media Controls | C_EJECT |
Eject (Consumer) |
| 0xB9 | Random Play | Media Controls |
C_RANDOM_PLAY C_SHUFFLE
|
Random Play (Consumer) |
| 0xBA | Select Disc | |||
| 0xBB | Enter Disc | |||
| 0xBC | Repeat | Media Controls | C_REPEAT |
Repeat (Consumer) |
| 0xBD | Tracking | |||
| 0xBE | Track Normal | |||
| 0xBF | Slow Tracking | Media Controls |
C_SLOW_TRACKING C_SLOW2
|
Slow Tracking (Consumer) |
| 0xC0 | Frame Forward | |||
| 0xC1 | Frame Back | |||
| 0xC2 | Mark | |||
| 0xC3 | Clear Mark | |||
| 0xC4 | Repeat From Mark | |||
| 0xC5 | Return To Mark | |||
| 0xC6 | Search Mark Forward | |||
| 0xC7 | Search Mark Backwards | |||
| 0xC8 | Counter Reset | |||
| 0xC9 | Show Counter | |||
| 0xCA | Tracking Increment | |||
| 0xCB | Tracking Decrement | |||
| 0xCC | Stop/Eject | Media Controls | C_STOP_EJECT |
Stop / Eject (Consumer) |
| 0xCD | Play/Pause | Media Controls |
C_PLAY_PAUSE C_PP
|
Play / Pause (Consumer) |
| 0xCE | Play/Skip | |||
| 0xCF | Voice Command | Application Controls | C_VOICE_COMMAND |
Voice Command (Consumer) |
| 0xD0 | Invoke Capture Interface | |||
| 0xD1 | Start or Stop Game Recording | |||
| 0xD2 | Historical Game Capture | |||
| 0xD3 | Capture Game Screenshot | |||
| 0xD4 | Show or Hide Recording Indicator | |||
| 0xD5 | Start or Stop Microphone Capture | |||
| 0xD6 | Start or Stop Camera Capture | |||
| 0xD7 | Start or Stop Game Broadcast | |||
| 0xD8 | Start or Stop Voice Dictation Session | |||
| 0xD9 | Invoke/Dismiss Emoji Picker | |||
| 0xE0 | Volume | |||
| 0xE1 | Balance | |||
| 0xE2 | Mute | Media Sound/Volume | C_MUTE |
Mute (Consumer) |
| 0xE3 | Bass | Media Sound/Volume | C_BASS_BOOST |
Bass Boost (Consumer) |
| 0xE4 | Treble | |||
| 0xE5 | Bass Boost | |||
| 0xE6 | Surround Mode | |||
| 0xE7 | Loudness | |||
| 0xE8 | MPX | |||
| 0xE9 | Volume Increment | Media Sound/Volume |
C_VOLUME_UP C_VOL_UP
|
Volume Up (Consumer) |
| 0xEA | Volume Decrement | Media Sound/Volume |
C_VOLUME_DOWN C_VOL_DN
|
Volume Down (Consumer) |
| 0xF0 | Speed Select | |||
| 0xF1 | Playback Speed | |||
| 0xF2 | Standard Play | |||
| 0xF3 | Long Play | |||
| 0xF4 | Extended Play | |||
| 0xF5 | Slow | Media Controls | C_SLOW |
Slow (Consumer) |
| 0x100 | Fan Enable | |||
| 0x101 | Fan Speed | |||
| 0x102 | Light Enable | |||
| 0x103 | Light Illumination Level | |||
| 0x104 | Climate Control Enable | |||
| 0x105 | Room Temperature | |||
| 0x106 | Security Enable | |||
| 0x107 | Fire Alarm | |||
| 0x108 | Police Alarm | |||
| 0x109 | Proximity | |||
| 0x10A | Motion | |||
| 0x10B | Duress Alarm | |||
| 0x10C | Holdup Alarm | |||
| 0x10D | Medical Alarm | |||
| 0x150 | Balance Right | |||
| 0x151 | Balance Left | |||
| 0x152 | Bass Increment | |||
| 0x153 | Bass Decrement | |||
| 0x154 | Treble Increment | |||
| 0x155 | Treble Decrement | |||
| 0x160 | Speaker System | |||
| 0x161 | Channel Left | |||
| 0x162 | Channel Right | |||
| 0x163 | Channel Center | |||
| 0x164 | Channel Front | |||
| 0x165 | Channel Center Front | |||
| 0x166 | Channel Side | |||
| 0x167 | Channel Surround | |||
| 0x168 | Channel Low Frequency Enhancement | |||
| 0x169 | Channel Top | |||
| 0x16A | Channel Unknown | |||
| 0x170 | Sub-channel | |||
| 0x171 | Sub-channel Increment | |||
| 0x172 | Sub-channel Decrement | |||
| 0x173 | Alternate Audio Increment | Media Sound/Volume |
C_ALTERNATE_AUDIO_INCREMENT C_ALT_AUDIO_INC
|
Alternate Audio Increment (Consumer) |
| 0x174 | Alternate Audio Decrement | |||
| 0x180 | Application Launch Buttons | |||
| 0x181 | AL Launch Button Configuration Tool | |||
| 0x182 | AL Programmable Button Configuration | |||
| 0x183 | AL Consumer Control Configuration | Applications | C_AL_CCC |
Consumer Control Configuration (Consumer AL) |
| 0x184 | AL Word Processor | Applications | C_AL_WORD |
Word Processor (Consumer AL) |
| 0x185 | AL Text Editor | Applications | C_AL_TEXT_EDITOR |
Text Editor (Consumer AL) |
| 0x186 | AL Spreadsheet | Applications |
C_AL_SPREADSHEET C_AL_SHEET
|
Spreadsheet (Consumer AL) |
| 0x187 | AL Graphics Editor | Applications | C_AL_GRAPHICS_EDITOR |
Graphics Editor (Consumer AL) |
| 0x188 | AL Presentation App | Applications | C_AL_PRESENTATION |
Presentation (Consumer AL) |
| 0x189 | AL Database App | Applications |
C_AL_DATABASE C_AL_DB
|
Database App (Consumer AL) |
| 0x18A | AL Email Reader | Applications |
C_AL_EMAIL C_AL_MAIL
|
Email Reader (Consumer AL) |
| 0x18B | AL Newsreader | Applications | C_AL_NEWS |
Newsreader (Consumer AL) |
| 0x18C | AL Voicemail | Applications | C_AL_VOICEMAIL |
Voicemail (Consumer AL) |
| 0x18D | AL Contacts/Address Book | Applications |
C_AL_CONTACTS C_AL_ADDRESS_BOOK
|
Contacts / Address Book (Consumer AL) |
| 0x18E | AL Calendar/Schedule | Applications |
C_AL_CALENDAR C_AL_CAL
|
Calendar / Schedule (Consumer AL) |
| 0x18F | AL Task/Project Manager | Applications | C_AL_TASK_MANAGER |
Task / Project Manager (Consumer AL) |
| 0x190 | AL Log/Journal/Timecard | Applications | C_AL_JOURNAL |
Log / Journal / Timecard (Consumer AL) |
| 0x191 | AL Checkbook/Finance | Applications | C_AL_FINANCE |
Checkbook / Finance (Consumer AL) |
| 0x192 | AL Calculator | Applications |
C_AL_CALCULATOR C_AL_CALC
|
Calculator (Consumer AL) |
| 0x193 | AL A/V Capture/Playback | Applications | C_AL_AV_CAPTURE_PLAYBACK |
A/V Capture / Playback (Consumer AL) |
| 0x194 | AL Local Machine Browser | Applications | C_AL_MY_COMPUTER |
Local Machine Browser (Consumer AL) |
| 0x195 | AL LAN/WAN Browser | |||
| 0x196 | AL Internet Browser | Applications | C_AL_WWW |
Internet Browser (Consumer AL) |
| 0x197 | AL Remote Networking/ISP Connect | |||
| 0x198 | AL Network Conference | |||
| 0x199 | AL Network Chat | Applications |
C_AL_NETWORK_CHAT C_AL_CHAT
|
Network Chat (Consumer AL) |
| 0x19A | AL Telephony/Dialer | |||
| 0x19B | AL Logon | |||
| 0x19C | AL Logoff | Power | C_AL_LOGOFF |
Logoff (Consumer AL) |
| 0x19D | AL Logon/Logoff | |||
| 0x19E | AL Terminal Lock/Screensaver | Power |
C_AL_LOCK C_AL_SCREENSAVER C_AL_COFFEE
|
Terminal Lock / Screensaver (Consumer AL) |
| 0x19F | AL Control Panel | Applications | C_AL_CONTROL_PANEL |
Control Panel (Consumer AL) |
| 0x1A0 | AL Command Line Processor/Run | |||
| 0x1A1 | AL Process/Task Manager | |||
| 0x1A2 | AL Select Task/Application | Applications | C_AL_SELECT_TASK |
Select Task / Application (Consumer AL) |
| 0x1A3 | AL Next Task/Application | Applications | C_AL_NEXT_TASK |
Next Task / Application (Consumer AL) |
| 0x1A4 | AL Previous Task/Application | Applications |
C_AL_PREVIOUS_TASK C_AL_PREV_TASK
|
Previous Task / Application (Consumer AL) |
| 0x1A5 | AL Preemptive Halt Task/Application | |||
| 0x1A6 | AL Integrated Help Center | Applications | C_AL_HELP |
Integrated Help Center (Consumer AL) |
| 0x1A7 | AL Documents | Applications |
C_AL_DOCUMENTS C_AL_DOCS
|
Documents (Consumer AL) |
| 0x1A8 | AL Thesaurus | |||
| 0x1A9 | AL Dictionary | |||
| 0x1AA | AL Desktop | |||
| 0x1AB | AL Spell Check | Applications |
C_AL_SPELLCHECK C_AL_SPELL
|
Spell Check (Consumer AL) |
| 0x1AC | AL Grammar Check | |||
| 0x1AD | AL Wireless Status | |||
| 0x1AE | AL Keyboard Layout | Applications | C_AL_KEYBOARD_LAYOUT |
Keyboard Layout (Consumer AL) |
| 0x1AF | AL Virus Protection | |||
| 0x1B0 | AL Encryption | |||
| 0x1B1 | AL Screen Saver | Power |
C_AL_LOCK C_AL_SCREENSAVER C_AL_COFFEE
|
Terminal Lock / Screensaver (Consumer AL) |
| 0x1B2 | AL Alarms | |||
| 0x1B3 | AL Clock | |||
| 0x1B4 | AL File Browser | Applications |
C_AL_FILE_BROWSER C_AL_FILES
|
File Browser (Consumer AL) |
| 0x1B5 | AL Power Status | |||
| 0x1B6 | AL Image Browser | Applications |
C_AL_IMAGE_BROWSER C_AL_IMAGES
|
Image Browser (Consumer AL) |
| 0x1B7 | AL Audio Browser | Applications |
C_AL_AUDIO_BROWSER C_AL_AUDIO C_AL_MUSIC
|
Audio Browser (Consumer AL) |
| 0x1B8 | AL Movie Browser | Applications |
C_AL_MOVIE_BROWSER C_AL_MOVIES
|
Movie Browser (Consumer AL) |
| 0x1B9 | AL Digital Rights Manager | |||
| 0x1BA | AL Digital Wallet | |||
| 0x1BC | AL Instant Messaging | Applications |
C_AL_INSTANT_MESSAGING C_AL_IM
|
Instant Messaging (Consumer AL) |
| 0x1BD | AL OEM Features/ Tips/Tutorial Browser | Applications |
C_AL_OEM_FEATURES C_AL_TIPS C_AL_TUTORIAL
|
OEM Features / Tips / Tutorial Browser (Consumer AL) |
| 0x1BE | AL OEM Help | |||
| 0x1BF | AL Online Community | |||
| 0x1C0 | AL Entertainment Content Browser | |||
| 0x1C1 | AL Online Shopping Browser | |||
| 0x1C2 | AL SmartCard Information/Help | |||
| 0x1C3 | AL Market Monitor/Finance Browser | |||
| 0x1C4 | AL Customized Corporate News Browser | |||
| 0x1C5 | AL Online Activity Browser | |||
| 0x1C6 | AL Research/Search Browser | |||
| 0x1C7 | AL Audio Player | |||
| 0x1C8 | AL Message Status | |||
| 0x1C9 | AL Contact Sync | |||
| 0x1CA | AL Navigation | |||
| 0x1CB | AL Context‐aware Desktop Assistant | |||
| 0x200 | Generic GUI Application Controls | |||
| 0x201 | AC New | Application Controls | C_AC_NEW |
New (Consumer AC) |
| 0x202 | AC Open | Application Controls | C_AC_OPEN |
Open (Consumer AC) |
| 0x203 | AC Close | Application Controls | C_AC_CLOSE |
Close (Consumer AC) |
| 0x204 | AC Exit | Application Controls | C_AC_EXIT |
Exit (Consumer AC) |
| 0x205 | AC Maximize | |||
| 0x206 | AC Minimize | |||
| 0x207 | AC Save | Application Controls | C_AC_SAVE |
Save (Consumer AC) |
| 0x208 | AC Print | Application Controls | C_AC_PRINT |
Print (Consumer AC) |
| 0x209 | AC Properties | Application Controls |
C_AC_PROPERTIES C_AC_PROPS
|
Properties (Consumer AC) |
| 0x21A | AC Undo | Editing Undo, Redo | C_AC_UNDO |
Undo (Consumer AC) |
| 0x21B | AC Copy | Editing Cut, Copy, Paste | C_AC_COPY |
Copy (Consumer AC) |
| 0x21C | AC Cut | Editing Cut, Copy, Paste | C_AC_CUT |
Cut (Consumer AC) |
| 0x21D | AC Paste | Editing Cut, Copy, Paste | C_AC_PASTE |
Paste (Consumer AC) |
| 0x21E | AC Select All | |||
| 0x21F | AC Find | Application Controls | C_AC_FIND |
Find (Consumer AC) |
| 0x220 | AC Find and Replace | |||
| 0x221 | AC Search | Application Controls | C_AC_SEARCH |
Search (Consumer AC) |
| 0x222 | AC Go To | Application Controls | C_AC_GOTO |
Go To (Consumer AC) |
| 0x223 | AC Home | Application Controls | C_AC_HOME |
Home (Consumer AC) |
| 0x224 | AC Back | Application Controls | C_AC_BACK |
Back (Consumer AC) |
| 0x225 | AC Forward | Application Controls | C_AC_FORWARD |
Forward (Consumer AC) |
| 0x226 | AC Stop | Application Controls | C_AC_STOP |
Stop (Consumer AC) |
| 0x227 | AC Refresh | Application Controls | C_AC_REFRESH |
Refresh (Consumer AC) |
| 0x228 | AC Previous Link | |||
| 0x229 | AC Next Link | |||
| 0x22A | AC Bookmarks | Application Controls |
C_AC_BOOKMARKS C_AC_FAVORITES C_AC_FAVOURITES
|
Bookmarks (Consumer AC) |
| 0x22B | AC History | |||
| 0x22C | AC Subscriptions | |||
| 0x22D | AC Zoom In | Application Controls | C_AC_ZOOM_IN |
Zoom In (Consumer AC) |
| 0x22E | AC Zoom Out | Application Controls | C_AC_ZOOM_OUT |
Zoom Out (Consumer AC) |
| 0x22F | AC Zoom | Application Controls | C_AC_ZOOM |
Zoom (Consumer AC) |
| 0x230 | AC Full Screen View | Application Controls | C_AC_VIEW_TOGGLE |
View Toggle (Consumer AC) |
| 0x231 | AC Normal View | |||
| 0x232 | AC View Toggle | |||
| 0x233 | AC Scroll Up | Application Controls | C_AC_SCROLL_UP |
Scroll Up (Consumer AC) |
| 0x234 | AC Scroll Down | Application Controls | C_AC_SCROLL_DOWN |
Scroll Down (Consumer AC) |
| 0x235 | AC Scroll | |||
| 0x236 | AC Pan Left | |||
| 0x237 | AC Pan Right | |||
| 0x238 | AC Pan | |||
| 0x239 | AC New Window | |||
| 0x23A | AC Tile Horizontally | |||
| 0x23B | AC Tile Vertically | |||
| 0x23C | AC Format | |||
| 0x23D | AC Edit | Application Controls | C_AC_EDIT |
Edit (Consumer AC) |
| 0x23E | AC Bold | |||
| 0x23F | AC Italics | |||
| 0x240 | AC Underline | |||
| 0x241 | AC Strikethrough | |||
| 0x242 | AC Subscript | |||
| 0x243 | AC Superscript | |||
| 0x244 | AC All Caps | |||
| 0x245 | AC Rotate | |||
| 0x246 | AC Resize | |||
| 0x247 | AC Flip Horizontal | |||
| 0x248 | AC Flip Vertical | |||
| 0x249 | AC Mirror Horizontal | |||
| 0x24A | AC Mirror Vertical | |||
| 0x24B | AC Font Select | |||
| 0x24C | AC Font Color | |||
| 0x24D | AC Font Size | |||
| 0x24E | AC Justify Left | |||
| 0x24F | AC Justify Center H | |||
| 0x250 | AC Justify Right | |||
| 0x251 | AC Justify Block H | |||
| 0x252 | AC Justify Top | |||
| 0x253 | AC Justify Center V | |||
| 0x254 | AC Justify Bottom | |||
| 0x255 | AC Justify Block V | |||
| 0x256 | AC Indent Decrease | |||
| 0x257 | AC Indent Increase | |||
| 0x258 | AC Numbered List | |||
| 0x259 | AC Restart Numbering | |||
| 0x25A | AC Bulleted List | |||
| 0x25B | AC Promote | |||
| 0x25C | AC Demote | |||
| 0x25D | AC Yes | |||
| 0x25E | AC No | |||
| 0x25F | AC Cancel | Application Controls | C_AC_CANCEL |
Cancel (Consumer AC) |
| 0x260 | AC Catalog | |||
| 0x261 | AC Buy/Checkout | |||
| 0x262 | AC Add to Cart | |||
| 0x263 | AC Expand | |||
| 0x264 | AC Expand All | |||
| 0x265 | AC Collapse | |||
| 0x266 | AC Collapse All | |||
| 0x267 | AC Print Preview | |||
| 0x268 | AC Paste Special | |||
| 0x269 | AC Insert Mode | Application Controls |
C_AC_INSERT C_AC_INS
|
Insert Mode (Consumer AC) |
| 0x26A | AC Delete | Application Controls | C_AC_DEL |
Delete (Consumer AC) |
| 0x26B | AC Lock | |||
| 0x26C | AC Unlock | |||
| 0x26D | AC Protect | |||
| 0x26E | AC Unprotect | |||
| 0x26F | AC Attach Comment | |||
| 0x270 | AC Delete Comment | |||
| 0x271 | AC View Comment | |||
| 0x272 | AC Select Word | |||
| 0x273 | AC Select Sentence | |||
| 0x274 | AC Select Paragraph | |||
| 0x275 | AC Select Column | |||
| 0x276 | AC Select Row | |||
| 0x277 | AC Select Table | |||
| 0x278 | AC Select Object | |||
| 0x279 | AC Redo/Repeat | Editing Undo, Redo | C_AC_REDO |
Redo / Repeat (Consumer AC) |
| 0x27A | AC Sort | |||
| 0x27B | AC Sort Ascending | |||
| 0x27C | AC Sort Descending | |||
| 0x27D | AC Filter | |||
| 0x27E | AC Set Clock | |||
| 0x27F | AC View Clock | |||
| 0x280 | AC Select Time Zone | |||
| 0x281 | AC Edit Time Zones | |||
| 0x282 | AC Set Alarm | |||
| 0x283 | AC Clear Alarm | |||
| 0x284 | AC Snooze Alarm | |||
| 0x285 | AC Reset Alarm | |||
| 0x286 | AC Synchronize | |||
| 0x287 | AC Send/Receive | |||
| 0x288 | AC Send To | |||
| 0x289 | AC Reply | Application Controls | C_AC_REPLY |
Reply (Consumer AC) |
| 0x28A | AC Reply All | |||
| 0x28B | AC Forward Msg | Application Controls | C_AC_FORWARD_MAIL |
Forward (Consumer AC) |
| 0x28C | AC Send | Application Controls | C_AC_SEND |
Send (Consumer AC) |
| 0x28D | AC Attach File | |||
| 0x28E | AC Upload | |||
| 0x28F | AC Download (Save Target As) | |||
| 0x290 | AC Set Borders | |||
| 0x291 | AC Insert Row | |||
| 0x292 | AC Insert Column | |||
| 0x293 | AC Insert File | |||
| 0x294 | AC Insert Picture | |||
| 0x295 | AC Insert Object | |||
| 0x296 | AC Insert Symbol | |||
| 0x297 | AC Save and Close | |||
| 0x298 | AC Rename | |||
| 0x299 | AC Merge | |||
| 0x29A | AC Split | |||
| 0x29B | AC Disribute Horizontally | |||
| 0x29C | AC Distribute Vertically | |||
| 0x29D | AC Next Keyboard Layout Select | |||
| 0x29E | AC Navigation Guidance | |||
| 0x29F | AC Desktop Show All Windows | Application Controls | C_AC_DESKTOP_SHOW_ALL_WINDOWS |
Desktop Show All Windows (Consumer AC) |
| 0x2A0 | AC Soft Key Left | |||
| 0x2A1 | AC Soft Key Right | |||
| 0x2A2 | AC Desktop Show All Applications | Application Controls | C_AC_DESKTOP_SHOW_ALL_APPLICATIONS |
Desktop Show All Applications (Consumer AC) |
| 0x2B0 | AC Idle Keep Alive | |||
| 0x2C0 | Extended Keyboard Attributes Collection | |||
| 0x2C1 | Keyboard Form Factor | |||
| 0x2C2 | Keyboard Key Type | |||
| 0x2C3 | Keyboard Physical Layout | |||
| 0x2C4 | Vendor‐Specific Keyboard Physical Layout | |||
| 0x2C5 | Keyboard IETF Language Tag Index | |||
| 0x2C6 | Implemented Keyboard Input Assist Controls | |||
| 0x2C7 | Keyboard Input Assist Previous | Input Assist |
C_KEYBOARD_INPUT_ASSIST_PREVIOUS C_KBIA_PREV
|
Previous (Consumer KBIA) |
| 0x2C8 | Keyboard Input Assist Next | Input Assist |
C_KEYBOARD_INPUT_ASSIST_NEXT C_KBIA_NEXT
|
Next (Consumer KBIA) |
| 0x2C9 | Keyboard Input Assist Previous Group | Input Assist |
C_KEYBOARD_INPUT_ASSIST_PREVIOUS_GROUP C_KBIA_PREV_GRP
|
Previous Group (Consumer KBIA) |
| 0x2CA | Keyboard Input Assist Next Group | Input Assist |
C_KEYBOARD_INPUT_ASSIST_NEXT_GROUP C_KBIA_NEXT_GRP
|
Next Group (Consumer KBIA) |
| 0x2CB | Keyboard Input Assist Accept | Input Assist |
C_KEYBOARD_INPUT_ASSIST_ACCEPT C_KBIA_ACCEPT
|
Accept (Consumer KBIA) |
| 0x2CC | Keyboard Input Assist Cancel | Input Assist |
C_KEYBOARD_INPUT_ASSIST_CANCEL C_KBIA_CANCEL
|
Cancel (Consumer KBIA) |
| 0x2D0 | Privacy Screen Toggle | |||
| 0x2D1 | Privacy Screen Level Decrement | |||
| 0x2D2 | Privacy Screen Level Increment | |||
| 0x2D3 | Privacy Screen Level Minimum | |||
| 0x2D4 | Privacy Screen Level Maximum | |||
| 0x500 | Contact Edited | |||
| 0x501 | Contact Added | |||
| 0x502 | Contact Record Active | |||
| 0x503 | Contact Index | |||
| 0x504 | Contact Nickname | |||
| 0x505 | Contact First Name | |||
| 0x506 | Contact Last Name | |||
| 0x507 | Contact Full Name | |||
| 0x508 | Contact Phone Number Personal | |||
| 0x509 | Contact Phone Number Business | |||
| 0x50A | Contact Phone Number Mobile | |||
| 0x50B | Contact Phone Number Pager | |||
| 0x50C | Contact Phone Number Fax | |||
| 0x50D | Contact Phone Number Other | |||
| 0x50E | Contact Email Personal | |||
| 0x50F | Contact Email Business | |||
| 0x510 | Contact Email Other | |||
| 0x511 | Contact Email Main | |||
| 0x512 | Contact Speed Dial Number | |||
| 0x513 | Contact Status Flag | |||
| 0x514 | Contact Misc. |
まとめ
ZMK Studioのキーコードを人力でまとめました。まとめて気付きましたが、ZMKで定義されていないキーコードがかなり多いですね... この一覧を辞書的に使えてもらえると幸いです。
-
Keychron Launcherなどのメーカー製もありますが、ここでは除外。 ↩︎
-
私はこの記事を書くまで絞り込み検索できるのを知りませんでした…
https://x.com/karbou_12/status/2012226053209567412 ↩︎
Discussion
