Escaping Alert Hell: Correlation Logic and Noise Reduction Design Principles in AIOps

In modern distributed systems, the flood of information—thousands of alerts pouring in during a failure—not only clouds judgment and delays recovery but also wears down engineers' spirits.

Based on the book "AIOps Practical Guide," this article explains the technical approach to correlation analysis for condensing vast amounts of Raw Alerts into a few "meaningful incidents."

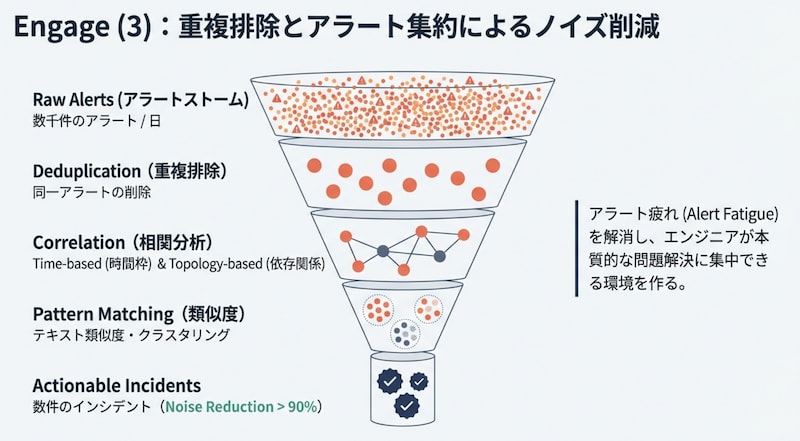

1. "Four Steps of Aggregation" to Achieve a 90% Noise Reduction Rate

The essence of AIOps is not simply reducing alerts, but increasing density without losing critical information. Through the following four-stage process, Raw Alerts are elevated into Actionable incidents.

1. Deduplication:

   Combine identical alerts from the exact same source into one. This is the most basic step, but it is not uncommon for this alone to eliminate 30–40% of the noise.

2. Time-based Correlation (Aggregation by time window):

   Group highly related events occurring within the "same time frame (sliding window)."

3. Topology-based Correlation:

   Based on system dependencies (topology), identify parent-child relationships—such as "an upstream DB failure causing downstream APIs to throw errors"—and aggregate them around the root cause.

4. Pattern Matching (Clustering by similarity):

   Using NLP (Natural Language Processing) or clustering methods, link events to "similar past failures" based on text similarity and suggest known solutions.

2. The Two Major Approaches to Correlation Analysis: Time vs. Topology

The accuracy of correlation analysis is determined by two axes: "time" and "structure."

A. Aggregation by Time Axis (Temporal Correlation)

This is a method that treats alerts occurring within a specific period (e.g., 5 minutes) as "a single event."

• Pros: Easy to implement and extremely effective for cases where a specific component continuously produces errors.
• Cons: There is a risk of accidentally grouping "two unrelated failures that happened to occur at the same time" into one.

B. Aggregation by Topology Axis (Structural Correlation)

This is a method that refers to dependency maps (topology) between services and traces the path of impact propagation.

• Logic: If latency increases in "DB-Shard-04" and 5xx errors spike in the dependent "Payment-Service," these are combined as a single story with the DB as the root cause, rather than as individual failures.
• Pros: It makes it easier to identify the true Root Cause and can dramatically shorten MTTR (Mean Time To Repair).

3. Implementation Architecture of the Analytics Layer

These analyses are executed within the Analytics Layer of the AIOps platform.

[Insert image here: Configuration diagram of the real-time analysis layer using stream processing (Kafka/Flink)]

• Stream Processing (Kafka/Flink): Processes incoming alert events in real-time and runs aggregation logic within defined time windows.
• Inference Engine: Applies trained topology maps or pattern recognition models to determine the severity of incidents.

Conclusion: From Monitoring Alerts to Resolving Them

The goal of correlation analysis is not the reduction of alert volume itself. It is about clarifying what the engineer should do next (Next Action).
It is essential to build an environment where noise is minimized to the extreme, allowing for the detection of the system's root causes.

Details on specific topology map construction methods and machine learning models used for anomaly detection (such as Isolation Forest), which were not fully covered in this article, are explained in depth in the book "AIOps Practical Guide: Evolution toward Autonomous IT Operations."
